DeltaGapFeed
Description
Use the DeltaGapFeed
object to create and specify the
FeedDefinitions
property in a parent pcbComponent
object.
Creation
Description
f1=DeltaGapFeed
creates a default
DeltaGapFeed
object.
f1=DeltaGapFeed(
sets one or
more properties using name value arguments.name=value
)
Properties
SignalLocations
— Location where the delta gap feed should be centered
[0,0]
(default) | 1x2 matrix
Specifies the location where the DeltaGapFeed
should be centered as
a 1x2 matrix. The location must lie within the chosen metal layer.
The first and the second columns correspond to the X and Y coordinates in meters, respectively. The location must lie within the chosen metal layer.
Example: f1=DeltaGapFeed;f1.SignalLocations=[0.01,0.01]
Data Types: double
SignalLayers
— Board layer for the excitation site
1 (default) | scalar
Specifies the board layer for the excitation site as a scalar.
Example: f1=DeltaGapFeed;f1.SignalLayers=2
Data Types: double
SignalWidths
— Width of the delta gap feed
0.001 (default) | scalar
Specifies the width of the DeltaGapFeed
as a scalar in
meters.
Example: f1=DeltaGapFeed;f.SignalWidths=0.002
Data Types: double
CurrentDirection
— Current direction of the delta gap feed
"auto"
(default) | 1x2 unit vector
Specifies the direction of current that the DeltaGapFeed
should
produce as a 1x2 unit vector. The first and second columns of the vector contain the
x and y values, respectively, of the unit
vector.
CurrentDirection
can also take the value of
"auto"
in which case the DeltaGapFeed
will be
automatically oriented based on its width and the nearest metal edge.
Example: f1=DeltaGapFeed;f1.CurrentDirection=[0.6,0.8]
Data Types: double
| char
| string
Examples
Delta Gap Feed Setup for an Internal Port
This example shows how to use a DeltaGapFeed object to define an internal port on a pcbComponent object.
Start with the wilkinsonSplitter catalog element and convert it to a pcbComponent.
p = pcbComponent(wilkinsonSplitter);
The catalog element has a lumped load bridging the two output terminals. Save its location, then replace it by the placeholder lumpedElement.
internalPortLocation = p.Load.Location; p.Load = lumpedElement;
Switch the pcbComponent object's FeedFormat property to 'FeedDefinitions' to expose the FeedDefinitions property. Instantiate a DeltaGapFeed at the saved lumped load site and add it to the list of feeds.
p.FeedFormat = 'FeedDefinitions'; f = DeltaGapFeed('SignalLocations', internalPortLocation(1:2), 'SignalLayers', 1, 'SignalWidths', 0.5e-3, 'CurrentDirection', [0 1]); p.FeedDefinitions(end+1) = f; figure; show(p);

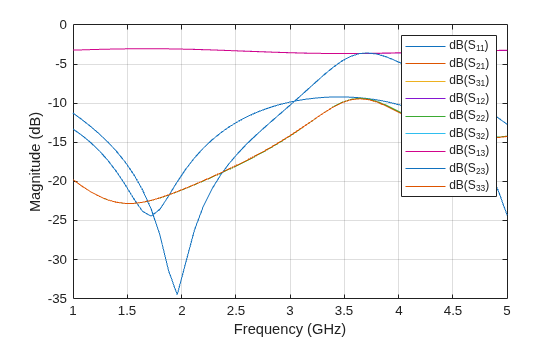

Calculate 4-port S-parameters for the splitter. Terminate the internal port into a 100-ohm resistance and plot the result.
s = sparameters(p, linspace(1e9, 5e9, 51)); s100 = snp2smp(s, 1:3, 100); figure; rfplot(s100)
Version History
Introduced in R2024b
