validatemodel

Validate quality of compact credit scorecard model

Description

example

Stats = validatemodel(csc,data) validates the quality of the compactCreditScorecard model for the data set specified using the argument data.

example

[Stats,T] = validatemodel(___,Name,Value) specifies options using one or more name-value pair arguments in addition to the input arguments in the previous syntax and returns the outputs Stats and T.

example

[Stats,T,hf] = validatemodel(___,Name,Value) specifies options using one or more name-value pair arguments in addition to the input arguments in the previous syntax and returns the outputs Stats and T and the figure handle hf to the CAP, ROC, and KS plots.

Examples

collapse all

Compute model validation statistics for a compact credit scorecard model.

To create a compactCreditScorecard object, you must first develop a credit scorecard model using a creditscorecard object.

Create a creditscorecard object using the CreditCardData.mat file to load the data (using a dataset from Refaat 2011).

load CreditCardData
sc = creditscorecard(data, 'IDVar','CustID')
sc =
  creditscorecard with properties:

                GoodLabel: 0
              ResponseVar: 'status'
               WeightsVar: ''
                 VarNames: {1x11 cell}
        NumericPredictors: {1x6 cell}
    CategoricalPredictors: {'ResStatus'  'EmpStatus'  'OtherCC'}
           BinMissingData: 0
                    IDVar: 'CustID'
            PredictorVars: {1x9 cell}
                     Data: [1200x11 table]

Perform automatic binning using the default options. By default, autobinning uses the Monotone algorithm.

sc = autobinning(sc);

Fit the model.

sc = fitmodel(sc);
1. Adding CustIncome, Deviance = 1490.8527, Chi2Stat = 32.588614, PValue = 1.1387992e-08
2. Adding TmWBank, Deviance = 1467.1415, Chi2Stat = 23.711203, PValue = 1.1192909e-06
3. Adding AMBalance, Deviance = 1455.5715, Chi2Stat = 11.569967, PValue = 0.00067025601
4. Adding EmpStatus, Deviance = 1447.3451, Chi2Stat = 8.2264038, PValue = 0.0041285257
5. Adding CustAge, Deviance = 1441.994, Chi2Stat = 5.3511754, PValue = 0.020708306
6. Adding ResStatus, Deviance = 1437.8756, Chi2Stat = 4.118404, PValue = 0.042419078
7. Adding OtherCC, Deviance = 1433.707, Chi2Stat = 4.1686018, PValue = 0.041179769

Generalized linear regression model:
    status ~ [Linear formula with 8 terms in 7 predictors]
    Distribution = Binomial

Estimated Coefficients:
                   Estimate       SE       tStat       pValue
                   ________    ________    ______    __________

    (Intercept)    0.70239     0.064001    10.975    5.0538e-28
    CustAge        0.60833      0.24932      2.44      0.014687
    ResStatus        1.377      0.65272    2.1097      0.034888
    EmpStatus      0.88565        0.293    3.0227     0.0025055
    CustIncome     0.70164      0.21844    3.2121     0.0013179
    TmWBank         1.1074      0.23271    4.7589    1.9464e-06
    OtherCC         1.0883      0.52912    2.0569      0.039696
    AMBalance        1.045      0.32214    3.2439     0.0011792


1200 observations, 1192 error degrees of freedom
Dispersion: 1
Chi^2-statistic vs. constant model: 89.7, p-value = 1.4e-16

Format the unscaled points.

sc = formatpoints(sc, 'PointsOddsAndPDO',[500,2,50]);

Convert the creditscorecard object into a compactCreditScorecard object. A compactCreditScorecard object is a lightweight version of a creditscorecard object that is used for deployment purposes.

csc = compactCreditScorecard(sc);

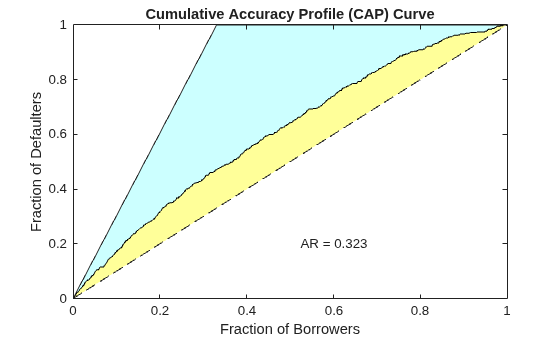

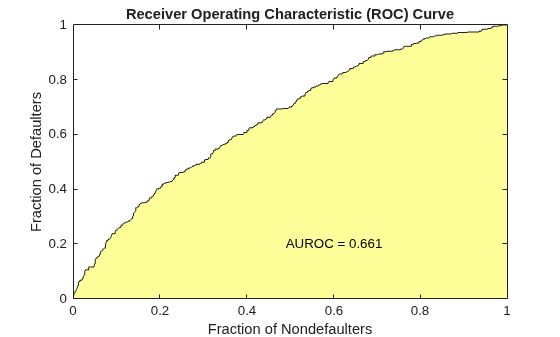

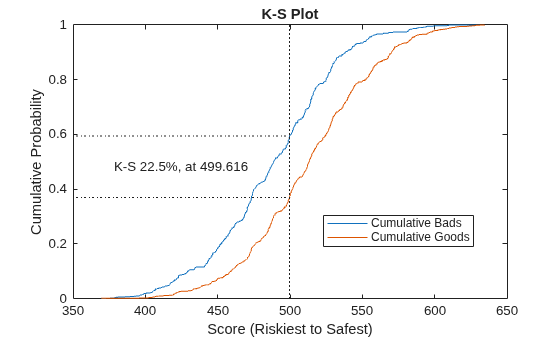

Validate the compact credit scorecard model by generating the CAP, ROC, and KS plots. This example uses the training data. However, you can use any validation data, as long as:

  • The data has the same predictor names and predictor types as the data used to create the initial creditscorecard object.

  • The data has a response column with the same name as the 'ResponseVar' property in the initial creditscorecard object.

  • The data has a weights column (if weights were used to train the model) with the same name as 'WeightsVar' property in the initial creditscorecard object.

[Stats,T] = validatemodel(csc,data,'Plot',{'CAP','ROC','KS'});

disp(Stats)
            Measure              Value
    ________________________    _______

    {'Accuracy Ratio'      }    0.32258
    {'Area under ROC curve'}    0.66129
    {'KS statistic'        }     0.2246
    {'KS score'            }     499.62
disp(T(1:15,:))
    Scores    ProbDefault    TrueBads    FalseBads    TrueGoods    FalseGoods    Sensitivity    FalseAlarm      PctObs
    ______    ___________    ________    _________    _________    __________    ___________    __________    __________

    369.54      0.75313          0           1           802          397                 0     0.0012453     0.00083333
    378.19      0.73016          1           1           802          396         0.0025189     0.0012453      0.0016667
    380.28      0.72444          2           1           802          395         0.0050378     0.0012453         0.0025
    391.49      0.69234          3           1           802          394         0.0075567     0.0012453      0.0033333
    395.57      0.68017          4           1           802          393          0.010076     0.0012453      0.0041667
    396.14      0.67846          4           2           801          393          0.010076     0.0024907          0.005
    396.45      0.67752          5           2           801          392          0.012594     0.0024907      0.0058333
    398.61      0.67094          6           2           801          391          0.015113     0.0024907      0.0066667
    398.68      0.67072          7           2           801          390          0.017632     0.0024907         0.0075
    401.33      0.66255          8           2           801          389          0.020151     0.0024907      0.0083333
    402.66      0.65842          8           3           800          389          0.020151      0.003736      0.0091667
    404.25      0.65346          9           3           800          388           0.02267      0.003736           0.01
    404.73      0.65193          9           4           799          388           0.02267     0.0049813       0.010833
    405.53      0.64941         11           4           799          386          0.027708     0.0049813         0.0125
     405.7      0.64887         11           5           798          386          0.027708     0.0062267       0.013333

Compute model validation statistics for a compact credit scorecard model with weights.

To create a compactCreditScorecard object, you must first develop a credit scorecard model using a creditscorecard object.

Use the CreditCardData.mat file to load the data (dataWeights) that contains a column (RowWeights) for the weights (using a dataset from Refaat 2011).

load CreditCardData

Create a creditscorecard object using the optional name-value pair argument 'WeightsVar'.

sc = creditscorecard(dataWeights,'IDVar','CustID','WeightsVar','RowWeights')
sc =
  creditscorecard with properties:

                GoodLabel: 0
              ResponseVar: 'status'
               WeightsVar: 'RowWeights'
                 VarNames: {1x12 cell}
        NumericPredictors: {1x6 cell}
    CategoricalPredictors: {'ResStatus'  'EmpStatus'  'OtherCC'}
           BinMissingData: 0
                    IDVar: 'CustID'
            PredictorVars: {1x9 cell}
                     Data: [1200x12 table]

Perform automatic binning. By default, autobinning uses the Monotone algorithm.

sc = autobinning(sc)
sc =
  creditscorecard with properties:

                GoodLabel: 0
              ResponseVar: 'status'
               WeightsVar: 'RowWeights'
                 VarNames: {1x12 cell}
        NumericPredictors: {1x6 cell}
    CategoricalPredictors: {'ResStatus'  'EmpStatus'  'OtherCC'}
           BinMissingData: 0
                    IDVar: 'CustID'
            PredictorVars: {1x9 cell}
                     Data: [1200x12 table]

Fit the model.

sc = fitmodel(sc);
1. Adding CustIncome, Deviance = 764.3187, Chi2Stat = 15.81927, PValue = 6.968927e-05
2. Adding TmWBank, Deviance = 751.0215, Chi2Stat = 13.29726, PValue = 0.0002657942
3. Adding AMBalance, Deviance = 743.7581, Chi2Stat = 7.263384, PValue = 0.007037455

Generalized linear regression model:
    logit(status) ~ 1 + CustIncome + TmWBank + AMBalance
    Distribution = Binomial

Estimated Coefficients:
                   Estimate       SE       tStat       pValue
                   ________    ________    ______    __________

    (Intercept)    0.70642     0.088702     7.964    1.6653e-15
    CustIncome      1.0268      0.25758    3.9862    6.7132e-05
    TmWBank         1.0973      0.31294    3.5063     0.0004543
    AMBalance       1.0039      0.37576    2.6717     0.0075464


1200 observations, 1196 error degrees of freedom
Dispersion: 1
Chi^2-statistic vs. constant model: 36.4, p-value = 6.22e-08

Format the unscaled points.

sc = formatpoints(sc,'PointsOddsAndPDO',[500,2,50]);

Convert the creditscorecard object into a compactCreditScorecard object. A compactCreditScorecard object is a lightweight version of a creditscorecard object that is used for deployment purposes.

csc = compactCreditScorecard(sc);

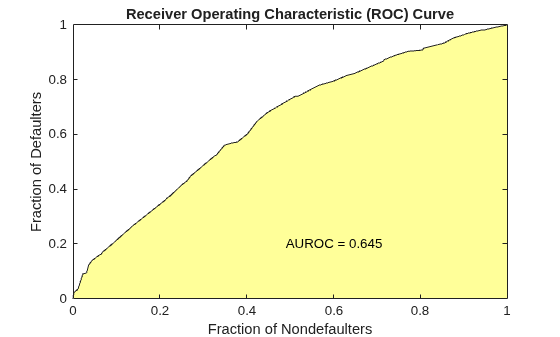

Validate the compact credit scorecard model by generating the CAP, ROC, and KS plots. When you use the optional name-value pair argument 'WeightsVar' to specify observation (sample) weights in the original creditscorecard object, the T table for validatemodel uses statistics, sums, and cumulative sums that are weighted counts.

This example uses the training data (dataWeights). However, you can use any validation data, as long as:

  • The data has the same predictor names and predictor types as the data used to create the initial creditscorecard object.

  • The data has a response column with the same name as the 'ResponseVar' property in the initial creditscorecard object.

  • The data has a weights column (if weights were used to train the model) with the same name as the 'WeightsVar' property in the initial creditscorecard object.

[Stats,T] = validatemodel(csc,dataWeights,'Plot',{'CAP','ROC','KS'});

Stats
Stats=4×2 table
            Measure              Value
    ________________________    _______

    {'Accuracy Ratio'      }    0.28972
    {'Area under ROC curve'}    0.64486
    {'KS statistic'        }    0.23215
    {'KS score'            }     505.41

T(1:10,:)
ans=10×9 table
    Scores    ProbDefault    TrueBads    FalseBads    TrueGoods    FalseGoods    Sensitivity    FalseAlarm     PctObs
    ______    ___________    ________    _________    _________    __________    ___________    __________    _________

    401.34      0.66253       1.0788           0       411.95        201.95       0.0053135             0     0.0017542
    407.59      0.64289       4.8363      1.2768       410.67        198.19        0.023821     0.0030995     0.0099405
    413.79      0.62292       6.9469      4.6942       407.25        196.08        0.034216      0.011395      0.018929
    420.04      0.60236       18.459      9.3899       402.56        184.57        0.090918      0.022794      0.045285
    437.27        0.544       18.459      10.514       401.43        184.57        0.090918      0.025523      0.047113
    442.83      0.52481       18.973      12.794       399.15        184.06        0.093448      0.031057      0.051655
    446.19      0.51319       22.396       14.15        397.8        180.64         0.11031      0.034349      0.059426
    449.08      0.50317       24.325      14.405       397.54        178.71         0.11981      0.034968      0.062978
    449.73      0.50095       28.246      18.049        393.9        174.78         0.13912      0.043813      0.075279
    452.44      0.49153       31.511      23.565       388.38        171.52          0.1552      0.057204      0.089557

Compute model validation statistics and assign points for missing data when using the 'BinMissingData' option.

  • Predictors in a creditscorecard object that have missing data in the training set have an explicit bin for <missing> with corresponding points in the final scorecard. These points are computed from the Weight-of-Evidence (WOE) value for the <missing> bin and the logistic model coefficients. For scoring purposes, these points are assigned to missing values and to out-of-range values, and after you convert the creditscorecard object to a compactCreditScorecard object, you can use the final score to compute model validation statistics with validatemodel.

  • Predictors in a creditscorecard object with no missing data in the training set have no <missing> bin, so no WOE can be estimated from the training data. By default, the points for missing and out-of-range values are set to NaN resulting in a score of NaN when running score. For predictors in a creditscorecard object that have no explicit <missing> bin, use the name-value argument 'Missing' in formatpoints to specify how the function treats missing data for scoring purposes. After converting the creditscorecard object to a compactCreditScorecard object, you can use the final score to compute model validation statistics with validatemodel.

To create a compactCreditScorecard object, you must first develop a credit scorecard model using a creditscorecard object.

Create a creditscorecard object using the CreditCardData.mat file to load dataMissing, a table that contains missing values.

load CreditCardData.mat
head(dataMissing,5)
ans=5×11 table
    CustID    CustAge    TmAtAddress     ResStatus     EmpStatus    CustIncome    TmWBank    OtherCC    AMBalance    UtilRate    status
    ______    _______    ___________    ___________    _________    __________    _______    _______    _________    ________    ______

      1          53          62         <undefined>    Unknown        50000         55         Yes       1055.9        0.22        0
      2          61          22         Home Owner     Employed       52000         25         Yes       1161.6        0.24        0
      3          47          30         Tenant         Employed       37000         61         No        877.23        0.29        0
      4         NaN          75         Home Owner     Employed       53000         20         Yes       157.37        0.08        0
      5          68          56         Home Owner     Employed       53000         14         Yes       561.84        0.11        0

Use creditscorecard with the name-value argument 'BinMissingData' set to true to bin the missing numeric or categorical data in a separate bin. Apply automatic binning.

sc = creditscorecard(dataMissing,'IDVar','CustID','BinMissingData',true);
sc = autobinning(sc);

disp(sc)
  creditscorecard with properties:

                GoodLabel: 0
              ResponseVar: 'status'
               WeightsVar: ''
                 VarNames: {1x11 cell}
        NumericPredictors: {1x6 cell}
    CategoricalPredictors: {'ResStatus'  'EmpStatus'  'OtherCC'}
           BinMissingData: 1
                    IDVar: 'CustID'
            PredictorVars: {1x9 cell}
                     Data: [1200x11 table]

To make any negative age or income information invalid or "out of range," set a minimum value of zero for 'CustAge' and 'CustIncome'. For scoring and probability-of-default computations, out-of-range values are given the same points as missing values.

sc = modifybins(sc,'CustAge','MinValue',0);
sc = modifybins(sc,'CustIncome','MinValue',0);

Display bin information for numeric data for 'CustAge' that includes missing data in a separate bin labelled <missing>.

bi = bininfo(sc,'CustAge');
disp(bi)
         Bin         Good    Bad     Odds       WOE       InfoValue
    _____________    ____    ___    ______    ________    __________

    {'[0,33)'   }     69      52    1.3269    -0.42156      0.018993
    {'[33,37)'  }     63      45       1.4    -0.36795      0.012839
    {'[37,40)'  }     72      47    1.5319     -0.2779     0.0079824
    {'[40,46)'  }    172      89    1.9326    -0.04556     0.0004549
    {'[46,48)'  }     59      25      2.36     0.15424     0.0016199
    {'[48,51)'  }     99      41    2.4146     0.17713     0.0035449
    {'[51,58)'  }    157      62    2.5323     0.22469     0.0088407
    {'[58,Inf]' }     93      25      3.72     0.60931      0.032198
    {'<missing>'}     19      11    1.7273    -0.15787    0.00063885
    {'Totals'   }    803     397    2.0227         NaN      0.087112

Display bin information for categorical data for 'ResStatus' that includes missing data in a separate bin labelled <missing>.

bi = bininfo(sc,'ResStatus');
disp(bi)
         Bin          Good    Bad     Odds        WOE       InfoValue
    ______________    ____    ___    ______    _________    __________

    {'Tenant'    }    296     161    1.8385    -0.095463     0.0035249
    {'Home Owner'}    352     171    2.0585     0.017549    0.00013382
    {'Other'     }    128      52    2.4615      0.19637     0.0055808
    {'<missing>' }     27      13    2.0769     0.026469    2.3248e-05
    {'Totals'    }    803     397    2.0227          NaN     0.0092627

For the 'CustAge' and 'ResStatus' predictors, the training data contains missing data (NaNs and <undefined> values. For missing data in these predictors, the binning process estimates WOE values of -0.15787 and 0.026469, respectively.

Because the training data contains no missing values for the 'EmpStatus' and 'CustIncome' predictors, neither predictor has an explicit bin for missing values.

bi = bininfo(sc,'EmpStatus');
disp(bi)
        Bin         Good    Bad     Odds       WOE       InfoValue
    ____________    ____    ___    ______    ________    _________

    {'Unknown' }    396     239    1.6569    -0.19947    0.021715
    {'Employed'}    407     158    2.5759      0.2418    0.026323
    {'Totals'  }    803     397    2.0227         NaN    0.048038
bi = bininfo(sc,'CustIncome');
disp(bi)
           Bin           Good    Bad     Odds         WOE       InfoValue
    _________________    ____    ___    _______    _________    __________

    {'[0,29000)'    }     53      58    0.91379     -0.79457       0.06364
    {'[29000,33000)'}     74      49     1.5102     -0.29217     0.0091366
    {'[33000,35000)'}     68      36     1.8889     -0.06843    0.00041042
    {'[35000,40000)'}    193      98     1.9694    -0.026696    0.00017359
    {'[40000,42000)'}     68      34          2    -0.011271    1.0819e-05
    {'[42000,47000)'}    164      66     2.4848      0.20579     0.0078175
    {'[47000,Inf]'  }    183      56     3.2679      0.47972      0.041657
    {'Totals'       }    803     397     2.0227          NaN       0.12285

Use fitmodel to fit a logistic regression model using Weight of Evidence (WOE) data. fitmodel internally transforms all the predictor variables into WOE values by using the bins found in the automatic binning process. fitmodel then fits a logistic regression model using a stepwise method (by default). For predictors that have missing data, there is an explicit <missing> bin, with a corresponding WOE value computed from the data. When you use fitmodel, the function applies the corresponding WOE value for the <missing> bin when performing the WOE transformation.

[sc,mdl] = fitmodel(sc);
1. Adding CustIncome, Deviance = 1490.8527, Chi2Stat = 32.588614, PValue = 1.1387992e-08
2. Adding TmWBank, Deviance = 1467.1415, Chi2Stat = 23.711203, PValue = 1.1192909e-06
3. Adding AMBalance, Deviance = 1455.5715, Chi2Stat = 11.569967, PValue = 0.00067025601
4. Adding EmpStatus, Deviance = 1447.3451, Chi2Stat = 8.2264038, PValue = 0.0041285257
5. Adding CustAge, Deviance = 1442.8477, Chi2Stat = 4.4974731, PValue = 0.033944979
6. Adding ResStatus, Deviance = 1438.9783, Chi2Stat = 3.86941, PValue = 0.049173805
7. Adding OtherCC, Deviance = 1434.9751, Chi2Stat = 4.0031966, PValue = 0.045414057

Generalized linear regression model:
    status ~ [Linear formula with 8 terms in 7 predictors]
    Distribution = Binomial

Estimated Coefficients:
                   Estimate       SE       tStat       pValue
                   ________    ________    ______    __________

    (Intercept)    0.70229     0.063959     10.98    4.7498e-28
    CustAge        0.57421      0.25708    2.2335      0.025513
    ResStatus       1.3629      0.66952    2.0356       0.04179
    EmpStatus      0.88373       0.2929    3.0172      0.002551
    CustIncome     0.73535       0.2159     3.406    0.00065929
    TmWBank         1.1065      0.23267    4.7556    1.9783e-06
    OtherCC         1.0648      0.52826    2.0156      0.043841
    AMBalance       1.0446      0.32197    3.2443     0.0011775


1200 observations, 1192 error degrees of freedom
Dispersion: 1
Chi^2-statistic vs. constant model: 88.5, p-value = 2.55e-16

Scale the scorecard points by the "points, odds, and points to double the odds (PDO)" method using the 'PointsOddsAndPDO' argument of formatpoints. Suppose that you want a score of 500 points to have odds of 2 (twice as likely to be good than to be bad) and that the odds double every 50 points (so that 550 points would have odds of 4).

Display the scorecard showing the scaled points for predictors retained in the fitting model.

sc = formatpoints(sc,'PointsOddsAndPDO',[500 2 50]);
PointsInfo = displaypoints(sc)
PointsInfo=38×3 table
     Predictors           Bin          Points
    _____________    ______________    ______

    {'CustAge'  }    {'[0,33)'    }    54.062
    {'CustAge'  }    {'[33,37)'   }    56.282
    {'CustAge'  }    {'[37,40)'   }    60.012
    {'CustAge'  }    {'[40,46)'   }    69.636
    {'CustAge'  }    {'[46,48)'   }    77.912
    {'CustAge'  }    {'[48,51)'   }     78.86
    {'CustAge'  }    {'[51,58)'   }     80.83
    {'CustAge'  }    {'[58,Inf]'  }     96.76
    {'CustAge'  }    {'<missing>' }    64.984
    {'ResStatus'}    {'Tenant'    }    62.138
    {'ResStatus'}    {'Home Owner'}    73.248
    {'ResStatus'}    {'Other'     }    90.828
    {'ResStatus'}    {'<missing>' }    74.125
    {'EmpStatus'}    {'Unknown'   }    58.807
    {'EmpStatus'}    {'Employed'  }    86.937
    {'EmpStatus'}    {'<missing>' }       NaN
      ⋮

Notice that points for the <missing> bin for 'CustAge' and 'ResStatus' are explicitly shown (as 64.9836 and 74.1250, respectively). The function computes these points from the WOE value for the <missing> bin and the logistic model coefficients.

For predictors that have no missing data in the training set, there is no explicit <missing> bin during the training of the model. By default, displaypoints reports the points as NaN for missing data resulting in a score of NaN when you use score. For these predictors, use the name-value pair argument 'Missing' in formatpoints to indicate how missing data should be treated for scoring purposes.

Use compactCreditScorecard to convert the creditscorecard object into a compactCreditScorecard object. A compactCreditScorecard object is a lightweight version of a creditscorecard object that is used for deployment purposes.

csc = compactCreditScorecard(sc);

For the purpose of illustration, take a few rows from the original data as test data and introduce some missing data. Also introduce some invalid, or out-of-range, values. For numeric data, values below the minimum (or above the maximum) are considered invalid, such as a negative value for age (recall that in a previous step, you set 'MinValue' to 0 for 'CustAge' and 'CustIncome'). For categorical data, invalid values are categories not explicitly included in the scorecard, for example, a residential status not previously mapped to scorecard categories, such as "House", or a meaningless string such as "abc123."

This example uses a very small validation data set only to illustrate the scoring of rows with missing and out-of-range values and the relationship between scoring and model validation.

tdata = dataMissing(11:200,mdl.PredictorNames); % Keep only the predictors retained in the model
tdata.status = dataMissing.status(11:200); % Copy the response variable value, needed for validation purposes
% Set some missing values
tdata.CustAge(1) = NaN;
tdata.ResStatus(2) = '<undefined>';
tdata.EmpStatus(3) = '<undefined>';
tdata.CustIncome(4) = NaN;
% Set some invalid values
tdata.CustAge(5) = -100;
tdata.ResStatus(6) = 'House';
tdata.EmpStatus(7) = 'Freelancer';
tdata.CustIncome(8) = -1;
disp(tdata(1:10,:))
    CustAge     ResStatus      EmpStatus     CustIncome    TmWBank    OtherCC    AMBalance    status
    _______    ___________    ___________    __________    _______    _______    _________    ______

      NaN      Tenant         Unknown          34000         44         Yes        119.8        1
       48      <undefined>    Unknown          44000         14         Yes       403.62        0
       65      Home Owner     <undefined>      48000          6         No        111.88        0
       44      Other          Unknown            NaN         35         No        436.41        0
     -100      Other          Employed         46000         16         Yes       162.21        0
       33      House          Employed         36000         36         Yes       845.02        0
       39      Tenant         Freelancer       34000         40         Yes       756.26        1
       24      Home Owner     Employed            -1         19         Yes       449.61        0
      NaN      Home Owner     Employed         51000         11         Yes       519.46        1
       52      Other          Unknown          42000         12         Yes       1269.2        0

Use validatemodel for a compactCreditScorecard object with the validation data set (tdata).

[ValStats,ValTable] = validatemodel(csc,tdata,'Plot',{'CAP','ROC','KS'});

disp(ValStats)
            Measure              Value
    ________________________    _______

    {'Accuracy Ratio'      }    0.35376
    {'Area under ROC curve'}    0.67688
    {'KS statistic'        }    0.32462
    {'KS score'            }     493.35
disp(ValTable(1:10,:))
    Scores    ProbDefault    TrueBads    FalseBads    TrueGoods    FalseGoods    Sensitivity    FalseAlarm     PctObs
    ______    ___________    ________    _________    _________    __________    ___________    __________    _________

    597.33          NaN         0            1           135           54                0      0.0073529     0.0052632
    598.54          NaN         0            2           134           54                0       0.014706      0.010526
    601.18          NaN         1            2           134           53         0.018519       0.014706      0.015789
     637.3          NaN         1            3           133           53         0.018519       0.022059      0.021053
       NaN      0.69421         2            3           133           52         0.037037       0.022059      0.026316
       NaN      0.65394         2            4           132           52         0.037037       0.029412      0.031579
       NaN      0.64441         2            5           131           52         0.037037       0.036765      0.036842
       NaN      0.62799         3            5           131           51         0.055556       0.036765      0.042105
    390.86      0.58964         4            5           131           50         0.074074       0.036765      0.047368
    404.09      0.57902         6            5           131           48          0.11111       0.036765      0.057895

Input Arguments

collapse all

Compact credit scorecard model, specified as a compactCreditScorecard object.

To create a compactCreditScorecard object, use compactCreditScorecard or compact from Financial Toolbox™.

Validation data, specified as a MATLAB® table, where each table row corresponds to individual observations. The data must contain columns for each of the predictors in the credit scorecard model. The columns of data can be any one of the following data types:

  • Numeric

  • Logical

  • Cell array of character vectors

  • Character array

  • Categorical

  • String

  • String array

In addition, the table must contain a binary response variable and the name of this column must match the name of the ResponseVar property in the compactCreditScorecard object. (The ResponseVar property in the compactCreditScorecard is copied from the ResponseVar property of the original creditscorecard object.)

Note

If a different validation data set is provided using the optional data input, observation weights for the validation data must be included in a column whose name matches WeightsVar from the original creditscorecard object, otherwise unit weights are used for the validation data. For more information, see Using validatemodel with Weights (Financial Toolbox).

Data Types: table

Name-Value Pair Arguments

Specify optional comma-separated pairs of Name,Value arguments. Name is the argument name and Value is the corresponding value. Name must appear inside quotes. You can specify several name and value pair arguments in any order as Name1,Value1,...,NameN,ValueN.

Example: csc = validatemodel(csc,data,'Plot','CAP')

Type of plot, specified as the comma-separated pair consisting of 'Plot' and a character vector with one of the following values:

  • 'None' — No plot is displayed.

  • 'CAP' — Cumulative Accuracy Profile. Plots the fraction of borrowers up to score “s” against the fraction of defaulters up to score “s” ('PctObs' against 'Sensitivity' columns of T optional output argument). For details, see Cumulative Accuracy Profile (CAP) (Financial Toolbox).

  • 'ROC' — Receiver Operating Characteristic. Plots the fraction of non-defaulters up to score “s” against the fraction of defaulters up to score “s” ('FalseAlarm' against 'Sensitivity' columns of T optional output argument). For details, see Receiver Operating Characteristic (ROC) (Financial Toolbox).

  • 'KS' — Kolmogorov-Smirnov. Plots each score “s” against the fraction of defaulters up to score “s,” and also against the fraction of nondefaulters up to score “s” ('Scores' against both 'Sensitivity' and 'FalseAlarm' columns of the optional output argument T). For details, see Kolmogorov-Smirnov statistic (KS) (Financial Toolbox).

    Tip

    For the Kolmogorov-Smirnov statistic option, you can enter either 'KS' or 'K-S'.

Data Types: char | cell

Output Arguments

collapse all

Validation measures, returned as a 4-by-2 table. The first column, 'Measure', contains the names of the following measures:

  • Accuracy ratio (AR)

  • Area under the ROC curve (AUROC)

  • The KS statistic

  • KS score

The second column, 'Value', contains the values corresponding to these measures.

Validation statistics data, returned as an N-by-9 table of validation statistics data, sorted by score from riskiest to safest. N is equal to the total number of unique scores, that is, scores without duplicates.

The table T contains the following nine columns, in this order:

  • 'Scores' — Scores sorted from riskiest to safest. The data in this row corresponds to all observations up to and including the score in this row.

  • 'ProbDefault' — Probability of default for observations in this row. For deciles, the average probability of default for all observations in the given decile is reported.

  • 'TrueBads' — Cumulative number of “bads” up to and including the corresponding score.

  • 'FalseBads' — Cumulative number of “goods” up to and including the corresponding score.

  • 'TrueGoods' — Cumulative number of “goods” above the corresponding score.

  • 'FalseGoods' — Cumulative number of “bads” above the corresponding score.

  • 'Sensitivity' — Fraction of defaulters (or the cumulative number of “bads” divided by total number of “bads”). This is the distribution of “bads” up to and including the corresponding score.

  • 'FalseAlarm' — Fraction of nondefaulters (or the cumulative number of “goods” divided by total number of “goods”). This is the distribution of “goods” up to and including the corresponding score.

  • 'PctObs' — Fraction of borrowers, or the cumulative number of observations, divided by total number of observations up to and including the corresponding score.

Note

When creating the creditscorecard object with creditscorecard, if the optional name-value pair argument WeightsVar was used to specify observation (sample) weights, then the T table uses statistics, sums, and cumulative sums that are weighted counts.

Figure handle to plotted measures, returned as a figure handle or array of handles. When Plot is set to 'None', hf is an empty array.

More About

collapse all

Cumulative Accuracy Profile (CAP)

CAP is generally a concave curve and is also known as the Gini curve, Power curve, or Lorenz curve.

The scores of given observations are sorted from riskiest to safest. For a given fraction M (0% to 100%) of the total borrowers, the height of the CAP curve is the fraction of defaulters whose scores are less than or equal to the maximum score of the fraction M. This fraction of defaulters is also known as the “Sensitivity.”.

The area under the CAP curve, known as the AUCAP, is then compared to that of the perfect or “ideal” model, leading to the definition of a summary index known as the accuracy ratio (AR) or the Gini coefficient:

AR=ARAP

where AR is the area between the CAP curve and the diagonal, and AP is the area between the perfect model and the diagonal. This represents a “random” model, where scores are assigned randomly and therefore the proportion of defaulters and nondefaulters is independent of the score. The perfect model is the model for which all defaulters are assigned the lowest scores, and therefore perfectly discriminates between defaulters and nondefaulters. Thus, the closer to unity AR is, the better the scoring model.

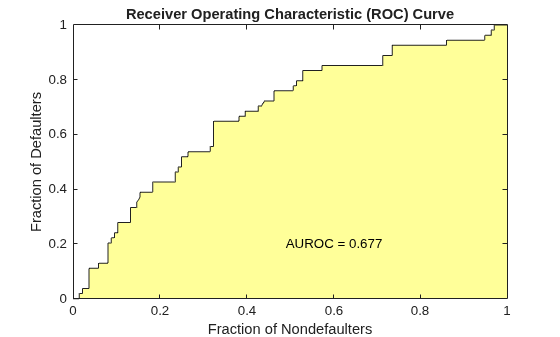

Receiver Operating Characteristic (ROC)

To find the receiver operating characteristic (ROC) curve, the proportion of defaulters up to a given score “s,” or “Sensitivity,” is computed.

This proportion is known as the true positive rate (TPR). Also, the proportion of nondefaulters up to score “s,“ or “False Alarm Rate,” is also computed. This proportion is also known as the false positive rate (FPR). The ROC curve is the plot of the “Sensitivity” vs. the “False Alarm Rate.” Computing the ROC curve is similar to computing the equivalent of a confusion matrix at each score level.

Similar to the CAP, the ROC has a summary statistic known as the area under the ROC curve (AUROC). The closer to unity, the better the scoring model. The accuracy ratio (AR) is related to the area under the curve by the following formula:

AR=2(AUROC)1

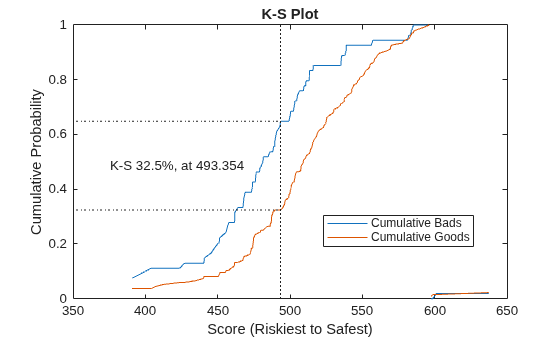

Kolmogorov-Smirnov Statistic (KS)

The Kolmogorov-Smirnov (KS) plot, also known as the fish-eye graph, is a common statistic for measuring the predictive power of scorecards.

The KS plot shows the distribution of defaulters and the distribution of nondefaulters on the same plot. For the distribution of defaulters, each score “s” is plotted against the proportion of defaulters up to “s," or “Sensitivity." For the distribution of non-defaulters, each score “s” is plotted against the proportion of nondefaulters up to "s," or "False Alarm." The statistic of interest is called the KS statistic and is the maximum difference between these two distributions (“Sensitivity” minus “False Alarm”). The score at which this maximum is attained is also of interest.

Use validatemodel with Weights

If you provide observation weights, the validatemodel function incorporates the observation weights when calculating model validation statistics.

If you do not provide weights, the validation statistics are based on how many good and bad observations fall below a particular score. If you do provide weights, the weight (not the count) is accumulated for the good and the bad observations that fall below a particular score.

When you define observation weights using the optional WeightsVar name-value pair argument when creating a creditscorecard object, the weights stored in the WeightsVar column are used when validating the model on the training data. When a different validation data set is provided using the optional data input, observation weights for the validation data must be included in a column whose name matches WeightsVar. Otherwise, the unit weights are used for the validation data set.

The observation weights of the training data affect not only the validation statistics but also the credit scorecard scores themselves. For more information, see Using fitmodel with Weights (Financial Toolbox) and Credit Scorecard Modeling Using Observation Weights (Financial Toolbox).

References

[1] “Basel Committee on Banking Supervision: Studies on the Validation of Internal Rating Systems.” Working Paper No. 14, February 2005.

[2] Refaat, M. Credit Risk Scorecards: Development and Implementation Using SAS. lulu.com, 2011.

[3] Loeffler, G. and P. N. Posch. Credit Risk Modeling Using Excel and VBA. Wiley Finance, 2007.

Introduced in R2019b
