Ackermann Kinematic Model

Car-like vehicle motion using Ackermann kinematic model

  • Ackermann Kinematic Model block

Libraries:
Robotics System Toolbox / Mobile Robot Algorithms

Description

The Ackermann Kinematic Model block creates a car-like vehicle model that uses Ackermann steering. This model represents a vehicle with two axles separated by the distance, Wheel base. The state of the vehicle is defined as a four-element vector, [x y θ ψ], with an global xy-position, vehicle heading, θ, and steering angle, ψ. The vehicle heading and xy-position are defined at the center of the rear axle. Angles are specified in radians and the global positions are specified in meters. The steering input for the vehicle is given as dψ/dt, in radians per second.

Ackermann kinematic model diagram with x, y, theta, psi, velocity, wheel base, and turning radius labeled

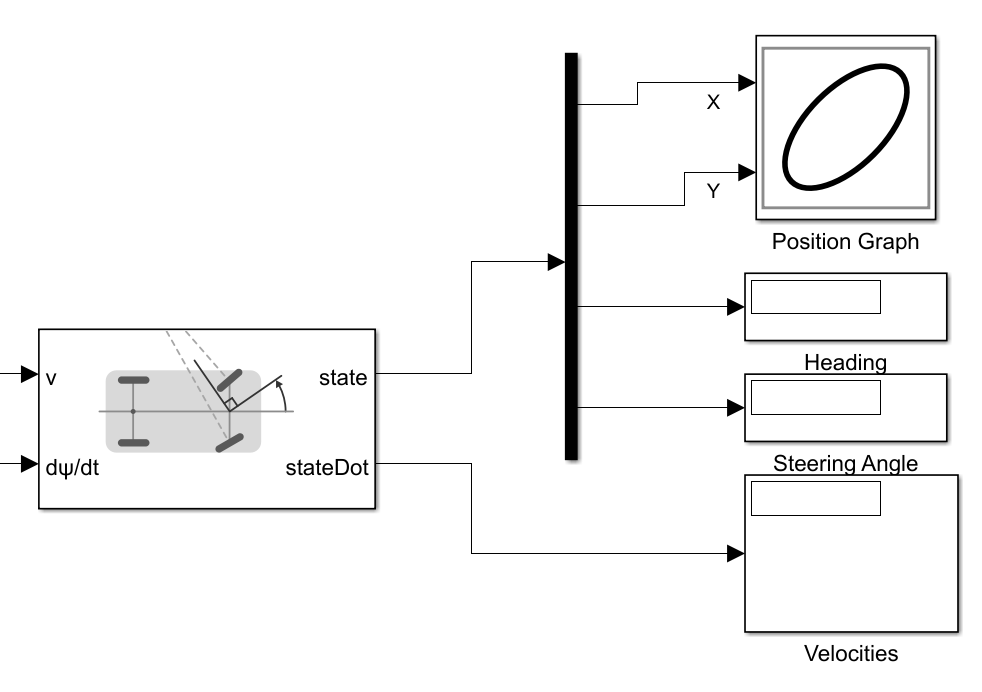

Examples

Ports

Input

expand all

Vehicle speed, specified in meters per second.

Steering angular velocity of the vehicle, specified in radians per second.

Output

expand all

Current xy-position, orientation, and steering angle, specified as [x y θ ψ], in meters and radians.

The linear and angular velocities of the vehicle, specified as a [xDot yDot thetaDot psiDot] vector in meters per second and radians per second. The linear and angular velocities are calculated by taking the time derivatives of the state output.

Parameters

expand all

The wheel base refers to the distance between the front and rear vehicle axles, specified in meters.

The wheel speed range is a two-element vector that provides the minimum and maximum vehicle wheel speeds, [MinSpeed MaxSpeed], specified in radians per second.

The maximum steering angle, refers to the maximum amount the vehicle can be steered to the right or left, specified in radians. The default value is pi/4.

The initial x-, y-position, heading angle, theta, and steering angle, psi, of the vehicle.

  • Interpreted execution — Simulate model using the MATLAB® interpreter. For more information, see Interpreted Execution vs. Code Generation (Simulink).

  • Code generation — Simulate model using generated C code. The first time you run a simulation, Simulink® generates C code for the block. The C code is reused for subsequent simulations, as long as the model does not change.

Tunable: No

References

[1] Lynch, Kevin M., and Frank C. Park. Modern Robotics: Mechanics, Planning, and Control. 1st ed. Cambridge, MA: Cambridge University Press, 2017.

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

Version History

Introduced in R2019b
