mlreportgen.dom.PageBorder Class

Namespace: mlreportgen.dom

Page borders for Microsoft Word and PDF page layouts

Since R2021b

Description

Use an object of the mlreportgen.dom.PageBorder class to specify page borders for Microsoft^® Word and PDF reports.

The mlreportgen.dom.PageBorder class is a handle class.

Class Attributes

ConstructOnLoad	true
HandleCompatible	true

For information on class attributes, see Class Attributes.

Creation

Description

pageBorder = mlreportgen.dom.PageBorder creates a PageBorder object with default properties where the border segments are solid, black, and 0.5 points wide, the top and bottom segments are one point from the page margins, and the left and right segments are four points from the page margins.

pageBorder = mlreportgen.dom.PageBorder(style) specifies the default style for all border segments.

pageBorder = mlreportgen.dom.PageBorder(style,color) also specifies the default color for all border segments.

pageBorder = mlreportgen.dom.PageBorder(style,color,width) also specifies the default width for all border segments.

pageBorder = mlreportgen.dom.PageBorder(style,color,width,margin) also specifies the default margin for all border segments.

Input Arguments

style — Type of border to draw

"dashed" | "dashdotstroked" | "dashsmallgap" | ...

Type of border to draw, specified as one of the values in the table. This argument sets the Style property.

Border Style	Description	Supported in Microsoft Word	Supported in HTML and PDF
"dashed"	Dashed line	yes	yes
"dashdotstroked"	Line with alternating diagonal dashes and dot	yes	yes
"dashsmallgap"	Dashed line with a small gap between dashes	yes	yes
"dotted"	Dotted line	yes	yes
"dotdash"	Line with alternating dots and dashes	yes	no
"dotdotdash"	Line with alternating double dots and a dash	yes	no
"double"	Double line	yes	yes
"doublewave"	Double wavy line	yes	no
"groove"	3-D effect grooved line	no	yes
"hidden"	No line When there is a conflicting border style, the "hidden" border style takes precedence over the conflicting border style, which results in no line displaying.	no	yes
"inset"	3-D effect line	no	yes
"none"	No line When there is a conflicting border style, the conflicting border style takes precedence over "none", which results in the conflicting border style displaying.	yes	yes
"outset"	3-D effect line	yes	yes
"ridge"	3-D effect ridged line	no	yes
"single"	Single line	yes	yes
"solid"	Single line	no	yes
"thick"	Thick line	yes	no
"thickthinlargegap"	Dashed line with alternating thick and thin dashes with a large gap	yes	no
"thickthinmediumgap"	Dashed line with alternating thick and thin dashes with a medium gap	yes	no
"thickthinsmallgap"	Dashed line with alternating thick and thin dashes with a small gap	yes	no
"thinthicklargegap"	Dashed line with alternating thin and thick dashes with a large gap	yes	no
"thinthickmediumgap"	Dashed line with alternating thin and thick dashes with a medium gap	yes	no
"thinthicksmallgap"	Dashed line with alternating thin and thick dashes with a small gap	yes	no
"thinthickthinlargegap"	Dashed line with alternating thin and thick dashes with a large gap	yes	no
"thinthickthinmediumgap"	Dashed line with alternating thin and thick dashes with a medium gap	yes	no
"thinthickthinsmallgap"	Dashed line with alternating thin and thick dashes with a small gap	yes	no
"threedemboss"	Embossed effect line	yes	no
"threedengrave"	Engraved effect line	yes	no
"triple"	Triple line	yes	no
"wave"	Wavy line	yes	no

Note

For Microsoft Word reports, when you assign an mlreportgen.dom.Border object to the Style property of an mlreportgen.dom.TableHeaderEntry, mlreportgen.dom.TableEntry, or mlreportgen.dom.HorizontalRule object, the reporter does not support "inset" or "outset" styles for this property.

color — Color of border

character vector | string scalar

Color of the border, specified as a character vector or string scalar that contains a CSS color name or hexadecimal RGB value.

• To use the name of a color, specify a CSS color name. For a list of CSS color names, seehttps://www.w3.org/wiki/CSS/Properties/color/keywords.

• To specify a hexadecimal RGB format, use # as the first character and two-digit hexadecimal numbers for the red, green, and blue values. For example, "#0000ff" specifies blue.

Example: "blue"

Example: "#0000ff"

This argument sets the Color property.

width — Width of border

character vector | string scalar

Width of the border, specified as character vector or string scalar that contains a number followed by an abbreviation for a unit of measurement. For example, "3pt" specifies three points. Valid abbreviations are:

• "px" — Pixels

• "cm" — Centimeters

• "in" — Inches

• "mm" — Millimeters

• "pc" — Picas

• "pt" — Points

Example: "3pt" specifies three points.

This argument sets the Width property.

Note

Microsoft Word has additional border width limitations:

• Microsoft Word limits the width of borders to the range of 0.25pt to 6pt. Out of range width assignments trigger a warning or error message depending on your chosen border style.

• Along with the range limit, these border styles have additional limitations:

  • "dashdotstroked": 3pt

  • "doublewave": 0.75pt

  • "thinthickthinmediumgap": 0.25–4.5pt

  • "thinthickthinsmallgap": 1.5–6pt

  • "threedemboss": 0.75–6pt

  • "threedengrave": 0.75–6pt

  • "triple": 0.5–3pt

  • "wave": 0.75–1.5pt

margin — Default margin of page border segments

character vector | string scalar

Default margin of the page border segments, specified as a character vector or string scalar that contains a number followed by an abbreviation for a unit of measurement. For example, "10pt" specifies ten points. Valid abbreviations are:

• "px" — Pixels

• "cm" — Centimeters

• "in" — Inches

• "mm" — Millimeters

• "pc" — Picas

• "pt" — Points

For PDF documents, the margin of a border segment is the space between the segment and the page margin. For Word documents, the margin of a border segment is the space between the segment and the page margin or between the segment and the edge of the page, depending on the value of the MeasureFrom property.

For Word documents, the Margin value must between 0 points and 31 points, or the equivalent value using other units of measurement.

This argument sets the Margin property.

Example: "10pt" specifies 10 points

Properties

Style — Default style of page border segments

"solid" (default) | "dashed" | "dashdotstroked" | "dashsmallgap" | ...

Default style of the page border segments, specified as one of these values:

Border Style	Description	Supported in Microsoft Word	Supported in PDF
"dashed"	Dashed line	yes	yes
"dashdotstroked"	Line with alternating diagonal dashes and dot	yes	yes
"dashsmallgap"	Dashed line with a small gap between dashes	yes	yes
"dotted"	Dotted line	yes	yes
"dotdash"	Line with alternating dots and dashes	yes	no
"dotdotdash"	Line with alternating double dots and a dash	yes	no
"double"	Double line	yes	yes
"doublewave"	Double wavy line	yes	no
"groove"	3-D effect grooved line	no	yes
"hidden"	No line When there is a conflicting border style, the "hidden" border style takes precedence over the conflicting border style, which results in no line displaying.	no	yes
"inset"	3-D effect line	no	yes
"none"	No line When there is a conflicting border style, the conflicting border style takes precedence over "none", which results in the conflicting border style displaying.	yes	yes
"outset"	3-D effect line	yes	yes
"ridge"	3-D effect ridged line	no	yes
"single"	Single line	yes	yes
"solid"	Single line	no	yes
"thick"	Thick line	yes	no
"thickthinlargegap"	Dashed line with alternating thick and thin dashes with a large gap	yes	no
"thickthinmediumgap"	Dashed line with alternating thick and thin dashes with a medium gap	yes	no
"thickthinsmallgap"	Dashed line with alternating thick and thin dashes with a small gap	yes	no
"thinthicklargegap"	Dashed line with alternating thin and thick dashes with a large gap	yes	no
"thinthickmediumgap"	Dashed line with alternating thin and thick dashes with a medium gap	yes	no
"thinthicksmallgap"	Dashed line with alternating thin and thick dashes with a small gap	yes	no
"thinthickthinlargegap"	Dashed line with alternating thin and thick dashes with a large gap	yes	no
"thinthickthinmediumgap"	Dashed line with alternating thin and thick dashes with a medium gap	yes	no
"thinthickthinsmallgap"	Dashed line with alternating thin and thick dashes with a small gap	yes	no
"threedemboss"	Embossed effect line	yes	no
"threedengrave"	Engraved effect line	yes	no
"triple"	Triple line	yes	no
"wave"	Wavy line	yes	no

Attributes:

GetAccess	public
SetAccess	public
NonCopyable	true

Data Types: char | string

Color — Default color of page border segments

"black" (default) | character vector | string scalar

Color of the border segments, specified as a character vector or string scalar that contains a CSS color name or hexadecimal RGB value.

• To use the name of a color, specify a CSS color name. For a list of CSS color names, seehttps://www.w3.org/wiki/CSS/Properties/color/keywords.

• To specify a hexadecimal RGB format, use # as the first character and two-digit hexadecimal numbers for the red, green, and blue values. For example, "#0000ff" specifies blue.

Example: "blue"

Example: "#0000ff"

Attributes:

GetAccess	public
SetAccess	public
NonCopyable	true

Data Types: char | string

Width — Default width of page border segments

"0.5pt" (default) | character vector | string scalar

Default width of the page border segments, specified as a character vector or string scalar that contains a number followed by an abbreviation for a unit of measurement. For example, "1pt" specifies one point. Valid abbreviations are:

• "px" — Pixels

• "cm" — Centimeters

• "in" — Inches

• "mm" — Millimeters

• "pc" — Picas

• "pt" — Points

Note

Microsoft Word has additional border width limitations:

• Microsoft Word limits the width of borders to the range of 0.25pt to 6pt. Out of range width assignments trigger a warning or error message depending on your chosen border style.

• Along with the range limit, these border styles have additional limitations:

  • "dashdotstroked": 3pt

  • "doublewave": 0.75pt

  • "thinthickthinmediumgap": 0.25–4.5pt

  • "thinthickthinsmallgap": 1.5–6pt

  • "threedemboss": 0.75–6pt

  • "threedengrave": 0.75–6pt

  • "triple": 0.5–3pt

  • "wave": 0.75–1.5pt

Example: "0.5pt"

Attributes:

GetAccess	public
SetAccess	public
NonCopyable	true

Data Types: char | string

Margin — Default margin of page border segments

[] (default) | character vector | string scalar

Default margin of the page border segments, specified as a character vector or string scalar that contains a number followed by an abbreviation for a unit of measurement. For example, "10pt" specifies ten points. Valid abbreviations are:

• "px" — Pixels

• "cm" — Centimeters

• "in" — Inches

• "mm" — Millimeters

• "pc" — Picas

• "pt" — Points

For PDF documents, the margin of a border segment is the space between the segment and the page margin. For Word documents, the margin of a border segment is the space between the segment and the page margin or between the segment and the edge of the page, depending on the value of the MeasureFrom property.

For Word documents, the Margin value must between 0 points and 31 points, or the equivalent value using other units of measurement.

Example: "10pt" specifies 10 points

Attributes:

GetAccess	public
SetAccess	public
NonCopyable	true

Data Types: char | string

MeasureFrom — Whether to measure border position border position from page margin or edge of page

"text" (default) | "pageboundary"

Whether to measure border position from the edge of the page or the edge of the text, specified as "pageboundary" or "text". The "pageboundary" value applies only to Word documents. For a PDF document, the page border is always measured from the page margin.

If the value is "text", the Margin, TopMargin, LeftMargin, BottomMargin, and RightMargin properties specify the distance between a border segment and the page margin. For example, in this Word document, the page margin is one inch and the border is twenty points from the page margin.

If the value is "pageboundary", the value of the Margin, TopMargin, LeftMargin, BottomMargin, and RightMargin properties specify the distance between the border and the edge of the page. For example, the border is 20 points from the edge of the page in this Word document:

Attributes:

GetAccess	public
SetAccess	public
NonCopyable	true

Data Types: char | string

SurroundHeader — Whether page border surrounds header region

true (default) | false

Whether the page border surrounds the header region, specified as true or false. This property applies to PDF documents or to Word documents when the MeasureFrom property is set to "text".

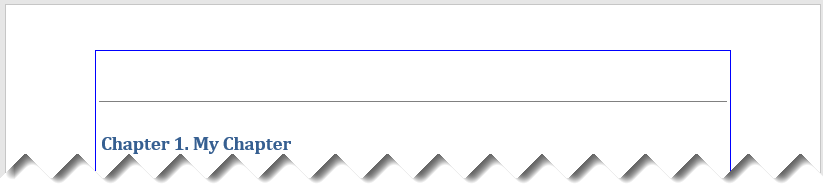

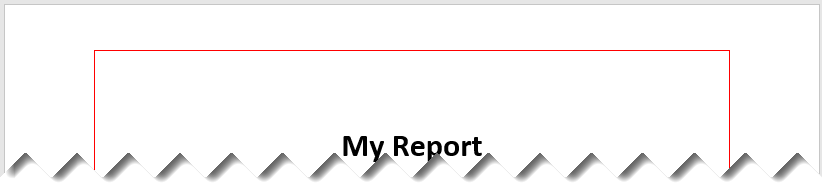

If the value is true, the border surrounds the header. For example, the border surrounds the header in this Word document:

If the value is false, the border does not surround the header. For example, The border does not surround the header in this Word document:

Note

For Word documents with multiple sections, a false value for the SurroundHeader property applies to all sections of the document. If you specify that a page border does not surround the header for one section of the document, a page border does not surround the header for any section.

Attributes:

GetAccess	public
SetAccess	public
NonCopyable	true

Data Types: logical

SurroundFooter — Whether page border surrounds footer region

true (default) | false

Whether the page border surrounds the footer region, specified as true or false. This property applies to PDF documents or to Word documents when the MeasureFrom property is set to "text".

If the value is true, the border surrounds the footer. For example, the border surrounds the footer in this Word document:

If the value is false, the border does not surround the footer. For example, the border does not surround the footer in this Word document:

Note

For Word documents with multiple sections, a false value for the SurroundFooter property, or the equivalent setting in a template, applies to all sections of the document. If you specify that a page border does not surround the footer for one section of the document, a page border does not surround the footer for any section.

Attributes:

GetAccess	public
SetAccess	public
NonCopyable	true

Data Types: logical

TopStyle — Style of top page border segment

"solid" (default) | "single" | "dashed" | ...

Style of the top page border segment, specified as one of these values in the table in the style argument.

Attributes:

GetAccess	public
SetAccess	public
NonCopyable	true

Data Types: char | string

TopColor — Color of top border segment

"black" (default) | character vector | string scalar

Color of the top border segment, specified as a character vector or string scalar that contains a CSS color name or hexadecimal RGB value.

• To use the name of a color, specify a CSS color name. For a list of CSS color names, seehttps://www.w3.org/wiki/CSS/Properties/color/keywords.

• To specify a hexadecimal RGB format, use # as the first character and two-digit hexadecimal numbers for the red, green, and blue values. For example, "#0000ff" specifies blue.

Example: "blue"

Example: "#0000ff"

Attributes:

GetAccess	public
SetAccess	public
NonCopyable	true

Data Types: char | string

TopWidth — Width of top border segment

"0.5pt" (default) | character vector | string scalar

Width of the top border segment, specified as a character vector or string scalar that contains a number followed by an abbreviation for a unit of measurement. For example, "1pt" specifies one point. Valid abbreviations are:

• "px" — Pixels

• "cm" — Centimeters

• "in" — Inches

• "mm" — Millimeters

• "pc" — Picas

• "pt" — Points

Note

Microsoft Word has additional border width limitations:

• Microsoft Word limits the width of borders to the range of 0.25pt to 6pt. Out of range width assignments trigger a warning or error message depending on your chosen border style.

• Along with the range limit, these border styles have additional limitations:

  • "dashdotstroked": 3pt

  • "doublewave": 0.75pt

  • "thinthickthinmediumgap": 0.25–4.5pt

  • "thinthickthinsmallgap": 1.5–6pt

  • "threedemboss": 0.75–6pt

  • "threedengrave": 0.75–6pt

  • "triple": 0.5–3pt

  • "wave": 0.75–1.5pt

Example: "1pt"

Attributes:

GetAccess	public
SetAccess	public
NonCopyable	true

Data Types: char | string

TopMargin — Margin of top border segment

"1pt" (default) | character vector | string scalar

Margin of the top border segment, specified as a character vector or string scalar that contains a number followed by an abbreviation for a unit of measurement. For example, "10pt" specifies ten points. Valid abbreviations are:

• "px" — Pixels

• "cm" — Centimeters

• "in" — Inches

• "mm" — Millimeters

• "pc" — Picas

• "pt" — Points

For PDF documents, the margin of a border segment is the space between the segment and the page margin. For Word documents, the margin of a border segment is the space between the segment and the page margin or between the segment and the edge of the page, depending on the value of the MeasureFrom property.

For Word documents, the TopMargin value must between 0 points and 31 points, or the equivalent value using other units of measurement.

Example: "10pt" specifies 10 points

Attributes:

GetAccess	public
SetAccess	public
NonCopyable	true

Data Types: char | string

LeftStyle — Style of left border segment

"solid" (default) | "single" | "dashed" | ...

Style of the left border segment, specified as one of these values in the table in the style argument.

Attributes:

GetAccess	public
SetAccess	public
NonCopyable	true

Data Types: char | string

LeftColor — Color of left border segment

"black" (default) | character vector | string scalar

Color of the left border segment, specified as a character vector or string scalar that contains a CSS color name or hexadecimal RGB value.

• To use the name of a color, specify a CSS color name. For a list of CSS color names, seehttps://www.w3.org/wiki/CSS/Properties/color/keywords.

• To specify a hexadecimal RGB format, use # as the first character and two-digit hexadecimal numbers for the red, green, and blue values. For example, "#0000ff" specifies blue.

Example: "blue"

Example: "#0000ff"

Attributes:

GetAccess	public
SetAccess	public
NonCopyable	true

Data Types: char | string

LeftWidth — Width of left border segment

"0.5pt" (default) | character vector | string scalar

Width of the left border segment, specified as a character vector or string scalar that contains a number followed by an abbreviation for a unit of measurement. For example, "1pt" specifies one point. Valid abbreviations are:

• "px" — Pixels

• "cm" — Centimeters

• "in" — Inches

• "mm" — Millimeters

• "pc" — Picas

• "pt" — Points

Note

Microsoft Word has additional border width limitations:

• Microsoft Word limits the width of borders to the range of 0.25pt to 6pt. Out of range width assignments trigger a warning or error message depending on your chosen border style.

• Along with the range limit, these border styles have additional limitations:

  • "dashdotstroked": 3pt

  • "doublewave": 0.75pt

  • "thinthickthinmediumgap": 0.25–4.5pt

  • "thinthickthinsmallgap": 1.5–6pt

  • "threedemboss": 0.75–6pt

  • "threedengrave": 0.75–6pt

  • "triple": 0.5–3pt

  • "wave": 0.75–1.5pt

Example: "0.5pt"

Attributes:

GetAccess	public
SetAccess	public
NonCopyable	true

Data Types: char | string

LeftMargin — Margin of left border segment

"4pt" (default) | character vector | string scalar

Margin of the left border segment, specified as a character vector or string scalar that contains a number followed by an abbreviation for a unit of measurement. For example, "10pt" specifies ten points. Valid abbreviations are:

• "px" — Pixels

• "cm" — Centimeters

• "in" — Inches

• "mm" — Millimeters

• "pc" — Picas

• "pt" — Points

For PDF documents, the margin of a border segment is the space between the segment and the page margin. For Word documents, the margin of a border segment is the space between the segment and the page margin or between the segment and the edge of the page, depending on the value of the MeasureFrom property.

For Word documents, the LeftMargin value must between 0 points and 31 points, or the equivalent value using other units of measurement.

Example: "10pt" specifies 10 points

Attributes:

GetAccess	public
SetAccess	public
NonCopyable	true

Data Types: char | string

BottomStyle — Style of bottom border segment

"solid" (default) | "single" | "dashed" | ...

Style of the bottom border segment, specified as one of these values in the table in the style argument.

Attributes:

GetAccess	public
SetAccess	public
NonCopyable	true

Data Types: char | string

BottomColor — Color of bottom border segment

"black" (default) | character vector | string scalar

Color of the bottom border segment, specified as a character vector or string scalar that contains a CSS color name or hexadecimal RGB value.

• To use the name of a color, specify a CSS color name. For a list of CSS color names, seehttps://www.w3.org/wiki/CSS/Properties/color/keywords.

• To specify a hexadecimal RGB format, use # as the first character and two-digit hexadecimal numbers for the red, green, and blue values. For example, "#0000ff" specifies blue.

Example: "blue"

Example: "#0000ff"

Attributes:

GetAccess	public
SetAccess	public
NonCopyable	true

Data Types: char | string

BottomWidth — Width of bottom border segment

"0.5pt" (default) | character vector | string scalar

Width of the bottom border segment, specified as a character vector or string scalar that contains a number followed by an abbreviation for a unit of measurement. For example, "1pt" specifies one point. Valid abbreviations are:

• "px" — Pixels

• "cm" — Centimeters

• "in" — Inches

• "mm" — Millimeters

• "pc" — Picas

• "pt" — Points

Note

Microsoft Word has additional border width limitations:

• Microsoft Word limits the width of borders to the range of 0.25pt to 6pt. Out of range width assignments trigger a warning or error message depending on your chosen border style.

• Along with the range limit, these border styles have additional limitations:

  • "dashdotstroked": 3pt

  • "doublewave": 0.75pt

  • "thinthickthinmediumgap": 0.25–4.5pt

  • "thinthickthinsmallgap": 1.5–6pt

  • "threedemboss": 0.75–6pt

  • "threedengrave": 0.75–6pt

  • "triple": 0.5–3pt

  • "wave": 0.75–1.5pt

Example: "1pt"

Attributes:

GetAccess	public
SetAccess	public
NonCopyable	true

Data Types: char | string

BottomMargin — Margin of bottom border segment

"1pt" (default) | character vector | string scalar

Margin of the bottom border segment, specified as a character vector or string scalar that contains a number followed by an abbreviation for a unit of measurement. For example, "10pt" specifies ten points. Valid abbreviations are:

• "px" — Pixels

• "cm" — Centimeters

• "in" — Inches

• "mm" — Millimeters

• "pc" — Picas

• "pt" — Points

For PDF documents, the margin of a border segment is the space between the segment and the page margin. For Word documents, the margin of a border segment is the space between the segment and the page margin or between the segment and the edge of the page, depending on the value of the MeasureFrom property.

For Word documents, the BottomMargin value must between 0 points and 31 points, or the equivalent value using other units of measurement.

Example: "10pt" specifies 10 points

Attributes:

GetAccess	public
SetAccess	public
NonCopyable	true

Data Types: char | string

RightStyle — Style of right border segment

"solid" (default) | "single" | "dashed" | ...

Style of the right border segment, specified as one of these values in the table in the style argument.

Attributes:

GetAccess	public
SetAccess	public
NonCopyable	true

Data Types: char | string

RightColor — Color of right border segment

"black" (default) | character vector | string scalar

Color of the right border segment, specified as a character vector or string scalar that contains a CSS color name or hexadecimal RGB value.

• To use the name of a color, specify a CSS color name. For a list of CSS color names, seehttps://www.w3.org/wiki/CSS/Properties/color/keywords.

• To specify a hexadecimal RGB format, use # as the first character and two-digit hexadecimal numbers for the red, green, and blue values. For example, "#0000ff" specifies blue.

Example: "blue"

Example: "#0000ff"

Attributes:

GetAccess	public
SetAccess	public
NonCopyable	true

Data Types: char | string

RightWidth — Width of right border segment

"0.5pt" (default) | character vector | string scalar

Width of the right border segment, specified as a character vector or string scalar that contains a number followed by an abbreviation for a unit of measurement. For example, "1pt" specifies one point. Valid abbreviations are:

• "px" — Pixels

• "cm" — Centimeters

• "in" — Inches

• "mm" — Millimeters

• "pc" — Picas

• "pt" — Points

Note

Microsoft Word has additional border width limitations:

• Microsoft Word limits the width of borders to the range of 0.25pt to 6pt. Out of range width assignments trigger a warning or error message depending on your chosen border style.

• Along with the range limit, these border styles have additional limitations:

  • "dashdotstroked": 3pt

  • "doublewave": 0.75pt

  • "thinthickthinmediumgap": 0.25–4.5pt

  • "thinthickthinsmallgap": 1.5–6pt

  • "threedemboss": 0.75–6pt

  • "threedengrave": 0.75–6pt

  • "triple": 0.5–3pt

  • "wave": 0.75–1.5pt

Example: "1pt"

Attributes:

GetAccess	public
SetAccess	public
NonCopyable	true

Data Types: char | string

RightMargin — Margin of right border segment

"4pt" (default) | character vector | string scalar

Margin of the right border segment, specified as a character vector or string scalar that contains a number followed by an abbreviation for a unit of measurement. For example, "10pt" specifies ten points. Valid abbreviations are:

• "px" — Pixels

• "cm" — Centimeters

• "in" — Inches

• "mm" — Millimeters

• "pc" — Picas

• "pt" — Points

For PDF documents, the margin of a border segment is the space between the segment and the page margin. For Word documents, the margin of a border segment is the space between the segment and the page margin or between the segment and the edge of the page, depending on the value of the MeasureFrom property.

For Word documents, the RightMargin value must between 0 points and 31 points, or the equivalent value using other units of measurement.

Example: "10pt" specifies 10 points

Attributes:

GetAccess	public
SetAccess	public
NonCopyable	true

Data Types: char | string

Tag — Tag

character vector | string scalar

Tag, specified as a character vector or string scalar. The DOM API generates a session-unique tag as part of the creation of this object. The generated tag has the form CLASS:ID, where CLASS is the object class and ID is the value of the Id property of the object. Use this value to help identify where an issue occurs during document generation.

Attributes:

GetAccess	public
SetAccess	public
NonCopyable	true

Data Types: char | string

Id — Object identifier

character vector | string scalar

Object identifier, specified as a character vector or string scalar. The DOM API generates a session-unique identifier when it creates the document element object.

Attributes:

GetAccess	public
SetAccess	public
NonCopyable	true

Data Types: char | string

Examples

Generate DOM API Microsoft Word Document with Page Borders

This example generates a Microsoft Word document that has solid, red, 0.5-point borders positioned 20 points from the page boundary.

Import the DOM API namespace so that you do not have to use long, fully qualified class names.

import mlreportgen.dom.*;

Create a Word document.

d = Document("myDocument","docx");
open(d);

Create a PageBorder object and specify the border style, color, and width.

pageBorder = PageBorder("solid","red","0.5pt");

Specify that the border position is relative to the page boundary and specify the margin between the page boundary and the border.

pageBorder.MeasureFrom ="pageboundary";
pageBorder.Margin = "20pt";

Set the PageBorder property of the layout associated with the document to the PageBorder object.

d.CurrentPageLayout.PageBorder = pageBorder;

Add text to the document. Close and view the document.

append(d,"The solid, red, 0.5-point border is" + ...
    " 20 points from the page boundary.");
close(d);
rptview(d);

Generate DOM API PDF Document with Page Borders

This example generates a PDF document that has solid, red, 0.5-point borders positioned 20 points from the page margins.

Import the DOM API namespace so that you do not have to use long, fully qualified class names.

import mlreportgen.dom.*;

Create a PDF document.

d = Document("myDocument","pdf");
open(d);

Create a PageBorder object and specify the style, color, width, and margin for all border segments. For PDF documents, the margin of a border segment specifies the distance between the segment and the page margin.

pageBorder = PageBorder("solid","red","0.5pt","20pt");

Set the PageBorder property of the layout associated with the document to the PageBorder object.

d.CurrentPageLayout.PageBorder = pageBorder;

Add text to the document. Close and view the document.

append(d,"The solid, red, 0.5-point border segments" +...
    "are twenty points from the margins.");
close(d);
rptview(d);

Generate a Report API Report with Page Borders

This example uses the Report API to generate a Word or PDF report that has red page borders on the title page and blue page borders on the other sections of the report.

Import the Report API and DOM API packages so that you do not have to use long, fully qualified class names.

import mlreportgen.report.*;
import mlreportgen.dom.*;

Create a Word report and specify solid, blue, 0.5-point default borders for all pages of the report. For a PDF report, replace "docx" with "pdf".

rpt = Report("myreport","docx");
rpt.Layout.PageBorder = PageBorder("solid","blue","0.5pt");

Create a title page and specify solid, red, 0.5-point borders for the title page. Append the title page to the report.

tp = TitlePage("Title","My Report");
tp.Layout.PageBorder = PageBorder("solid","red","0.5pt");
append(rpt,tp);

Create a chapter and append it to the report.

ch = Chapter("My Chapter");
append(rpt,ch);

Close and view the report.

close(rpt);
rptview(rpt);

In the generated report, the title page has red borders as specified by the title page reporter layout.

The chapter pages have the default blue borders because the chapter reporter layout did not specify page borders.

Version History

Introduced in R2021b
