Amplifier
Model amplifier in RF systems
 Library:
RF Blockset / Circuit Envelope / Elements
Description
Use the Amplifier block to model a linear or
nonlinear amplifier, with or without noise. Defining the amplifier
gain using a data source also defines input data visualization and
modeling. Use the Main tab parameters to specify
amplifier gain and noise using data sheet values, standard s2p
files,
Sparameters, or circuit envelope polynomial coefficients.
The amplifier is implemented as a polynomial, voltagecontrolled voltage source (VCVS) except
when the amplifier gain is obtained from a Data source
. The
VCVS includes nonlinearities that are described using parameters listed in the
Nonlinearity tab. To model linear amplification, the amplifier
implements the relation V_{out} =
a_{1}*V_{in} between the input and output voltages. The input voltage is V_{i}(t) =
A_{i}(t)e^{jωt}, and the output voltage is V_{o}(t) =
A_{o}(t)e^{jωt} at each carrier w = 2πf in the RF Blockset™ environment.
In case the amplifier gain is obtained from a data source, amplifier implementation is based on Sparameter data. Nonlinear amplification is modeled as a polynomial (with the saturation power computed automatically). It also produces additional intermodulation frequencies.
Amplifier block mask icons are dynamic and show the current state of the applied noise parameter. This table shows you how the icons on this block vary based on the state of the Noise figure (dB) parameter on the block.
Noise Figure (dB): 10  Noise Figure (dB): 0



Parameters
Main
Source of amplifier gain
— Amplifier gain source
Available power gain
(default)  Open circuit voltage gain
 Data source
 Polynomial coefficients
 AM/AMAM/PM table
Source of the amplifier gain, specified as one of the following:
Available power gain
— The block uses the Available power gain parameter to calculate a_{1}, the linear voltage gain term of the polynomial VCVS. This calculation assumes a matched load termination for the amplifier.Open circuit voltage gain
— The block uses the Open circuit voltage gain parameter to calculate a_{1}, the linear voltage gain term of the polynomial VCVS.Data source
— The block uses the Data source parameter to calculate the linear voltage gain. When you use the data source option, the block uses S_{11} and S_{22} as the input and output impedances.Polynomial coefficients
— The block uses the Polynomial coefficients parameter to calculate the nonlinear voltage gain.AM/AMAM/PM table
— The block uses the AM/AMAM/PM table parameter to determine the power characteristics of the amplifier.
Available power gain
— Available power gain
0 dB
(default)  scalar
Available power gain of amplifier, specified as a scalar in dB. Specify the units from the corresponding dropdown list.
Dependencies
To enable this parameter, choose Available power
gain
in the Source of amplifier
gain tab.
Open circuit voltage gain
— Open circuit voltage gain
0 dB
(default)  scalar
Open circuit voltage of amplifier, specified as a scalar in dB. Specify the units from the corresponding dropdown list.
Dependencies
To enable this parameter, choose Open circuit voltage
gain
in the Source of amplifier
gain tab.
Data source
— Data source
Data File
(default)  Networkparameters
 Rational Model
Data source, specified as one of the following:
Data file
— Name of a Touchstone file with the extension.s2p
.Networkparameters
— Provide Network parameter data such asSparameters
,Yparameters
, andZparameters
with corresponding Frequency and Reference impedance (ohms) for the amplifier.Rational model
— Provide values for Residues, Poles, and Direct feedthrough parameters which correspond to the equation for a rational model$$F(s)=\left({\displaystyle \sum _{k=1}^{n}\frac{{C}_{k}}{s{A}_{k}}+D}\right)\begin{array}{cc},& s=j2\pi f\end{array}$$
In this rational model equation, each C_{k} is the residue of the pole A_{k}. If C_{k} is complex, a corresponding complex conjugate pole and residue must also be enumerated. This object has the properties
C
,A
, andD
. You can use these properties to specify the Residues, Poles, and Direct feedthrough parameters.
When the amplifier is nonlinear, the nonlinearity applies only to the S21 term of the scattering parameters representing the 2port element. In this case, S21 is frequencyindependent with its constant value being either the maximal value of S21, or the S21 value at an Operation frequency specified by the user. The other scattering parameters, S11, S12, and S22 remain the same as in the linear case.
Dependencies
To enable this parameter, select Data
source
in Source of amplifier
gain tab.
Polynomial coefficients
— Polynomial coefficients
[0 1]
(default)  vector
Order of polynomial, specified as a vector.
The order of the polynomial must be less than or equal to 9. The
coefficients are ordered in ascending powers. If a vector has 10
coefficients,
[
,
the polynomial it represents is:a
_{0},a
_{1},a
_{2},
... a
_{9}]
V_{out} = a_{0} + a_{1}V_{in} + a_{2}V_{in}^{2} + ...
+ a_{9}V_{in}^{9}
where
a_{1} represents the linear
gain term, and higherorder terms are modeled according to [1].
For example, the vector
[
specifies the relation V_{out} = a_{0} + a_{1}V_{1} + a_{2}V_{1}^{2} + a_{3}V_{1}^{3}. Trailing zeroes are omitted. So,
a
_{0},a
_{1},a
_{2},a
_{3}][
defines the same polynomial as
a
_{0},a
_{1},a
_{2}][
. The default value of this parameter is [0,1],
corresponding to the linear relation
V_{out} =
V_{in}.a
_{0},a
_{1},a
_{2},
0]
Dependencies
To enable this parameter, select Polynomial
coefficients
in Source of amplifier
gain tab.
AM/AMAM/PM table
— Lookup table
[ 25, 5, 1; 10, 20, 2; 0, 27, 5; 5, 28,
12 ]
(default)  Mby3 real matrix
Table lookup entries specified as a real Mby3 matrix. The second column of the matrix represents the AM/AM–AM/PM model output power in dBm. The third column represents the model phase change in degrees. The second and third column values are related to the absolute value of the power of the input signal represented in the first column of matrix. The input power in the first column must increase monotonically.
Dependencies
To enable this parameter, set Source of amplifier
gain to AM/AM  AM/PM
table
.
Networkparameter object
— Network parameter objects as data source
off
(default)  on
Select this parameter to use a network parameter object as the source of amplifier gain.
Once you select this parameter, in the text box that opens, specify one of these:
Network parameter object.
MATLAB^{®} base workspace variable or a Simulink^{®} model workspace variable. The block evaluates if the specified variable is a network parameter object.
The network parameter objects that you can specify include:
Dependencies
To enable this parameter, first select Data
source
in Source of amplifier
gain, and then select
Networkparameters
in Data
source.
Network parameter type
— Network parameter type
Sparameters
(default)  Yparameters
 Zparameters
Network parameter type, specified as Sparameters
,
Yparameters
, or
Zparameters
.
Dependencies
To enable this parameter, first select Data
source
in Source of amplifier
gain and then, select
Networkparameters
in the
Data source.
Input impedance (Ohm)
— Input impedance
50
(default)  scalar
Input impedance of amplifier, specified as a scalar.
Dependencies
To enable this parameter, select Available power
gain
, Open circuit voltage
gain
, or Polynomial
coefficients
in Source of amplifier
gain.
Output impedance (Ohm)
— Output impedance
50
(default)  scalar
Output impedance of amplifier, specified as a scalar in ohms.
Dependencies
To enable this parameter, select Available power
gain
, Open circuit voltage
gain
, or Polynomial
coefficients
in Source of amplifier
gain.
Data file
— Name of network parameter data file
unitygain.s2p
(default)  character vector
Name of network parameter data file, specified as a character vector.
Dependencies
To enable this parameter, first select Data
source
in Source of amplifier
gain and then, select Data
file
in Data source.
Frequency (dB)
— Frequency of network parameters
1e9 Hz
(default)  scalar  Hz
 kHz
 MHz
 GHz
Frequency of network parameters, specified as a scalar in Hz.
Dependencies
To enable this parameter, first select Data
source
in Source of amplifier
gain and then, select
Networkparameters
in Data
source.
Reference Impedance(Ohm)
— Reference impedance of network parameters
50
(default)  scalar
Reference impedance of network parameters, specified as a scalar in ohms.
Dependencies
To enable this parameter, first select Data
source
in Source of amplifier
gain and then, select
Networkparameters
in Data
source.
Use rational object
— Rational object as data source
off
(default)  on
Select this parameter to use a rational
object as the
data source to model amplifier gain.
Once you select this parameter, in the text box that opens, specify one of these:
rational
object.MATLAB base workspace variable or a Simulink model workspace variable. The block evaluates if the specified variable is a rational object."
The rational
objects that you can specify include:
Dependencies
To enable this parameter, first select Data
source
in Source of amplifier
gain, and then select Rational
model
in Data source.
Residues
— Residues in order of rational model
0
(default)  vector
Residues in order of rational model, specified as a vector.
Dependencies
To enable this parameter, first select Data
source
in Source of amplifier
gain and then, select Rational
model
in Data source.
Poles
— Residues in order of rational model
0
(default)  vector
Poles in order of rational model, specified as a vector.
Dependencies
To enable this parameter, first select Data
source
in Source of amplifier
gain and then, select Rational
model
in Data source.
Direct feedthrough
— Direct feedthrough
{0 0:1 0}
(default)  array of vectors
Direct feedthrough, specified as an array vector.
Dependencies
To enable this parameter, first select Data
source
in Source of amplifier
gain and then, select Rational
model
in Data source.
Ground and hide negative terminals
— Ground RF circuit terminals
on
(default)  off
Select this option to ground and hide the negative terminals. Clear this parameter to expose the negative terminals. By exposing these terminals, you can connect them to other parts of your model.
By default, this option is selected.
Nonlinearity
Nonlinear polynomial type
— Type of nonlinearity
Even and odd order
(default)  Odd order
Type of nonlinearity, specified as Even and odd
order
or Odd order
.
When you select
Even and odd order
, the amplifier can produce second and thirdorder intermodulation frequencies in addition to a linear term.When you select
Odd order
, the amplifier generates only odd order intermodulation frequencies.The linear gain determines the linear a_{1} term. The block calculates the remaining terms from the specified parameters. These parameters are IP3, 1dB gain compression power, Output saturation power, and Gain compression at saturation. The number of constraints you specify determines the order of the model. The figure shows the graphical definition of the nonlinear amplifier parameters.
Intercept points convention
— Intercept points convention
Output
(default)  Input
Intercept points convention, specified a
Input
referred, or
Output
referred convention. Use this
specification for the intercept points, 1dB gain compression power, and
saturation power.
IP2
— Secondorder intercept point
inf
dBm
(default)  scalar  W
 mW
 dBW
 dBm
Secondorder intercept point, specified as a scalar.
Dependencies
To set this parameter, select Even and odd
order
in Nonlinear polynomial
type.
IP3
— Thirdorder intercept point
inf
dBm
(default)  scalar  W
 mW
 dBW
 dBm
Thirdorder intercept point, specified as a scalar.
1dB gain compression power
— 1dB gain compression power
inf dBm
(default)  scalar  W
 mW
 dBW
 dBm
1dB gain compression power, specified as a scalar.
Dependencies
To set this parameter, select Odd order
in Nonlinear polynomial type.
Output saturation power
— Output saturation power
inf dBm
(default)  scalar  W
 mW
 dBW
 dBm
Output saturation power, specified as scalar. The block uses this value to calculate the voltage saturation point used in the nonlinear model. In this case, the first derivative of the polynomial is zero, and the second derivative is negative.
Dependencies
To set this parameter, select Odd order
in Nonlinear polynomial type.
Gain compression at saturation
— Gain compression at saturation
inf dBm
(default)  scalar  W
 mW
 dBW
 dBm
Gain compression at saturation, specified as scalar.
When Nonlinear polynomial type is
Odd order
, specify the gain compression
at saturation.
Dependencies
To set this parameter, first select Odd
order
in Nonlinear polynomial
type. Then, change the default value of
Output saturation power
Use operation frequency at maximum S21 magnitude
— Specify operation frequency
off
(default)  on
Select this parameter to specify operation frequency at the maximum magnitude of S21.
Dependencies
To enable this parameter, first set Source of amplifier
gain in the Main tab to
Data source
and then specify the IP2
value in IP2 in the
Nonlinearity tab.
Operation frequency
— Operation frequency
1 GHz
(default)  scalar  finite vector  Hz
 KHz
 MHz
 GHz
Operation frequency, specified as a scalar or finite vector.
Dependencies
To enable this parameter, first choose either
Available power gain
,
Open circuit voltage gain
, or
Data source
in Source of
amplifier gain in the Main tab.
Second specify an IP2 value in IP2 in the
Nonlinearity tab. And third clear the
Pick operation frequency at maximum S21
magnitude check box.
Use constant S21 and nonlinearity
— Operation frequency
off
(default)  on
Select this parameter to use the constant magnitude of S21 and nonlinearity in your amplifier model.
Dependencies
To enable this parameter, first set Source of amplifier
gain in the Main tab to
Data source
and then, specify an IP2
value in IP2 in the
Nonlinearity tab.
Plot Power Characteristics
— Amplifier nonlinear power curve visualization
button (default)
Use this button to plot the power characteristics of the amplifier based on the nonlinearity parameters specified on the Nonlinearity tab. When you clear the Use constant S21 and nonlinearity parameter, the power curve reflects the amplifier power measured at the frequency specified in the Operation frequency parameter.
Dependencies
To enable this parameter, set Source of amplifier
gain in the Main tab to
Available power gain
,
Open circuit voltage gain
, or
Data source
.
Noise
Simulate noise
— Simulate thermal noise
on
(default)  off
Select this parameter, to simulate noise as specified in block parameters or on file.
If the noise is specified in an .s2p
file, then it
is used for simulation.
Noise type
— Noise type
Noise figure
(default)  Spot noise data
Noise type, specified as Noise figure
or
Spot noise data
.
Noise distribution
— Noise distribution
White
(default)  Piecewise linear
 Colored
Noise distribution, specified as:
White
, spectral density is a single nonnegative value. The power value of the noise depends on the bandwidth of the carrier and the bandwidth depends on the time step. This is an uncorrelated noise source.Piecewise linear
, spectral density is a vector of values [p_{i}]. For each carrier, the noise source behaves like a white uncorrelated noise. The power of the noise source is carrierdependent.Colored
, depends on both carrier and bandwidth. This is a correlated noise source.
Noise figure (dB)
— Noise figure
0 (default)  scalar
Noise figure, specified as a scalar in decibels.
Frequencies
— Frequency data
0 Hz
(default)  real scalar  finite vector
Frequency data, specified as a real scalar or finite vector in Hz, kHz, MHz, or GHz.
Dependencies
To set this parameter, first select Piecewise
linear
or Colored
in
Noise distribution.
Minimum noise figure (dB)
— Minimum noise figure
0
(default)  scalar  finite vector
Minimum noise figure, specified as a scalar or finite vector in decibels.
Dependencies
To set this parameter, first select Spot noise
data
in Noise type.
Optimal reflection coefficient
— Optimal reflection coefficient
0
(default)  scalar  finite vector
Optimal reflection coefficient, specified as a scalar or a finite vector.
Dependencies
To set this parameter, first select Spot noise
data
in Noise type.
Equivalent normalized noise resistance
— Equivalent normalized noise resistance
0
(default)  scalar  finite vector
Equivalent normalized noise resistance, specified as a scalar or finite vector.
Dependencies
To set this parameter, first select Spot noise
data
in Noise type.
Automatically estimate impulse response duration
— Automatically estimate impulse response duration
on
(default)  off
Select this parameter to automatically calculate impulse response for frequency dependent noises. Clear this parameter to manually specify the impulse response duration using Impulse response duration. You cannot specify impulse response when amplifier is nonlinear, as in this case noise is simulated as whitenoise.
Dependencies
To set this parameter, first select
Colored
in Noise
distribution.
Impulse response duration
— Impulse response duration
1e10
s
(default)  scalar
Impulse response duration used to simulate frequency dependent noise, specified as a scalar in seconds. You cannot specify impulse response if the amplifier is nonlinear.
Dependencies
To set this parameter, first clear Automatically estimate impulse response duration.
Modeling
Modeling options
— Model Sparameters
Time domain
(rationalfit)
(default)  Frequency domain
Model Sparameters, specified as:
Time domain (rationalfit)
technique creates an analytical rational model that approximates the whole range of the data. When modeling usingTime domain
, the Plot inVisualization
tab plots the data defined inData Source
and the values in therationalfit
function.Frequency domain
computes the baseband impulse response for each carrier frequency independently. This technique is based on convolution. There is an option to specify the duration of the impulse response. For more information, see Compare Time and Frequency Domain Simulation Options for Sparameters.For the Amplifier, Antenna, and SParameters blocks, the default value is
Time domain (rationalfit)
. For the Transmission Line block, the default value isFrequency domain
.
Dependencies
To set this parameter, first select Data
source
in Source of amplifier
gain. This selection activates the
Modeling Tab which contains
Modeling options
Fitting options
— Rationalfit fitting options
Fit individually
(default)  Share poles by column
 Share all poles
Rationalfit fitting options, specified as Fit
individually
, Share poles by
column
, or Share all
poles
.
Rational fitting results shows values of Number of independent fits, Number of required poles, and Relative error achieved (dB).
Dependencies
To set this parameter, select Time domain
(rationalfit)
in Modeling
options.
Relative error desired (dB)
— Relative error acceptable for the rational fit
40
(default)  scalar
Relative error acceptable for the rational fit, specified as a scalar in decibels.
Dependencies
To set this parameter, select Time domain
(rationalfit)
in Modeling
options.
Automatically estimate impulse response duration
— Automatically calculate impulse response
on
 off
Select this parameter to automatically calculate impulse response. Clear this parameter to manually specify the impulse response duration using Impulse response duration.
Dependencies
To set this parameter, select Frequency
domain
in Modeling options.
Impulse response duration
— Impulse response duration
1e10
(default)  scalar
Impulse response duration, specified as a scalar in seconds.
Dependencies
To set this parameter, first select Frequency
domain
in Modeling options.
Then, clear Automatically estimate impulse response
duration
.
Use only Sparameter magnitude with appropriate delay
— Use only Sparameter magnitude with appropriate delay
off
(default)  on
Select this parameter to Sparameter phase and delay the impulse response by half its length. This parameter is applicable only for Sparameter data modeled in time domain. You can use this parameter to shape spectral content with filter effects by specifying only magnitude.
Note
This parameter introduces an artificial delay to the system.
Visualization
Source of frequency data
— Frequency data source
Extracted from data
source
(default)  Userdefined
Frequency data source, specified as:
When Source of frequency data is
Extracted from data source
, the
Data source must be set to Data
file
. Verify that the specified Data
file contains frequency data.
When Source of frequency data is
Userspecified
, specify a vector of
frequencies in the Frequency data parameter. Also,
specify units from the corresponding dropdown list.
Dependencies
To set this parameter, first select Data
source
in Source of amplifier
gain. This selection activates the
Visualization Tab which contains
Source of frequency data
Frequency data
— Frequency data range
[1e9:1e6:3e9]
(default)  finite vector  Hz
 kHz
 MHz
 GHz
Frequency data range, specified as a finite vector.
Dependencies
To enable this parameter, set Source of frequency
data to
Userspecified
.
Plot type
— Type of data plot
XY plane
(default)  Polar plane
 Z Smith chart
 Y Smith chart
 ZY Smith chart
Type of data plot that you want to produce with your data specified as one of the following:
XY plane
— Generate a Cartesian plot of your data versus frequency. To create linear, semilog, or loglog plots, set the Yaxis scale and Xaxis scale accordingly.Polar plane
— Generate a polar plot of your data. The block plots only the range of data corresponding to the specified frequencies.Z smith chart
,Y smith chart
, andZY smith chart
— Generate a Smith^{®} chart. The block plots only the range of data corresponding to the specified frequencies.
Parameter 1
— Type of SParameters to plot
S11
(default)  S12
 S21
 S22
 NF
Type of SParameters to plot, specified as S11
,
S12
, S21
, or
S22
. When noise is spectral NF
plotting is possible.
Dependencies
To enable NF
, set Noise
type to Noise figure
and
select Apply.
Parameter 2
— Type of SParameters to plot
None
(default)  S11
 S12
 S21
 S22
 NF
Type of SParameters to plot, specified as S11
,
S12
, S21
, or
S22
. When noise is spectral NF
plotting is possible.
Dependencies
To enable NF
, set Noise
distribution to Piecewise
linear
or Colored
and
select Apply.
Format1
— Plot format
Magnitude (decibels)
(default)  Magnitude (linear)
 Angle(degrees)
 Real
 Imaginary
Plot format, specified as Magnitude (decibels)
,
Angle(degrees)
, Real
, or
Imaginary
.
Dependencies
To enable this parameter, set Plot type to
XY plane
.
Format2
— Plot format
Magnitude (decibels)
(default)  Magnitude (linear)
 Angle(degrees)
 Real
 Imaginary
Plot format, specified as Magnitude (decibels)
,
Angle(degrees)
, Real
, or
Imaginary
.
Dependencies
To enable this parameter, set Plot type to
XY plane
.
Yaxis scale
— Yaxis scale
Linear
(default)  Logarithmic
Yaxis scale, specified as Linear
or
Logarithmic
.
Dependencies
To enable this parameter, set Plot type to
XY plane
.
Xaxis scale
— Xaxis scale
Linear
(default)  Logarithmic
Xaxis scale, specified as Linear
or
Logarithmic
.
Dependencies
To enable this parameter, set Plot type to
XY plane
.
Plot
— Plot specified data
button
Plot specified data using plot button.

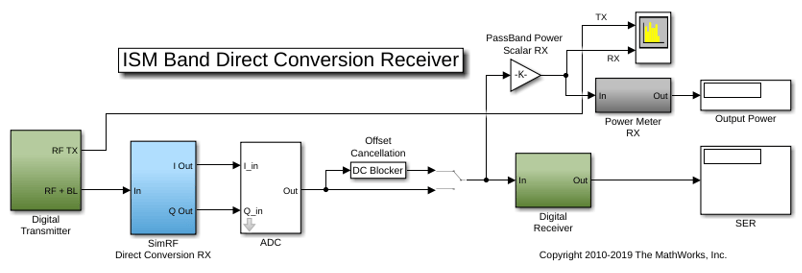

Model Examples
More About
Noise Figure Data
Noise figure represents only a subset of the noise information (spot noise data) needed to fully describe the noise behavior of a twoport device. When only noise figure is specified, RF Blockset amplifier defines the spot noise parameters in the following manner:
$$\begin{array}{l}N{F}_{\mathrm{min}}=NF\text{\hspace{0.17em}}({F}_{\mathrm{min}}={10}^{NF/10})\\ \text{\hspace{1em}}{R}_{n}={Z}_{0}\frac{{F}_{\mathrm{min}}1}{4},\text{\hspace{1em}}{Z}_{0}\in \text{R}\\ \text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}{Y}_{opt}=\frac{1}{{Z}_{0}}\end{array}$$
Amplifier exhibits specified noise figure when source impedance is matched to the reference impedance ($$Z={Z}_{0},\text{\hspace{0.17em}}{Z}_{0}\in \text{R}$$).
Spot Noise Data
Noise in RF Blockset amplifiers are represented as two correlated noise sources at the input port of a noiseless twoport:
The noise sources variance and correlation are governed by an ABCDcorrelation matrix:
that is determined by measurable quantities:
$$\begin{array}{l}{C}_{A}=2kT\left(\begin{array}{cc}{R}_{n}& \frac{N{F}_{\mathrm{min}}1}{2}{R}_{n}{Y}_{opt}^{*}\\ \frac{N{F}_{\mathrm{min}}1}{2}{R}_{n}{Y}_{opt}& {R}_{n}{\left{Y}_{opt}\right}^{2}\end{array}\right)\\ \end{array}$$
NF_{min}  Minimum noise figure
R_{n}  Equivalent noise resistance
Y_{opt}  Optimal source admittance
k  Boltzman's constant
T  Noise temperature in Kelvin
.
The above quantities are specified in the amplifier from the noise data section in
the .s2p
file or directly as masked parameters in the noise pane.
In both cases:
NF_{min} is specified in decibels
R_{n} is specified as equivalent normalized resistance, R_{N} (
R_{n} = Z_{0}R_{N}
).Y_{opt} is specified in terms of optimal reflection coefficient, Γ_{opt} (
Y_{opt} = Y_{0}(1Γ_{opt})/(1+Γ_{opt})
).
In the above, Z_{0} =
1/Y_{0}
is the reference impedance that is
real. If the Source of amplifier gain is Data
source
, the reference impedance is specified in the
.s2p
file or in the amplifier mask. Other wise the reference
impedance is 50 ohms.
The noise factor, F, of the amplifier is affected by the noisy source impedance, Z_{s}, and is determined from the ABCDcorrelation matrix:
$$\begin{array}{l}F=1+\frac{{z}^{+}{C}_{A}z}{2kT\mathrm{Re}\left\{{Z}_{S}\right\}}\\ z=\left(\begin{array}{l}1\\ {Z}_{S}^{*}\end{array}\right)\end{array}$$
The noise figure, NF, is obtained from the noise factor using, NF =
10log(F)
.
References
[1] Gonzalez, Guillermo. “Microwave Transistor Amplifiers: Analysis and Design”, Englewood Cliffs, N.J.: PrenticeHall, 1984.
[2] Grob, Siegfried and Juergen Lindner. “Polynomial Model Derivation of Nonlinear Amplifiers, Department of Information Technology, University of Ulm, Germany.
[3] Kundert, Ken. “Accurate and Rapid Measurement of IP _{2} and IP _{3}”, The Designers Guide Community, Version 1b, May 22, 2002. http://www.designersguide.org/analysis/interceptpoint.pdf.
[4] Pozar, David M. “Microwave Engineering”, Hoboken NJ: John Wiley & Sons, 2005.
Version History
Introduced in R2010bR2022b: Three new parameters added
The Amplifier block has three new parameters.
Networkparameter object — Use this parameter to specify a network parameter object as the source of amplifier gain.
Use rational object — Use this parameter to specify a
rational
object as the source of amplifier gain.Plot power characteristics — Use this button to plot the power characteristics of an amplifier based on the specified nonlinearities.
R2022b: Two block parameters renamed
The Pick operation frequency at maximum S21 magnitude and Frequency data parameters have been renamed to Use operation frequency at maximum S21 magnitude and Source of frequency data, respectively .
When you open a model created before R2022b containing the Amplifier block, the software replaces the old parameter names with the new names.
R2022a: Modeling noise in nonlinear circuit envelope amplifier
The Amplifier block now enables you to model frequencydependent noise as colored noise when your amplifier operates in a nonlinear region.
When you open a model created before R2022a containing the Amplifier block operating in a nonlinear region with frequencydependent noise, the software models the noise as specified in the block.
R2022a: Two new parameters added
The Amplifier block has two new parameters.
AM/AMAM/PM table — Use this parameter to specify amplifier power characteristics using AM/AMAM/PM table.
Use constant S21 and nonlinearity — Use this parameter to model frequencydependent gain (S21) when operating in a nonlinear region.
R2021b: Amplifier block icon updated
Starting in R2021b, the Amplifier block icon has updated. The block icon is now dynamic and shows the current state of the noise parameter.
When you open a model created before R2021b containing an Amplifier block, the software replaces the block icon with the R2021b version.
See Also
MATLAB Command
You clicked a link that corresponds to this MATLAB command:
Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
 América Latina (Español)
 Canada (English)
 United States (English)
Europe
 Belgium (English)
 Denmark (English)
 Deutschland (Deutsch)
 España (Español)
 Finland (English)
 France (Français)
 Ireland (English)
 Italia (Italiano)
 Luxembourg (English)
 Netherlands (English)
 Norway (English)
 Österreich (Deutsch)
 Portugal (English)
 Sweden (English)
 Switzerland
 United Kingdom (English)
