Friction Model with Hard Stops

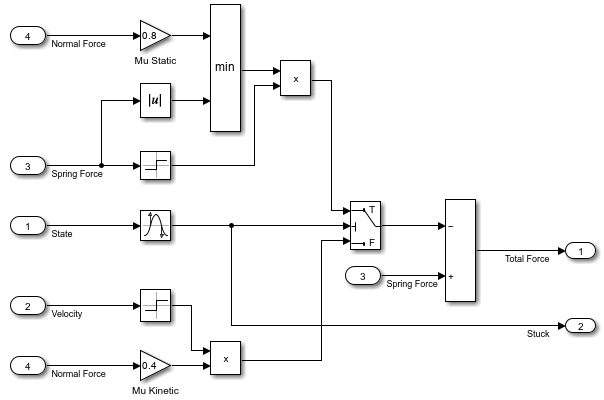

This example shows how to model friction one way in Simulink®. The two integrators in the model calculate the velocity and position of the system, which is then used in the Friction Model to calculate the friction force.

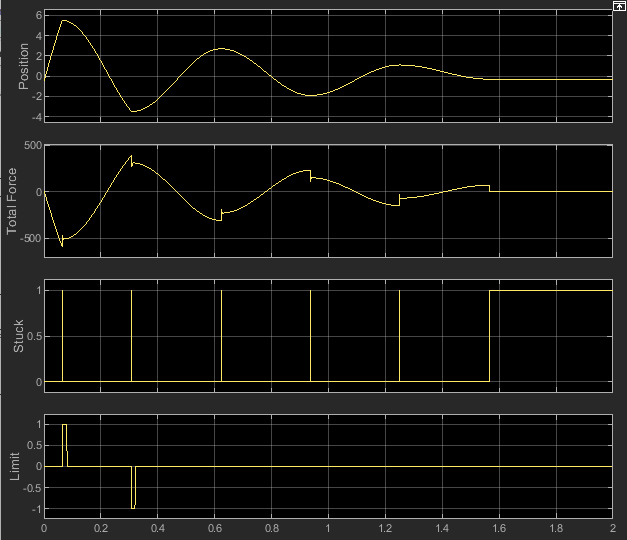

Running the simulation shows the initial condition response on the Scope.
