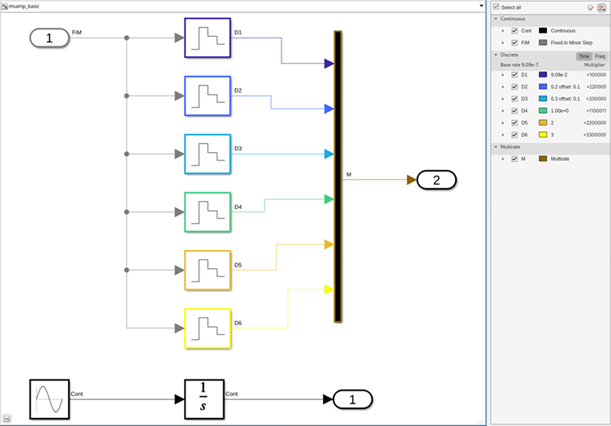

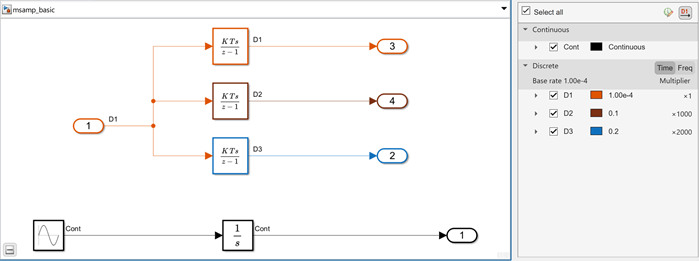

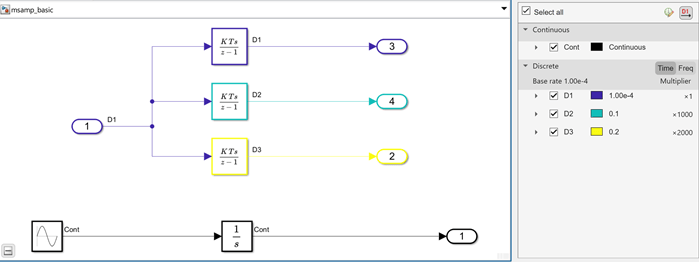

Simulink® models can display color coding and annotations that represent specific sample times. Each sample time type has one or more colors associated with it. You can display the blocks and signal lines in color, the annotations in black, or both. To select one of these options:
To enable colors, in the Simulink model window, on the Debug tab, select Information Overlays > Colors.
To enable annotations, on the Debug tab, select Information Overlays > Text.
Selecting both Colors and Text displays both the colors and the annotations. Regardless of your choice, Simulink performs an Update Model automatically.
To turn off the colors and annotations:
On the Debug tab, select Information Overlays > Colors to disable colors.
On the Debug tab, select Information Overlays > Text to disable annotations.
Simulink performs another Update Model automatically.
Your Sample Time Display choices directly control the information that the Timing Legend displays.
The discrete sample times in the table Designations of Sample Time Information represent a special case. Five colors indicate the speed through the fifth fastest discrete rate. A sixth color, orange, represents all rates that are slower than the fifth discrete rate. You can distinguish between these slower rates by looking at the annotations on their respective signal lines.

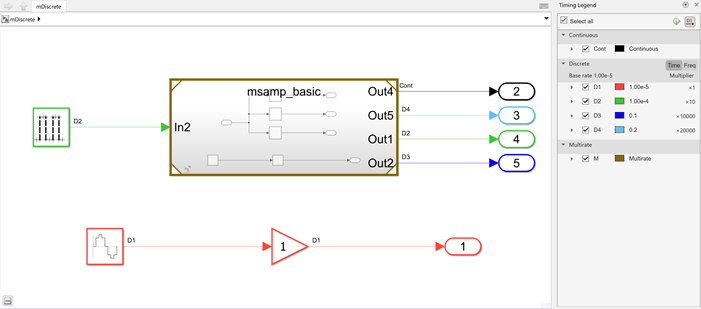

You can view the Timing Legend for an individual model or for multiple models. Additionally, you can prevent the legend from automatically opening when you select options on the Sample Time menu.
To assist you with interpreting a block diagram, the Timing Legend contains the sample time color, annotation, and value for each sample time in the model. To view the legend:
In the Simulink model window, on the Modeling tab, click Update Model.
On the Debug tab, select Information Overlays > Legendor press Ctrl + J.
In addition, when you select Colors or Text, Simulink updates the model diagram and opens the legend by default. The legend contents reflect your choices. If you turn colors on, the legend displays the color and the value of the sample time. Similarly, if you turn annotations on, the annotations appear in the legend.
The legend displays sample times present in the model, classified by the type of the sample time.
The legend provides two types of highlighting options:
Highlighting the blocks and signals that the sample time originates from.
Highlighting all the blocks and signals that contain the selected sample time.
To enable highlighting of the origin of the sample times, click the
Origin option from the Highlight
menu. You can also click the type of the sample time to highlight all sources of a
particular type of sample time.
To enable highlighting of all the blocks that contain a selected sample time,
All option from the
Highlight menu. You can also click the type of the sample
time to highlight all the blocks and signals that contain the select type of sample
None option from the Highlight
menu clears current highlighting.
The button shows discrete value as 1/period when the discrete sample time is present. When clicked, the discrete period is displayed as 1/period; for a nonzero offset, it displays as offset/period. The image shows 1/period values and the corresponding highlighted block in the model.
The Timing Legend displays all of the sample times in the model, including those that are not associated with any block. For example, if the fixed step size is 0.1 and all of the blocks have a sample time of 0.2, then both rates (0.1 and 0.2) appear in the legend.
For subsequent viewings of the legend, update the diagram to access the latest known information.
If you do not want to view the legend upon selecting Sample Time Display:
In the Simulink Editor, on the Modeling tab, select Environment > Simulink Preferences
In the General pane, clear Open the timing legend when the sample time display is changed and click Apply.
The Model Data Editor (on the Modeling tab, click
Model Data Editor) shows information about model data
(signals, parameters, and states) in a sortable, searchable table. The
Sample Time column shows the sample time specified for each
signal in a model. After you update the block diagram, the column also shows the
specific sample that each signal uses (for example, for signals for which you
specify inherited sample time,
-1). You can also use this column
to specify sample times.
For more information about the Model Data Editor, see Configure Data Properties by Using the Model Data Editor.
