Analyze Model Dependencies

Examine models, subsystems, and libraries referenced directly or indirectly by the model using the Dependency Analyzer. Use the dependency graph to identify all required files and products. To package, share, or put your design under source control, create a project from your model. For more details, see Create a Project from a Model.

Open and Explore Dependency Graph

1. Open the sldemo_mdlref_depgraph model.


2. To open the model dependency graph, on the Modeling tab, on the far right of the Design section, click the arrow. Under System Design, click Dependency Analyzer.

The Dependency Analyzer opens the dependency graph using the Model Hierarchy view by default. To switch to the model instances view, in the Views section, click Model Instances. For more details, see Model Dependency Views.

3. To view the dependencies laid out horizontally, in the Layout section, click Horizontal.

4. In the dependency graph, double-click a box to open the corresponding model in the Simulink® editor.

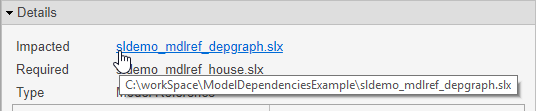

5. To see more information about how two files are related, select their dependency arrow. In the Properties pane, in the Details section, you can see the full paths of the files you are examining, the dependency type, and where the dependency is introduced.

To open the file and highlight where the dependency is introduced, in the Details section, click the link under Impacted.

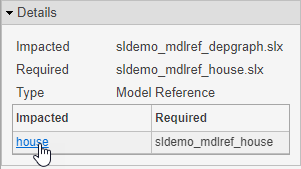

For example, to open the sldemo_mdlref_depgraph model and highlight where the dependency to the sldemo_mdlref_house block is introduced, select the dependency arrow between sldemo_mdlref_depgraph and sldemo_mdlref_house. In the Properties pane on the right, under Impacted, click sldemo_mdlref_depgraph/house.

Model Dependency Views

You can explore model dependencies using the model hierarchy or the model instances views.

Model Hierarchy View

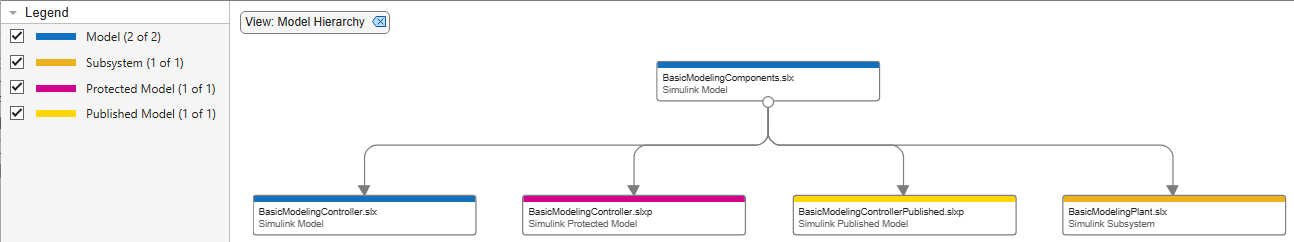

The Model Hierarchy view shows the model, subsystem, library and data dictionary files referenced by a top model.

  • A referenced file appears only once in the view even if it is referenced more than once in the model.

  • Blue boxes represent model files, red boxes represent libraries, and yellow boxes represent subsystem references. Arrows represent dependencies. For example, the arrows in this example indicate that the aero_guidance model references two libraries: aerospace and simulink_need_slupdate.

  • An arrow from a library that points to itself indicates that the library references itself. Blocks in the library reference other blocks in that same library. The example view shows that the libraries aerospace and simulink_need_slupdate reference themselves.

  • Dark red boxes represent protected models (.slxp files). You cannot open or edit protected referenced models. See Reference Protected Models from Third Parties.

Model Instances View

The Model Instances view shows every reference to a model in a model reference hierarchy with the top model at the root of the hierarchy. Boxes represent the top model and its references. See Model References.

  • If a model hierarchy references the same model more than once, the referenced model appears multiple times in the instance view, once for each reference. This example graph shows that the model reference hierarchy for sldemo_mdlref_depgraph contains two references to the model sldemo_mdlref_F2C.

  • Yellow boxes represent accelerated-mode instances, red boxes represent normal-mode instances, purple boxes represent processor-in-the-loop mode instances, and green boxes represent software-in-the-loop mode instances. See Choose Simulation Modes for Model Hierarchies.

    The previous example graph shows that one of the references to sldemo_mdlref_F2C operates in normal mode and the other operates in accelerated mode.

  • The Dependency Analyzer detects when a simulation mode is overridden and appends (Overridden) to the simulation mode. If a referenced model is configured to run in normal mode and it runs in accelerator mode, its simulation mode is overridden. This occurs when another model that runs in accelerator mode directly or indirectly references it.

Find Required Products

To find required products and toolboxes for a file in your design, select a box in the dependency graph. The Dependency Analyzer shows the list of required products by your selection in the Products section in the Properties pane.

To find required toolboxes for the whole design, click the graph background to clear all selection. Examine the list of products in the Products section in the Properties pane.

To highlight files that use a certain product in the graph, for example Simulink®, in the Products section, in the Properties pane, point to product and click the magnifying glass icon .

To go through these files, use the arrows in the search box (e.g., Files using "productName").

To undo the highlighting, close the search box.

Export Files in the Dependency Graph

To export all the files displayed in the dependency graph, click the graph background to clear the selection on all files. In the Dependency Analyzer toolstrip, in the Export section, click Export. Select from the available options:

  • Export to Workspace — Save the selected file paths to a variable in the workspace.

  • Export to File — Save the dependency graph as a graphml file.
