Board setup

Open a board-specific dialog box to set up the data acquisition board for Simulink Desktop Real-Time

Description

From the block parameters dialog box for a Simulink® Desktop Real-Time™ block, the Board setup dialog box lets you setup the data acquisition board.

From the block parameters dialog box for a Simulink Desktop Real-Time block, the Board setup dialog box lets you setup the data acquisition board. For more information, see the board manufacturer documentation. Supported hardware board manufacturers include:

For a list of supported boards and board feature comparison information, see Hardware Support from Simulink Desktop Real-Time.

Open the Board setup

To open the Board setup dialog box:

  1. Open the block parameters dialog box for a Simulink Desktop Real-Time block.

  2. Either:

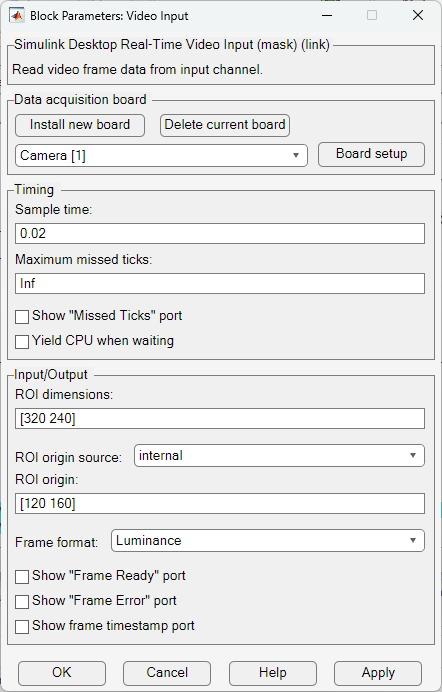

    • If < no board installed > for the Data acquisition board, click the Install new board button. After you select and install a board, the Board setup dialog box opens.

    • If a board is installed, click the Board setup button.
