Open Stateflow template page

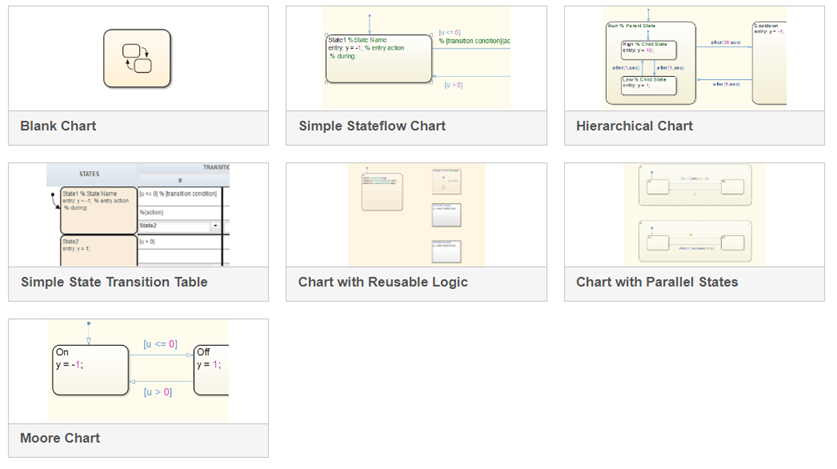

stateflow opens the Simulink® template page for Stateflow®. From this page, you can select one of several common chart types, including models that contain:

  • An empty Stateflow chart

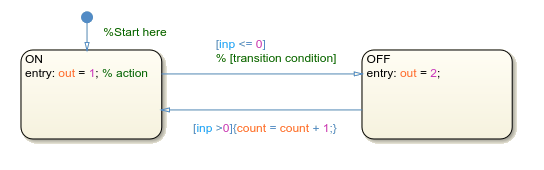

  • A Stateflow chart with two states

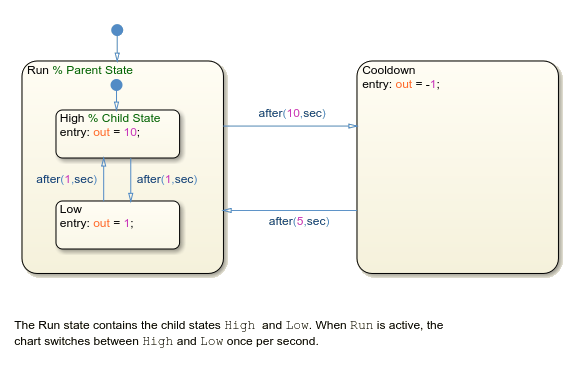

  • A Stateflow chart with nested states

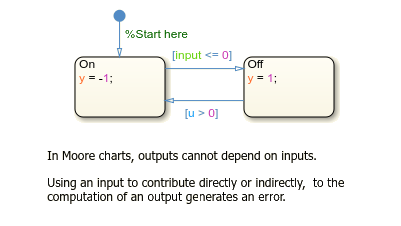

  • A Stateflow chart that uses Moore semantics

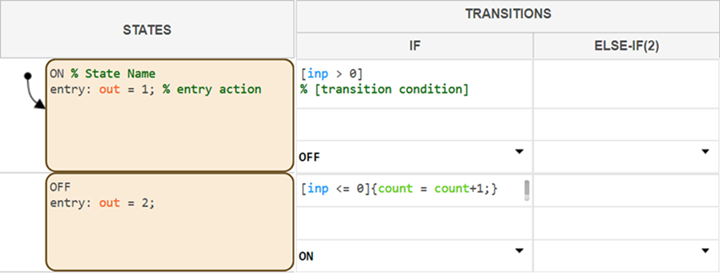

  • A state transition table

Version History

Introduced before R2006a
