margin

Classification margins for neural network classifier

    Description

    example

    m = margin(Mdl,Tbl,ResponseVarName) returns the classification margins for the trained neural network classifier Mdl using the predictor data in table Tbl and the class labels in the ResponseVarName table variable.

    m is returned as a numeric vector, whose ith entry corresponds to the ith observation in Tbl.

    m = margin(Mdl,Tbl,Y) returns the classification margins for the classifier Mdl using the predictor data in table Tbl and the class labels in vector Y.

    m = margin(Mdl,X,Y) returns the classification margins for the trained neural network classifier Mdl using the predictor data X and the corresponding class labels in Y.

    m is returned as a numeric vector, whose ith entry corresponds to the ith observation in X.

    m = margin(Mdl,X,Y,'ObservationsIn',dimension) specifies the predictor data observation dimension, either 'rows' (default) or 'column'. For example, specify 'ObservationsIn','columns' to indicate that columns in the predictor data correspond to observations.

    Examples

    collapse all

    Calculate the test set classification margins of a neural network classifier.

    Load the patients data set. Create a table from the data set. Each row corresponds to one patient, and each column corresponds to a diagnostic variable. Use the Smoker variable as the response variable, and the rest of the variables as predictors.

    load patients
    tbl = table(Diastolic,Systolic,Gender,Height,Weight,Age,Smoker);

    Separate the data into a training set tblTrain and a test set tblTest by using a stratified holdout partition. The software reserves approximately 30% of the observations for the test data set and uses the rest of the observations for the training data set.

    rng("default") % For reproducibility of the partition
    c = cvpartition(tbl.Smoker,"Holdout",0.30);
    trainingIndices = training(c);
    testIndices = test(c);
    tblTrain = tbl(trainingIndices,:);
    tblTest = tbl(testIndices,:);

    Train a neural network classifier using the training set. Specify the Smoker column of tblTrain as the response variable. Specify to standardize the numeric predictors.

    Mdl = fitcnet(tblTrain,"Smoker", ...
        "Standardize",true);

    Calculate the test set classification margins. Because the test set includes only 30 observations, display the margins using a bar graph.

    m = margin(Mdl,tblTest,"Smoker");
    bar(m)
    xlabel("Observation")
    ylabel("Margin")
    title("Test Set Margins")

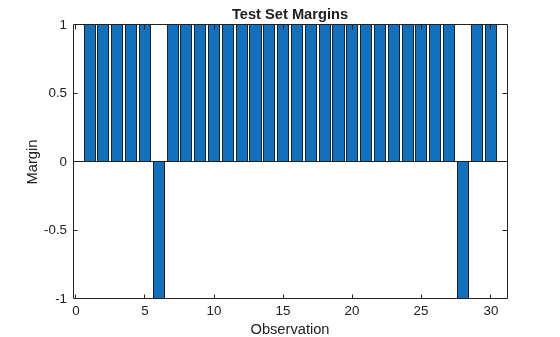

    Only the sixth and twenty-eighth observations have negative margins, which indicates that the model performs well overall.

    Perform feature selection by comparing test set classification margins, edges, errors, and predictions. Compare the test set metrics for a model trained using all the predictors to the test set metrics for a model trained using only a subset of the predictors.

    Load the sample file fisheriris.csv, which contains iris data including sepal length, sepal width, petal length, petal width, and species type. Read the file into a table.

    fishertable = readtable('fisheriris.csv');

    Separate the data into a training set trainTbl and a test set testTbl by using a stratified holdout partition. The software reserves approximately 30% of the observations for the test data set and uses the rest of the observations for the training data set.

    rng("default")
    c = cvpartition(fishertable.Species,"Holdout",0.3);
    trainTbl = fishertable(training(c),:);
    testTbl = fishertable(test(c),:);

    Train one neural network classifier using all the predictors in the training set, and train another classifier using all the predictors except PetalWidth. For both models, specify Species as the response variable, and standardize the predictors.

    allMdl = fitcnet(trainTbl,"Species","Standardize",true);
    subsetMdl = fitcnet(trainTbl,"Species ~ SepalLength + SepalWidth + PetalLength", ...
        "Standardize",true);

    Calculate the test set classification margins for the two models. Because the test set includes only 45 observations, display the margins using bar graphs.

    For each observation, the classification margin is the difference between the classification score for the true class and the maximal score for the false classes. Because neural network classifiers return classification scores that are posterior probabilities, margin values close to 1 indicate confident classifications and negative margin values indicate misclassifications.

    tiledlayout(2,1)

    % Top axes
    ax1 = nexttile;
    allMargins = margin(allMdl,testTbl);
    bar(ax1,allMargins)
    xlabel(ax1,"Observation")
    ylabel(ax1,"Margin")
    title(ax1,"All Predictors")

    % Bottom axes
    ax2 = nexttile;
    subsetMargins = margin(subsetMdl,testTbl);
    bar(ax2,subsetMargins)
    xlabel(ax2,"Observation")
    ylabel(ax2,"Margin")
    title(ax2,"Subset of Predictors")

    Compare the test set classification edge, or mean of the classification margins, of the two models.

    allEdge = edge(allMdl,testTbl)
    allEdge = 0.8198

    subsetEdge = edge(subsetMdl,testTbl)
    subsetEdge = 0.9556


    Based on the test set classification margins and edges, the model trained on a subset of the predictors seems to outperform the model trained on all the predictors.

    Compare the test set classification error of the two models.

    allError = loss(allMdl,testTbl);
    allAccuracy = 1-allError
    allAccuracy = 0.9111

    subsetError = loss(subsetMdl,testTbl);
    subsetAccuracy = 1-subsetError
    subsetAccuracy = 0.9778


    Again, the model trained using only a subset of the predictors seems to perform better than the model trained using all the predictors.

    Visualize the test set classification results using confusion matrices.

    allLabels = predict(allMdl,testTbl);
    figure
    confusionchart(testTbl.Species,allLabels)
    title("All Predictors")

    subsetLabels = predict(subsetMdl,testTbl);
    figure
    confusionchart(testTbl.Species,subsetLabels)
    title("Subset of Predictors")

    The model trained using all the predictors misclassifies four of the test set observations. The model trained using a subset of the predictors misclassifies only one of the test set observations.

    Given the test set performance of the two models, consider using the model trained using all the predictors except PetalWidth.

    Input Arguments

    collapse all

    Trained neural network classifier, specified as a ClassificationNeuralNetwork model object or CompactClassificationNeuralNetwork model object returned by fitcnet or compact, respectively.

    Sample data, specified as a table. Each row of Tbl corresponds to one observation, and each column corresponds to one predictor variable. Optionally, Tbl can contain an additional column for the response variable. Tbl must contain all of the predictors used to train Mdl. Multicolumn variables and cell arrays other than cell arrays of character vectors are not allowed.

    • If Tbl contains the response variable used to train Mdl, then you do not need to specify ResponseVarName or Y.

    • If you trained Mdl using sample data contained in a table, then the input data for margin must also be in a table.

    • If you set 'Standardize',true in fitcnet when training Mdl, then the software standardizes the numeric columns of the predictor data using the corresponding means and standard deviations.

    Data Types: table

    Response variable name, specified as the name of a variable in Tbl. If Tbl contains the response variable used to train Mdl, then you do not need to specify ResponseVarName.

    If you specify ResponseVarName, then you must specify it as a character vector or string scalar. For example, if the response variable is stored as Tbl.Y, then specify ResponseVarName as 'Y'. Otherwise, the software treats all columns of Tbl, including Tbl.Y, as predictors.

    The response variable must be a categorical, character, or string array; a logical or numeric vector; or a cell array of character vectors. If the response variable is a character array, then each element must correspond to one row of the array.

    Data Types: char | string

    Class labels, specified as a categorical, character, or string array; logical or numeric vector; or cell array of character vectors.

    • The data type of Y must be the same as the data type of Mdl.ClassNames. (The software treats string arrays as cell arrays of character vectors.)

    • The distinct classes in Y must be a subset of Mdl.ClassNames.

    • If Y is a character array, then each element must correspond to one row of the array.

    • The length of Y must be equal to the number of observations in X or Tbl.

    Data Types: categorical | char | string | logical | single | double | cell

    Predictor data, specified as a numeric matrix. By default, margin assumes that each row of X corresponds to one observation, and each column corresponds to one predictor variable.

    Note

    If you orient your predictor matrix so that observations correspond to columns and specify 'ObservationsIn','columns', then you might experience a significant reduction in computation time.

    The length of Y and the number of observations in X must be equal.

    If you set 'Standardize',true in fitcnet when training Mdl, then the software standardizes the numeric columns of the predictor data using the corresponding means and standard deviations.

    Data Types: single | double

    Predictor data observation dimension, specified as 'rows' or 'columns'.

    Note

    If you orient your predictor matrix so that observations correspond to columns and specify 'ObservationsIn','columns', then you might experience a significant reduction in computation time. You cannot specify 'ObservationsIn','columns' for predictor data in a table.

    Data Types: char | string

    More About

    collapse all

    Classification Edge

    The classification edge is the mean of the classification margins.

    One way to choose among multiple classifiers, for example, to perform feature selection, is to choose the classifier that yields the greatest edge.

    Classification Margin

    The classification margin for binary classification is, for each observation, the difference between the classification score for the true class and the classification score for the false class. The classification margin for multiclass classification is the difference between the classification score for the true class and the maximal score for the false classes.

    If the margins are on the same scale (that is, the score values are based on the same score transformation), then they serve as a classification confidence measure. Among multiple classifiers, those that yield greater margins are better.
