Optimize a Boosted Regression Ensemble

This example shows how to optimize hyperparameters of a boosted regression ensemble. The optimization minimizes the cross-validation loss of the model.

The problem is to model the efficiency in miles per gallon of an automobile, based on its acceleration, engine displacement, horsepower, and weight. Load the carsmall data, which contains these and other predictors.

load carsmall
X = [Acceleration Displacement Horsepower Weight];
Y = MPG;

Fit a regression ensemble to the data using the LSBoost algorithm, and using surrogate splits. Optimize the resulting model by varying the number of learning cycles, the maximum number of surrogate splits, and the learn rate. Furthermore, allow the optimization to repartition the cross-validation between every iteration.

For reproducibility, set the random seed and use the 'expected-improvement-plus' acquisition function.

rng('default')
Mdl = fitrensemble(X,Y, ...
    'Method','LSBoost', ...
    'Learner',templateTree('Surrogate','on'), ...
    'OptimizeHyperparameters',{'NumLearningCycles','MaxNumSplits','LearnRate'}, ...
    'HyperparameterOptimizationOptions',struct('Repartition',true, ...
    'AcquisitionFunctionName','expected-improvement-plus'))
|====================================================================================================================|
| Iter | Eval   | Objective:  | Objective   | BestSoFar   | BestSoFar   | NumLearningC-|    LearnRate | MaxNumSplits |
|      | result | log(1+loss) | runtime     | (observed)  | (estim.)    | ycles        |              |              |
|====================================================================================================================|
|    1 | Best   |      3.5219 |      11.791 |      3.5219 |      3.5219 |          383 |      0.51519 |            4 |
|    2 | Best   |      3.4752 |     0.64154 |      3.4752 |      3.4777 |           16 |      0.66503 |            7 |
|    3 | Best   |      3.1575 |     0.91417 |      3.1575 |      3.1575 |           33 |       0.2556 |           92 |
|    4 | Accept |      6.3076 |     0.38479 |      3.1575 |      3.1579 |           13 |    0.0053227 |            5 |
|    5 | Accept |      3.4449 |      6.8594 |      3.1575 |      3.1579 |          277 |      0.45891 |           99 |
|    6 | Accept |      3.9806 |     0.29698 |      3.1575 |      3.1584 |           10 |      0.13017 |           33 |
|    7 | Best   |       3.059 |     0.26937 |       3.059 |        3.06 |           10 |      0.30126 |            3 |
|    8 | Accept |      3.1707 |     0.37102 |       3.059 |      3.1144 |           10 |      0.28991 |           15 |
|    9 | Accept |      3.0937 |     0.75189 |       3.059 |      3.1046 |           10 |      0.31488 |           13 |
|   10 | Accept |       3.196 |     0.27045 |       3.059 |      3.1233 |           10 |      0.32005 |           11 |
|   11 | Best   |      3.0495 |     0.29049 |      3.0495 |      3.1083 |           10 |      0.27882 |           85 |
|   12 | Best   |       2.946 |     0.30565 |       2.946 |      3.0774 |           10 |      0.27157 |            7 |
|   13 | Accept |      3.2026 |     0.56211 |       2.946 |      3.0995 |           10 |      0.25734 |           20 |
|   14 | Accept |      5.7151 |      7.6473 |       2.946 |      3.0996 |          376 |     0.001001 |           43 |
|   15 | Accept |       3.207 |        10.5 |       2.946 |      3.0937 |          499 |     0.027394 |           18 |
|   16 | Accept |      3.8606 |      1.1558 |       2.946 |      3.0937 |           36 |     0.041427 |           12 |
|   17 | Accept |      3.2026 |      11.006 |       2.946 |       3.095 |          443 |     0.019836 |           76 |
|   18 | Accept |      3.4832 |      4.5595 |       2.946 |      3.0956 |          205 |      0.99989 |            8 |
|   19 | Accept |      5.6285 |      3.8589 |       2.946 |      3.0942 |          192 |    0.0022197 |            2 |
|   20 | Accept |      3.0896 |      4.4972 |       2.946 |      3.0938 |          188 |     0.023227 |           93 |
|====================================================================================================================|
| Iter | Eval   | Objective:  | Objective   | BestSoFar   | BestSoFar   | NumLearningC-|    LearnRate | MaxNumSplits |
|      | result | log(1+loss) | runtime     | (observed)  | (estim.)    | ycles        |              |              |
|====================================================================================================================|
|   21 | Accept |      3.1408 |      3.0668 |       2.946 |      3.0935 |          156 |      0.02324 |            5 |
|   22 | Accept |       4.691 |     0.39266 |       2.946 |      3.0941 |           12 |     0.076435 |            2 |
|   23 | Accept |      5.4686 |      1.1802 |       2.946 |      3.0935 |           50 |       0.0101 |           58 |
|   24 | Accept |      6.3759 |     0.57762 |       2.946 |      3.0893 |           23 |    0.0014716 |           22 |
|   25 | Accept |      6.1278 |       1.081 |       2.946 |       3.094 |           47 |    0.0034406 |            2 |
|   26 | Accept |      5.9134 |     0.32165 |       2.946 |      3.0969 |           11 |     0.024712 |           12 |
|   27 | Accept |       3.401 |      3.2168 |       2.946 |      3.0995 |          151 |     0.067779 |            7 |
|   28 | Accept |      3.2757 |      4.2047 |       2.946 |      3.1009 |          198 |     0.032311 |            8 |
|   29 | Accept |      3.2296 |     0.48182 |       2.946 |      3.1023 |           17 |      0.30283 |           19 |
|   30 | Accept |      3.2385 |      1.9709 |       2.946 |      3.1027 |           83 |      0.21601 |           76 |

__________________________________________________________
Optimization completed.
MaxObjectiveEvaluations of 30 reached.
Total function evaluations: 30
Total elapsed time: 100.761 seconds
Total objective function evaluation time: 83.4281

Best observed feasible point:
    NumLearningCycles    LearnRate    MaxNumSplits
    _________________    _________    ____________

           10             0.27157          7

Observed objective function value = 2.946
Estimated objective function value = 3.1219
Function evaluation time = 0.30565

Best estimated feasible point (according to models):
    NumLearningCycles    LearnRate    MaxNumSplits
    _________________    _________    ____________

           10             0.30126          3

Estimated objective function value = 3.1027
Estimated function evaluation time = 0.36262

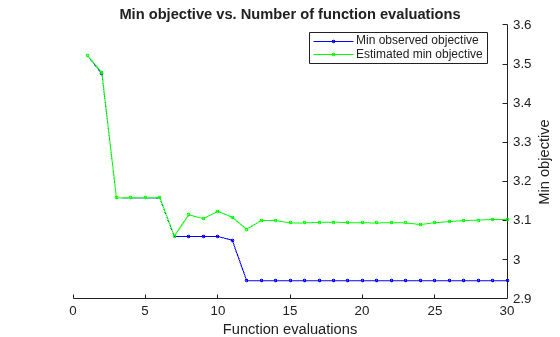

Figure contains an axes object. The axes object with title Min objective vs. Number of function evaluations, xlabel Function evaluations, ylabel Min objective contains 2 objects of type line. These objects represent Min observed objective, Estimated min objective.

Mdl =
  RegressionEnsemble
                         ResponseName: 'Y'
                CategoricalPredictors: []
                    ResponseTransform: 'none'
                      NumObservations: 94
    HyperparameterOptimizationResults: [1x1 BayesianOptimization]
                           NumTrained: 10
                               Method: 'LSBoost'
                         LearnerNames: {'Tree'}
                 ReasonForTermination: 'Terminated normally after completing the requested number of training cycles.'
                              FitInfo: [10x1 double]
                   FitInfoDescription: {2x1 cell}
                       Regularization: []


Compare the loss to that of a boosted, unoptimized model, and to that of the default ensemble.

loss = kfoldLoss(crossval(Mdl,'kfold',10))
loss =
19.2667
Mdl2 = fitrensemble(X,Y, ...
    'Method','LSBoost', ...
    'Learner',templateTree('Surrogate','on'));
loss2 = kfoldLoss(crossval(Mdl2,'kfold',10))
loss2 =
30.4083
Mdl3 = fitrensemble(X,Y);
loss3 = kfoldLoss(crossval(Mdl3,'kfold',10))
loss3 =
29.0495

For a different way of optimizing this ensemble, see Optimize Regression Ensemble Using Cross-Validation.
