fimplicit3

R2026b

Plot 3-D implicit equation or function

Syntax

fimplicit3(f)

fimplicit3(f,[min max])

fimplicit3(f,[xmin xmax ymin ymax zmin zmax])

fimplicit3(___,LineSpec)

fimplicit3(___,Name=Value)

fimplicit3(ax,___)

fi = fimplicit3(___)

Description

fimplicit3(f) plots the 3-D implicit equation or function f(x,y,z) over the default interval [-5 5] for x, y, and z.

fimplicit3(f,[min max]) plots f(x,y,z) over the interval [min max] for x, y, and z.

fimplicit3(f,[xmin xmax ymin ymax zmin zmax]) plots f(x,y,z) over the interval [xmin xmax] for x, [ymin ymax] for y, and [zmin zmax] for z. The fimplicit3 function uses symvar to order the variables and assign intervals.

fimplicit3(___,LineSpec) uses LineSpec to set the line style, marker symbol, and face color.

fimplicit3(___,Name=Value) specifies line properties using one or more name-value arguments. Use this option with any of the input argument combinations in the previous syntaxes.

fimplicit3(ax,___) plots into the axes with the object ax instead of the current axes object gca.

fi = fimplicit3(___) returns an implicit function surface object. Use the object to query and modify properties of a specific surface. For details, see ImplicitFunctionSurface Properties.

Examples

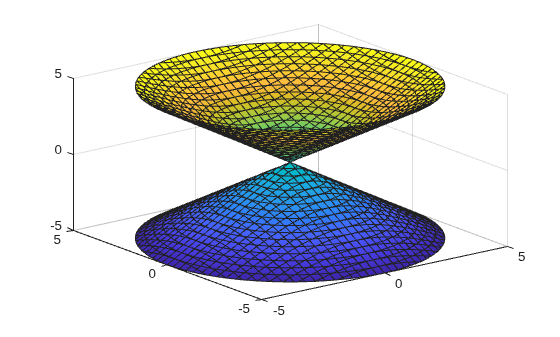

Plot 3-D Implicit Symbolic Equation

Plot the hyperboloid $$x^2+y^2-z^2=0$$ by using fimplicit3. The fimplicit3 function plots over the default interval of $$[-5,5]$$ for $$x$$, $$y$$, and $$z$$.

syms x y z
fimplicit3(x^2 + y^2 - z^2)

Plot 3-D Implicit Symbolic Function

Plot the hyperboloid specified by the function $$f(x,y,z)=x^2+y^2-z^2$$. The fimplicit3 function plots over the default interval of $$[-5,5]$$ for $$x$$, $$y$$, and $$z$$.

syms f(x,y,z)
f(x,y,z) = x^2 + y^2 - z^2;
fimplicit3(f)

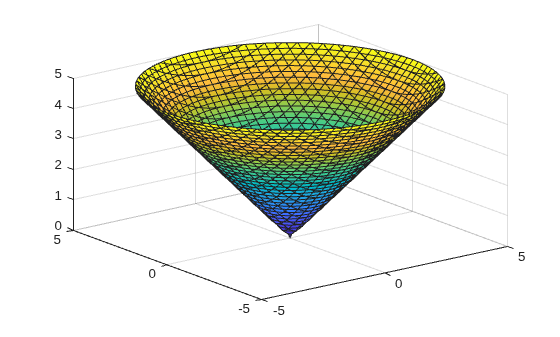

Specify Plotting Interval

Specify the plotting interval by specifying the second argument to fimplicit3. Plot the upper half of the hyperboloid $$x^2+y^2-z^2=0$$ by specifying the interval $$0<z<5$$. For $$x$$ and $$y$$, use the default interval $$[-5,5]$$.

syms x y z
f = x^2 + y^2 - z^2;
interval = [-5 5 -5 5 0 5];
fimplicit3(f, interval)

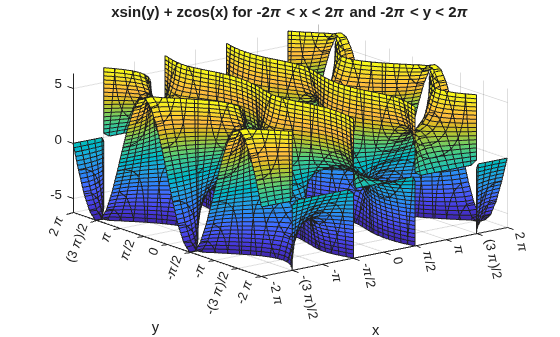

Add Title and Axis Labels and Format Ticks

Plot the implicit equation $$x\sin (y)+z\cos (x)=0$$ over the interval $$(-2\pi ,2\pi )$$ for all axes.

Create the x-axis ticks by spanning the x-axis limits at intervals of pi/2. Convert the axis limits to precise multiples of pi/2 by using round and get the symbolic tick values in S. Display these ticks by using the XTick property. Create x-axis labels by using arrayfun to apply texlabel to S. Display these labels by using the XTickLabel property. Repeat these steps for the y-axis.

To use LaTeX in plots, see latex.

syms x y z
eqn = x*sin(y) + z*cos(x);
fimplicit3(eqn,[-2*pi 2*pi])
title('xsin(y) + zcos(x) for -2\pi < x < 2\pi and -2\pi < y < 2\pi')
xlabel('x')
ylabel('y')
ax = gca;

S = sym(ax.XLim(1):pi/2:ax.XLim(2));
S = sym(round(vpa(S/pi*2))*pi/2);
ax.XTick = double(S);
ax.XTickLabel = arrayfun(@texlabel,S,UniformOutput=false);

S = sym(ax.YLim(1):pi/2:ax.YLim(2));
S = sym(round(vpa(S/pi*2))*pi/2);
ax.YTick = double(S);
ax.YTickLabel = arrayfun(@texlabel,S,UniformOutput=false);

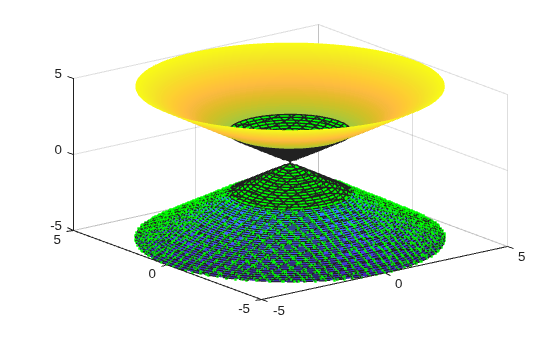

Line Style and Width for Implicit Surface Plot

Plot the implicit surface $$x^2+y^2-z^2=0$$ with different line styles for different values of $$z$$. For $$-5<z<-2$$, use a dashed line with green dot markers. For $$-2<z<2$$, use a LineWidth of 1 and a green face color. For $$2<z<5$$, turn off the lines by setting EdgeColor to "none".

syms x y z
f = x^2 + y^2 - z^2;
fimplicit3(f,[-5 5 -5 5 -5 -2],'--.',MarkerEdgeColor="g")
hold on
fimplicit3(f,[-5 5 -5 5 -2 2],LineWidth=1,FaceColor="g")
fimplicit3(f,[-5 5 -5 5 2 5],EdgeColor="none")

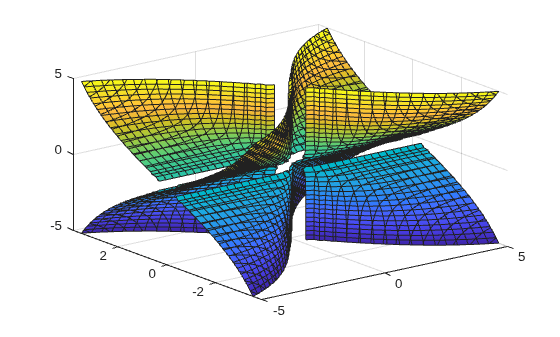

Modify Implicit Surface After Creation

Plot the implicit surface $$1/x^2-1/y^2+1/z^2=0$$. Specify an output to make fimplicit3 return the plot object.

syms x y z
f = 1/x^2 - 1/y^2 + 1/z^2;
fi = fimplicit3(f)

fi =
  ImplicitFunctionSurface with properties:

     Function: 1/x^2 - 1/y^2 + 1/z^2
    EdgeColor: [0.1294 0.1294 0.1294]
    LineStyle: '-'
    FaceColor: 'interp'

  Show all properties

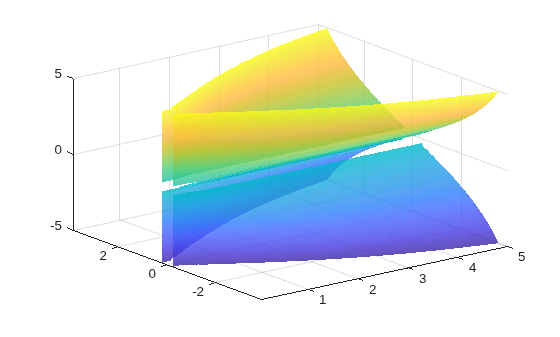

Show only the positive x-axis by setting the XRange property of fi to [0 5]. Remove the lines by setting the EdgeColor property to 'none'. Visualize the hidden surfaces by making the plot transparent by setting the FaceAlpha property to 0.8.

fi.XRange = [0 5];
fi.EdgeColor = 'none';

fi.FaceAlpha = 0.8;

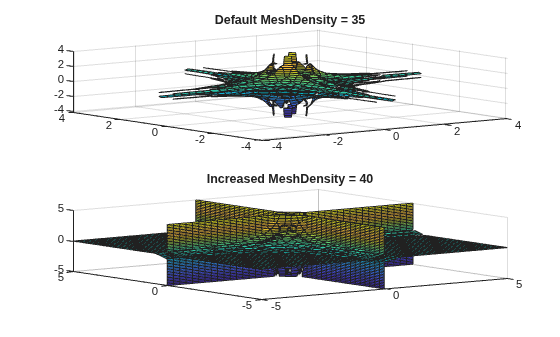

Control Resolution of Implicit Surface Plot

Control the resolution of an implicit surface plot by using the MeshDensity option. Increasing MeshDensity can make smoother, more accurate plots while decreasing MeshDensity can increase plotting speed.

Divide a figure into two by using subplot. In the first subplot, plot the implicit surface $$\sin (1/(xyz))$$. The surface has large gaps. Fix this issue by increasing the MeshDensity to 40 in the second subplot. fimplicit3 fills the gaps showing that by increasing MeshDensity you increased the resolution of the plot.

syms x y z
f = sin(1/(x*y*z));

subplot(2,1,1)
fimplicit3(f)
title('Default MeshDensity = 35')

subplot(2,1,2)
fimplicit3(f,MeshDensity=40)
title('Increased MeshDensity = 40')

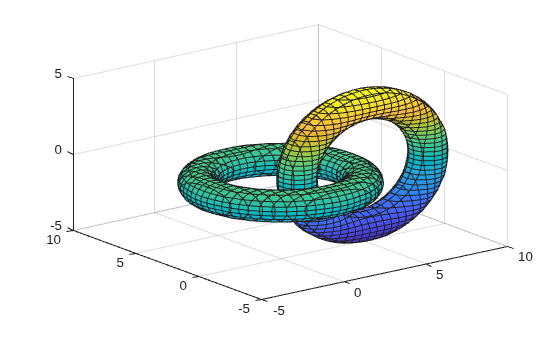

Apply Rotation and Translation to Implicit Surface Plot

Apply rotation and translation to the implicit surface plot of a torus.

A torus can be defined by an implicit equation in Cartesian coordinates as

$$f\left(x,y,z\right)={\left(x^2+y^2+z^2+R^2-a^2\right)}^2-4R^2\left(x^2+y^2\right)$$

where

• $$a$$ is the radius of the tube

• $$R$$ is the distance from the center of the tube to the center of the torus

Define the values for $$a$$ and $$R$$ as 1 and 5, respectively. Plot the torus using fimplicit3.

syms x y z
a = 1;
R = 4;
f(x,y,z) = (x^2+y^2+z^2+R^2-a^2)^2 - 4*R^2*(x^2+y^2);
fimplicit3(f)
hold on

Apply rotation to the torus around the $$x$$-axis. Define the rotation matrix. Rotate the torus by 90 degrees or $$\pi /2$$ radians. Shift the center of the torus by 5 along the $$x$$-axis.

alpha = pi/2;
Rx = [1 0 0;
      0 cos(alpha) sin(alpha);
      0 -sin(alpha) cos(alpha)];
r = [x; y; z];
r_90 = Rx*r;
g = subs(f,[x,y,z],[r_90(1)-5,r_90(2),r_90(3)]);

Add a second plot of the rotated and translated torus to the existing graph.

fimplicit3(g)
axis([-5 10 -5 10 -5 5])
hold off

Input Arguments

f — 3-D implicit equation or function to plot

symbolic equation | symbolic expression | symbolic function

3-D implicit equation or function to plot, specified as a symbolic equation, expression, or function. If an expression or function is specified, then fimplicit3 assumes the right-hand size to be 0.

[min max] — Plotting interval for x-, y- and z- axes

[–5 5] (default) | vector of two numbers

Plotting interval for x-, y- and z- axes, specified as a vector of two numbers. The default is [-5 5].

[xmin xmax ymin ymax zmin zmax] — Plotting interval for x-, y- and z- axes

[–5 5 –5 5 –5 5] (default) | vector of six numbers

Plotting interval for x-, y- and z- axes, specified as a vector of six numbers. The default is [-5 5 -5 5 -5 5].

ax — Axes object

axes object

Axes object. If you do not specify an axes object, then fimplicit3 uses the current axes.

LineSpec — Line style, marker, and color

string scalar | character vector

Line style, marker, and color, specified as a string scalar or character vector containing symbols. The symbols can appear in any order. You do not need to specify all three characteristics (line style, marker, and color). For example, if you omit the line style and specify the marker, then the plot shows only the marker and no line.

Example: "--or" is a red dashed line with circle markers.

Line Style	Description	Resulting Line
"-"	Solid line
"--"	Dashed line
":"	Dotted line
"-."	Dash-dotted line

Marker	Description	Resulting Marker
"o"	Circle
"+"	Plus sign
"*"	Asterisk
"."	Point
"x"	Cross
"_"	Horizontal line
"|"	Vertical line
"square"	Square
"diamond"	Diamond
"^"	Upward-pointing triangle
"v"	Downward-pointing triangle
">"	Right-pointing triangle
"<"	Left-pointing triangle
"pentagram"	Pentagram
"hexagram"	Hexagram

Color Name	Short Name	RGB Triplet	Appearance
"red"	"r"	[1 0 0]
"green"	"g"	[0 1 0]
"blue"	"b"	[0 0 1]
"cyan"	"c"	[0 1 1]
"magenta"	"m"	[1 0 1]
"yellow"	"y"	[1 1 0]
"black"	"k"	[0 0 0]
"white"	"w"	[1 1 1]

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: Marker="o",MarkerFaceColor="red"

The properties listed here are only a subset. For a complete list, see ImplicitFunctionSurface Properties.

MeshDensity — Number of evaluation points per direction

35 (default) | number

Number of evaluation points per direction, specified as a number. The default is 35.

Example: 100

EdgeColor — Line color

"interp" | color name or short name | RGB triplet | hexadecimal color code

Line color, specified as one of these values:

• "interp" — Use interpolated colors based on the ZData values.

• Color name (or short name) — Use a named color. Specify "red" (or "r"), "green" (or "g"), "blue" (or "b"), "cyan" (or "c"), "magenta" (or "m"), "yellow" (or "y"), "black" (or "k"), or "white" (or "w").

• RGB triplet — Use a custom color. An RGB triplet is a three-element row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range [0,1], for example, [0.4 0.6 0.7].

• Hexadecimal color code — Use a custom color. A hexadecimal color code is a string scalar or character vector that starts with a hash symbol (#) followed by three or six hexadecimal digits, which can range from 0 to F. The values are not case sensitive. Therefore, the color codes "#FF8800", "#ff8800", "#F80", and "#f80" are equivalent.

This table lists the default color palettes for plots in the light and dark themes.

Palette	Palette Colors
"gem" — Light theme default Before R2025a: Most plots use these colors by default.
"glow" — Dark theme default

You can get the RGB triplets and hexadecimal color codes for these palettes using the orderedcolors and rgb2hex functions. For example, get the RGB triplets for the "gem" palette and convert them to hexadecimal color codes.

RGB = orderedcolors("gem");
H = rgb2hex(RGB);

Before R2024a: Get the hexadecimal color codes using H = compose("#%02X%02X%02X",round(RGB*255)).

Before R2023b: Get the RGB triplets using RGB = get(groot,"FactoryAxesColorOrder").

LineStyle — Line style

"-" (default) | "--" | ":" | "-." | "none"

Line style, specified as one of the options listed in this table.

Line Style	Description	Resulting Line
"-"	Solid line
"--"	Dashed line
":"	Dotted line
"-."	Dash-dotted line
"none"	No line	No line

LineWidth — Line width

0.5 (default) | positive value

Line width, specified as a positive value in points, where 1 point = 1/72 of an inch. If the line has markers, then the line width also affects the marker edges.

The line width cannot be thinner than the width of a pixel. If you set the line width to a value that is less than the width of a pixel on your system, the line is displayed as one pixel wide.

Marker — Marker symbol

"none" (default) | "o" | "+" | "*" | "." | ...

Marker symbol, specified as one of the values listed in this table. By default, the object does not display markers. Specifying a marker symbol adds markers at each data point or vertex.

Marker	Description	Resulting Marker
"o"	Circle
"+"	Plus sign
"*"	Asterisk
"."	Point
"x"	Cross
"_"	Horizontal line
"|"	Vertical line
"square"	Square
"diamond"	Diamond
"^"	Upward-pointing triangle
"v"	Downward-pointing triangle
">"	Right-pointing triangle
"<"	Left-pointing triangle
"pentagram"	Pentagram
"hexagram"	Hexagram
"none"	No markers	Not applicable

MarkerEdgeColor — Marker outline color

"auto" (default) | color name or short name | RGB triplet | hexadecimal color code

Marker outline color, specified as one of these values:

• "auto" — Use the same color as the EdgeColor property.

• Color name (or short name) — Use a named color. Specify "red" (or "r"), "green" (or "g"), "blue" (or "b"), "cyan" (or "c"), "magenta" (or "m"), "yellow" (or "y"), "black" (or "k"), or "white" (or "w").

• RGB triplet — Use a custom color. An RGB triplet is a three-element row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range [0,1], for example, [0.4 0.6 0.7].

• Hexadecimal color code — Use a custom color. A hexadecimal color code is a string scalar or character vector that starts with a hash symbol (#) followed by three or six hexadecimal digits, which can range from 0 to F. The values are not case sensitive. Therefore, the color codes "#FF8800", "#ff8800", "#F80", and "#f80" are equivalent.

This table lists the default color palettes for plots in the light and dark themes.

Palette	Palette Colors
"gem" — Light theme default Before R2025a: Most plots use these colors by default.
"glow" — Dark theme default

You can get the RGB triplets and hexadecimal color codes for these palettes using the orderedcolors and rgb2hex functions. For example, get the RGB triplets for the "gem" palette and convert them to hexadecimal color codes.

RGB = orderedcolors("gem");
H = rgb2hex(RGB);

Before R2024a: Get the hexadecimal color codes using H = compose("#%02X%02X%02X",round(RGB*255)).

Before R2023b: Get the RGB triplets using RGB = get(groot,"FactoryAxesColorOrder").

MarkerFaceColor — Marker fill color

"none" (default) | "auto" | color name or short name | RGB triplet | hexadecimal color code

Marker fill color, specified as one of these values:

• "none" — Do not fill the markers with any color.

• "auto" — Use the same color as the MarkerEdgeColor property.

• Color name (or short name) — Use a named color. Specify "red" (or "r"), "green" (or "g"), "blue" (or "b"), "cyan" (or "c"), "magenta" (or "m"), "yellow" (or "y"), "black" (or "k"), or "white" (or "w").

• RGB triplet — Use a custom color. An RGB triplet is a three-element row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range [0,1], for example, [0.4 0.6 0.7].

• Hexadecimal color code — Use a custom color. A hexadecimal color code is a string scalar or character vector that starts with a hash symbol (#) followed by three or six hexadecimal digits, which can range from 0 to F. The values are not case sensitive. Therefore, the color codes "#FF8800", "#ff8800", "#F80", and "#f80" are equivalent.

This table lists the default color palettes for plots in the light and dark themes.

Palette	Palette Colors
"gem" — Light theme default Before R2025a: Most plots use these colors by default.
"glow" — Dark theme default

You can get the RGB triplets and hexadecimal color codes for these palettes using the orderedcolors and rgb2hex functions. For example, get the RGB triplets for the "gem" palette and convert them to hexadecimal color codes.

RGB = orderedcolors("gem");
H = rgb2hex(RGB);

Before R2024a: Get the hexadecimal color codes using H = compose("#%02X%02X%02X",round(RGB*255)).

Before R2023b: Get the RGB triplets using RGB = get(groot,"FactoryAxesColorOrder").

MarkerSize — Marker size

6 (default) | positive value

Marker size, specified as a positive value in points, where 1 point = 1/72 of an inch.

Output Arguments

fi — One or more objects

scalar | vector

One or more objects, returned as a scalar or a vector. The object is an implicit function surface object. You can use these objects to query and modify properties of a specific line. For details, see ImplicitFunctionSurface Properties.

Algorithms

fimplicit3 assigns the symbolic variables in f to the x axis, the y axis, then the z axis, and symvar determines the order of the variables to be assigned. Therefore, variable and axis names might not correspond. To force fimplicit3 to assign x, y, or z to its corresponding axis, create the symbolic function to plot, then pass the symbolic function to fimplicit3.

For example, the following code plots the roots of the implicit function f(x,y,z) = x + z in two ways. The first way forces fimplicit3 to assign x and z to their corresponding axes. In the second way, fimplicit3 defers to symvar to determine variable order and axis assignment: fimplicit3 assigns x and z to the x- and y-axes, respectively.

syms x y z;
f(x,y,z) = x + z;

figure;
subplot(2,1,1)
fimplicit3(f);
view(-38,71);
subplot(2,1,2)
fimplicit3(f(x,y,z)); % Or fimplicit3(x + z);

Version History

Introduced in R2016b
