cameraMatrix
(Not recommended) Camera projection matrix
cameraMatrix
is not recommended. Use the cameraProjection
function instead. For more information, see Version History.
Syntax
Description
returns a 4-by-3 camera projection matrix camMatrix
= cameraMatrix(cameraParams
,tform
)camMatrix
, which can
be used to project a 3-D world point in homogeneous coordinates into an image.
cameraParams
can be a cameraParameters
object or a cameraIntrinsics
object.
returns a 4-by-3 camera projection matrix. You can use this matrix to project 3-D
world points in homogeneous coordinates into an image.camMatrix
= cameraMatrix(cameraParams
,rotationMatrix
,translationVector
)
Examples
Compute Camera Matrix
Create a set of calibration images.
images = imageDatastore(fullfile(toolboxdir('vision'),'visiondata', ... 'calibration','slr'));
Detect the checkerboard corners in the images.
[imagePoints,boardSize] = detectCheckerboardPoints(images.Files);
Generate the world coordinates of the checkerboard corners in the pattern-centric coordinate system, with the upper-left corner at (0,0). The square size is in millimeters.
squareSize = 29;
worldPoints = patternWorldPoints('checkerboard',boardSize,squareSize);
Calibrate the camera.
I = readimage(images,1); imageSize = [size(I,1),size(I,2)]; cameraParams = estimateCameraParameters(imagePoints,worldPoints, ... 'ImageSize',imageSize);

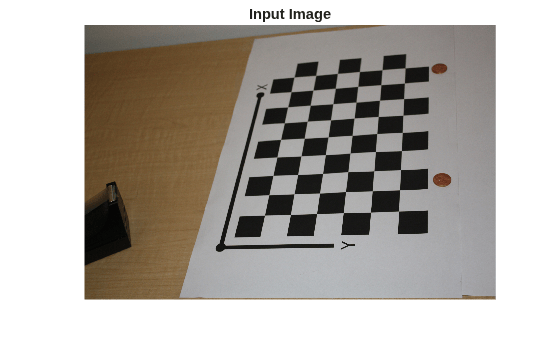

Load image at new location.
imOrig = imread(fullfile(matlabroot,'toolbox','vision','visiondata', ... 'calibration','slr','image9.jpg')); figure; imshow(imOrig); title('Input Image');
Undistort image.
im = undistortImage(imOrig,cameraParams);
Find reference object in new image.
[imagePoints,boardSize] = detectCheckerboardPoints(im);
Compute new extrinsics.
[rotationMatrix,translationVector] = extrinsics(...
imagePoints,worldPoints,cameraParams);
Calculate camera matrix
P = cameraMatrix(cameraParams,rotationMatrix,translationVector)
P = 4×3
105 ×
0.0157 -0.0271 0.0000
0.0404 -0.0046 -0.0000
0.0199 0.0387 0.0000
8.9399 9.4399 0.0072
Input Arguments
cameraParams
— Object for storing camera parameters
cameraParameters
object | cameraIntrinsics
object
Camera parameters, specified as a cameraParameters
or cameraIntrinsics
object. You
can return the cameraParameters
object using the estimateCameraParameters
function. The cameraParameters
object contains the intrinsic, extrinsic, and
lens distortion parameters of a camera.
tform
— Transformation
rigid3d
object
Transformation from world coordinates to camera coordinates, specified as
a rigid3d
object. You can use the extrinsics
function to
obtain the rotation and translation to create the tform
object.
rotationMatrix
— Rotation of camera
3-by-3 matrix
Rotation of camera, specified as a 3-by-3 matrix. You can obtain this
matrix using the extrinsics
function. You
can also obtain the matrix using the relativeCameraPose
function
by transposing its orientation
output. The
rotationMatrix
and
translationVector
inputs must be real, nonsparse,
and of the same class.
translationVector
— Translation of camera
1-by-3 vector
Translation of camera, specified as a 1-by-3 vector. The translation
vector describes the transformation from the world coordinates to the camera
coordinates. You can obtain this vector using the extrinsics
function. You
can also obtain the vector using the location
and
orientation
outputs of the relativeCameraPose
function:
translationVector
= -relativeLocation
*relativeOrientation'
The translationVector
inputs must be real, nonsparse,
and of the same class.
Output Arguments
camMatrix
— Camera projection matrix
4-by-3 matrix
Camera projection matrix, returned as a 4-by-3 matrix. The matrix contains
the 3-D world points in homogenous coordinates that are projected into the
image. When you set rotationMatrix
and
translationVector
to double
, the
function returns camMatrix
as
double
. Otherwise it returns
camMatrix
as single
.
The function computes camMatrix
as follows:
camMatrix
=
[rotationMatrix
;
translationVector
] ×
K.
K: the
intrinsic matrix
w ×
[x,y,1] =
[X,Y,Z,1]
×
camMatrix
.
(X,Y,Z): world coordinates of a point |
(x,y): coordinates of the corresponding image point |
w: arbitrary scale factor |
Data Types: single
| double
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.
Usage notes and limitations:
Use in a MATLAB Function block is not supported.
Version History
Introduced in R2014bR2022b: Not recommended
Starting in R2022b, most Computer Vision Toolbox™ functions create and perform geometric transformations using the
premultiply convention. However, the cameraMatrix
function uses
the postmultiply convention. Although there are no plans to remove
cameraMatrix
at this time, you can streamline your
geometric transformation workflows by switching to the cameraProjection
function, which supports the premultiply
convention. For more information, see
Migrate Geometric Transformations to Premultiply Convention.
To update your code:
Change instances of the function name
cameraMatrix
tocameraProjection
.Specify the
cameraParams
argument as acameraIntrinsics
object. If you have acameraParameters
object, then you can get acameraIntrinsics
object by querying theIntrinsics
property. If theIntrinsics
property is empty according to theisempty
function, then set theImageSize
property of thecameraParameters
object to an arbitrary vector before querying theIntrinsics
property. For example:load worldToImageCorrespondences.mat if(isempty(cameraParams.Intrinsics)) cameraParams.ImageSize = [128 128]; end intrinsics = cameraParams.Intrinsics;
Specify the transformation as a
rigidtform3d
object using thetform
argument.cameraProjection
does not support therotationMatrix
andtranslationVector
input arguments. Note that you create therigidtform3d
object using the transpose ofrotationMatrix
or the transpose of the transformation matrix in theT
property oftform
.
Discouraged Usage | Recommended Replacement |
---|---|
This example specifies the transformation as a rotation
matrix and a translation vector, then calculates the camera
projection matrix using the
camMatrix = cameraMatrix(cameraParams,rotationMatrix,translationVector) | This example specifies the transformation as a
intrinsics = cameraParams.Intrinsics; tform = rigidtform3d(rotationMatrix',translationVector); camMatrix = cameraProjection(intrinsics,tform); |
This example specifies the transformation as a
camMatrix = cameraMatrix(cameraParams,tformOld); | This example starts with an existing
intrinsics = cameraParams.Intrinsics; tform = rigidtform3d(tformOld.T'); camMatrix = cameraProjection(intrinsics,tform); |
See Also
Apps
Functions
cameraProjection
|estimateCameraProjection
|estimateExtrinsics
|triangulate
|estimateCameraParameters
|estrelpose
Topics
- Evaluating the Accuracy of Single Camera Calibration
- Structure from Motion from Two Views
- Structure from Motion from Multiple Views
- Depth Estimation from Stereo Video
- Code Generation for Depth Estimation from Stereo Video
- What Is Camera Calibration?
- Using the Single Camera Calibrator App
- Using the Stereo Camera Calibrator App
