Soft Starter Induction Motor Model

Electro-mechanical model of a thyristor-based soft starter with Simscape Electrical

Version 4.0 (87.2 KB)
4.3K Downloads
(4)
4 Apr 2024

You are now following this Submission

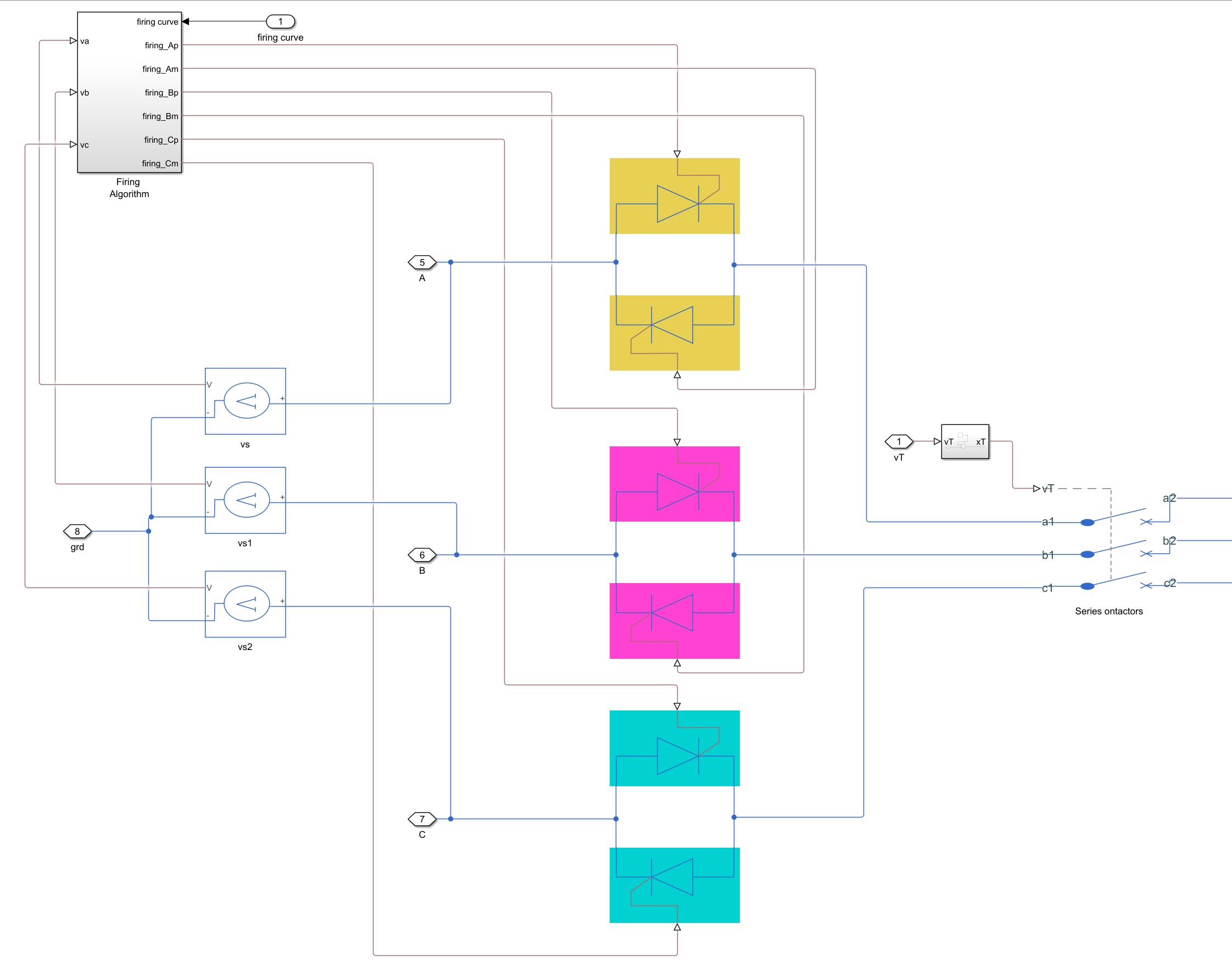

Soft starters are power electronics topologies allowing soft start/stop of induction motors widely used in industrial applications (i.e. water treatment). A model of a thyristor-based soft start of a 15kW induction motor is introduced (Simscape Electrical). The model provides both open-loop and closed-loop algorithms for thyristor firing (speed control with smooth bypass connection).
Video. More Electric Tech Series: 2. Soft Starters and Variable Speed Drives.
https://youtu.be/K2ht-sUhI7E
