# comm.MemorylessNonlinearity

Apply memoryless nonlinearity to complex baseband signal

## Description

The `comm.MemorylessNonlinearity` System object™ applies memoryless nonlinear impairments to a complex baseband signal. Use this System object to model memoryless nonlinear impairments caused by signal amplification in a radio frequency (RF) transmitter or receiver. For more information, see Memoryless Nonlinear Impairments.

Note

All values of power assume a nominal impedance of 1 ohm.

To apply memoryless nonlinear impairments to a complex baseband signal:

1. Create the `comm.MemorylessNonlinearity` object and set its properties.

2. Call the object with arguments, as if it were a function.

## Creation

### Syntax

``mnl = comm.MemorylessNonlinearity``
``mnl = comm.MemorylessNonlinearity(Name,Value)``

### Description

````mnl = comm.MemorylessNonlinearity` creates a memoryless nonlinearity System object that models RF nonlinear impairments.```

example

````mnl = comm.MemorylessNonlinearity(Name,Value)` specifies properties using one or more name-value pair arguments. Enclose each property name in quotes. For example, `'Method','Saleh model'` sets the modeling method to the Saleh method.```

## Properties

expand all

Unless otherwise indicated, properties are nontunable, which means you cannot change their values after calling the object. Objects lock when you call them, and the `release` function unlocks them.

If a property is tunable, you can change its value at any time.

Nonlinearity modeling method, specified as `'Cubic polynomial'`, `'Hyperbolic tangent'`, `'Saleh model'`, `'Ghorbani model'`, `'Rapp model'`, or `'Lookup table'`. For more information, see Memoryless Nonlinear Impairments.

Data Types: `char` | `string`

Input signal scaling factor in decibels, specified as a scalar. This property scales the power gain of the input signal.

Tunable: Yes

#### Dependencies

To enable this property, set the `Method` property to `'Saleh model'` or ```'Ghorbani model'```.

Data Types: `double`

Linear gain in decibels, specified as a scalar. This property scales the power gain of the output signal.

Tunable: Yes

#### Dependencies

To enable this property, set the `Method` property to `'Cubic polynomial'`, ```'Hyperbolic tangent'```, or `'Rapp model'`.

Data Types: `double`

Third-order input intercept point in dBm, specified as a scalar.

Tunable: Yes

#### Dependencies

To enable this property, set the `Method` property to `'Cubic polynomial'` or ```'Hyperbolic tangent'```.

Data Types: `double`

AM/PM conversion factor in degrees per decibel, specified as a scalar. For more information, see Cubic Polynomial and Hyperbolic Tangent Model Methods.

Tunable: Yes

#### Dependencies

To enable this property, set the `Method` property to `'Cubic polynomial'` or ```'Hyperbolic tangent'```.

Data Types: `double`

AM/AM parameters used to compute the amplitude gain for an input signal, specified as a row vector.

• When the `Method` property is set to `'Saleh model'`, this property must be a two-element vector that specifies alpha and beta values. In this case, the default value is `[2.1587 1.1517]`.

• When the `Method` property is set to `'Ghorbani model'`, this property must be a four-element vector that specifies x1, x2, x3, and x4 values. In this case, the default value is `[8.1081 1.5413 6.5202 -0.0718]`.

Tunable: Yes

#### Dependencies

To enable this property, set the `Method` property is set to `'Saleh model'` or ```'Ghorbani model'```.

Data Types: `double`

AM/PM parameters used to compute the phase change for an input signal, specified as a row vector.

• When the `Method` property is set to `'Saleh model'`, this property must be a two-element vector that specifies alpha and beta values. In this case, the default value is `[4.0033 9.1040]`.

• When the `Method` property is set to `'Ghorbani model'`, this property must be a four-element vector that specifies y1, y2, y3, and y4 values. In this case, the default value is `[4.6645 2.0965 10.88 -0.003]`

Tunable: Yes

#### Dependencies

To enable this property, set the `Method` property is set to `'Saleh model'` or ```'Ghorbani model'```.

Data Types: `double`

Input power lower limit in dBm, specified as a scalar less than the `PowerUpperLimit` property value. The AM/PM conversion scales linearly for input power values in the range [`PowerLowerLimit`, `PowerUpperLimit`]. If the input signal power is below the input power lower limit, the phase shift resulting from AM/PM conversion is zero. For more information, see Cubic Polynomial and Hyperbolic Tangent Model Methods.

Tunable: Yes

#### Dependencies

To enable this property, set the `Method` property is set to `'Cubic polynomial'` or ```'Hyperbolic tangent'```.

Data Types: `double`

Input power upper limit in dBm, specified as a scalar greater than `PowerLowerLimit`. The AM/PM conversion scales linearly for input power values in the range [`PowerLowerLimit`, `PowerUpperLimit`]. If the input signal power is above the input power upper limit, the phase shift resulting from AM/PM conversion is constant. For more information, see Cubic Polynomial and Hyperbolic Tangent Model Methods.

Tunable: Yes

#### Dependencies

To enable this property, set the `Method` property is set to `'Cubic polynomial'` or ```'Hyperbolic tangent'```.

Data Types: `double`

Output signal scaling factor in decibels, specified as a scalar. This property scales the power gain of the output signal.

Tunable: Yes

#### Dependencies

To enable this property, set the `Method` property is set to `'Saleh model'` or ```'Ghorbani model'```.

Data Types: `double`

Smoothness factor, specified as a scalar. For more information, see Rapp Model Method.

Tunable: Yes

#### Dependencies

To enable this property, set the `Method` property is set to `'Rapp model'`.

Data Types: `double`

Output saturation level, specified as a scalar. For more information, see Rapp Model Method.

Tunable: Yes

#### Dependencies

To enable this property, set the `Method` property is set to `'Rapp model'`.

Data Types: `double`

Amplifier characteristics lookup table, specified as an N-by-3 matrix of measured power amplifier (PA) characteristics. Each row is of the form [Pin, Pout, ΔΦ]. Pin specifies the PA input signal in dBm, Pout specifies the PA output signal in dBm, and ΔΦ specifies the output phase shift in degrees. The default value is ```[-25, 5.16, -0.25; -20, 10.11, -0.47; -15, 15.11, -0.68; -10, 20.05, -0.89; -5, 24.79, -1.22; 0, 27.64, 5.59; 5, 28.49, 12.03]```.

The measured PA characteristics defined by this property are used to compute the AM/AM (in dBm/dBm) and AM/PM (in deg/dBm) nonlinear impairment characteristics. The System object distorts the input signal by the computed AM/AM (in dBm/dBm) and AM/PM (in deg/dBm) values.

Note

To determine appropriate Pout and ΔΦ for Pin values outside the range of values specified in the `Table` property, the System object applies linear extrapolation from the first two or last two [Pin, Pout, ΔΦ] rows of `Table`.

Tunable: Yes

#### Dependencies

To enable this property, set the `Method` property is set to `'Lookup table'`.

Data Types: `double`

## Usage

### Syntax

``outsig = mnl(insig)``

### Description

example

````outsig = mnl(insig)` applies memoryless nonlinear impairments to the input RF baseband signal.```

### Input Arguments

expand all

Input RF baseband signal, specified as a scalar or column vector. Values in this input must be complex.

Data Types: `double`
Complex Number Support: Yes

### Output Arguments

expand all

Output RF baseband signal, returned as a scalar or column vector. The output is of the same data type as the input.

## Object Functions

To use an object function, specify the System object as the first input argument. For example, to release system resources of a System object named `obj`, use this syntax:

`release(obj)`

expand all

 `step` Run System object algorithm `release` Release resources and allow changes to System object property values and input characteristics `reset` Reset internal states of System object

## Examples

collapse all

Generate 16-QAM data with an average power of 10 mW and pass the data through a nonlinear power amplifier (PA).

```M = 16; data = randi([0 (M - 1)]',1000,1); avgPow = 1e-2; minD = avgPow2MinD(avgPow,M);```

Create a memoryless nonlinearity System object, specifying the Saleh model method.

`saleh = comm.MemorylessNonlinearity('Method','Saleh model');`

Generate modulated symbols and pass them through the PA nonlinearity model.

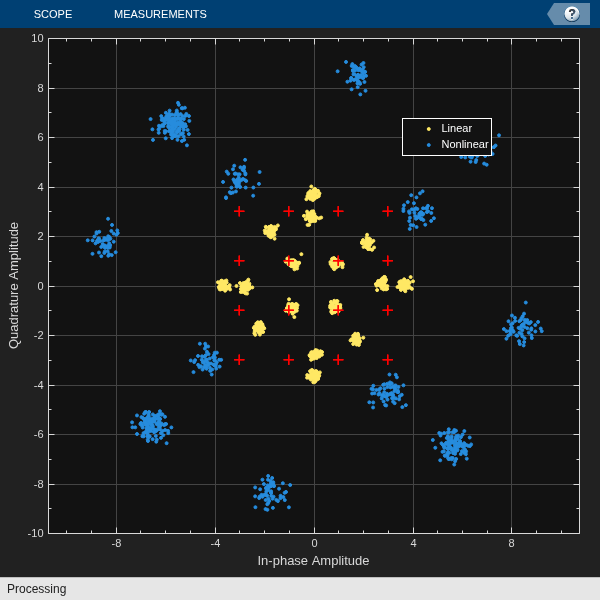

```modData = (minD/2).*qammod(data,M); y = saleh(modData);```

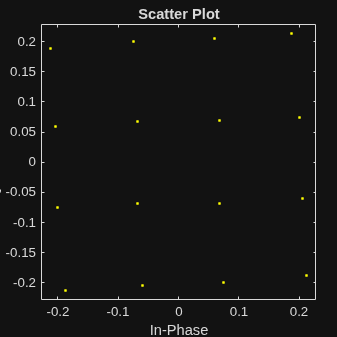

Generate a scatter plot of the results.

`scatterplot(y)`

Average power normalization of input signal.

```function minD = avgPow2MinD(avgPow,M) % Average power to minimum distance nBits = log2(M); if (mod(nBits,2)==0) % Square QAM sf = (M - 1)/6; else % Cross QAM if (nBits>4) sf = ((31*M/32) - 1)/6; else sf = ((5*M/4) - 1)/6; end end minD = sqrt(avgPow/sf); end```

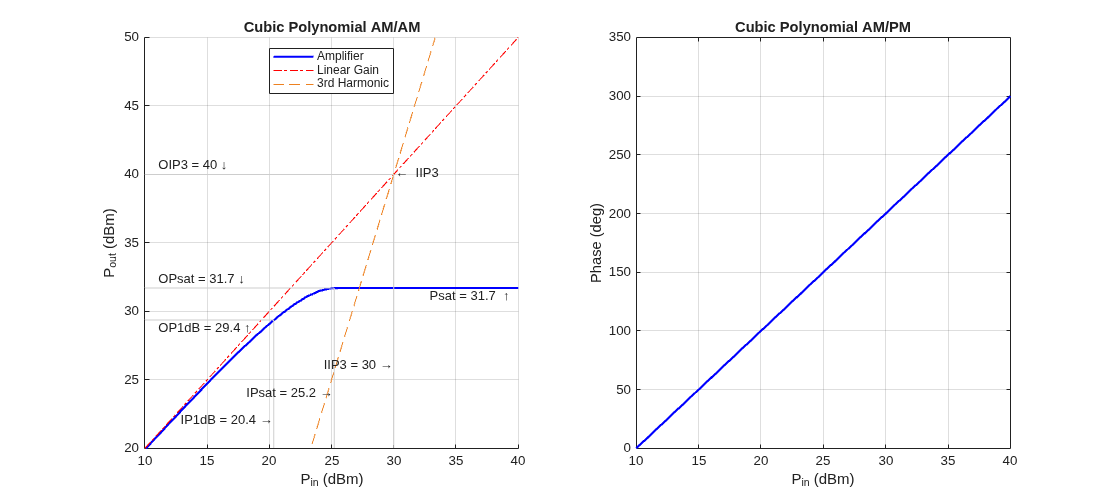

Plot the gain compression of a nonlinear amplifier for a 16-QAM signal.

Specify the modulation order and samples per symbol parameters.

```M = 16; sps = 4; ```

Model a nonlinear amplifier, by creating a memoryless nonlinearity System object with a 30 dB third-order input intercept point. Create a raised cosine transmit filter System object.

```amplifier = comm.MemorylessNonlinearity('IIP3',30); txfilter = comm.RaisedCosineTransmitFilter('RolloffFactor',0.3, ... 'FilterSpanInSymbols',6, ... 'OutputSamplesPerSymbol',sps, ... 'Gain',sqrt(sps)); ```

Specify the input power in dBm. Convert the input power to W and initialize the gain vector.

```pindBm = -5:25; pin = 10.^((pindBm-30)/10); gain = zeros(length(pindBm),1); ```

Execute the main processing loop, which includes these steps.

• Generate random data symbols.

• Modulate the data symbols and adjust the average power of the signal.

• Filter the modulated signal.

• Amplify the signal.

• Measure the gain.

```for k = 1:length(pin) data = randi([0 (M - 1)],1000,1); modSig = qammod(data,M,'UnitAveragePower',true)*sqrt(pin(k)); filtSig = txfilter(modSig); ampSig = amplifier(filtSig); gain(k) = 10*log10(var(ampSig)/var(filtSig)); end ```

Plot the amplifier gain as a function of the input signal power. The 1 dB gain compression point occurs for an input power of 18.5 dBm. To increase the point at which a 1 dB compression is observed, increase the third-order intercept point, `amplifier.IIP3`.

```arrayplot = dsp.ArrayPlot('PlotType','Line','XLabel','Power In (dBm)', ... 'XOffset',-5,'YLimits',[-5 5]); arrayplot(gain) ```

Apply nonlinear power amplifier (PA) characteristics to a 16-QAM signal by setting the `Method` property to `'Lookup table'`.

Define parameters for the modulation order, samples per symbol, and input power. Create random data.

```M = 16; % Modulation order sps = 4; % Samples per symbol pindBm = -2; % Input power pin = 10.^((pindBm-30)/10); % power in Watts data = randi([0 (M - 1)],1000,1); refdata = 0:M-1; refconst = qammod(refdata,M,'UnitAveragePower',true);```

Create a memoryless nonlinearity System object, a transmit filter System object, and a constellation diagram System object. The default lookup table values are used for the memoryless nonlinearity System object.

```amplifier = comm.MemorylessNonlinearity('Method','Lookup table'); txfilter = comm.RaisedCosineTransmitFilter('RolloffFactor',0.3, ... 'FilterSpanInSymbols',6,'OutputSamplesPerSymbol',sps,'Gain',sqrt(sps)); constellation = comm.ConstellationDiagram('SamplesPerSymbol',4,'ReferenceConstellation',refconst, ... 'Title','Amplified/Distorted Signal');```

Modulate the random data. Filter and apply the nonlinear amplifier characteristics to the modulation symbols.

```modSig = qammod(data,M,'UnitAveragePower',true)*sqrt(pin); filtSig = txfilter(modSig); ampSig = amplifier(filtSig);```

Compute input and output signal levels and the phase shift.

```poutdBm = (20*log10(abs(ampSig))) + 30; simulated_pindBm = (20*log10(abs(filtSig))) + 30; phase = angle(ampSig.*conj(filtSig))*180/pi;```

Plot AM/AM characteristics, AM/PM characteristics, and the constellation results.

```figure set(gcf,'units','normalized','position',[.25 1/3 .5 1/3]) subplot(1,2,1) plot(simulated_pindBm,poutdBm,'.'); hold on plot(amplifier.Table(:,1),amplifier.Table(:,2),'.','Markersize',15); xlabel('Input Power (dBm)') ylabel('Output Power (dBm)'); grid on; title('AM/AM Characteristics'); leglabels = {'Simulated results','Measurement'}; legend (leglabels,'Location','north'); subplot(1,2,2) plot(simulated_pindBm,phase,'.'); hold on plot(amplifier.Table(:,1),amplifier.Table(:,3),'.','Markersize',15); legend (leglabels,'Location','north'); xlabel('Input Power (dBm)'); ylabel('Output Phase Shift (degrees)'); grid on; title('AM/PM Characteristics');```

Generate a constellation diagram of the amplified signal and reference constellation. The nonlinear amplifier characteristics cause compression of the amplified signal constellation compared to the reference constellation.

`constellation(ampSig)`

Apply nonlinear power amplifier (PA) characteristics to a 16-QAM signal by setting the `Method` property to `'Lookup table'`.

Define parameters for the modulation order, samples per symbol, and input power. Create random data.

```M = 16; % Modulation order sps = 4; % Samples per symbol pindBm = -8; % Input power pin = 10.^((pindBm-30)/10); % power in Watts data = randi([0 (M - 1)],1000,1); refdata = 0:M-1; refconst = qammod(refdata,M,'UnitAveragePower',true); paChar = pa_performance_characteristics();```

Create a memoryless nonlinearity System object, a transmit filter System object, and a constellation diagram System object. The default lookup table values are used for the memoryless nonlinearity System object.

```amplifier = comm.MemorylessNonlinearity('Method','Lookup table','Table',paChar); txfilter = comm.RaisedCosineTransmitFilter('RolloffFactor',0.3, ... 'FilterSpanInSymbols',6,'OutputSamplesPerSymbol',sps,'Gain',sqrt(sps)); constellation = comm.ConstellationDiagram('SamplesPerSymbol',4, ... 'Title','Amplified/Distorted Signal','NumInputPorts',2, ... 'ReferenceConstellation', refconst,'ShowLegend',true, ... 'ChannelNames',{'Filtered signal','Amplified signal'});```

Modulate the random data. Filter and apply the nonlinear amplifier characteristics to the modulation symbols.

```modSig = qammod(data,M,'UnitAveragePower',true)*sqrt(pin); filtSig = txfilter(modSig); ampSig = amplifier(filtSig);```

Compute input and output signal levels and the phase shift.

```poutdBm = (20*log10(abs(ampSig))) + 30; simulated_pindBm = (20*log10(abs(filtSig))) + 30; phase = angle(ampSig.*conj(filtSig))*180/pi;```

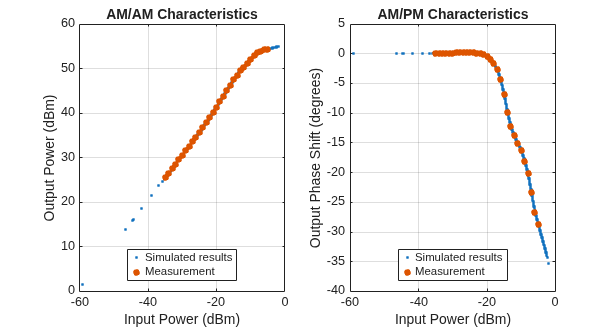

Plot AM/AM characteristics, AM/PM characteristics, and the constellation results.

```figure set(gcf,'units','normalized','position',[.25 1/3 .5 1/3]) subplot(1,2,1) plot(simulated_pindBm,poutdBm,'.'); hold on plot(amplifier.Table(:,1),amplifier.Table(:,2),'.','Markersize',15); xlabel('Input Power (dBm)') ylabel('Output Power (dBm)'); grid on; title('AM/AM Characteristics'); leglabel = {'Simulated results','Measurement'}; legend (leglabel,'Location','south'); subplot(1,2,2) plot(simulated_pindBm,phase,'.'); hold on plot(amplifier.Table(:,1),amplifier.Table(:,3),'.','Markersize',15); legend (leglabel,'Location','south'); xlabel('Input Power (dBm)'); ylabel('Output Phase Shift (degrees)'); grid on; title('AM/PM Characteristics');```

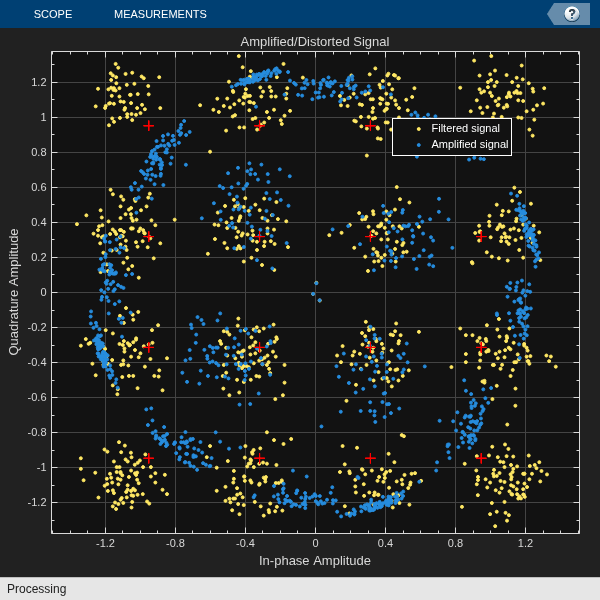

For the purpose of constellation comparison, normalize the amplified signal and the filtered signal. Generate a constellation diagram of the filtered signal and amplified signal. The nonlinear amplifier characteristics cause compression of the amplified signal constellation compared to the filtered constellation.

```filtSig = filtSig/mean(abs(filtSig)); % Normalized filtered signal ampSig = ampSig/mean(abs(ampSig)); % Normalized amplified signal constellation(filtSig,ampSig)```

The `pa_performance_characteristics` helper function calculates the amplifier performance characteristics. The data is extracted from figure 4 of Hammi, Oualid, et al. "Power amplifiers' model assessment and memory effects intensity quantification using memoryless post-compensation technique." IEEE Transactions on Microwave Theory and Techniques 56.12 (2008): 3170-3179.

`function paChar = pa_performance_characteristics()`

The operating specification for the LDMOS-based Doherty amplifier are:

• A frequency of 2110 MHz

• A peak power of 300 W

• A small signal gain of 61 dB

Each row in `HAV08_Table` specifies Pin (dBm), gain (dB), phase shift (degrees).

```HAV08_Table =... [-35,60.53,0.01; -34,60.53,0.01; -33,60.53,0.08; -32,60.54,0.08; -31,60.55,0.1; -30,60.56,0.08; -29,60.57,0.14; -28,60.59,0.19; -27,60.6,0.23; -26,60.64,0.21; -25,60.69,0.28; -24,60.76,0.21; -23,60.85,0.12; -22,60.97,0.08; -21,61.12,-0.13; -20,61.31,-0.44; -19,61.52,-0.94; -18,61.76,-1.59; -17,62.01,-2.73; -16,62.25,-4.31; -15,62.47,-6.85; -14,62.56,-9.82; -13,62.47,-12.29; -12,62.31,-13.82; -11,62.2,-15.03; -10,62.15,-16.27; -9,62,-18.05; -8,61.53,-20.21; -7,60.93,-23.38; -6,60.2,-26.64; -5,59.38,-28.75];```

Convert the second column of the HAV08_Table from gain to Pout for use by the memoryless nonlinearity System object.

```paChar = HAV08_Table; paChar(:,2) = paChar(:,1) + paChar(:,2); end```

expand all

## References

[1] Saleh, A.A.M. “Frequency-Independent and Frequency-Dependent Nonlinear Models of TWT Amplifiers.” IEEE Transactions on Communications 29, no. 11 (November 1981): 1715–20. https://doi.org/10.1109/TCOM.1981.1094911.

[2] Ghorbani, A., and M. Sheikhan. "The Effect of Solid State Power Amplifiers (SSPAs) Nonlinearities on MPSK and M-QAM Signal Transmission." In 1991 Sixth International Conference on Digital Processing of Signals in Communications, 193–97, 1991.

[3] Rapp, Ch. "Effects of HPA-Nonlinearity on a 4-DPSK/OFDM-Signal for a Digital Sound Broadcasting System." In Proceedings Second European Conf. on Sat. Comm. (ESA SP-332), 179–84. Liege, Belgium, 1991. https://elib.dlr.de/33776/.

## Extended Capabilities
