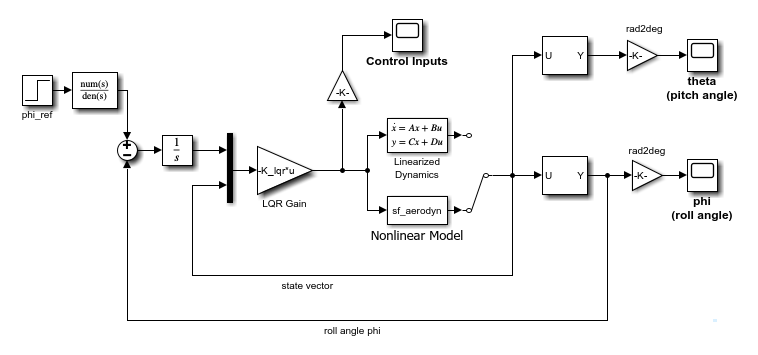

The following figure shows a Simulink^{®} block diagram shows a tracking problem in aircraft autopilot design. To open
this diagram, type `lqrpilot`

at the MATLAB^{®} prompt.

Key features of this diagram to note are the following:

The Linearized Dynamics block contains the linearized airframe.

`sf_aerodyn`

is an S-Function block that contains the nonlinear equations for $$(\theta ,\varphi )=(0,{15}^{\circ})$$.The error signal between $$\varphi $$ and the $${\varphi}_{ref}$$ is passed through an integrator. This aids in driving the error to zero.

Beginning with the standard state-space equation

$$\dot{x}=Ax+Bu$$

where

$$x={[u,v,w,p,q,r,\theta ,\varphi ]}^{T}$$

The variables *u*, *v*, and *w *are

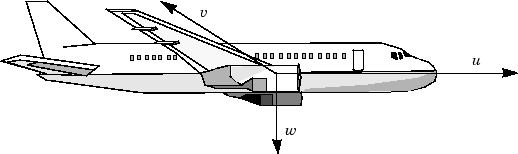

the three velocities with respect to the body frame, shown as follows.

**Body Coordinate Frame for an Aircraft**

The variables $$\varphi $$ and $$\theta $$ are roll and pitch, and *p*, *q*, and
*r* are the roll, pitch, and yaw rates, respectively.

The airframe dynamics are nonlinear. The following equation shows the nonlinear components added to the state space equation.

**Nonlinear Component of the State-Space Equation**

$$\dot{x}=Ax+Bu+\left[\begin{array}{c}-g\mathrm{sin}\theta \\ g\mathrm{cos}\theta \mathrm{sin}\varphi \\ g\mathrm{cos}\theta \mathrm{cos}\varphi \\ 0\\ 0\\ 0\\ q\mathrm{cos}\varphi -r\mathrm{sin}\varphi \\ (q\mathrm{sin}\varphi +r\mathrm{cos}\varphi )\cdot \mathrm{tan}\theta \end{array}\right]$$

To see the numerical values for *A* and *B*, type

load lqrpilot A, B

at the MATLAB prompt.

For LQG design purposes, the nonlinear dynamics are trimmed at $$\varphi ={15}^{\circ}$$ and *p*, *q*, *r*, and
*θ* set to zero. Since *u*, *v*, and
*w* do not enter into the nonlinear term in the preceding figure, this
amounts to linearizing around $$(\theta ,\varphi )=(0,{15}^{\circ})$$ with all remaining states set to zero. The resulting state matrix of the
linearized model is called `A15`

.

The goal to perform a steady coordinated turn, as shown in this figure.

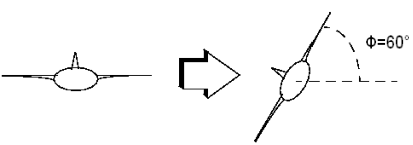

**Aircraft Making a 60° Turn**

To achieve this goal, you must design a controller that commands a steady turn by going
through a 60° roll. In addition, assume that *θ*, the pitch angle, is
required to stay as close to zero as possible.

To calculate the LQG gain matrix, `K`

, type

lqrdes

at the MATLAB prompt. Then, start the `lqrpilot`

model with the nonlinear
model, `sf_aerodyn`

, selected.

This figure shows the response of $$\varphi $$ to the 60° step command.

**Tracking the Roll Step Command**

As you can see, the system tracks the commanded 60° roll in about 60 seconds.

Another goal was to keep *θ*, the pitch angle, relatively small. This
figure shows how well the LQG controller did.

**Minimizing the Displacement in the Pitch Angle, Theta**

Finally, this figure shows the control inputs.

**Control Inputs for the LQG Tracking Problem**

Try adjusting the `Q`

and `R`

matrices in
`lqrdes.m`

and inspecting the control inputs and the system states,
making sure to rerun `lqrdes`

to update the LQG gain matrix
`K`

. Through trial and error, you may improve the response time of this
design. Also, compare the linear and nonlinear designs to see the effects of the
nonlinearities on the system performance.
