# imp2exp

Convert implicit linear relationship to explicit input-output relation

## Description

example

B = imp2exp(A,yidx,uidx) transforms a linear constraint between variables y and u of the form A(:,[yidx;uidx])*[y;u] = 0 into an explicit input/output relationship y = B*u. The vectors yidx and uidx refer to the columns (inputs) of A as referenced by the explicit relationship for B.

B = imp2exp(A,yidx,uidx,'min') eliminates extra states to obtain a model B with as many states as A. Use this syntax when A(:,yidx) has a proper inverse. This option is ignored for sparse models because it typically destroys sparsity. For ss, genss and uss models, B is returned in implicit form by default. Use isproper or ss(sys,'explicit') to extract an explicit model if desired.

## Examples

collapse all

Consider two uncertain motor/generator constraints among 4 variables $\left[\begin{array}{c}V\\ I\\ T\\ W\end{array}\right]$, namely $\left[\begin{array}{cccc}1& -R& 0& -K\\ 0& -K& 1& 0\end{array}\right]*\left[\begin{array}{c}V\\ I\\ T\\ W\end{array}\right]=0$. Find the uncertain 2-by-2 matrix B so that $\left[\begin{array}{c}V\\ T\end{array}\right]=B*\left[\begin{array}{c}W\\ I\end{array}\right]$.

R = ureal('R',1,'Percentage',[-10 40]);
K = ureal('K',2e-3,'Percentage',[-30 30]);
A = [1 -R 0 -K;0 -K 1 0];
Yidx = [1 3];
Uidx = [4 2];
B = imp2exp(A,Yidx,Uidx)
Uncertain matrix with 2 rows and 2 columns.
The uncertainty consists of the following blocks:
K: Uncertain real, nominal = 0.002, variability = [-30,30]%, 2 occurrences
R: Uncertain real, nominal = 1, variability = [-10,40]%, 1 occurrences

Type "B.NominalValue" to see the nominal value and "B.Uncertainty" to interact with the uncertain elements.

Consider a standard single-loop feedback connection of controller C and an uncertain plant P, described by the equations e = r-y; u = Ce; f = d+u; y = Pf.

P = tf([1],[1 0]);
C = tf([2*.707*1 1^2],[1 0]);
A = [1 -1 0 0 0 -1;0 -C 1 0 0 0;0 0 -1 -1 1 0;0 0 0 0 -P 1];
OutputIndex = [6;3;2;5];  % [y;u;e;f]
InputIndex = [1;4];       % [r;d]
Sys = imp2exp(A,OutputIndex,InputIndex);
Sys.InputName = {'r';'d'};
Sys.OutputName = {'y';'u';'e';'f'};
pole(Sys)
ans = 16×1 complex

-0.7070 + 0.7072i
-0.7070 - 0.7072i
-0.7070 + 0.7072i
-0.7070 - 0.7072i
-0.7070 + 0.7072i
-0.7070 - 0.7072i
-0.7070 + 0.7072i
-0.7070 - 0.7072i
-0.7070 + 0.7072i
-0.7070 - 0.7072i
⋮

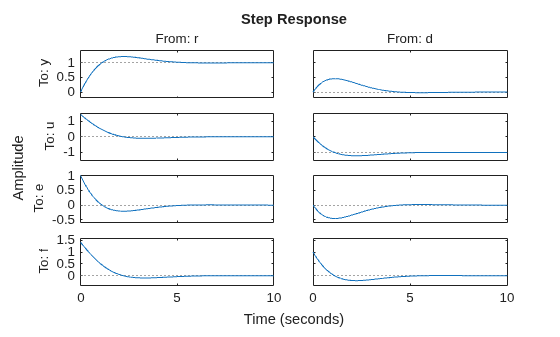

stepplot(Sys)

## Input Arguments

collapse all

Implicit system, specified as a static, or dynamic input/output model. A can be:

• A numeric LTI model such as tf, zpk, ss, or frd object

• An uncertain model such as umat (Robust Control Toolbox), uss (Robust Control Toolbox), or ufrd (Robust Control Toolbox) object

The number of rows in model A must equal the length of the index vector yidx.

Indices to partition the model channel into output signals, specified as a vector. The index vectors yidx and uidx specify how to partition the input channels of A into y and u signals, respectively.

If [yidx,uidx] does not include all inputs of A, imp2exp excludes the missing y channels from the output model B. In such cases, imp2exp retains only a subset B(I,:) of the outputs/rows of B and does not affect how the explicit model B is computed.

Indices to partition the model channel into input signals, specified as a vector. The index vectors yidx and uidx specify how to partition the input channels of A into y and u signals, respectively.

## Output Arguments

collapse all

Explicit system, returned as a static, or dynamic input/output model. The output explicit model B is of the same subclass as model A. For instance, if A is specified as an ss model, then imp2exp also returns B as an ss model.

## Version History

Introduced in R2011b
