# ProperOrthogonalDecomposition

## Description

The `ProperOrthogonalDecomposition`

object manages the model order
reduction (MOR) for sparse and ordinary (nonsparse) linear time-invariant (LTI)
models.

## Creation

The `reducespec`

function creates a POD model order reduction object when you use this syntax.

`R = reducespec(sys,"pod")`

Here, `sys`

is a stable LTI model. The workflow uses this object to set up
MOR tasks and store results. For the full workflow, see Task-Based Model Order Reduction Workflow.

## Properties

## Object Functions

`process` | Run model order reduction algorithm |

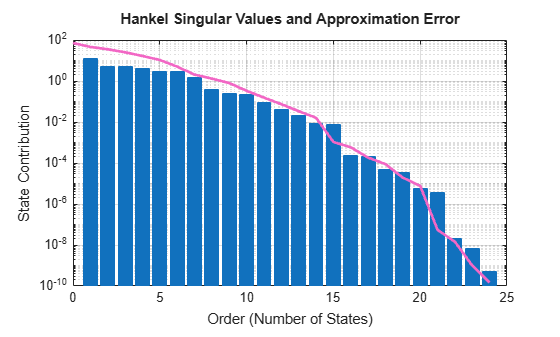

`view (pod)` | Plot state contributions when using proper orthogonal decomposition (POD) method |

`getrom (pod)` | Obtain reduced-order models when using proper orthogonal decomposition method |

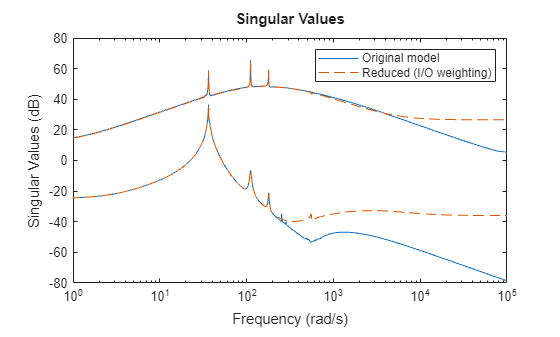

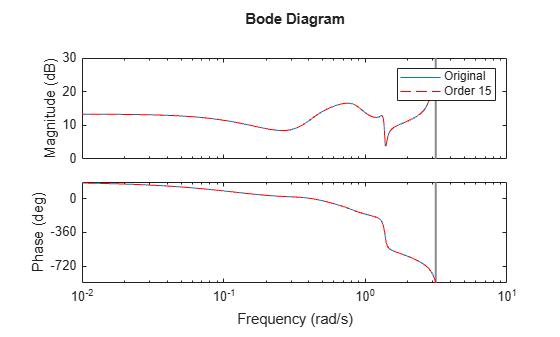

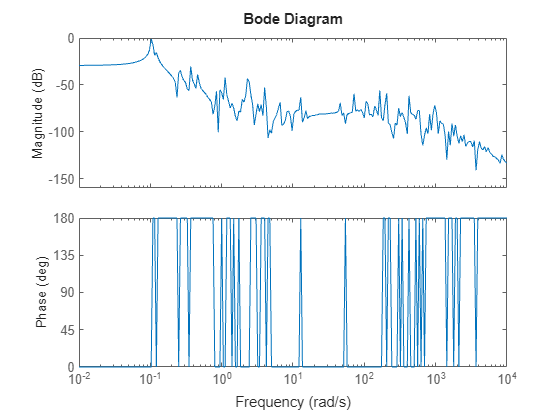

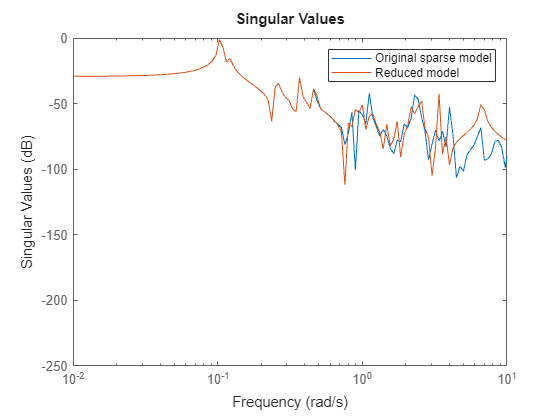

## Examples

## Limitations

POD method is applicable only to stable LTI models.

The Galerkin algorithm is recommended specifically for symmetric positive definite problems with

*A*=*A*,^{T}*E*=*E*≥ 0 or^{T}*M*=*M*≥ 0,^{T}*C*=*C*,^{T}*K*=*K*. The algorithm may perform poorly for asymmetric problems because it only takes into account the input-to-state map.^{T}

## Algorithms

Proper orthogonal decomposition (POD) is a simulation-based technique to extract dominant state directions and perform an approximate Balanced Truncation. This method takes snapshots of the state vector during simulation and uses principal component analysis (PCA) to obtain the principal state directions.

Balanced truncation requires computing the controllability or observability Gramians (see
`gram`

). To approximate these Gramians, the POD
algorithm discretizes the integrals and compresses the state data through incremental SVD
[3].

Consider a SISO model *C*(*sI* –
*A*)^{–1}*B*. The impulse response of this model has state trajectory *x*(*t*) =
*e*^{tA}*B* and the controllability Gramian *X _{r}*
is:

$${X}_{r}={\displaystyle \underset{0}{\overset{\infty}{\int}}{e}^{tA}B{B}^{T}{e}^{t{A}^{T}}dt}={\displaystyle \underset{0}{\overset{\infty}{\int}}x(t)x{(t)}^{T}dt.}$$

For the adjoint system, the impulse response has state trajectory *z*(*t*) =
*e*^{tAT}*C ^{T}* and the controllability Gramian

*X*is:

_{o}$${X}_{o}={\displaystyle \underset{0}{\overset{\infty}{\int}}{e}^{t{A}^{T}}{C}^{T}C{e}^{tA}dt}={\displaystyle \underset{0}{\overset{\infty}{\int}}z(t)z{(t)}^{T}dt.}$$

Suppose you take *N* + 1 samples of each state snapshots with step size
*h* to form:

$$\begin{array}{c}{L}_{{r}_{N}}=\sqrt{h}\left(\begin{array}{cccc}x\left(0\right)& x\left(h\right)& \dots & x\left(Nh\right)\end{array}\right),\\ {L}_{{o}_{N}}=\sqrt{h}\left(\begin{array}{cccc}z\left(0\right)& z\left(h\right)& \dots & z\left(Nh\right)\end{array}\right).\end{array}$$

The algorithm obtains the Gramian approximations:

$$\begin{array}{l}{X}_{r}\approx h{\displaystyle \sum _{k=0}^{N}x(kh)x{(kh)}^{T}}={L}_{{r}_{N}}{L}_{{r}_{N}}^{T},\\ {X}_{o}\approx h{\displaystyle \sum _{k=0}^{N}z(kh)z{(kh)}^{T}}={L}_{{o}_{N}}{L}_{{o}_{N}}^{T}.\end{array}$$

Then, the software uses POD to compute low-rank factorizations of the snapshot matrices
and obtain the low rank factorizations of the Gramians
*X _{r}* and

*X*:

_{o}$$\begin{array}{cc}{L}_{{r}_{N}}\approx {U}_{r}{\Sigma}_{r}{V}_{r}^{T},& {L}_{{o}_{N}}\approx {U}_{o}{\Sigma}_{o}{V}_{o}^{T}\\ {X}_{r}\approx {L}_{{r}_{N}}{L}_{{r}_{N}}^{T}\approx {U}_{r}{\Sigma}_{r}^{2}{U}_{r}^{T},& {X}_{o}\approx {L}_{{o}_{N}}{L}_{{o}_{N}}^{T}\approx {U}_{o}{\Sigma}_{o}^{2}{U}_{o}^{T}.\end{array}$$

The software computes this low-rank approximation through an `incrementalPOD`

object.

When using Balanced algorithm with built-in simulations, the software considers both the input-to-state and state-to-output maps (through the adjoint simulation) to approximate the reachability and observability Gramians. From these approximations, the algorithm proceeds as regular Balanced Truncation by computing the Hankel singular values and suitable left and right projections. If you are providing POD data obtained through custom simulations, to get accurate results, you must simulate both the model and its adjoint to account for both the input-to-state and state-to-output maps.

The Galerkin algorithm considers only input-to-state map, and is applicable only for symmetric problems.

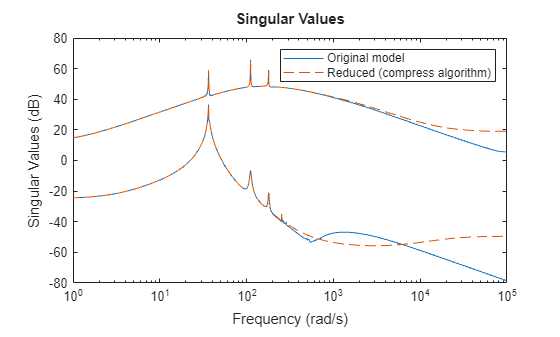

The Compress algorithm is an acceleration of Balanced for tall or wide models (few inputs,
many outputs or many inputs, few outputs). The algorithm runs the cheapest simulation
(input-to-state if few inputs), uses the resulting POD of *X* to compress
*Y*=*CX*, and finds the dominant output directions. Then,
performs the adjoint simulation with this reduced *Y*
[4].

For `mechss`

models, the software uses the SOBTpv method [6]. Alternatively, you can
convert `mechss`

models to `sparss`

and use balanced POD on the
result, which may be less efficient but often provides more accurate results.

## References

[1] Pinnau, René. “Model Reduction via
Proper Orthogonal Decomposition.” In *Model Order Reduction: Theory,
Research Aspects and Applications*, edited by Wilhelmus H. A. Schilders, Henk A.
van der Vorst, and Joost Rommes, 95–109. Berlin, Heidelberg: Springer, 2008.
https://doi.org/10.1007/978-3-540-78841-6_5.

[2] Liang, Y.C., H.P. Lee, S.P. Lim,
W.Z. Lin, K.H. Lee, and C.G. Wu. “PROPER ORTHOGONAL DECOMPOSITION AND ITS APPLICATIONS—PART I:
THEORY.” *Journal of Sound and Vibration* 252, no. 3 (May
2002): 527–44. https://doi.org/10.1006/jsvi.2001.4041.

[3] Willcox, K., and J. Peraire.
“Balanced Model Reduction via the Proper Orthogonal Decomposition.” *AIAA Journal* 40, no. 11 (November 2002): 2323–30.
https://doi.org/10.2514/2.1570.

[4] Rowley, C. W. “MODEL REDUCTION FOR
FLUIDS, USING BALANCED PROPER ORTHOGONAL DECOMPOSITION.” *International
Journal of Bifurcation and Chaos* 15, no. 03 (March 2005): 997–1013.
https://doi.org/10.1142/S0218127405012429.

[5] Moore, B. “Principal Component
Analysis in Linear Systems: Controllability, Observability, and Model Reduction.” *IEEE Transactions on Automatic Control* 26, no. 1 (February 1981):
17–32. https://doi.org/10.1109/TAC.1981.1102568.

[6] Reis, Timo, and Tatjana Stykel.
“Balanced Truncation Model Reduction of Second-Order Systems.” *Mathematical and Computer Modelling of Dynamical Systems* 14, no. 5 (October
2008): 391–406. https://doi.org/10.1080/13873950701844170.

## Version History

**Introduced in R2024b**
