reset

Remove all existing plots from geoplayer figure

collapse all in page

Syntax

reset(player)

Description

example

reset(player) removes all previously plotted points and routes from the geoplayer figure.

Examples

collapse all

Reset Geographic Player

Open Live Script

Load a sequence of latitude and longitude coordinates.

data = load('geoRoute.mat');

Create a geographic player with a zoom level of 12. Configure the geographic player to display all points in its history.

player = geoplayer(data.latitude(1),data.longitude(1),12,'HistoryDepth',Inf);

Display the full route.

plotRoute(player,data.latitude,data.longitude);

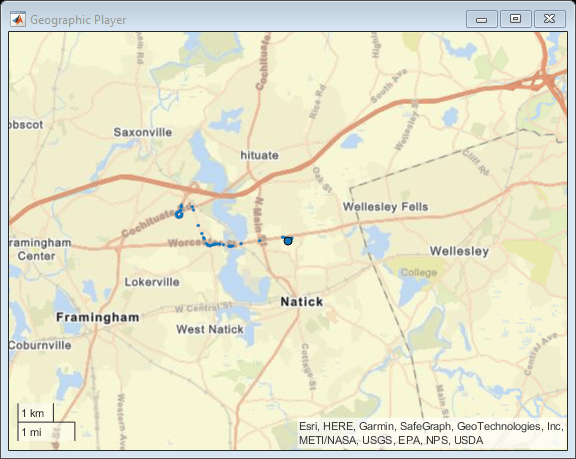

Display the coordinates in a sequence. The circle marker indicates the current position. At the 200th point, reset the geographic player. Observe that the route and all previously plotted points are removed.

for i = 1:length(data.latitude)
    plotPosition(player,data.latitude(i),data.longitude(i));

    if i == 200
        reset(player)
    end

    pause(.05)
end
