Fixed-Point Tool

Convert floating-point model to fixed-point


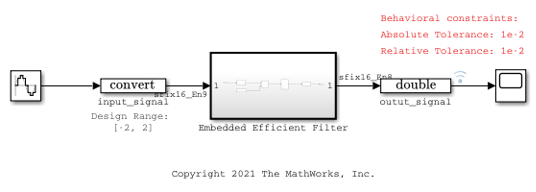

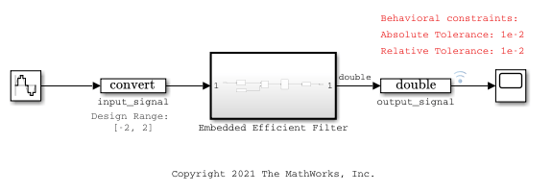

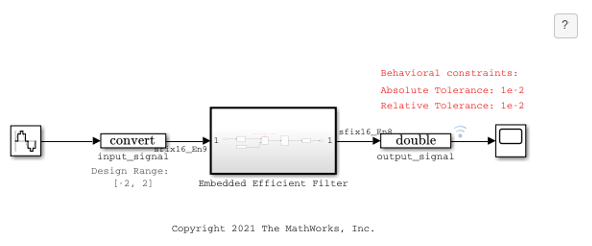

In conjunction with Fixed-Point Designer™ software, the Fixed-Point Tool provides convenient access to:

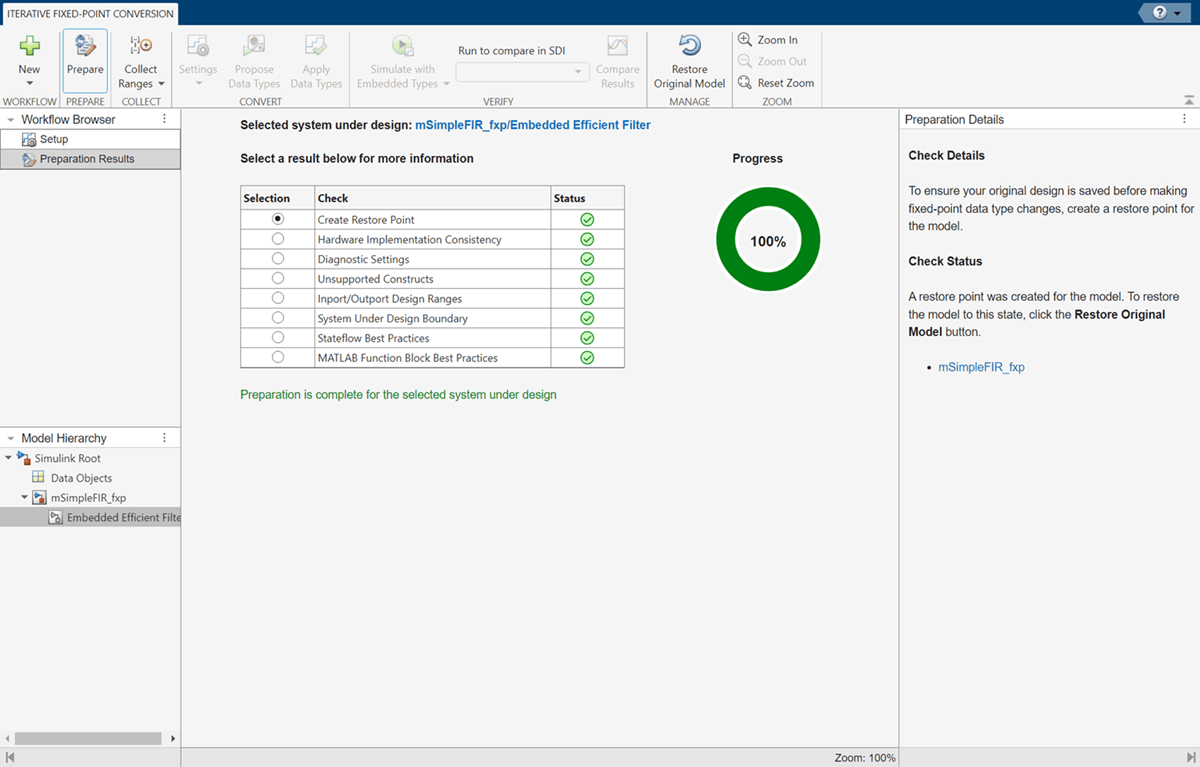

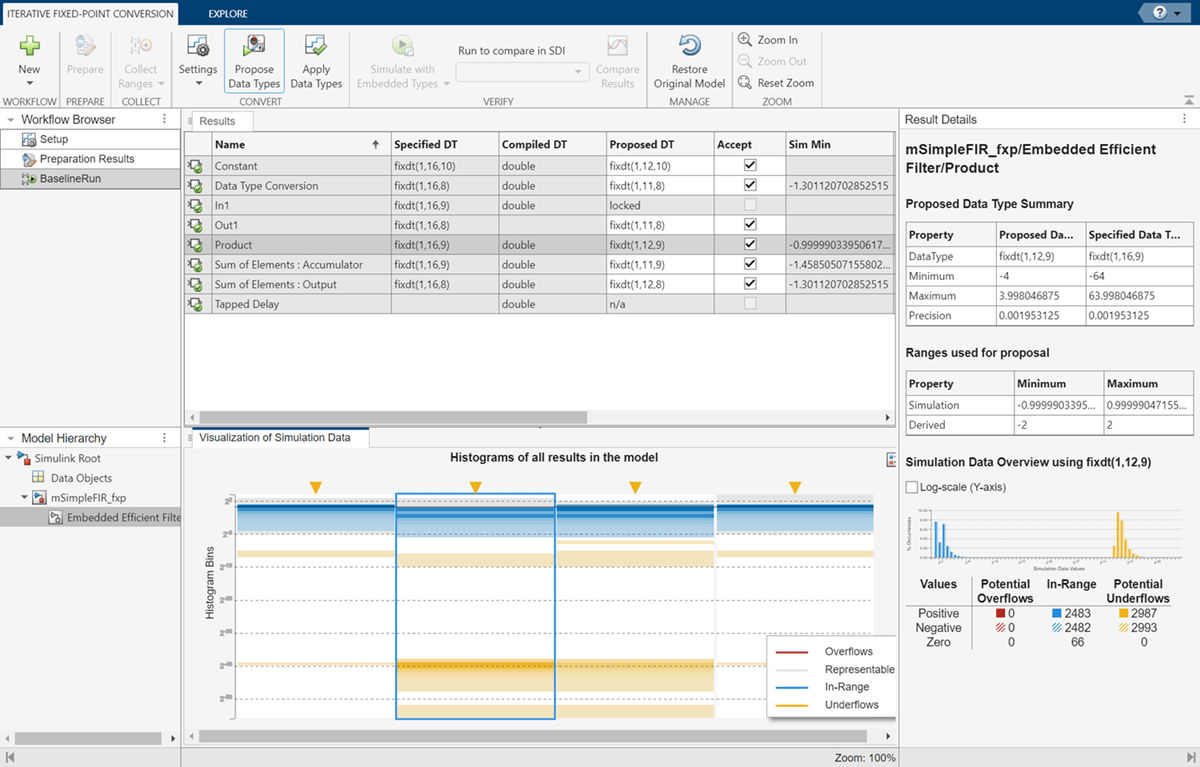

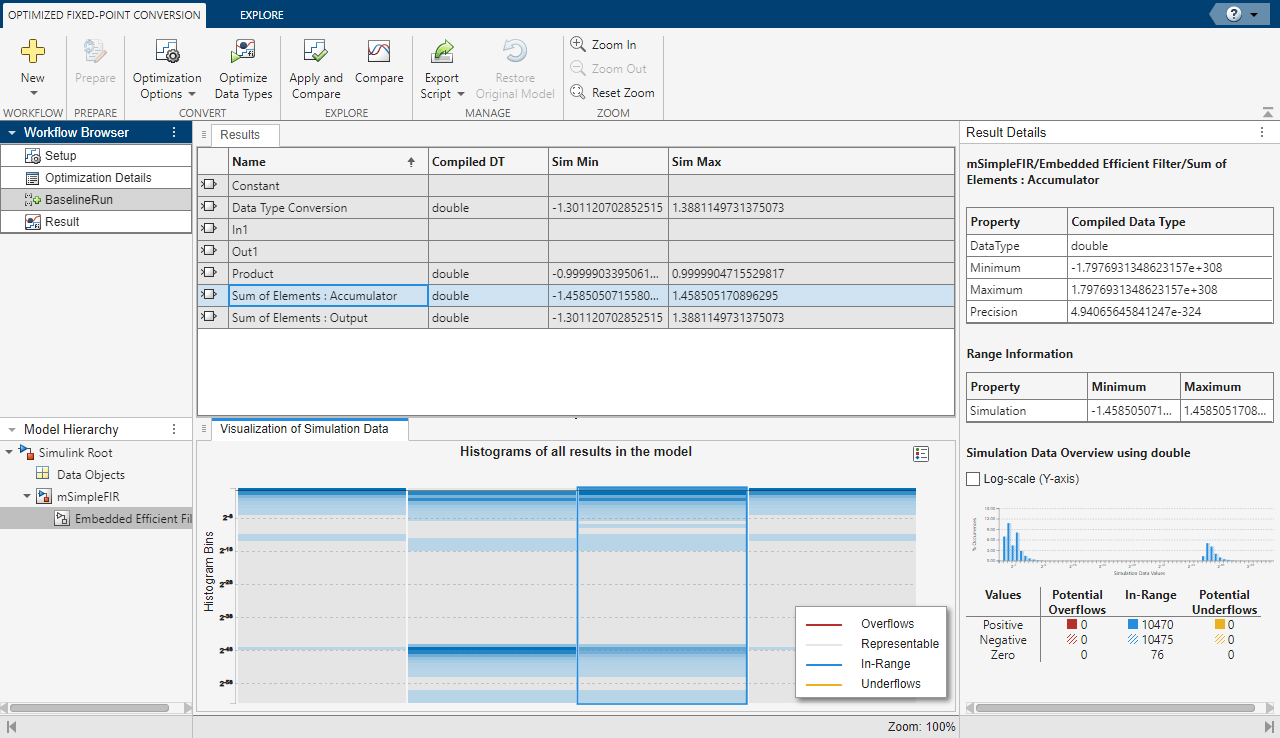

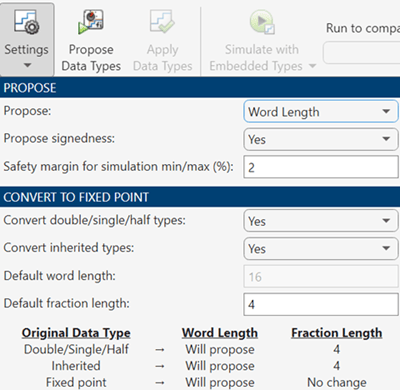

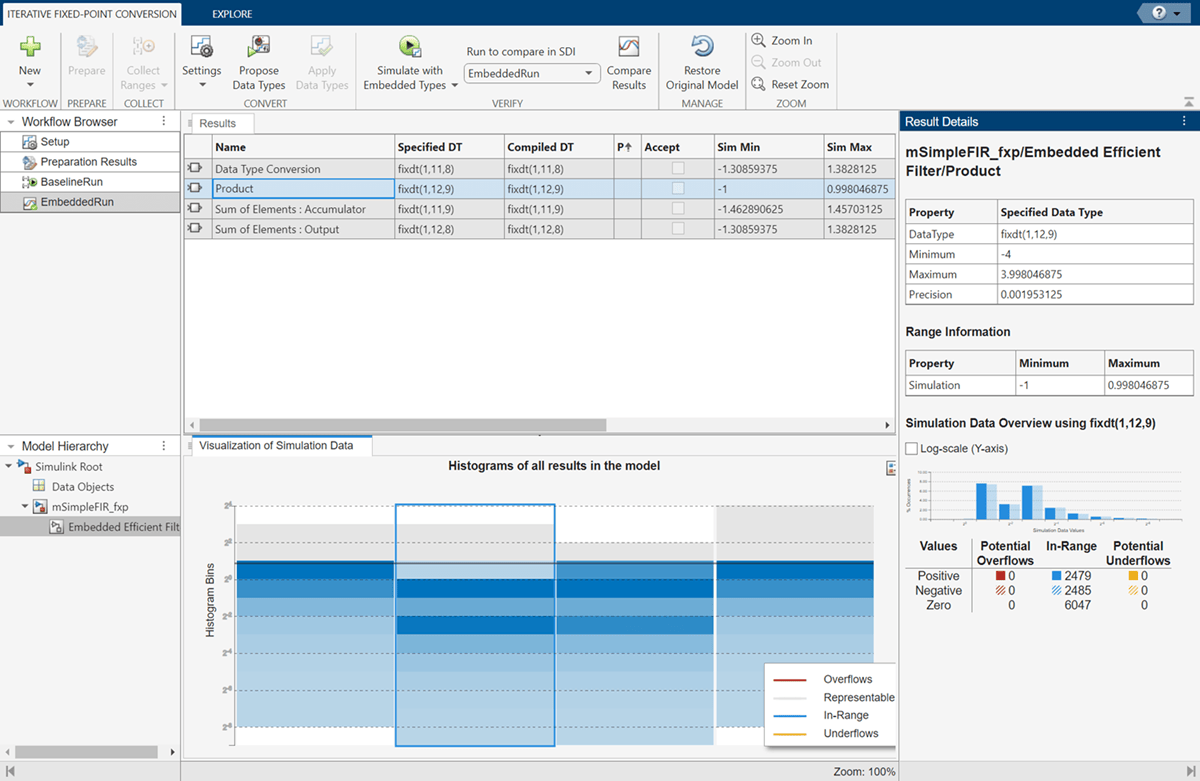

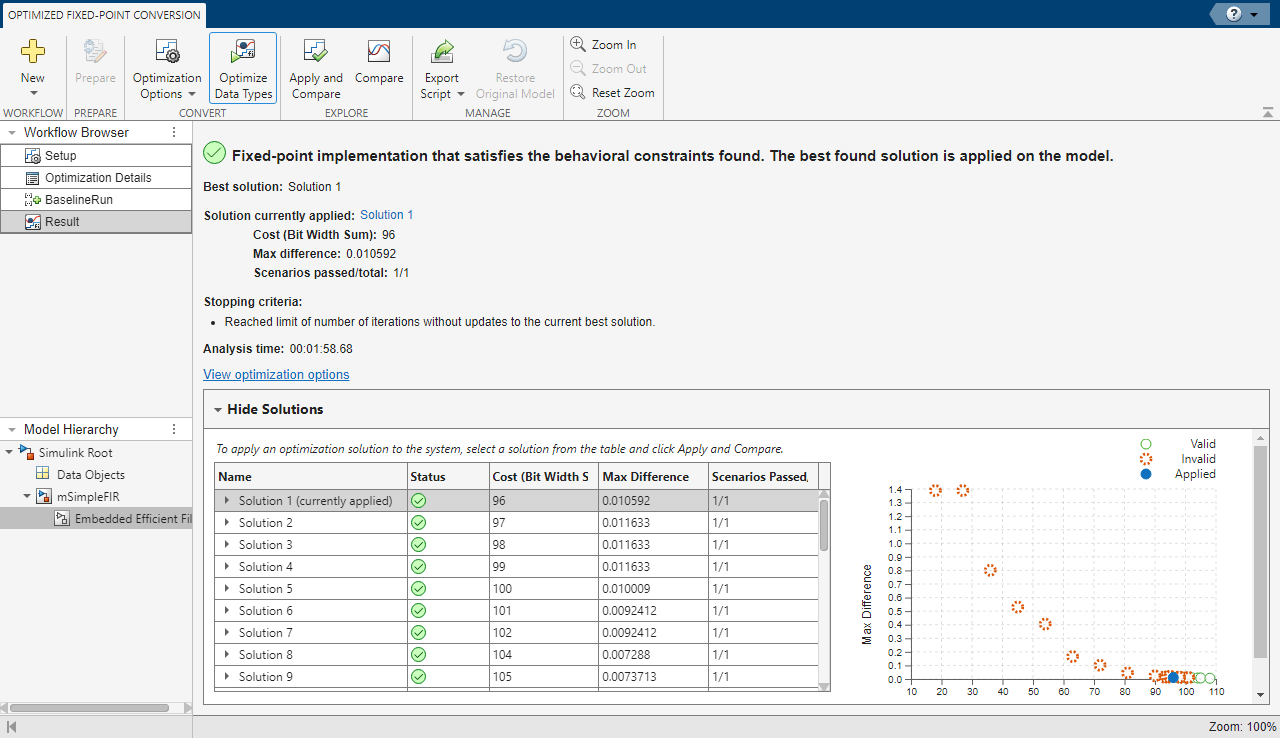

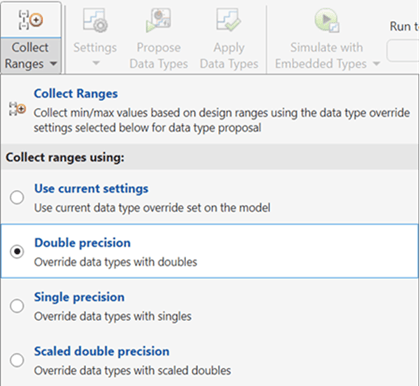

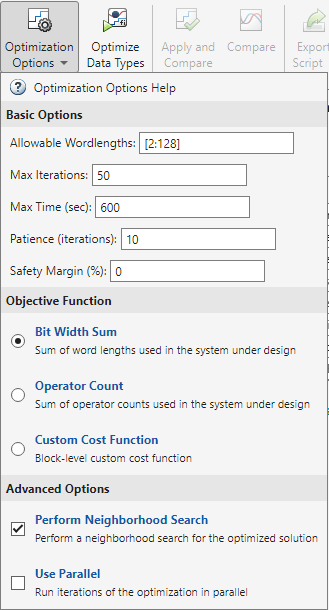

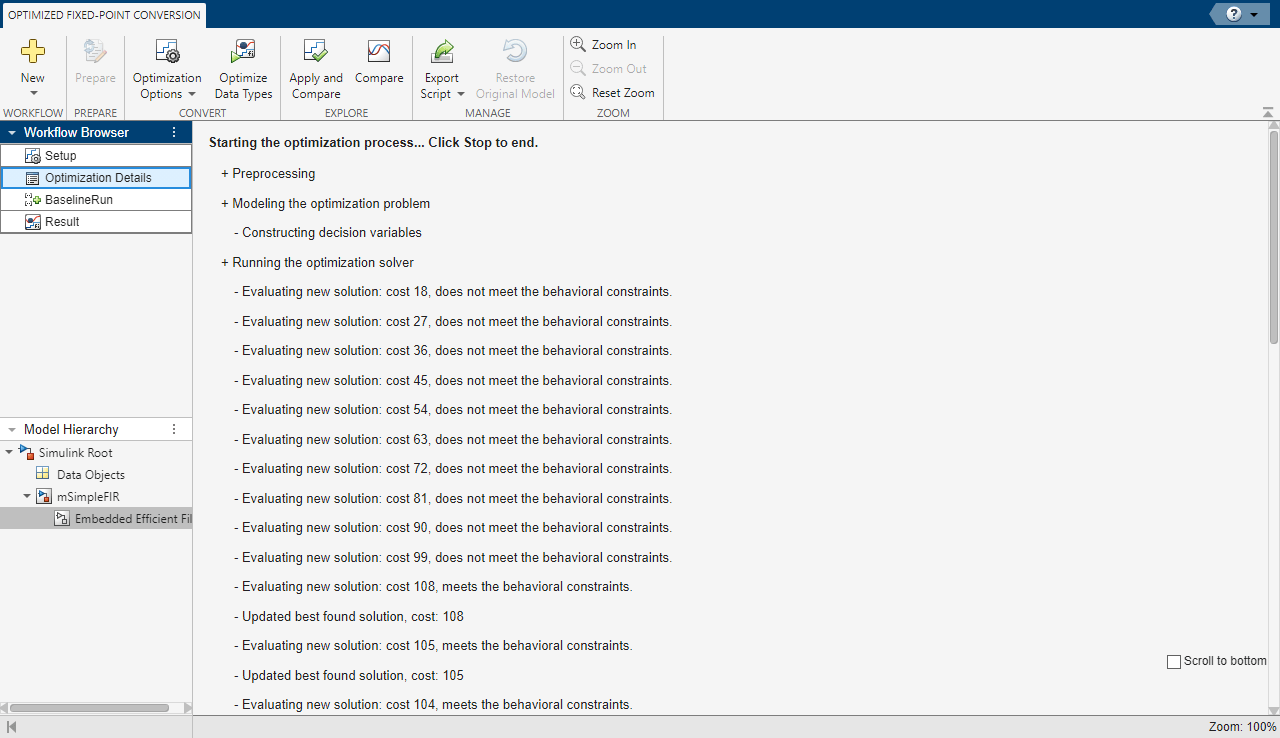

  • An interactive automatic data typing feature that proposes fixed-point data types for appropriately configured objects in your model, and then allows you to selectively accept and apply the data type proposals

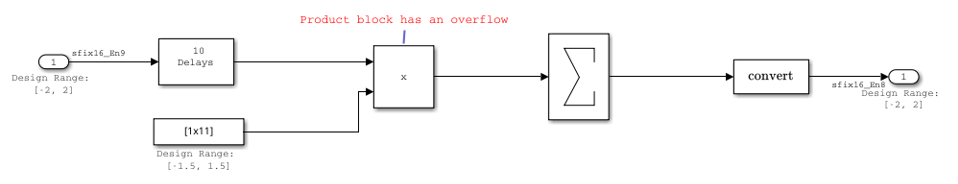

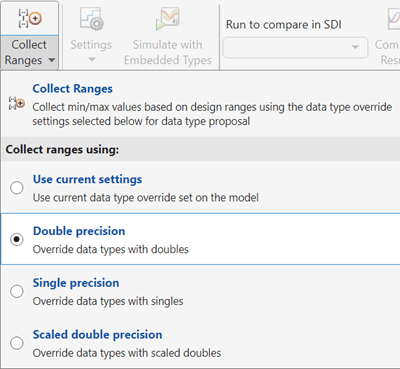

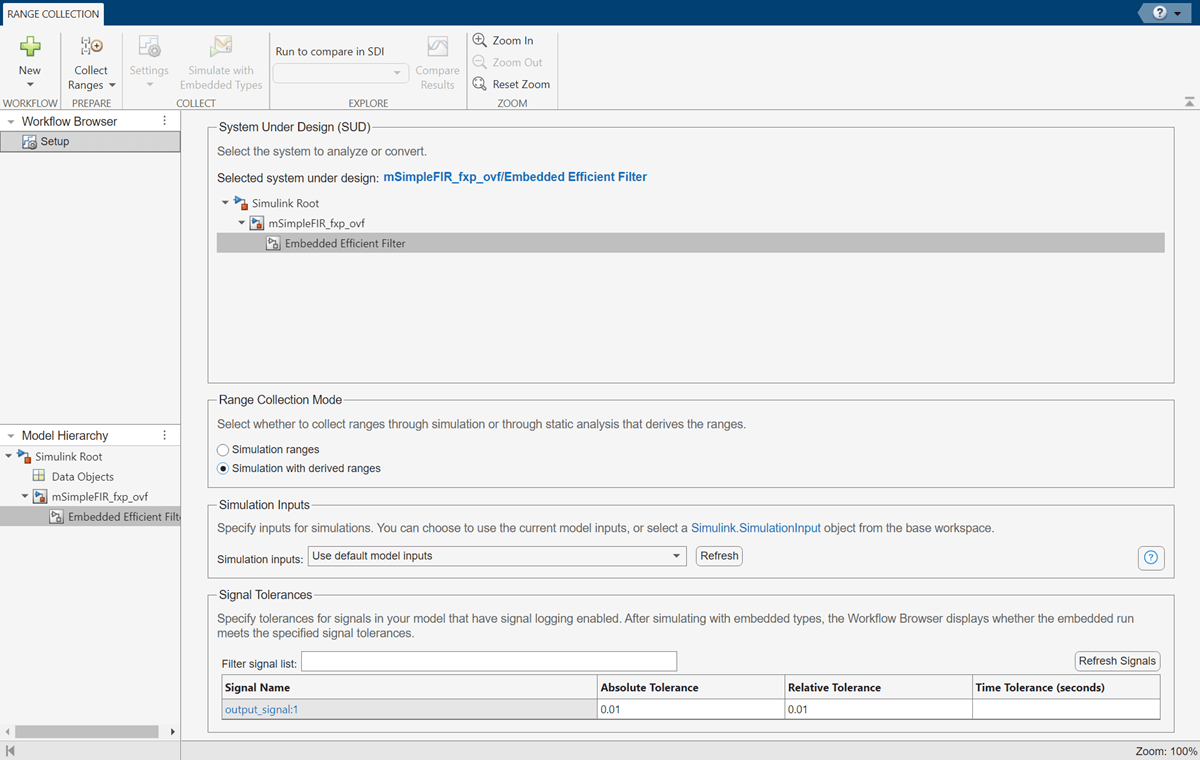

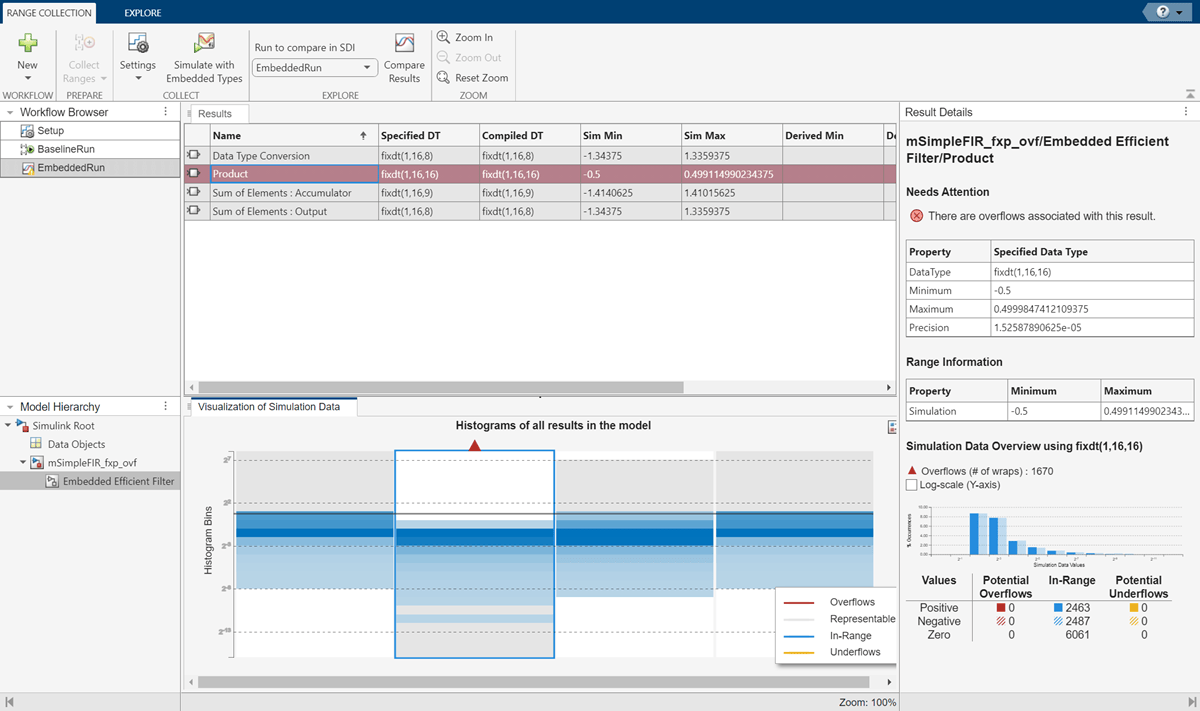

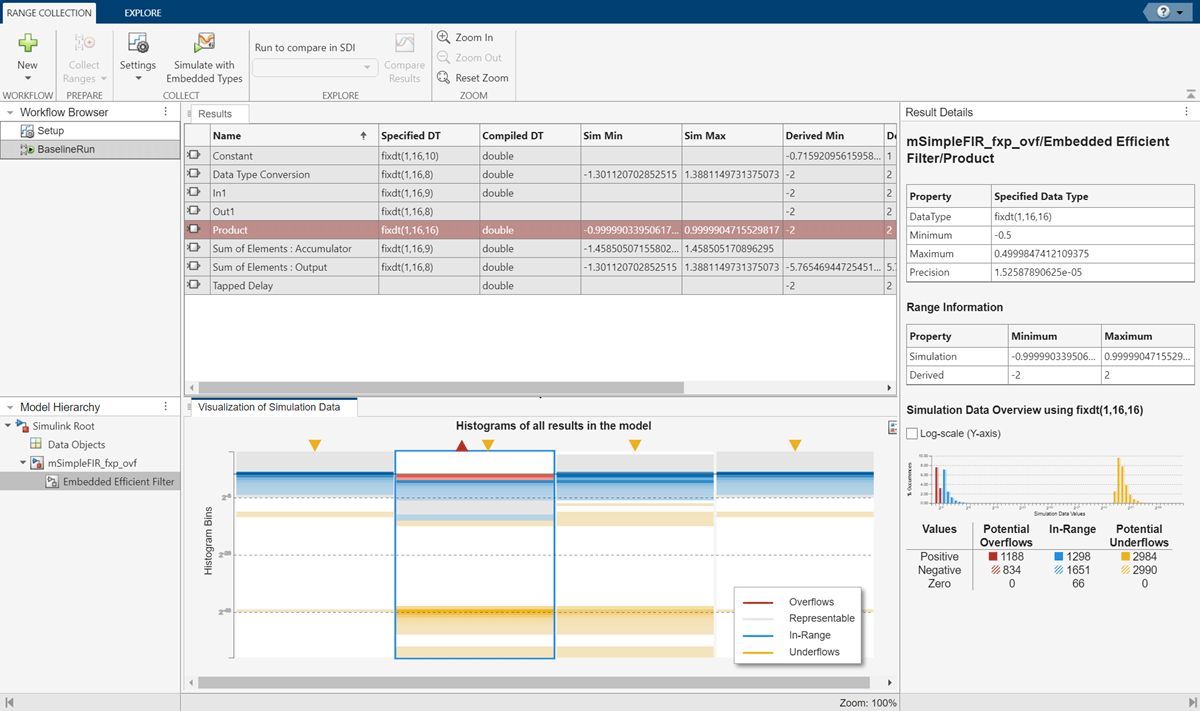

  • Model and subsystem parameters that control the signal logging, fixed-point instrumentation mode, and data type override

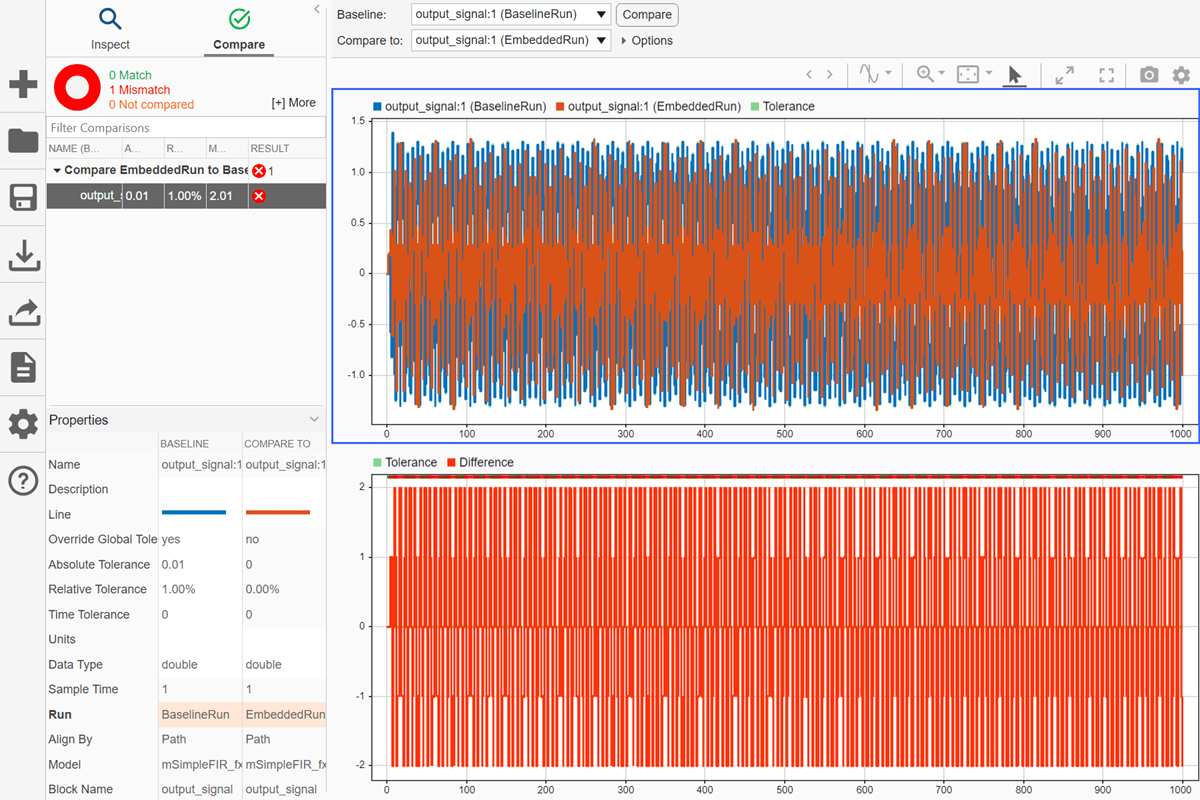

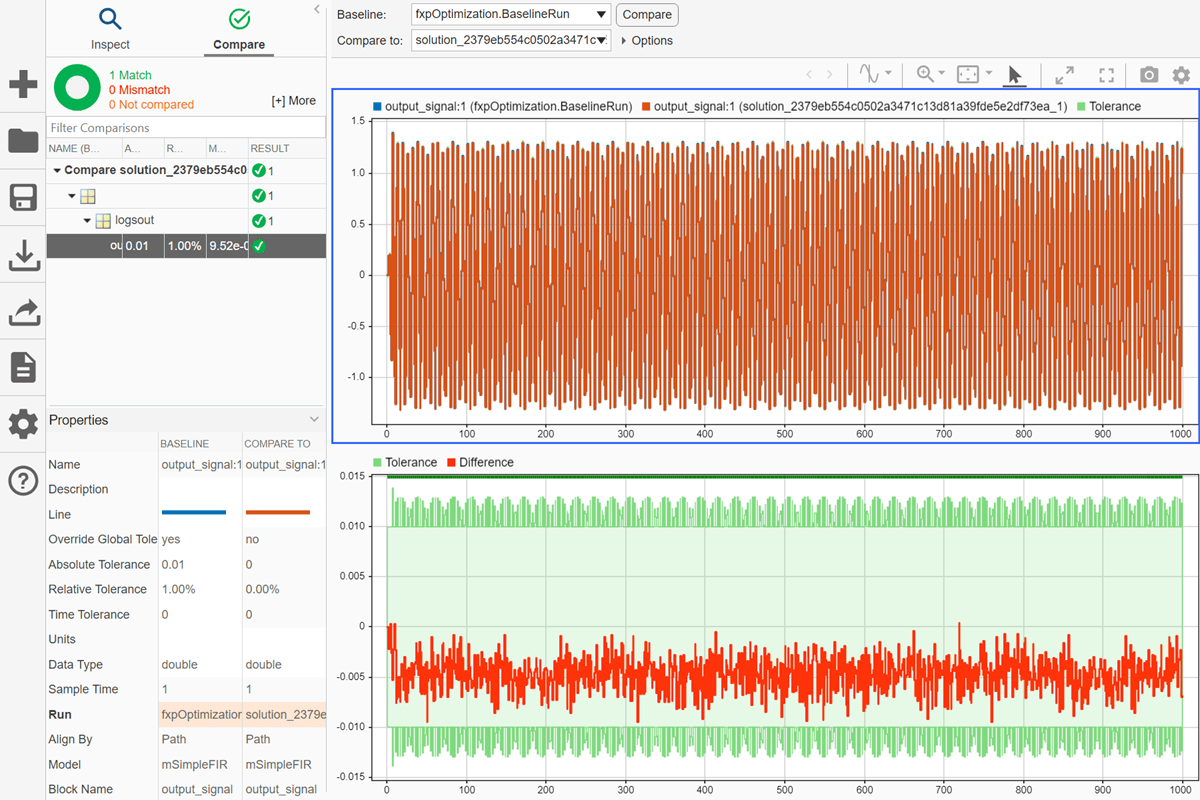

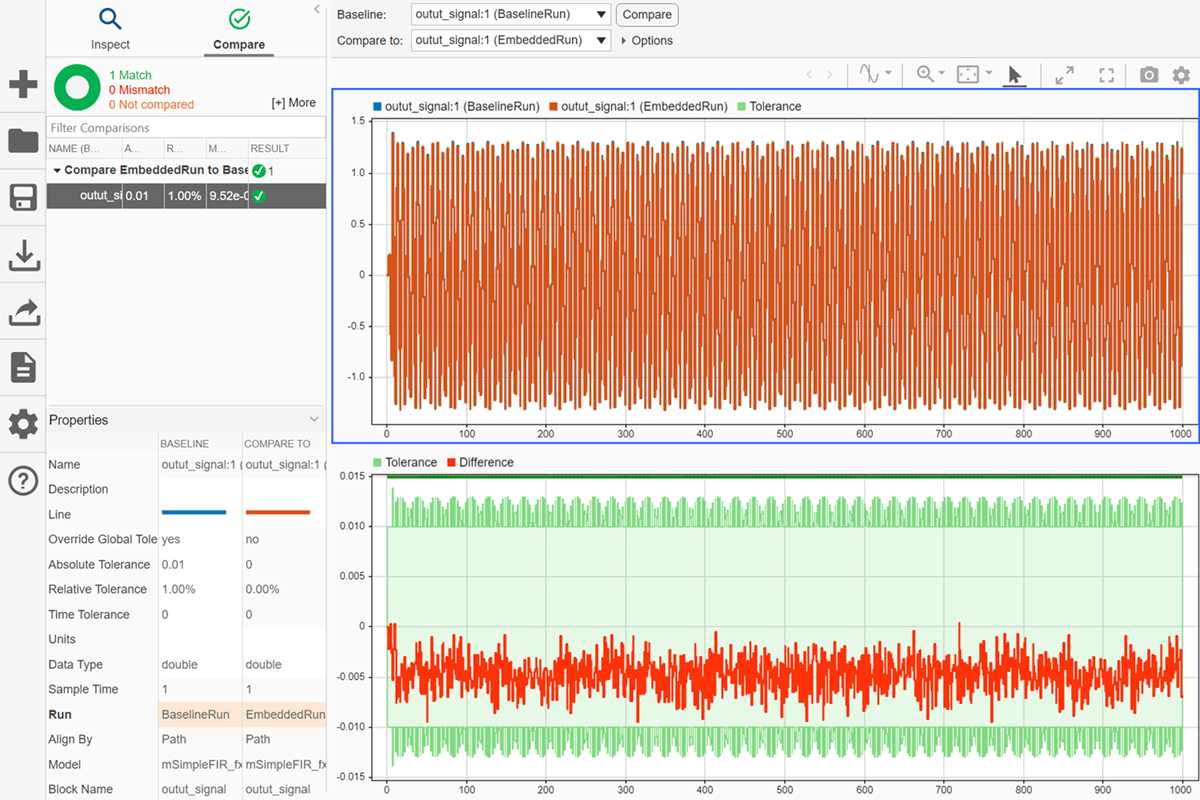

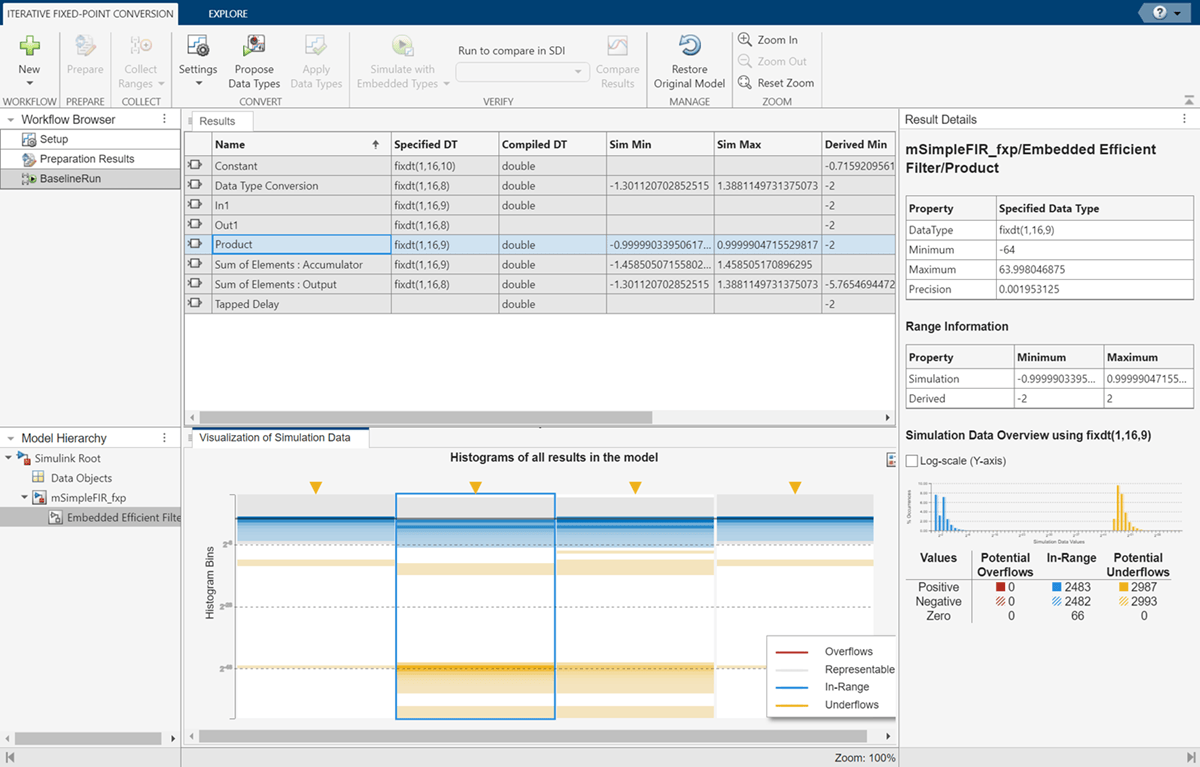

  • Plotting capabilities that enable you to plot data that resides in the MATLAB® workspace

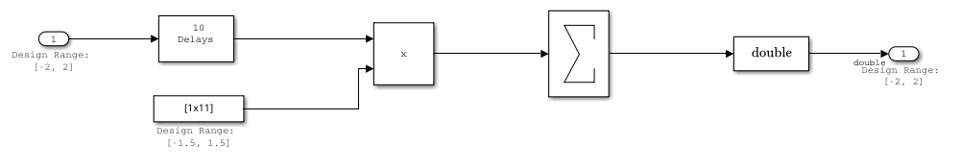

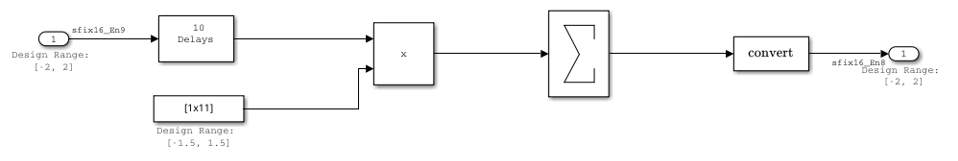

Most of the functionality in the Fixed-Point Tool is for use with the Fixed-Point Designer software. However, even if you do not have Fixed-Point Designer software, you can configure data type override settings to simulate a model that specifies fixed-point data types. In this mode, the Simulink® software temporarily overrides fixed-point data types with floating-point data types when simulating the model.

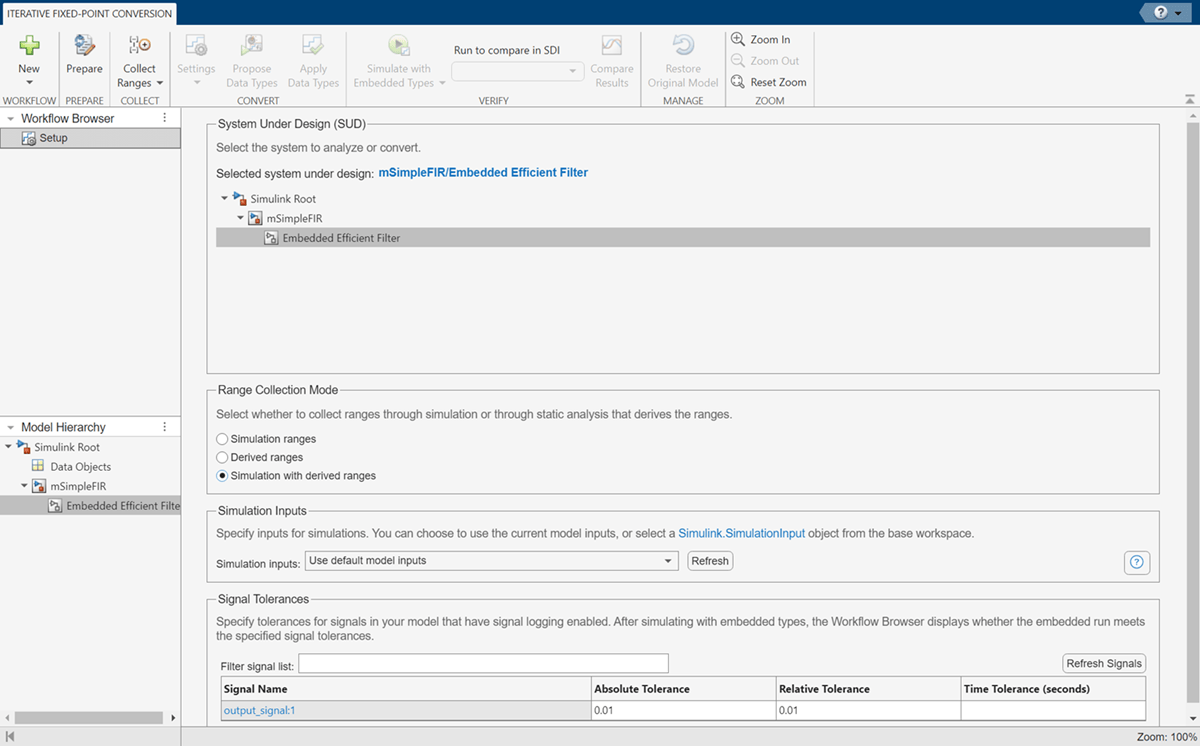

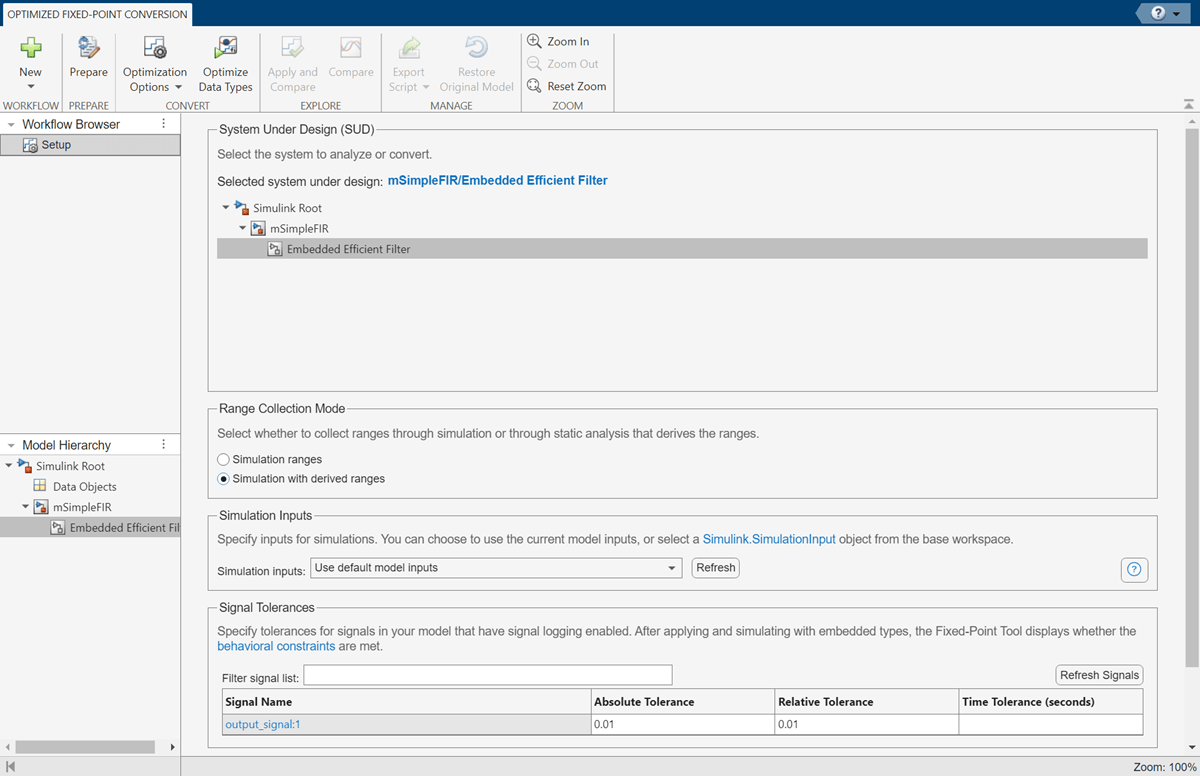

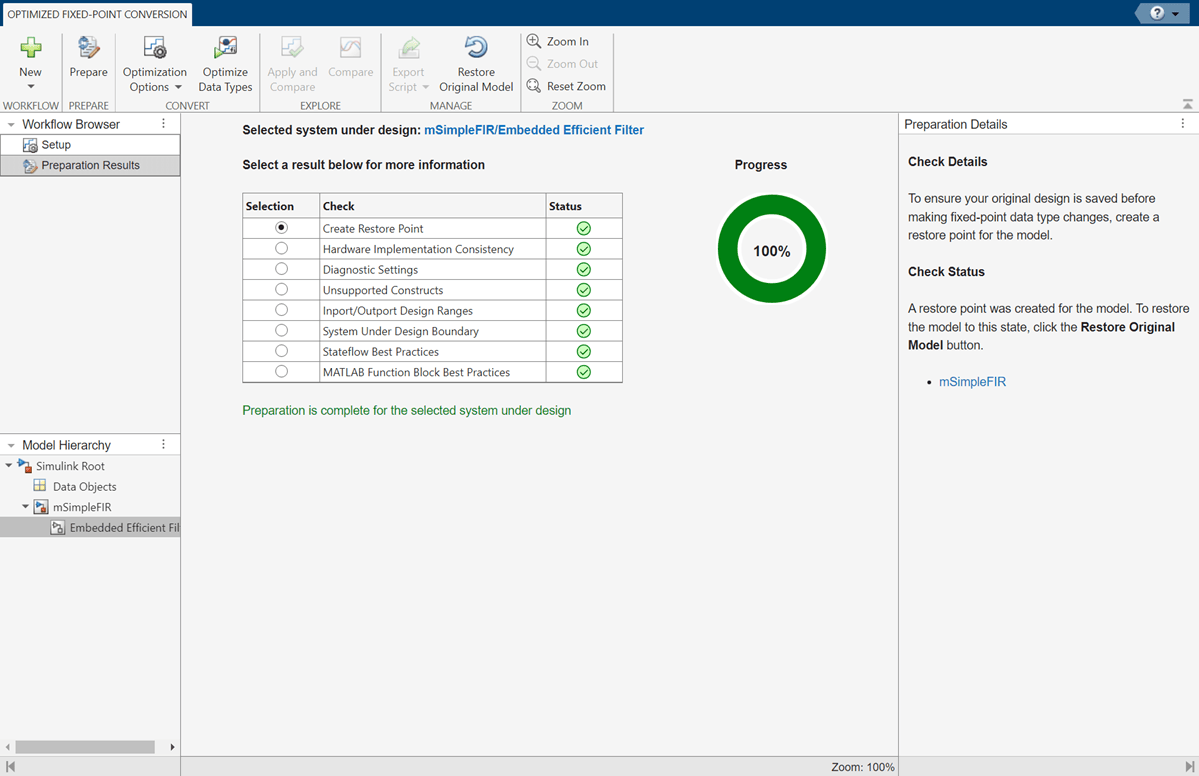

Open the Fixed-Point Tool

  • In the Simulink Apps tab, select Fixed-Point Tool.

  • From a subsystem context (right-click) menu, select Fixed-Point Tool.

  • From the MATLAB command prompt, enter fxptdlg(system_name) where system_name is the name of the model or system you want to convert, specified as a string.

Introduced before R2006a
