Predict K-step ahead model output

This `predict`

command computes the
K-step ahead output of an identified model using measured input-output
data. To identify the model, you first collect all the input-output
data and then estimate the model parameters offline. To perform online
state estimation of a nonlinear system using real-time data, use the `predict`

command
for extended and unscented Kalman filters instead.

`yp = predict(sys,data,K)`

`yp = predict(sys,data,K,opt)`

```
[yp,x0,sys_pred]
= predict(___)
```

`predict(sys,data,K,___)`

`predict(sys,Linespec,data,K,___)`

`predict(sys1,...,sysN,data,K,___)`

`predict(sys1,Linespec1,...,sysN,LinespecN,data,K,___)`

predicts
the output of an identified model `yp`

= predict(`sys`

,`data`

,`K`

)`sys`

, `K`

steps
ahead using the measured input-output data.

`predict`

command predicts the output response
over the time span of measured data. In contrast, `forecast`

performs prediction into the
future in a time range beyond the last instant of measured data. Use `predict`

to
validate `sys`

over the time span of measured data.

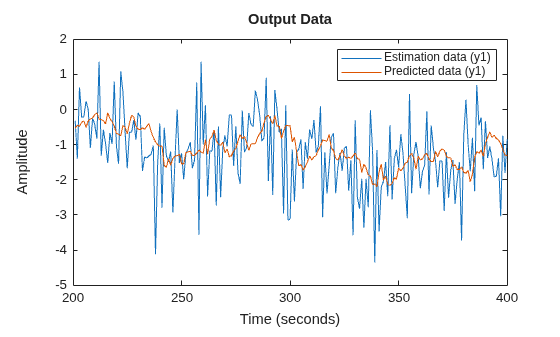

`predict(`

plots the predicted output. Use with any of the previous input argument
combinations. To change display options in the plot, right-click the plot to
access the context menu. For more details about the menu, see Tips.`sys`

,`data`

,`K`

,___)

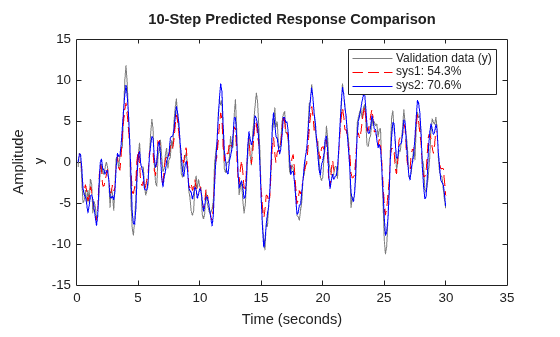

You can also plot the predicted model response using the `compare`

command. The `compare`

command
compares the prediction results with observed data and displays a
quantitative goodness of fit.

Right-clicking the plot of the predicted output opens the context menu, where you can access the following options:

**Systems**— Select systems to view predicted response. By default, the response of all systems is plotted.**Data Experiment**— For multi-experiment data only. Toggle between data from different experiments.**Characteristics**— View the following data characteristics:**Peak Value**— View the absolute peak value of the data. Applicable for time–domain data only.**Peak Response**— View peak response of the data. Applicable for frequency-response data only.**Mean Value**— View mean value of the data. Applicable for time–domain data only.

**Show**— For frequency-domain and frequency-response data only.**Magnitude**— View magnitude of frequency response of the system.**Phase**— View phase of frequency response of the system.

**Show Validation Data**— Plot data used to predict the model response.**I/O Grouping**— For datasets containing more than one input or output channel. Select grouping of input and output channels on the plot.**None**— Plot input-output channels in their own separate axes.**All**— Group all input channels together and all output channels together.

**I/O Selector**— For datasets containing more than one input or output channel. Select a subset of the input and output channels to plot. By default, all output channels are plotted.**Grid**— Add grids to the plot.**Normalize**— Normalize the y-scale of all data in the plot.**Full View**— Return to full view. By default, the plot is scaled to full view.**Prediction Horizon**— Set the prediction horizon, or choose simulation.**Initial Condition**— Specify handling of initial conditions. Not applicable for frequency-response data.Specify as one of the following:

**Estimate**— Treat the initial conditions as estimation parameters.**Zero**— Set all initial conditions to zero.**Absorb delays and estimate**— Absorb nonzero delays into the model coefficients and treat the initial conditions as estimation parameters. Use this option for discrete-time models only.

**Predicted Response Plot**— Plot the predicted model response. By default, the response plot is shown.**Prediction Error Plot**— Plot the error between the model response and prediction data.**Properties**— Open the Property Editor dialog box to customize plot attributes.
