Find local maxima
specifies additional parameters for finding local maxima using one or more
namevalue pair arguments. For example,
TF
= islocalmax(___,Name,Value
)islocalmax(A,'SamplePoints',t)
finds local maxima of
A
with respect to the time stamps contained in the time
vector t
.
[
also returns the prominence corresponding to each element of TF
,P
] = islocalmax(___)A
for any
of the previous syntaxes.

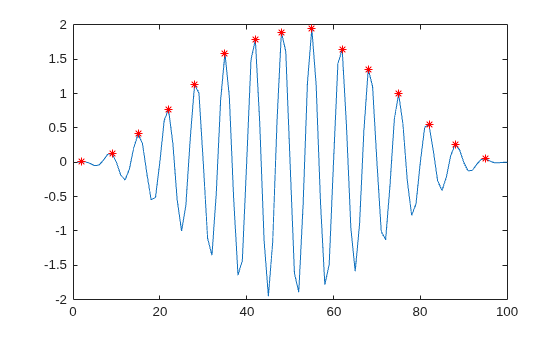

Compute and plot the local maxima of a vector of data.
x = 1:100;
A = (1cos(2*pi*0.01*x)).*sin(2*pi*0.15*x);
TF = islocalmax(A);
plot(x,A,x(TF),A(TF),'r*')
Create a matrix of data, and compute the local maxima for each row.
A = 25*diag(ones(5,1)) + rand(5,5); TF = islocalmax(A,2)
TF = 5x5 logical array
0 0 1 0 0
0 1 0 0 0
0 0 1 0 0
0 1 0 1 0
0 1 0 0 0

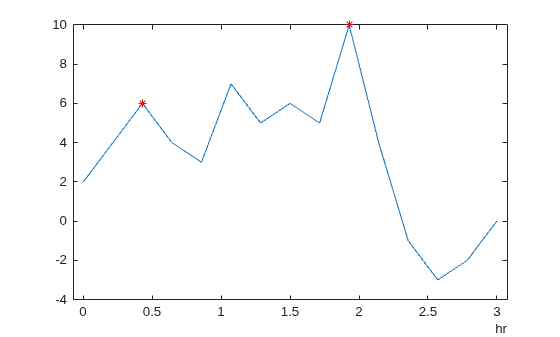

Compute the local maxima of a vector of data relative to the time stamps in the vector t
. Use the 'MinSeparation'
parameter to compute maxima that are at least 45 minutes apart.
t = hours(linspace(0,3,15)); A = [2 4 6 4 3 7 5 6 5 10 4 1 3 2 0]; TF = islocalmax(A,'MinSeparation',minutes(45),'SamplePoints',t); plot(t,A,t(TF),A(TF),'r*')
Specify a method for indicating consecutive maxima values.

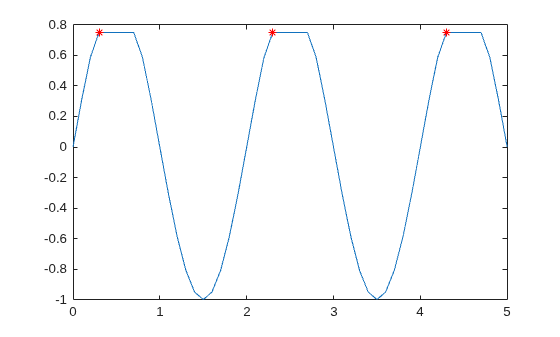

Compute the local maxima of data that contains consecutive maxima values. Indicate the maximum of each flat region based on the first occurrence of that value.
x = 0:0.1:5; A = min(0.75, sin(pi*x)); TF1 = islocalmax(A, 'FlatSelection', 'first'); plot(x,A,x(TF1),A(TF1),'r*')

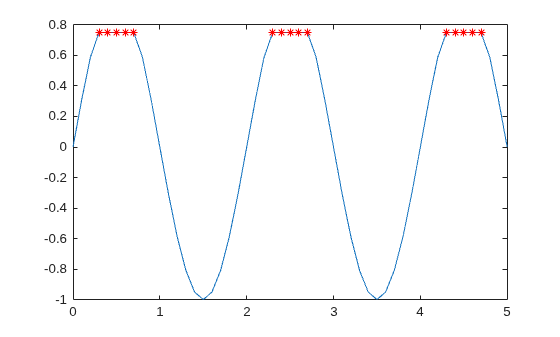

Indicate the maximum of each flat region with all occurrences of that value.
TF2 = islocalmax(A, 'FlatSelection', 'all'); plot(x,A,x(TF2),A(TF2),'r*')
Select maxima based on their prominence.

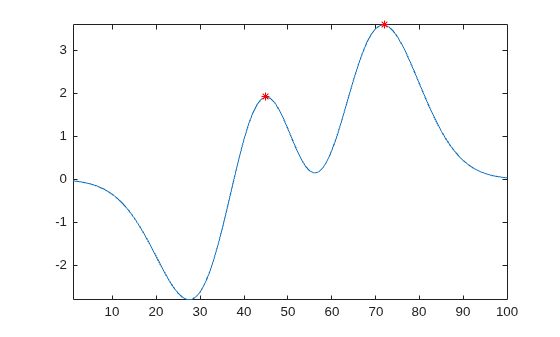

Compute the local maxima of a vector of data and their prominence, and then plot them with the data.
x = 1:100; A = peaks(100); A = A(50,:); [TF1,P] = islocalmax(A); P(TF1)
ans = 1×2
1.7703 3.5548
plot(x,A,x(TF1),A(TF1),'r*') axis tight

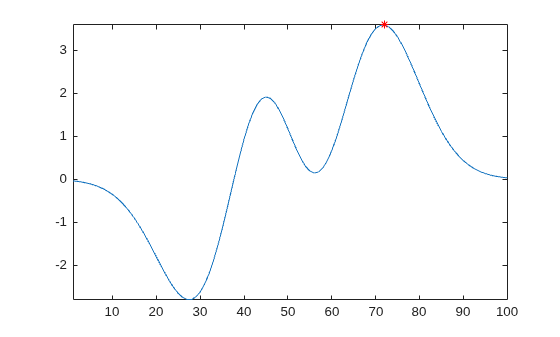

Compute only the most prominent maximum in the data by specifying a minimum prominence requirement.
TF2 = islocalmax(A,'MinProminence',2); plot(x,A,x(TF2),A(TF2),'r*') axis tight
A
— Input dataInput data, specified as a vector, matrix, multidimensional array, table, or timetable.
Data Types: single
 double
 int8
 int16
 int32
 int64
 uint8
 uint16
 uint32
 uint64
 logical
 table
 timetable
dim
— Operating dimensionOperating dimension, specified as a positive integer scalar. By default,
islocalmax
operates along the first dimension whose
size does not equal 1.
For example, if A
is a matrix, then
islocalmax(A,1)
operates along the rows of
A
, computing local maxima for each column.
islocalmax(A,2)
operates along the columns of
A
, computing local maxima for each row.
Data Types: single
 double
 int8
 int16
 int32
 int64
 uint8
 uint16
 uint32
 uint64
Specify optional
commaseparated pairs of Name,Value
arguments. Name
is
the argument name and Value
is the corresponding value.
Name
must appear inside quotes. You can specify several name and value
pair arguments in any order as
Name1,Value1,...,NameN,ValueN
.
TF = islocalmax(A,'MinProminence',2)
SamplePoints
— Sample pointsvartype
subscriptSample points, specified as the commaseparated pair consisting of
'SamplePoints'
and either a vector of sample
point values or one of the options in the following table when the input
data is a table. The sample points represent the
xaxis locations of the data, and must be sorted and
contain unique elements. Sample points do not need to be uniformly
sampled. The vector [1 2 3 ...]
is the
default.
When the input data is a table, you can specify the sample points as a table variable using one of the following options.
Option for Table Input  Description  Examples

Variable name  A character vector or scalar string specifying a single table variable name

Scalar variable index  A scalar table variable index

Logical vector  A logical vector whose elements each correspond to a table variable, where


Function handle  A function handle that takes a table variable as input and returns a logical scalar,
which must be

vartype subscript  A table subscript generated by the

Note
This namevalue pair is not supported when the input data is a timetable
. Timetables always use the vector of row times as the sample points. To use different sample points, you must edit the timetable so that the row times contain the desired sample points.
Example: islocalmax(A,'SamplePoints',0:0.1:10)
Example: islocalmax(T,'SamplePoints',"Var1")
Data Types: double
 single
 int8
 int16
 int32
 int64
 uint8
 uint16
 uint32
 uint64
 datetime
 duration
DataVariables
— Table variables to operate onvartype
subscriptTable variables to operate on, specified as the commaseparated pair
consisting of 'DataVariables'
and one of the options
in this table. The 'DataVariables'
value indicates
which variables of the input table to examine for local maxima. The data
type associated with the indicated variables must be numeric or
logical
. Other variables in the table not
specified by 'DataVariables'
are not operated on, so
the output contains false
values for those
variables.
Option  Description  Examples

Variable name  A character vector or scalar string specifying a single table variable name

Vector of variable names  A cell array of character vectors or string array where each element is a table variable name

Scalar or vector of variable indices  A scalar or vector of table variable indices

Logical vector  A logical vector whose elements each correspond to a table variable, where


Function handle  A function handle that takes a table variable as input and returns a logical scalar

vartype subscript  A table subscript generated by the

Example: islocalmax(T,'DataVariables',["Var1" "Var2"
"Var4"])
MinProminence
— Minimum prominenceMinimum prominence, specified as the commaseparated pair consisting
of 'MinProminence'
and a nonnegative scalar.
islocalmax
returns only local maxima whose
prominence is at least the value specified.
Data Types: single
 double
 int8
 int16
 int32
 int64
 uint8
 uint16
 uint32
 uint64
ProminenceWindow
— Prominence windowProminence window, specified as the commaseparated pair consisting of
'ProminenceWindow'
and a positive integer scalar,
a twoelement vector of positive integers, a positive duration scalar,
or a twoelement vector of positive durations. The value defines a
window of neighboring points for which to compute the prominence for
each local maximum.
When the window value is a positive integer scalar
k, then the window is centered about each local
maximum and contains k1 neighboring elements. If
k is even, then the window is centered about the
current and previous elements. If a local maximum is within a flat
region, then islocalmax
treats the entire flat region
as the center point of the window.
When the value is a twoelement vector [b f]
of
positive integers, then the window contains the local maximum,
b
elements backward, and f
elements forward. If a local maximum is within a flat region, then the
window starts b
elements before the first point of
the region and ends f
elements after the last point
of the region.
When the input data is a timetable or when
'SamplePoints'
is specified as a
datetime
or duration
vector,
the window value must be of type duration
, and the
window is computed relative to the sample points.
Data Types: single
 double
 int8
 int16
 int32
 int64
 uint8
 uint16
 uint32
 uint64
 duration
FlatSelection
— Flat region indicator'center'
(default)  'first'
 'last'
 'all'
Flat region indicator for when a local maximum value is repeated
consecutively, specified as the commaseparated pair consisting of
'FlatSelection'
and one of the following:
'center'
— Indicate only the center
element of a flat region as the local maximum. The element
of TF
corresponding to the center of the
flat is 1, and is 0 for the remaining flat elements.
'first'
— Indicate only the first
element of a flat region as the local maximum. The element
of TF
corresponding to the start of the
flat is 1, and is 0 for the remaining flat elements.
'last'
— Indicate only the last element
of a flat region as the local maximum. The element of
TF
corresponding to the end of the
flat is 1, and is 0 for the remaining flat elements.
'all'
— Indicate all the elements of a
flat region as the local maxima. The elements of
TF
corresponding to all parts of the
flat are 1.
When using the 'MinSeparation'
or
'MaxNumExtrema'
namevalue pairs, flat region
points are jointly considered a single maximum point.
MinSeparation
— Minimum separationMinimum separation between local maxima, specified as the
commaseparated pair consisting of 'MinSeparation'
and a nonnegative scalar. The separation value is defined in the same
units as the sample points vector, which is [1 2 3
...]
by default. When the separation value is greater than
0, islocalmax
selects the largest local maximum and
ignores all other local maxima within the specified separation. This
process is repeated until there are no more local maxima
detected.
When the sample points vector has type datetime
,
the separation value must have type duration
.
Data Types: single
 double
 int8
 int16
 int32
 int64
 uint8
 uint16
 uint32
 uint64
 duration
MaxNumExtrema
— Maximum number of maximaMaximum number of maxima detected, specified as the commaseparated
pair consisting of 'MaxNumExtrema'
and a positive
integer scalar. islocalmax
finds no more than the
specified number of most prominent maxima, which is the length of the
operating dimension by default.
Data Types: single
 double
 int8
 int16
 int32
 int64
 uint8
 uint16
 uint32
 uint64
TF
— Local maxima indicatorLocal maxima indicator, returned as a vector, matrix, or multidimensional
array. TF
is the same size as
A
.
Data Types: logical
P
— ProminenceProminence, returned as a vector, matrix, or multidimensional
array. P
is the same size as A
.
If the input data has a signed or unsigned integer type, then
P
is an unsigned integer.

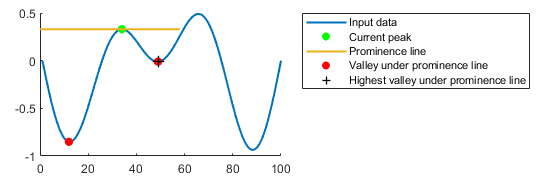

The prominence of a local maximum (or peak) measures how the peak stands out with respect to its height and location relative to other peaks.
To measure the prominence of a peak, first extend a horizontal line from the peak to the left and to the right of the peak. Find where the line intersects the data on the left and on the right, which will either be another peak or the end of the data. Mark these locations as the outer endpoints of the left and right intervals. Next, find the lowest valley in both intervals. Take the larger of these two valleys, and measure the vertical distance from that valley to the peak. This distance is the prominence.
For a vector x
, the largest prominence is at
most max(x)min(x)
.
Usage notes and limitations:
Tall timetables are not supported.
You must specify a value for the 'ProminenceWindow'
namevalue pair.
The 'MaxNumExtrema'
, 'MinSeparation'
, and 'SamplePoints'
namevalue pairs are not supported.
The value of 'DataVariables'
cannot be a function handle.
For more information, see Tall Arrays.
Usage notes and limitations:
You must enable support for variablesize arrays.
The 'ProminenceWindow'
namevalue pair is not
supported.
backgroundPool
or accelerate code with Parallel Computing Toolbox™ ThreadPool
.This function fully supports threadbased environments. For more information, see Run MATLAB Functions in ThreadBased Environment.
max
 isoutlier
 ischange
 islocalmin
