vertexNormal

Triangulation vertex normal

collapse all in page

Syntax

V = vertexNormal(TR)
V = vertexNormal(TR,ID)

Description

V = vertexNormal(TR) returns the unit normal vectors to all vertices in a 3-D surface triangulation. V is a three-column matrix with each row containing the unit normal coordinates corresponding to the vertices in TR.Points.

example

V = vertexNormal(TR,ID) returns the unit normal vector to each vertex indexed by ID. A vertex ID is the row number corresponding to the vertices in the property TR.Points.

Examples

collapse all

Open Live Script

Compute and plot the unit normal vectors to the vertices of a triangulation.

Create a 3-D triangulation representing the volume of a cube.

[X,Y,Z] = meshgrid(1:4);
x = X(:);
y = Y(:);
z = Z(:);
DT = delaunayTriangulation(x,y,z);

Triangulate the boundary of the cube.

[Tfb,Xfb] = freeBoundary(DT);
TR = triangulation(Tfb,Xfb);

Find the unit normal vectors to the triangle vertices.

V = vertexNormal(TR);

Plot the triangulated surface and the unit normal vectors.

trisurf(TR,'FaceColor',[0.8 0.8 1.0]);
axis equal
hold on
quiver3(Xfb(:,1),Xfb(:,2),Xfb(:,3), ...
     V(:,1),V(:,2),V(:,3),0.5,'Color','b');

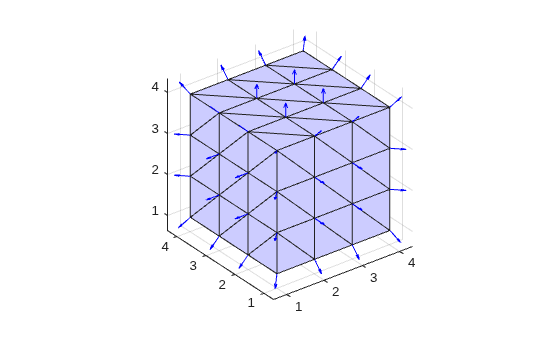

Figure contains an axes object. The axes object contains 2 objects of type patch, quiver.

Input Arguments

collapse all

Triangulation representation for 3-D surface triangulations only, specified as a scalar triangulation or delaunayTriangulation object.

Data Types: triangulation | delaunayTriangulation

Vertex IDs, specified as a scalar or a column vector whose elements correspond to a single vertex in the triangulation object. The ID of each vertex is the corresponding row number of the vertices in the Points property.

Data Types: double

Extended Capabilities

expand all

Thread-Based Environment
Run code in the background using MATLAB® backgroundPool or accelerate code with Parallel Computing Toolbox™ ThreadPool.

Version History

Introduced in R2013a
