trajectoryOptimalFrenet

Find optimal trajectory along reference path

Description

The trajectoryOptimalFrenet object is a path planner which samples and evaluates local trajectories based on a reference path. The planner generates a set of terminal states based on the reference path and other parameters in the object. The planner then connects the state to each terminal state using fourth or fifth-order polynomials. To choose an optimal path, sampled trajectories are evaluated for kinematic feasibility, collision, and cost.

Creation

Syntax

trajectoryOptimalFrenet(refPath,validator)

planner = trajectoryOptimalFrenet(___,Name,Value)

Description

trajectoryOptimalFrenet(refPath,validator) creates a trajectoryOptimalFrenet object with reference path, refPath, in the form of an n-by-2 array of [x y] waypoints and a state validator, validator, specified as a validatorOccupancyMap object.

planner = trajectoryOptimalFrenet(___,Name,Value) sets additional properties using one or more name-value pairs in any order.

Input Arguments

refPath — Reference path

n-by-2 matrix

Reference path, specified as an n-by-2 matrix of [x y] pairs, where n is the number of waypoints.

Example: [100,100;400,400]

Data Types: double

validator — State validator object

validatorOccupancyMap object

State validator object, specified as a validatorOccupancyMap object.

Properties

Note

For the 'Weights' and 'FeasibilityParameters' properties, you cannot specify the entire structures at once. Instead, set their fields individually as name-value pairs. For example, trajectoryOptimalFrenet(refPath,validator,'Deviation',0) sets the 'Deviation' field of the structure 'Weights'.

Weights — Weights for all trajectory costs

structure

The weights for all trajectory costs, specified as a structure containing scalars for the cost multipliers of the corresponding trajectory attributes. The total trajectory cost is a sum of all attributes multiplied by their weights. The structure has these fields.

Time — Weight for time cost

0 (default) | positive scalar

The cost function multiplies the weight by the total time taken to reach the terminal state. Specify this value as the comma-separated pair of 'Time' and a positive scalar in seconds.

Data Types: double

ArcLength — Weight for arc length cost

0 (default) | positive scalar

The cost function multiplies the weight by the total length of the generated trajectories. Specify this value as the comma-separated pair of 'ArcLength' and a positive scalar in meters.

Data Types: double

LateralSmoothness — Weight for lateral jerk cost

0 (default) | positive scalar

The cost function multiplies the weight by the integral of lateral jerk squared. This value determines the aggressiveness of the trajectory in the lateral direction (perpendicular to the reference path). Specify this value as the comma-separated pair of 'LateralSmoothness' and a positive scalar. To penalize lateral jerk in the planned trajectory increase this cost value.

Data Types: double

LongitudinalSmoothness — Weight for longitudinal jerk cost

0 (default) | positive scalar

The cost function multiplies the weight by the integral of longitudinal jerk squared. This value determines the aggressiveness of the trajectories in the longitudinal direction (direction of the reference path). Specify this value as the comma-separated pair of 'LongitudinalSmoothness' and a positive scalar. To penalize large change in forward and backward acceleration increase this cost value.

Data Types: double

Deviation — Weight for deviation from reference path

1 (default) | positive scalar

The cost function multiplies the weight by the perpendicular distance from the reference path at the end of the trajectory in meters. Specify this value as the comma-separated pair of 'Deviation' and a positive scalar in meters.

Data Types: double

Data Types: struct

FeasibilityParameters — Structure containing feasibility parameters

structure

Feasibility parameters, specified as a structure containing scalar values to check the validity of a trajectory. The structure has these fields.

MaxCurvature — Maximum curvature that vehicle can execute

0.1 (default) | positive real scalar

Maximum curvature that the vehicle can execute. Specify this value as the comma-separated pair of 'MaxCurvature' and a positive real scalar in m^-1. This value determines the kinematic feasibility of the trajectory.

Data Types: double

MaxAcceleration — Maximum acceleration in direction of motion of vehicle

2.5 (default) | positive real scalar

Maximum acceleration in the direction of motion of the vehicle. Specify this value as the comma-separated pair of 'MaxAcceleration' and a positive real scalar in m/s². To lower the limit on the acceleration of the vehicle in the forward or reverse direction decrease this value.

Data Types: double

Data Types: struct

TimeResolution — Trajectory discretization interval

0.1 (default) | positive real scalar

Time interval between discretized states of the trajectory. Specify this value as the comma-separated pair of 'TimeResolution' and a positive real scalar in seconds. These discretized states determine state validity and cost function.

Data Types: double

CostFunction — User-defined cost function

nullCost (default) | function handle

The user-defined cost function, specified as a function handle. The function must accept a matrix of n-by-7 states, TRAJSTATES, for each trajectory and return a cost value as a scalar. The plan function returns the path with the lowest cost.

For example, leftLaneChangeCost = @(states)((states(end,2) < refPath(end,2))*10) creates a cost function handle to prioritize left lane changes.

Data Types: function handle

TrajectoryList — List of all possible trajectories

structure array

This property is read-only.

The 'TrajectoryList' property, returned as a structure array of all the candidate trajectories and their corresponding parameters. Each structure has these fields:

• Trajectory — An n-by-7 matrix of [x, y, theta, kappa, speed, acceleration, time], where n is the number of trajectory waypoints.

• Cost — Cost of the trajectory.

• MaxAcceleration — Maximum acceleration of the trajectory.

• MaxCurvature — Maximum curvature of the trajectory.

• Feasible — A four-element vector [velocity, acceleration, curvature, collision] indicating the validity of the trajectory.

  The value of the elements can be either,

  • 1 — The trajectory is valid.

  • 0 — The trajectory is invalid.

  • -1 — The trajectory is not checked.

Data Types: struct

TerminalStates — Structure of all goal states

structure

A structure that contains a list of goal states relative to the reference path. These parameters define the sampling behavior for generating alternative trajectory segments between start and each goal state. The structure has these fields.

Longitudinal — Lengths of the trajectory segment

30:15:90 (default) | vector

Lengths of the trajectory segment, specified as a vector in meters.

Data Types: double

Lateral — Array of deviations from reference path in perpendicular direction at goal state

-2:1:2 (default) | vector

Array of deviations from reference path in perpendicular direction at goal state, specified as a vector in meters.

Data Types: double

Speed — Velocity at goal state in direction of motion

10 (default) | positive scalar

Velocity at the goal state in the direction of motion, specified as a positive scalar in m/s.

Data Types: double

Acceleration — Acceleration at goal state in direction of motion

0 (default) | positive scalar

Acceleration at the goal state in the direction of motion, specified as a positive scalar in m/s².

Data Types: double

Time — Array of end-times for executing trajectory segment

7 (default) | positive vector

Array of end-times for executing the trajectory segment, specified as a positive vector in seconds.

Data Types: double

Data Types: struct

Waypoints — Waypoints of reference path

[ ] (default) | n-by-2 matrix

Waypoints of reference path, specified as an n-by-2 matrix of [x y] pairs, where n is the number of waypoints. Waypoints act as a reference for planning alternative trajectories optimized by this planner.

Data Types: double

NumSegments — Number of longitudinal segments for each trajectory

1 (default) | positive scalar

Number of longitudinal segments for each trajectory. Specify this value as the comma-separated pair of 'NumSegments' and a positive scalar. This property generates intermediate longitudinal terminal states to which all lateral terminal states are combined with for generating more motion primitives to each terminal state.

For example, 'NumSegments',2 creates two partitions between each longitudinal terminal state. Trajectories are generated to reach the intermediate longitudinal states with all the available lateral terminal states.

Data Types: double

DeviationOffset — Deviation offset from reference path in lateral direction

0 (default) | scalar

Deviation offset from the reference path in the lateral direction. Specify this value as the comma-separated pair of 'DeviationOffset' and a scalar. A negative value offset the deviation to the right, and a positive value offset the deviation to the left of the reference path in the lateral direction. Set this property to bias your solution to a certain turn direction when avoiding obstacles in the reference path.

Data Types: double

Object Functions

cart2frenet	Convert Cartesian states to Frenet states
copy	Create deep copy of object
frenet2cart	Convert Frenet states to Cartesian states
plan	Plan optimal trajectory
show	Visualize trajectories

Examples

Optimal Trajectory Planning in Frenet Space

This example shows how to plan an optimal trajectory using a trajectoryOptimalFrenet object.

Create and Assign Map to State Validator

Create a state validator object for collision checking.

stateValidator = validatorOccupancyMap;

Create an obstacle grid map.

grid = zeros(50,100);
grid(24:26,48:53) = 1;

Create a binaryOccupancyMap with the grid map.

map = binaryOccupancyMap(grid);

Assign the map and the state bounds to the state validator.

stateValidator.Map = map;
stateValidator.StateSpace.StateBounds(1:2,:) = [map.XWorldLimits; map.YWorldLimits];

Plan and Visualize Trajectory

Create a reference path for the planner to follow.

refPath = [0,25;100,25];

Initialize the planner object with the reference path, and the state validator.

planner = trajectoryOptimalFrenet(refPath,stateValidator);

Assign longitudinal terminal state, lateral deviation, and maximum acceleration values.

planner.TerminalStates.Longitudinal = 100;
planner.TerminalStates.Lateral = -10:5:10;
planner.FeasibilityParameters.MaxAcceleration = 10;

Specify the deviation offset value close to the left lateral terminal state to prioritize left lane changes.

planner.DeviationOffset = 5;

Trajectory Planning

Initial cartesian state of vehicle.

initCartState = [0 25 pi/9 0 0 0];

Convert cartesian state of vehicle to Frenet state.

initFrenetState = cart2frenet(planner,initCartState);

Plan a trajectory from initial Frenet state.

plan(planner,initFrenetState);

Trajectory Visualization

Visualize the map and the trajectories.

show(map)
hold on

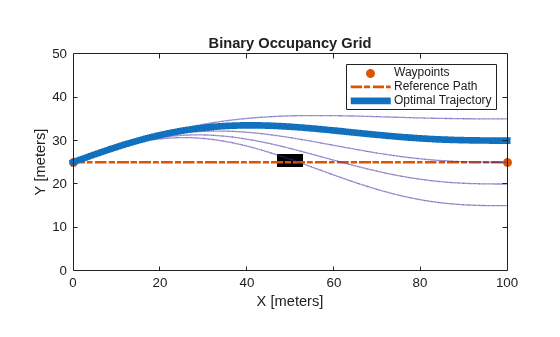

show(planner,'Trajectory','all')

Partitioning Longitudinal Terminal States in Trajectory Generation

This example shows how to partition the longitudinal terminal states in optimal trajectory planning using a trajectoryOptimalFrenet object.

Create and Assign Map to State Validator

Create a state validator object for collision checking.

stateValidator = validatorOccupancyMap;

Create an obstacle grid map.

grid = zeros(50,100);
grid(25:27,28:33) = 1;
grid(16:18,37:42) = 1;
grid(29:31,72:77) = 1;

Create a binaryOccupancyMap with the grid map.

map = binaryOccupancyMap(grid);

Assign the map and the state bounds to the state validator.

stateValidator.Map = map;
stateValidator.StateSpace.StateBounds(1:2,:) = [map.XWorldLimits; map.YWorldLimits];

Plan and Visualize Trajectory

Create a reference path for the planner to follow.

refPath = [0,25;30,30;75,20;100,25];

Initialize the planner object with the reference path, and the state validator.

planner = trajectoryOptimalFrenet(refPath,stateValidator);

Assign longitudinal terminal state, lateral deviation, and maximum acceleration values.

planner.TerminalStates.Longitudinal = 100;
planner.TerminalStates.Lateral = -5:5:5;
planner.FeasibilityParameters.MaxAcceleration = 10;

Assign the number of partitions for the longitudinal terminal state.

planner.NumSegments = 3;

Trajectory Planning

Initial Frenet state of vehicle.

initFrenetState = zeros(1,6);

Plan a trajectory from initial Frenet state.

plan(planner,initFrenetState);

Trajectory Visualization

Visualize the map and the trajectories.

show(map)
hold on

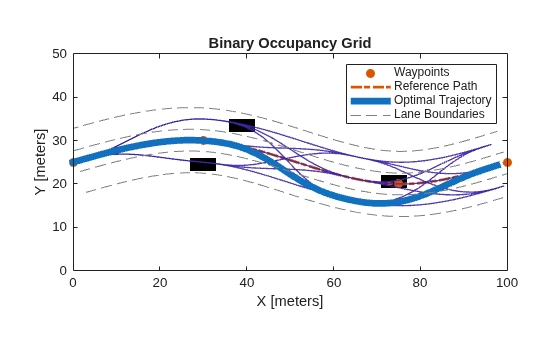

show(planner,'Trajectory','all')
hold on

Generate Lane Boundaries

Calculate end of reference path as Frenet state.

refPathEnd = cart2frenet(planner,[planner.Waypoints(end,:) 0 0 0 0]);

Calculate lane offsets on both sides of the lateral terminal states with half lane width value.

laneOffsets = unique([planner.TerminalStates.Lateral+2.5 planner.TerminalStates.Lateral-2.5]);

Calculate positions of lanes in Cartesian state.

numLaneOffsets = numel(laneOffsets);
xRefPathEnd = ceil(refPathEnd(1));
laneXY = zeros((numLaneOffsets*xRefPathEnd)+numLaneOffsets,2);
xIndex = 0;

for laneID = 1:numLaneOffsets
    for x = 1:xRefPathEnd
        laneCart = frenet2cart(planner,[x 0 0 laneOffsets(laneID) 0 0]);
        xIndex = xIndex + 1;
        laneXY(xIndex,:) = laneCart(1:2);
    end
    xIndex = xIndex + 1;
    laneXY(xIndex,:) = NaN(1,2);
end

Plot lane boundaries.

plot(laneXY(:,1),laneXY(:,2),'LineWidth',0.5,'Color',[0.5 0.5 0.5],'DisplayName','Lane Boundaries','LineStyle','--')

Limitations

• Self-intersections in the reference path can lead to unexpected behavior.

• The planner does not support reverse driving.

• Initial orientation for planning should be within -pi/2 and pi/2 to the reference path.

• Limit the number of TerminalStates for real-time applications since computational complexity grows with it.

More About

Reference Path Generation

The trajectoryOptimalFrenet and referencePathFrenet objects generate a reference path using the specified waypoints by fitting a piecewise-continuous clothoid spline to the waypoints [2].

• A clothoid connects each pair of adjacent waypoints (change in curvature is constant with respect to arc length).

• These boundary conditions define the clothoid parameters:

  • If specified as an n-by-2 array of [x y] waypoints, then the solver will produce a C2 continuous spline (clothoid endpoints are tangent and have matching curvature with their neighbors).

  • If specified as an n-by-3 array of [x y theta] waypoints, then a degree of freedom is removed from the solver, so the spline is only C1 continuous (clothoid endpoints are tangent to their neighbors, but the curvature can change abruptly).

References

[1] Werling, Moritz, Julius Ziegler, Sören Kammel, and Sebastian Thrun. "Optimal Trajectory Generation for Dynamic Street Scenarios in a Frenet Frame." 2010 IEEE International Conference on Robotics and Automation. 2010, pp. 987–993.

[2] Bertolazzi, Enrico, and Marco Frego. “Fast and Accurate Clothoid Fitting.” Mathematical Methods in the Applied Sciences 38, no. 5 (March 30, 2015): 881–97. https://doi.org/10.1002/mma.3114.

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.

Version History

Introduced in R2019b
