# interpolateCurrentDensity

Interpolate current density in DC conduction result at arbitrary spatial locations

*Since R2022b*

## Syntax

## Description

returns the interpolated current density values at the points specified in
`Jintrp`

= interpolateCurrentDensity(`results`

,`querypoints`

)`querypoints`

.

## Examples

### Interpolate Current Density in 2-D DC Conduction Analysis

Create an electromagnetic model for DC conduction analysis.

model = createpde("electromagnetic","conduction");

Import and plot the geometry representing a plate with a hole.

importGeometry(model,"PlateHolePlanar.stl"); figure pdegplot(model,"EdgeLabels","on");

Specify the conductivity of the material.

`electromagneticProperties(model,"Conductivity",6e4);`

Apply the voltage boundary conditions on the top and bottom edges of the plate.

electromagneticBC(model,"Voltage",100,"Edge",3); electromagneticBC(model,"Voltage",200,"Edge",2);

Specify the surface current density on the edge representing the hole.

electromagneticBC(model,"SurfaceCurrentDensity",200000,"Edge",5);

Generate the mesh.

generateMesh(model);

Solve the model.

R = solve(model);

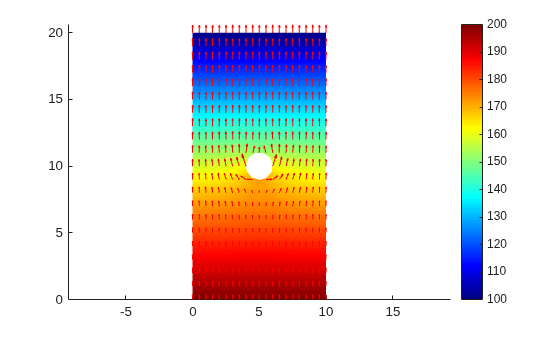

Plot the electric potential and current density.

figure pdeplot(model,"XYData",R.ElectricPotential,"ColorMap","jet", ... "FlowData",[R.CurrentDensity.Jx R.CurrentDensity.Jy]) axis equal

Interpolate the resulting current density to a grid covering the central portion of the geometry.

[X,Y] = meshgrid(2:0.25:8,8:0.25:12); Jintrp = interpolateCurrentDensity(R,X,Y)

Jintrp = FEStruct with properties: Jx: [425x1 double] Jy: [425x1 double]

Reshape `Jintrp.Jx`

and `Jintrp.Jy`

, and plot the resulting current density.

JintrpX = reshape(Jintrp.Jx,size(X)); JintrpY = reshape(Jintrp.Jy,size(Y)); quiver(X,Y,JintrpX,JintrpY,"Color","red") axis equal

Alternatively, you can specify the grid by using a matrix of query points.

querypoints = [X(:),Y(:)]'; Jintrp = interpolateCurrentDensity(R,querypoints);

### Interpolate Current Density in 3-D DC Conduction Analysis

Create an electromagnetic model for DC conduction analysis.

model = createpde("electromagnetic","conduction");

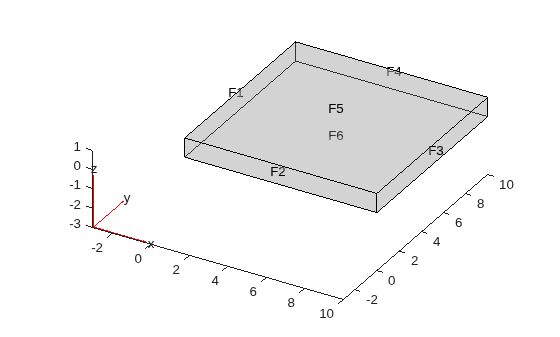

Import and plot the geometry representing a 10-by-10-by-1 solid plate.

g = importGeometry(model,"Plate10x10x1.stl"); pdegplot(model,"FaceLabels","on","FaceAlpha",0.3)

Specify the conductivity of the material.

`electromagneticProperties(model,"Conductivity",6e4);`

Apply the voltage boundary conditions on the two faces of the plate.

electromagneticBC(model,"Voltage",0,"Face",[1 3]);

Specify the surface current density on the top of the plate.

electromagneticBC(model,"SurfaceCurrentDensity",100,"Face",5);

Generate the mesh.

generateMesh(model);

Solve the model.

R = solve(model);

Plot the electric potential.

```
figure
pdeplot3D(model,"ColorMapData",R.ElectricPotential)
```

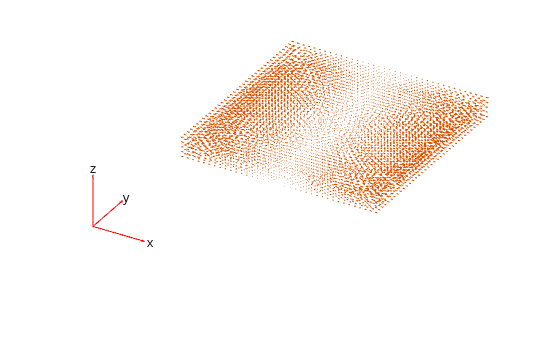

Plot the current density.

figure pdeplot3D(model,"FlowData",[R.CurrentDensity.Jx, ... R.CurrentDensity.Jy, ... R.CurrentDensity.Jz])

Interpolate the resulting current density to a coarser grid.

[X,Y,Z] = meshgrid(0:10,0:10,0:0.5:1); Jintrp = interpolateCurrentDensity(R,X,Y,Z)

Jintrp = FEStruct with properties: Jx: [363x1 double] Jy: [363x1 double] Jz: [363x1 double]

Reshape `Jintrp.Jx`

, `Jintrp.Jy`

, and `Jintrp.Jz`

.

JintrpX = reshape(Jintrp.Jx,size(X)); JintrpY = reshape(Jintrp.Jy,size(Y)); JintrpZ = reshape(Jintrp.Jz,size(Z));

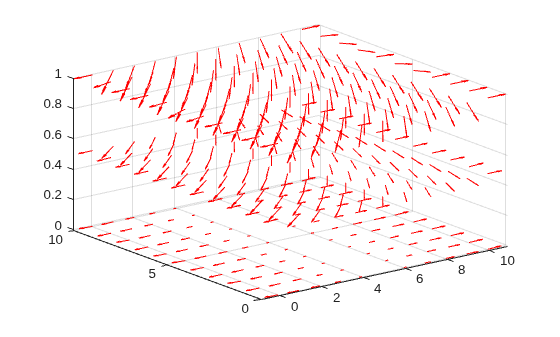

Plot the resulting current density.

figure quiver3(X,Y,Z,JintrpX,JintrpY,JintrpZ,"Color","red")

## Input Arguments

`results`

— Solution of DC conduction problem

`ConductionResults`

object

Solution of a DC conduction problem, specified as a `ConductionResults`

object. Create `results`

using the `solve`

function.

**Example: **`results = solve(emagmodel)`

`xq`

— *x*-coordinate query points

real array

*x*-coordinate query points, specified as a real array.
`interpolateCurrentDensity`

evaluates the current density at the 2-D
coordinate points `[xq(i) yq(i)]`

or at the 3-D coordinate points
`[xq(i) yq(i) zq(i)]`

for every `i`

. Because of
this, `xq`

, `yq`

, and (if present)
`zq`

must have the same number of entries.

`interpolateCurrentDensity`

converts the query points to column
vectors `xq(:)`

, `yq(:)`

, and (if present)
`zq(:)`

. It returns current density values as a column vector of the
same size. To ensure that the dimensions of the returned solution are consistent with
the dimensions of the original query points, use `reshape`

. For
example, use `Jintrp = reshape(Jintrp,size(xq))`

.

**Example: **`xq = [0.5 0.5 0.75 0.75]`

**Data Types: **`double`

`yq`

— *y*-coordinate query points

real array

*y*-coordinate query points, specified as a real array.
`interpolateCurrentDensity`

evaluates the current density at the 2-D
coordinate points `[xq(i) yq(i)]`

or at the 3-D coordinate points
`[xq(i) yq(i) zq(i)]`

for every `i`

. Because of
this, `xq`

, `yq`

, and (if present)
`zq`

must have the same number of entries.

`interpolateCurrentDensity`

converts the query points to column
vectors `xq(:)`

, `yq(:)`

, and (if present)
`zq(:)`

. It returns current density values as a column vector of the
same size. To ensure that the dimensions of the returned solution are consistent with
the dimensions of the original query points, use `reshape`

. For
example, use `Jintrp = reshape(Jintrp,size(yq))`

.

**Example: **`yq = [1 2 0 0.5]`

**Data Types: **`double`

`zq`

— *z*-coordinate query points

real array

*z*-coordinate query points, specified as a real array.
`interpolateCurrentDensity`

evaluates the current density at the 3-D
coordinate points `[xq(i) yq(i) zq(i)]`

. Therefore,
`xq`

, `yq`

, and `zq`

must have
the same number of entries.

`interpolateCurrentDensity`

converts the query points to column
vectors `xq(:)`

, `yq(:)`

, and
`zq(:)`

. It returns current density values as a column vector of the
same size. To ensure that the dimensions of the returned solution are consistent with
the dimensions of the original query points, use `reshape`

. For
example, use `Jintrp = reshape(Jintrp,size(zq))`

.

**Example: **`zq = [1 1 0 1.5]`

**Data Types: **`double`

`querypoints`

— Query points

real matrix

Query points, specified as a real matrix with either two rows for 2-D geometry or
three rows for 3-D geometry. `interpolateCurrentDensity`

evaluates the
current density at the coordinate points `querypoints(:,i)`

for every
`i`

, so each column of `querypoints`

contains
exactly one 2-D or 3-D query point.

**Example: **For a 2-D geometry, ```
querypoints = [0.5 0.5 0.75 0.75; 1 2 0
0.5]
```

**Data Types: **`double`

## Output Arguments

`Jintrp`

— Current density at query points

`FEStruct`

object

Current density at query points, returned as an `FEStruct`

object
with the properties representing the spatial components of the current density at the
query points. For query points that are outside the geometry,
`Jintrp.Jx(i)`

, `Jintrp.Jy(i)`

, and
`Jintrp.Jz(i)`

are `NaN`

. Properties of an
`FEStruct`

object are read-only.

## Version History

**Introduced in R2022b**
