interpolateElectricPotential

Interpolate electric potential in electrostatic or DC conduction result at arbitrary spatial locations

Since R2021a

    Description

    example

    Vintrp = interpolateElectricPotential(results,xq,yq) returns the interpolated electric potential values at the 2-D points specified in xq and yq.

    example

    Vintrp = interpolateElectricPotential(results,xq,yq,zq) uses 3-D points specified in xq, yq, and zq.

    example

    Vintrp = interpolateElectricPotential(results,querypoints) returns the interpolated electric potential values at the points specified in querypoints.

    Examples

    collapse all

    Create an electromagnetic model for electrostatic analysis.

    emagmodel = createpde("electromagnetic","electrostatic");

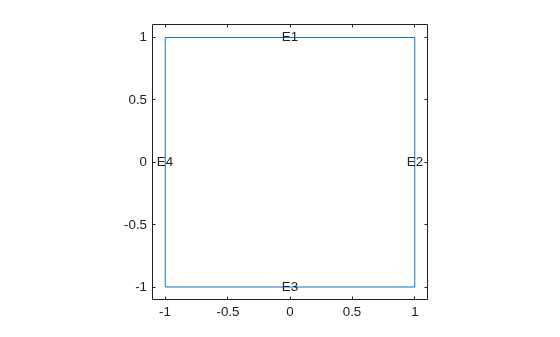

    Create a square geometry and include it in the model. Plot the geometry with the edge labels.

    R1 = [3,4,-1,1,1,-1,1,1,-1,-1]';
    g = decsg(R1, 'R1', ('R1')');
    geometryFromEdges(emagmodel,g);
    pdegplot(emagmodel,"EdgeLabels","on")
    xlim([-1.5 1.5])
    axis equal

    Specify the vacuum permittivity in the SI system of units.

    emagmodel.VacuumPermittivity = 8.8541878128E-12;

    Specify the relative permittivity of the material.

    electromagneticProperties(emagmodel,"RelativePermittivity",1);

    Apply the voltage boundary conditions on the edges of the square.

    electromagneticBC(emagmodel,"Voltage",0,"Edge",[1 3]);
    electromagneticBC(emagmodel,"Voltage",1000,"Edge",[2 4]);

    Specify the charge density for the entire geometry.

    electromagneticSource(emagmodel,"ChargeDensity",5E-9);

    Generate the mesh.

    generateMesh(emagmodel);

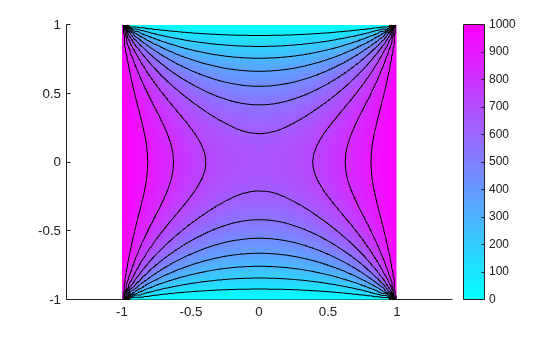

    Solve the model and plot the electric potential.

    R = solve(emagmodel);
    pdeplot(emagmodel,"XYData",R.ElectricPotential, ...
                      "Contour","on")
    axis equal

    Interpolate the resulting electric potential to a grid covering the central portion of the geometry, for x and y from -0.5 to 0.5.

    v = linspace(-0.5,0.5,51);
    [X,Y] = meshgrid(v);

    Vintrp = interpolateElectricPotential(R,X,Y)
    Vintrp = 2601×1

      602.2959
      616.0368
      629.0799
      641.4304
      653.0883
      664.0538
      674.4221
      684.1447
      693.2593
      701.7856
          ⋮

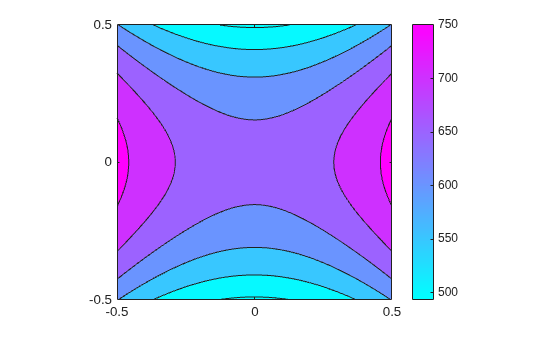

    Reshape Vintrp and plot the resulting electric potential.

    Vintrp = reshape(Vintrp,size(X));

    figure
    contourf(X,Y,Vintrp)
    colormap(cool)
    colorbar

    Alternatively, you can specify the grid by using a matrix of query points.

    querypoints = [X(:),Y(:)]';
    Vintrp = interpolateElectricPotential(R,querypoints);

    Create an electromagnetic model for electrostatic analysis.

    emagmodel = createpde("electromagnetic","electrostatic");

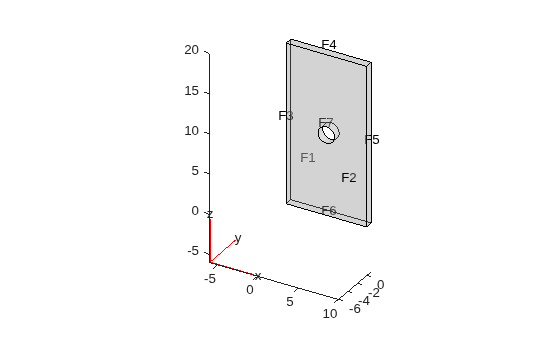

    Import and plot the geometry representing a plate with a hole.

    importGeometry(emagmodel,"PlateHoleSolid.stl");
    pdegplot(emagmodel,"FaceLabels","on","FaceAlpha",0.3)

    Specify the vacuum permittivity in the SI system of units.

    emagmodel.VacuumPermittivity = 8.8541878128E-12;

    Specify the relative permittivity of the material.

    electromagneticProperties(emagmodel,"RelativePermittivity",1);

    Specify the charge density for the entire geometry.

    electromagneticSource(emagmodel,"ChargeDensity",5E-9);

    Apply the voltage boundary conditions on the side faces and the face bordering the hole.

    electromagneticBC(emagmodel,"Voltage",0,"Face",3:6);
    electromagneticBC(emagmodel,"Voltage",1000,"Face",7);

    Generate the mesh.

    generateMesh(emagmodel);

    Solve the model.

    R = solve(emagmodel)
    R =
      ElectrostaticResults with properties:

          ElectricPotential: [4919x1 double]
              ElectricField: [1x1 FEStruct]
        ElectricFluxDensity: [1x1 FEStruct]
                       Mesh: [1x1 FEMesh]

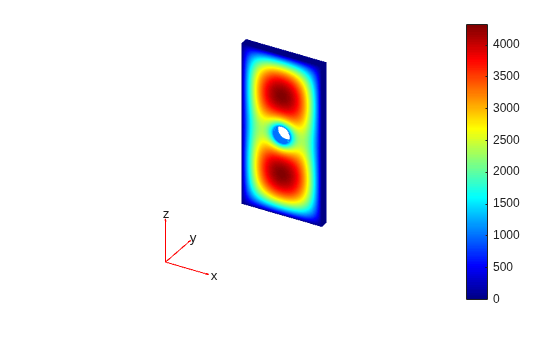

    Plot the electric potential.

    pdeplot3D(emagmodel,"ColorMapData",R.ElectricPotential)

    Interpolate the resulting electric potential to a grid covering the entire geometry, for x, y, and z.

    x = linspace(0,10,11);
    y = linspace(0,1,5);
    z = linspace(0,20,11);
    [X,Y,Z] = meshgrid(x,y,z);

    Vintrp = interpolateElectricPotential(R,X,Y,Z);

    Reshape Vintrp.

    Vintrp = reshape(Vintrp,size(X));

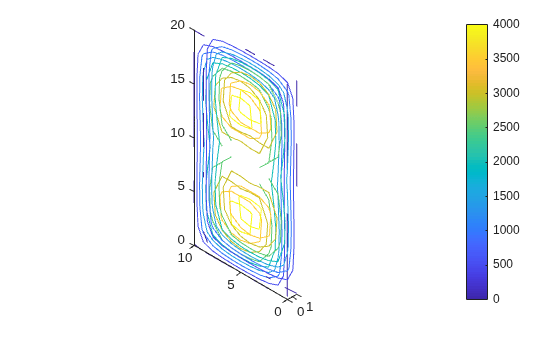

    Plot the resulting electric potential as a contour slice plot for two values of the y-coordinate.

    figure
    contourslice(X,Y,Z,Vintrp,[],[0 1],[])
    view([10,10,-10])
    axis equal
    colorbar

    Input Arguments

    collapse all

    Solution of an electrostatic or DC conduction problem, specified as an ElectrostaticResults or ConductionResults object. Create results using the solve function.

    Example: results = solve(emagmodel)

    x-coordinate query points, specified as a real array. interpolateElectricPotential evaluates the electric potential at the 2-D coordinate points [xq(i) yq(i)] or at the 3-D coordinate points [xq(i) yq(i) zq(i)] for every i. Because of this, xq, yq, and (if present) zq must have the same number of entries.

    interpolateElectricPotential converts the query points to column vectors xq(:), yq(:), and (if present) zq(:). It returns electric potential values as a column vector of the same size. To ensure that the dimensions of the returned solution are consistent with the dimensions of the original query points, use reshape. For example, use Vintrp = reshape(Vintrp,size(xq)).

    Example: xq = [0.5 0.5 0.75 0.75]

    Data Types: double

    y-coordinate query points, specified as a real array. interpolateElectricPotential evaluates the electric potential at the 2-D coordinate points [xq(i) yq(i)] or at the 3-D coordinate points [xq(i) yq(i) zq(i)] for every i. Because of this, xq, yq, and (if present) zq must have the same number of entries.

    interpolateElectricPotential converts the query points to column vectors xq(:), yq(:), and (if present) zq(:). It returns electric potential values as a column vector of the same size. To ensure that the dimensions of the returned solution are consistent with the dimensions of the original query points, use reshape. For example, use Vintrp = reshape(Vintrp,size(yq)).

    Example: yq = [1 2 0 0.5]

    Data Types: double

    z-coordinate query points, specified as a real array. interpolateElectricPotential evaluates the electric potential at the 3-D coordinate points [xq(i) yq(i) zq(i)]. Therefore, xq, yq, and zq must have the same number of entries.

    interpolateElectricPotential converts the query points to column vectors xq(:), yq(:), and zq(:). It returns electric potential values as a column vector of the same size. To ensure that the dimensions of the returned solution are consistent with the dimensions of the original query points, use reshape. For example, use Vintrp = reshape(Vintrp,size(zq)).

    Example: zq = [1 1 0 1.5]

    Data Types: double

    Query points, specified as a real matrix with either two rows for 2-D geometry or three rows for 3-D geometry. interpolateElectricPotential evaluates the electric potential at the coordinate points querypoints(:,i) for every i, so each column of querypoints contains exactly one 2-D or 3-D query point.

    Example: For a 2-D geometry, querypoints = [0.5 0.5 0.75 0.75; 1 2 0 0.5]

    Data Types: double

    Output Arguments

    collapse all

    Electric potential at query points, returned as a vector. For query points that are outside the geometry, Vintrp(i) = NaN.

    Version History

    Introduced in R2021a
