wilkinsonSplitterUnequal

Create unequal Wilkinson splitter

Since R2021b

Description

Use the wilkinsonSplitterUnequal object to create an unequal Wilkinson power splitter. You can use the unequal Wilkinson splitter to divide power unequally between two output ports. Unequal splitters are also used to feed power to antenna arrays for beam shaping.

Three part image from right to left: Default image of a unequal Wilkinson splitter. Current distribution on the unequal Wilkinson splitter. S-parameters plot of the unequal Wilkinson splitter.

To analyze the behavioral model for the unequal Wilkinson power splitter, set the Behavioral property in the sparameters to true or 1.

Creation

Description

example

splitter = wilkinsonSplitterUnequal creates an unequal Wilkinson splitter with default properties for a resonating frequency of 1 GHz.

example

splitter = wilkinsonSplitterUnequal(Name=Value) sets Properties using one or more name-value arguments. For example, wilkinsonSplitterUnequal(PortLineLength=0.0300) creates a Wilkinson splitter with an input and output line length of 0.0300 meters. Properties not specified retain their default values.

Properties

expand all

Length of the input and the output line in meters, specified as a positive scalar.

Example: splitter = wilkinsonSplitterUnequal(PortLineLength=0.0070)

Data Types: double

Width of the input and the output line in meters, specified as a positive scalar.

Example: splitter = wilkinsonSplitterUnequal(PortLineWidth=0.0070)

Data Types: double

Length of the 70-ohm line in meters, specified as a positive scalar. The typical length of a Wilkinson splitter is λ/4.

Example: splitter = wilkinsonSplitterUnequal(SplitLineLength=0.0570)

Data Types: double

Width of the 70-ohm line in meters, specified as a two-element vector of positive elements.

Example: splitter = wilkinsonSplitterUnequal(SplitLineWidth=[0.00780 0.00890])

Data Types: double

Length of the output matching line in meters, specified as a positive scalar.

Example: splitter = wilkinsonSplitterUnequal(MatchLineLength=0.0780)

Data Types: double

Width of the output matching line in meters, specified as a two-element vector of positive elements.

Example: splitter = wilkinsonSplitterUnequal(MatchLineWidth=[0.0049 0.0076])

Data Types: double

Length of the resistor in meters, specified as a positive scalar.

Example: splitter = wilkinsonSplitterUnequal(ResistorSLength=0.0050)

Data Types: double

Resistance value in ohms, specified as a positive scalar.

Example: splitter = wilkinsonSplitterUnequal(Resistance=50)

Data Types: double

Height of the Wilkinson splitter from the ground plane in meters, specified as a positive scalar.

Example: splitter = wilkinsonSplitterUnequal(Height=0.0076)

Data Types: double

Width of the ground plane in meters, specified as a positive scalar.

Example: splitter = wilkinsonSplitterUnequal(GroundPlaneWidth=0.046)

Example: double

Type of dielectric material used as a substrate, specified as a dielectric object. The dielectric material in a wilkinsonSplitterUnequal object with default properties is Teflon. The thickness of the default dielectric material Teflon is 0.0016 m or the same value as the Height property.

Example: d = dielectric("FR4"); splitter = wilkinsonSplitterUnequal(Substrate=d)

Data Types: string | char

Type of metal used in the conducting layers, specified as a metal object. The type of metal in a wilkinsonSplitterUnequal object with default properties is Copper.

Example: m = metal("PEC"); splitter = wilkinsonSplitterUnequal(Conductor=m)

Data Types: string | char

Object Functions

chargeCalculate and plot charge distribution
currentCalculate and plot current distribution
designDesign unequal Wilkinson splitter around specified frequency
feedCurrentCalculate current at feed port
layoutPlot all metal layers and board shape
meshChange and view mesh properties of metal or dielectric in PCB component
shapesExtract all metal layer shapes of PCB component
showDisplay PCB component structure or PCB shape
sparametersCalculate S-parameters for RF PCB objects

Examples

collapse all

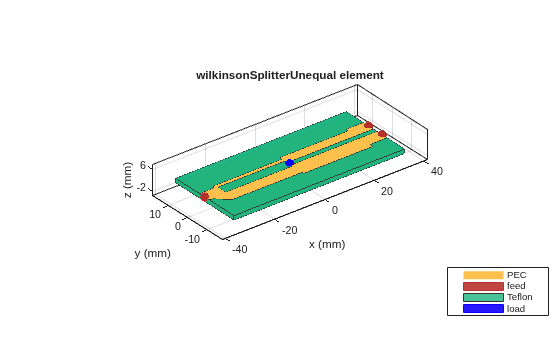

Create and view a default unequal Wilkinson splitter.

splitter = wilkinsonSplitterUnequal
splitter =
  wilkinsonSplitterUnequal with properties:

      PortLineLength: 0.0070
       PortLineWidth: 0.0051
     SplitLineLength: 0.0279
      SplitLineWidth: [0.0014 0.0049]
     MatchLineLength: 0.0277
      MatchLineWidth: [0.0039 0.0066]
      ResistorLength: 0.0020
          Resistance: 106
              Height: 0.0016
    GroundPlaneWidth: 0.0300
           Substrate: [1x1 dielectric]
           Conductor: [1x1 metal]

show(splitter)

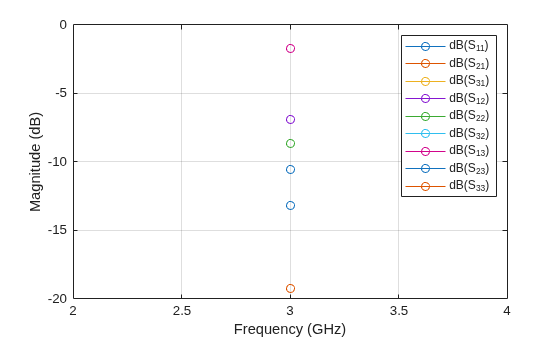

Calculate and plot the S-parameters of the splitter at 3 GHz.

spar=sparameters(splitter,3e9);
figure
rfplot(spar);

Create and view a multilayer unequal Wilkinson splitter.

sub =  dielectric(Name=["Teflon","Teflon"],EpsilonR=[2.1 2.1], ...
    LossTangent=[0 0],Thickness=[0.8e-3 0.8e-3]);
unsplitter = wilkinsonSplitterUnequal(Height=0.8e-3,Substrate=sub);
show(unsplitter)

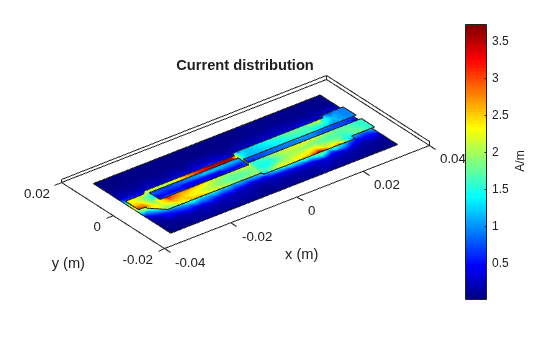

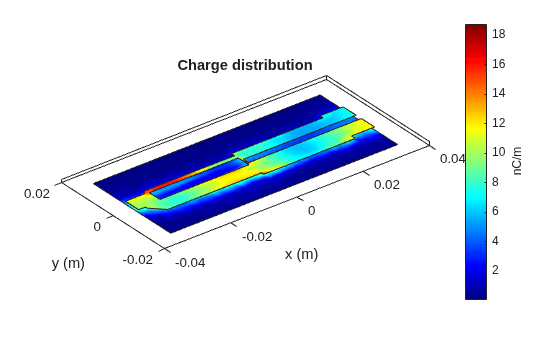

Plot the charge and current on this splitter at 3 GHz.

figure
charge(unsplitter,3e9)

figure
current(unsplitter,3e9)

References

[1] Pozar, David M. Microwave Engineering. 4th ed. Hoboken, NJ: Wiley, 2012.
