Find Zeros, Poles, and Gains for CTLE from Transfer Function

This example shows how to use the CTLE Fitter app to configure a CTLE block from SerDes Toolbox™ in the SerDes Designer app or in Simulink®. You can use the CTLE Fitter app to fit zeros, poles, and gains from a transfer function to create a GPZ Matrix and then export to your workspace. The CTLE Fitter app finds the GPZ Matrix by performing a fit comparison to a transfer function using the rational (RF Toolbox) function from RF Toolbox™.

Using CTLE Fitter App

You can open the CTLE Fitter app from SerDes Toolbox using any of the three workflows:

  • From the CTLE block in the SerDes Designer app.

  • From the CTLE block in the Simulink model.

  • From the MATLAB® command window in the standalone mode.

Configure CTLE Block in SerDes Designer App

This workflow creates a variable representing a GPZ Matrix in the base workspace that is referenced by the CTLE block GPZ properties field in the SerDes Designer App. The steps are:

  • Add a CTLE block and click the button Launch CTLE Fitter App.

  • Import a CTLE frequency response. There can also be multiple responses in your data file.

  • Adjust preprocess options for your transfer function data.

  • Configure parameters of the rational function from RF Toolbox to optimize the fit to the transfer function.

  • Visualize the fit response within the CTLE Fitter app using plots provided for magnitude response and pulse response.

  • Close the CTLE Fitter app and continue with your session in the SerDes Designer app.

Simulink SerDes Model with CTLE block

This workflow creates a variable representing a GPZ Matrix in the model workspace and references this in the CTLE block mask GPZ field. The steps are:

  • Open the CTLE block mask and click the button Launch CTLE Fitter App.

  • Import a CTLE frequency response.

  • Adjust preprocess options for your transfer function data.

  • Configure parameters of the rational function from RF Toolbox to optimize the fit to the transfer function.

  • Visualize the fit response within the CTLE Fitter app using plots provided for magnitude response and pulse response.

  • Close the CTLE Fitter app and continue with your session in Simulink.

Standalone Mode

This workflow creates a variable in the base workspace representing a GPZ Matrix. The steps are:

  • Launch the app with the MATLAB command ctlefitter.

  • Import a CTLE frequency response.

  • Adjust preprocess options for your transfer function data.

  • Configure parameters of the rational function from RF Toolbox to optimize the fit to the transfer function.

  • Visualize the fit response within the CTLE Fitter app using plots provided for magnitude response and pulse response.

  • You have the option to both export a script and save a GPZ Matrix to the base workspace.

  • Close the CTLE Fitter app and continue with your session in MATLAB

Configure CTLE Block in the SerDes Designer App

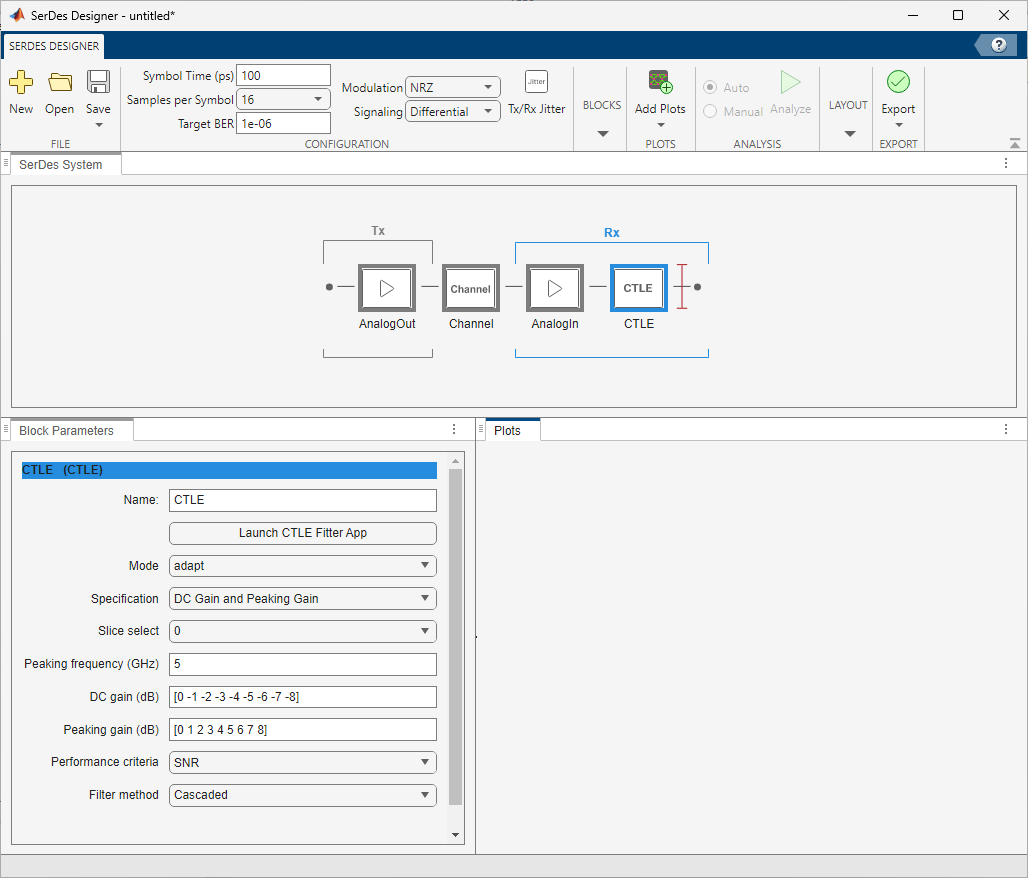

Launch the SerDes Designer app. Place a CTLE block after the analog model of the receiver. Then in the Block Parameters panel, click the button Launch CTLE Fitter App to launch the CTLE Fitter app.


Import One or More CTLE Frequency Responses

The CTLE Fitter app opens with some default values. To import a file containing one or more CTLE frequency responses:

  • Download the file CTLEdefault1RealImag.csv attached with this example to a location in your computer.

  • Select the Import CTLE frequency response from parameter to CSV, and browse to the location where you saved the CSV file.

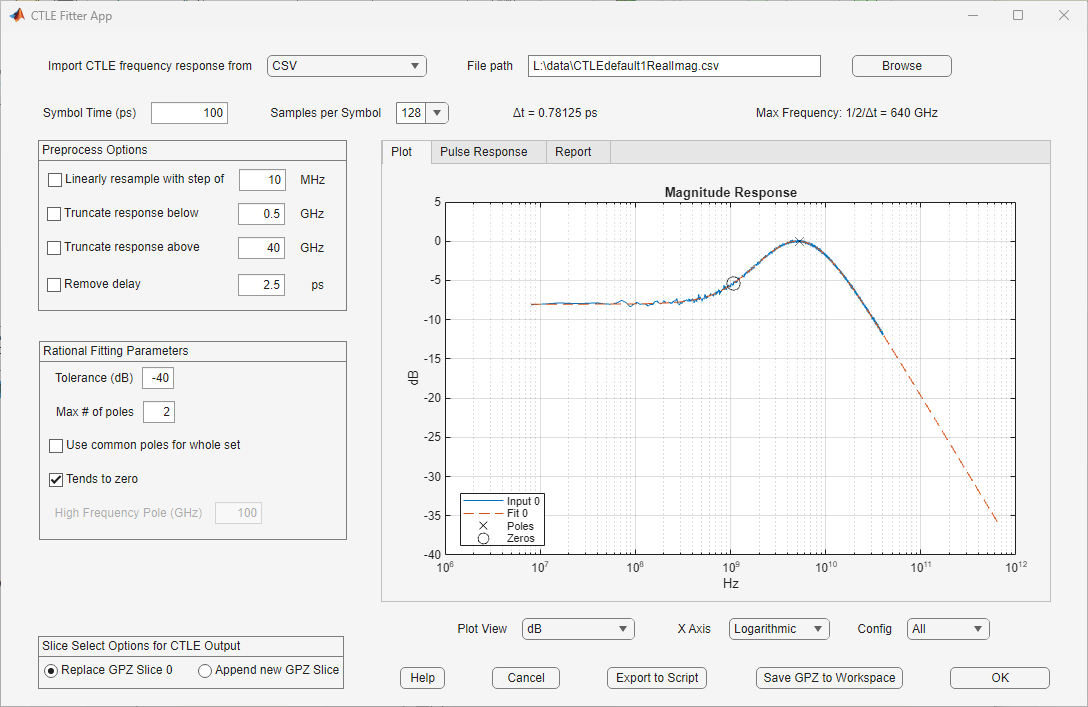

  • The app loads the file and automatically updates the figure shown on the Plot tab:


Adjust Preprocess Options

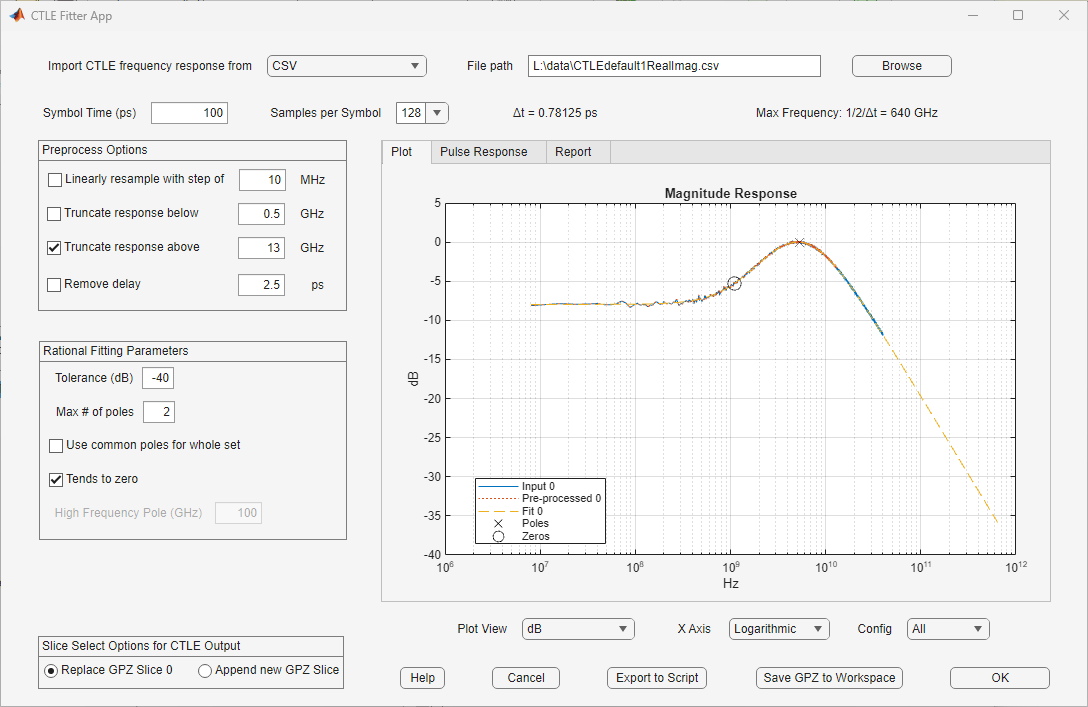

You can adjust many Preprocess Options in the app. For example, you can truncate the data set from the transfer function used by the Fit to a cutoff frequency of 13 GHz. To do so, select the Truncate response above parameter at set the value to 13 GHz, then click OK.


You can also adjust:

  • Linearly resample with step size in MHz

  • Truncate response below a specified frequency in GHz

  • Truncate response above a specified frequency in GHz

  • Remove delay in picoseconds

Configure Rational Fitting Parameters

You can configure the way the MATLAB function rational (RF Toolbox) determines a fit by adjusting the following:

  • Error tolerance (dB)

  • Maximum number of poles

  • Use common poles for whole set

  • Enable or disable "tends to zero"

Report on Rational Fit Results

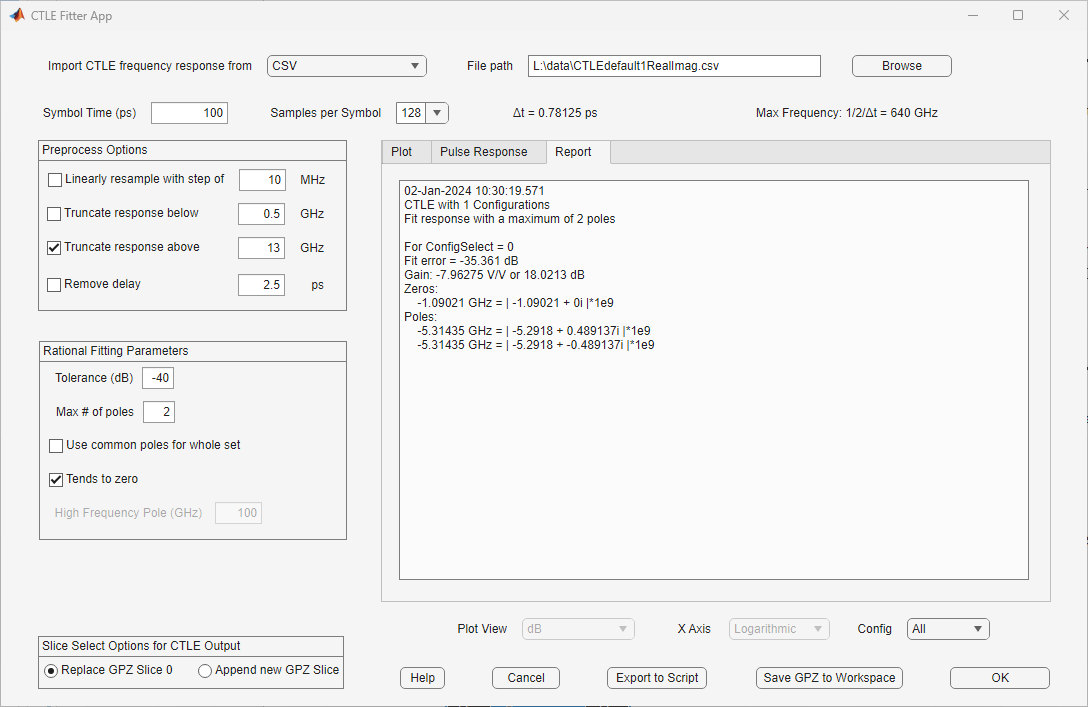

You can view the statistical parameters of the fit reported by the MATLAB function rational on the Report tab:


Pulse Response

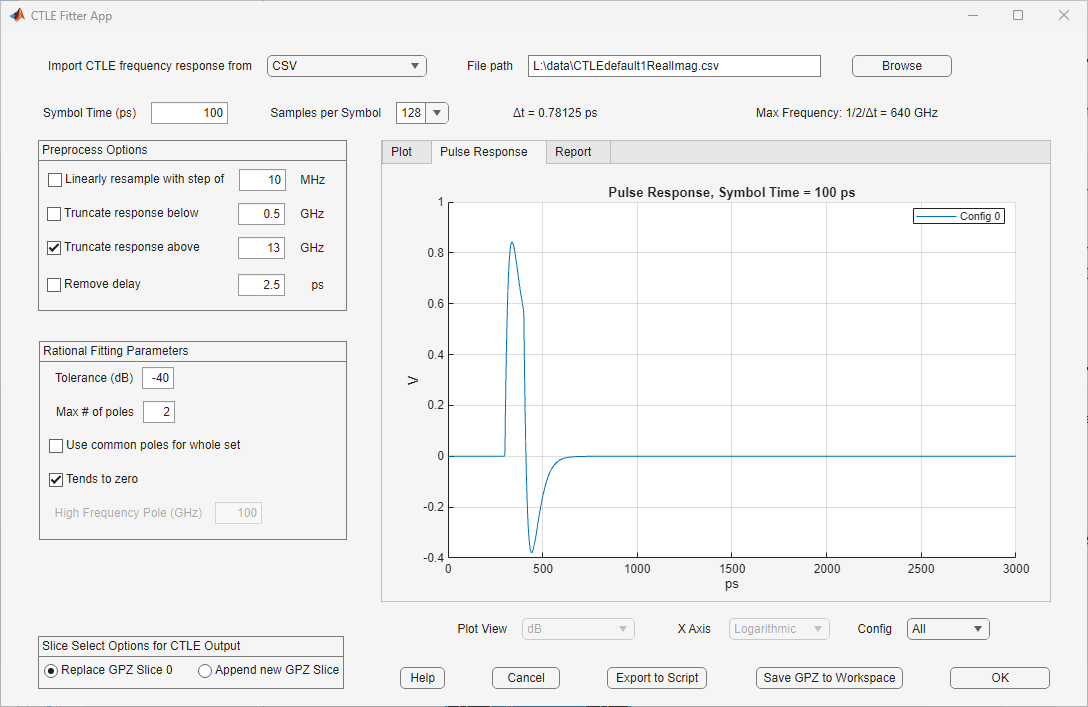

You can view the pulse response on the Pulse Response tab:


Export a GPZ Matrix for CTLE Block

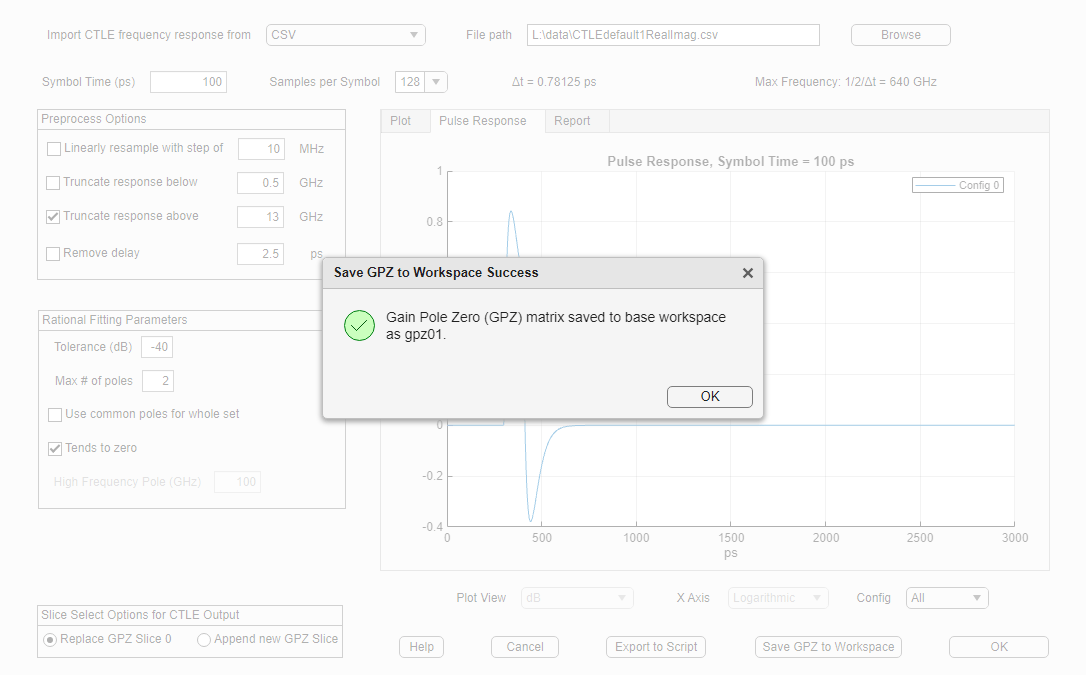

You can export the GPZ Matrix to the base workspace by clicking on the button Save GPZ to Workspace.


Note: If you have previously exported a GPZ Matrix, the name will automatically increment. For example, if gpz01 already exists in the workspace it would be automatically named gpz02 and added to your workspace.

Export Script from CTLE Fitter App to Base Workspace

You can also export a script from the CTLE Fitter app to the base workspace by clicking the Export to Script button. You can see example output below.

Note: If you use a different data file with your custom CTLE specifications, the example script may be different.

% ------------------------------------
% MATLAB script for CTLE Fitter. 02-Jan-2024
% ------------------------------------

%Read in file:
fn = 'L:\data\CTLEdefault1RealImag.csv';
[f,H]=ctlefit.readcsv(fn);

SymbolTime = 1e-10;

%Initialize ctleit object
obj = ctlefit(...
    'f',f,...
    'H',H,...
    'SampleInterval',7.8125e-13,...
    'MaxNumberOfPoles',2,...
    'ErrorTolerance',-40,...
    'TendsToZero',1,...
    'UseCommonPoles',0,...
    'PaddedPole',1e+11);

%Preprocess transfer function waveform
df = 1e+07;
%resample(obj,df);
fcut1 = 5e+08;
%truncateBelow(obj,fcut1);
fcut2 = 1.3e+10;
truncateAbove(obj,fcut2);
delay = 2.5e-12;
%removeDelay(obj,delay);

%Get GPZ matrix
gpz = obj.GPZ;

%Visualize and create report
%TFView (Transfer function view) can be 'dB', 'Phase', 'Real/Imag',
%'Phase Delay', 'Group Delay'.
TFView = 'dB';
%ConfigSelect (CTLE Configuration Select) can be - 'All', 'Worst fit', 0 to
%N-1, where N is the number of configurations.
ConfigSelect = 'All';
%AxisStyle can be 'semilogx', 'plot', 'semilogy' or 'loglog'.
AxisStyle = 'semilogx';
figure,
plot(obj,TFView,ConfigSelect,AxisStyle)

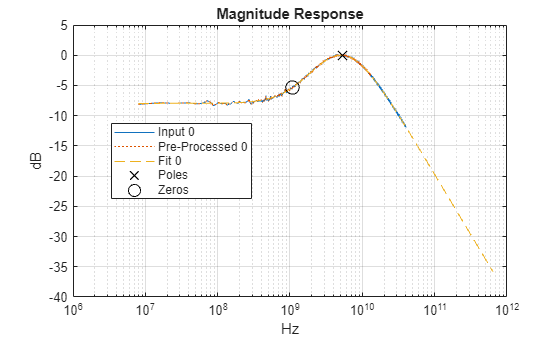

Figure contains an axes object. The axes object with title Magnitude Response, xlabel Hz, ylabel dB contains 5 objects of type line. One or more of the lines displays its values using only markers These objects represent Input 0, Pre-processed 0, Fit 0, Poles, Zeros.

figure,
plotPulse(obj,ConfigSelect,SymbolTime)

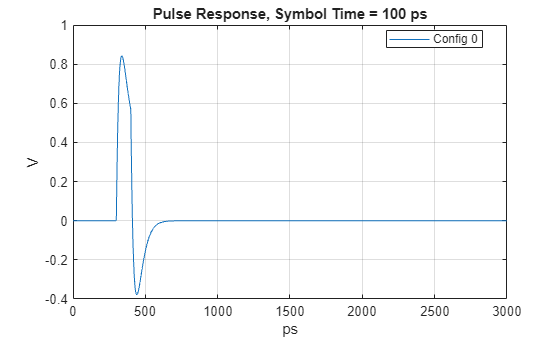

Figure contains an axes object. The axes object with title Pulse Response, Symbol Time = 100 ps, xlabel ps, ylabel V contains an object of type line. This object represents Config 0.

figure,
plotError(obj,ConfigSelect)

Figure contains an axes object. The axes object with title Fit Error = dB(Data - Fit), xlabel Hz, ylabel dB contains an object of type line. This object represents Error 0.

figure,
plotFitMetric(obj)

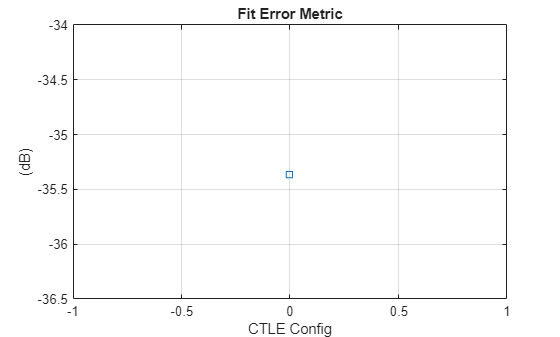

Figure contains an axes object. The axes object with title Fit Error Metric, xlabel CTLE Config, ylabel (dB) contains an object of type line.

figure,
plotPoleZero(obj,ConfigSelect,SymbolTime)

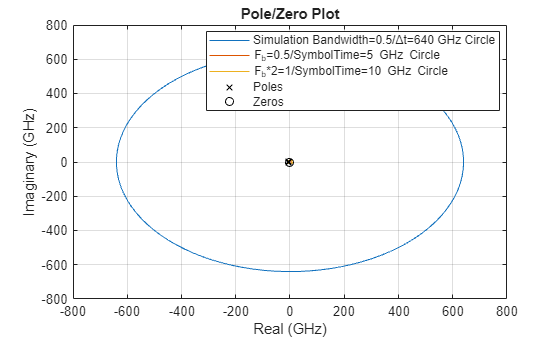

Figure contains an axes object. The axes object with title Pole/Zero Plot, xlabel Real (GHz), ylabel Imaginary (GHz) contains 5 objects of type line. One or more of the lines displays its values using only markers These objects represent Simulation Bandwidth=0.5/Δt=640 GHz Circle, F_b=0.5/SymbolTime=5 GHz Circle, F_b*2=1/SymbolTime=10 GHz Circle, Poles, Zeros.

%report(obj,'All');

Simulink SerDes Model with CTLE block

You can configure a Simulink SerDes Model with a CTLE block in a similar way.

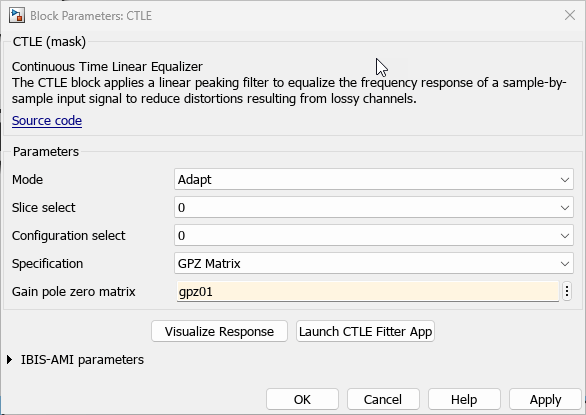

Double click the CTLE block to open the Block Paramters dialog box, the click the Launce CTLE Fitter App button to open the CTLE Fitter app. Follow the same steps outlined in the section Configure CTLE Block in the SerDes Designer App to configure the CTLE Fitter app. Save the GPZ matrix to the base workspace, then click OK to close the app. The CLTE block is automatically updated to use the GPZ matrix you just created.

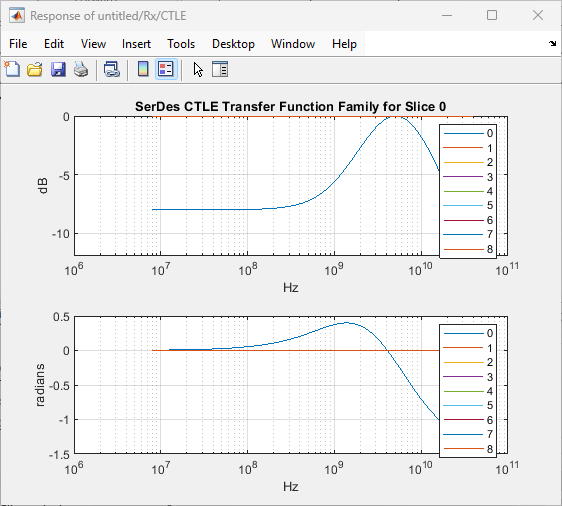

You can confirm the transfer function represented by the GPZ Matrix has a reasonable magnitude and phase response by clicking the Visualize Response button. These plots are also available in the SerDes Designer app workflow, and further detailed plots are provided as part of the exported script template.


Standalone Mode

Open the CTLE fitter app from the MATLAB command window:

ctlefitter;

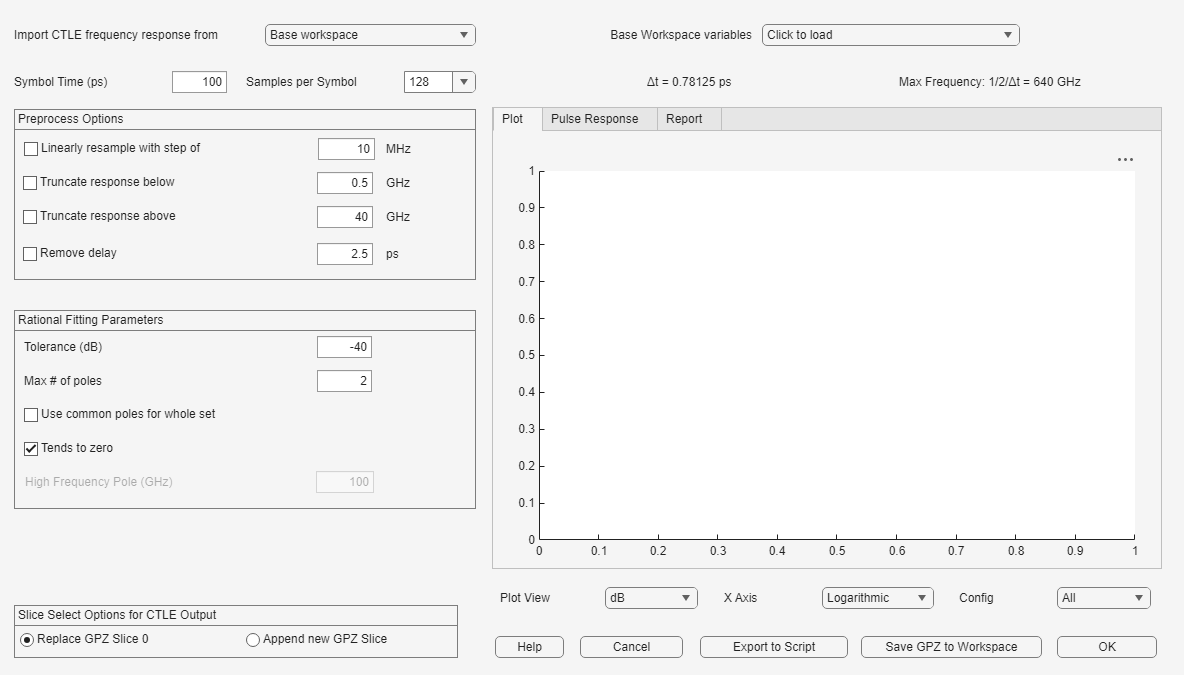

Figure CTLE Fitter App contains 2 axes objects and other objects of type uibutton, uidropdown, uilabel, uipanel, uitabgroup, uinumericeditfield, uibuttongroup. Axes object 1 is empty. Axes object 2 is empty.

You can follow the same steps outlined in the section Configure CTLE Block in the SerDes Designer App to configure the CTLE Fitter app and export a GPZ Matrix to the base workspace in your MATLAB session.

Once you browse to and open a file containing one or more CTLE filter responses, the app automatically updates the figure shown on the Plot tab:
