# emd

Empirical mode decomposition

## Description

`[___] = emd(___,`

performs the empirical mode decomposition with additional options specified by
one or more `Name,Value`

)`Name,Value`

pair arguments.

`emd(___)`

plots the original signal, IMFs, and
residual signal as subplots in the same figure.

## Examples

### Perform Empirical Mode Decomposition and Visualize Hilbert Spectrum of Signal

Load and visualize a nonstationary continuous signal composed of sinusoidal waves with a distinct change in frequency. The vibration of a jackhammer and the sound of fireworks are examples of nonstationary continuous signals. The signal is sampled at a rate `fs`

.

load("sinusoidalSignalExampleData.mat","X","fs") t = (0:length(X)-1)/fs; plot(t,X) xlabel("Time (s)")

The mixed signal contains sinusoidal waves with different amplitude and frequency values.

To create the Hilbert spectrum plot, you need the intrinsic mode functions (IMFs) of the signal. Perform empirical mode decomposition to compute the IMFs and residuals of the signal. Since the signal is not smooth, specify '`pchip`

' as the interpolation method.

`[imf,residual,info] = emd(X,Interpolation="pchip");`

The table generated in the command window indicates the number of sift iterations, the relative tolerance, and the sift stop criterion for each generated IMF. This information is also contained in `info`

. You can hide the table by adding the `'Display',0`

name value pair.

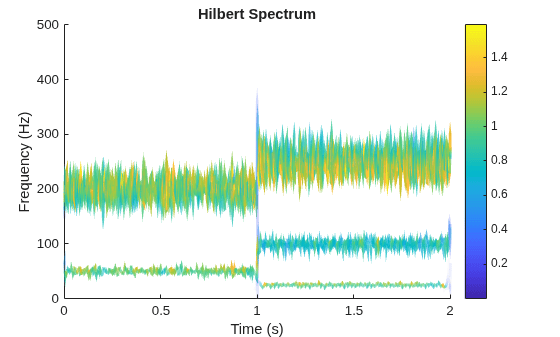

Create the Hilbert spectrum plot using the `imf`

components obtained using empirical mode decomposition.

hht(imf,fs)

The frequency versus time plot is a sparse plot with a vertical color bar indicating the instantaneous energy at each point in the IMF. The plot represents the instantaneous frequency spectrum of each component decomposed from the original mixed signal. Three IMFs appear in the plot with a distinct change in frequency at 1 second.

### Zero Crossings and Extrema in Intrinsic Mode Function of Sinusoid

This trigonometric identity presents two different views of the same physical signal:

$\frac{5}{2}\mathrm{cos2}\pi {\mathit{f}}_{1}\mathit{t}+\frac{1}{4}(\mathrm{cos2}\pi \left({\mathit{f}}_{1}+{\mathit{f}}_{2}\right)t+\mathrm{cos2}\pi \left({\mathit{f}}_{1}-{\mathit{f}}_{2}\right)t)=(2+{\mathrm{cos}}^{2}\pi {\mathit{f}}_{2}\mathit{t})\mathrm{cos2}\pi {\mathit{f}}_{1}\mathit{t}$.

Generate two sinusoids, `s`

and `z`

, such that `s`

is the sum of three sine waves and `z`

is a single sine wave with a modulated amplitude. Verify that the two signals are equal by calculating the infinity norm of their difference.

t = 0:1e-3:10; omega1 = 2*pi*100; omega2 = 2*pi*20; s = 0.25*cos((omega1-omega2)*t) + 2.5*cos(omega1*t) + 0.25*cos((omega1+omega2)*t); z = (2+cos(omega2/2*t).^2).*cos(omega1*t); norm(s-z,Inf)

ans = 3.2729e-13

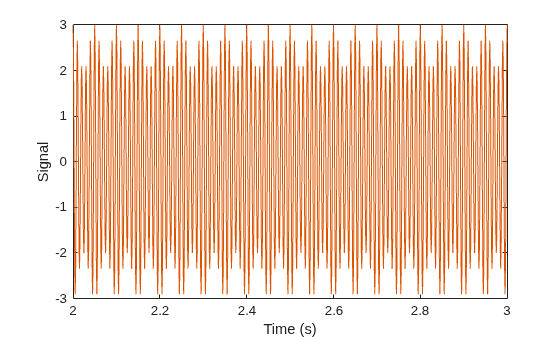

Plot the sinusoids and select a 1-second interval starting at 2 seconds.

plot(t,[s' z']) xlim([2 3]) xlabel('Time (s)') ylabel('Signal')

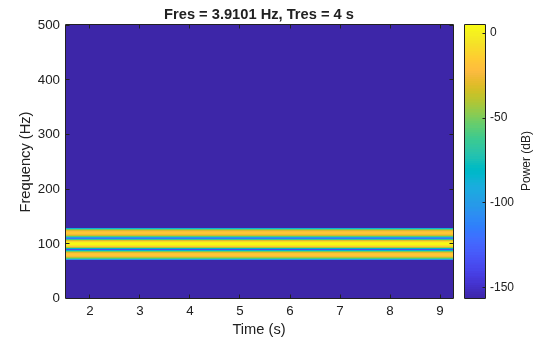

Obtain the spectrogram of the signal. The spectrogram shows three distinct sinusoidal components. Fourier analysis sees the signals as a superposition of sine waves.

pspectrum(s,1000,'spectrogram','TimeResolution',4)

Use `emd`

to compute the intrinsic mode functions (IMFs) of the signal and additional diagnostic information. The function by default outputs a table that indicates the number of sifting iterations, the relative tolerance, and the sifting stop criterion for each IMF. Empirical mode decomposition sees the signal as `z`

.

[imf,~,info] = emd(s);

The number of zero crossings and local extrema differ by at most one. This satisfies the necessary condition for the signal to be an IMF.

info.NumZerocrossing - info.NumExtrema

ans = 1

Plot the IMF and select a 0.5-second interval starting at 2 seconds. The IMF is an AM signal because `emd`

views the signal as amplitude modulated.

plot(t,imf) xlim([2 2.5]) xlabel('Time (s)') ylabel('IMF')

### Compute Intrinsic Mode Functions of Vibration Signal

Simulate a vibration signal from a damaged bearing. Perform empirical mode decomposition to visualize the IMFs of the signal and look for defects.

A bearing with a pitch diameter of 12 cm has eight rolling elements. Each rolling element has a diameter of 2 cm. The outer race remains stationary as the inner race is driven at 25 cycles per second. An accelerometer samples the bearing vibrations at 10 kHz.

fs = 10000; f0 = 25; n = 8; d = 0.02; p = 0.12;

The vibration signal from the healthy bearing includes several orders of the driving frequency.

t = 0:1/fs:10-1/fs; yHealthy = [1 0.5 0.2 0.1 0.05]*sin(2*pi*f0*[1 2 3 4 5]'.*t)/5;

A resonance is excited in the bearing vibration halfway through the measurement process.

yHealthy = (1+1./(1+linspace(-10,10,length(yHealthy)).^4)).*yHealthy;

The resonance introduces a defect in the outer race of the bearing that results in progressive wear. The defect causes a series of impacts that recur at the ball pass frequency outer race (BPFO) of the bearing:

$$BPFO=\frac{1}{2}n{f}_{0}[1-\frac{d}{p}\mathrm{cos}\theta ],$$

where $${f}_{0}$$ is the driving rate, $$n$$ is the number of rolling elements, $$d$$ is the diameter of the rolling elements, $$p$$ is the pitch diameter of the bearing, and $$\theta $$ is the bearing contact angle. Assume a contact angle of 15° and compute the BPFO.

ca = 15; bpfo = n*f0/2*(1-d/p*cosd(ca));

Use the `pulstran`

function to model the impacts as a periodic train of 5-millisecond sinusoids. Each 3 kHz sinusoid is windowed by a flat top window. Use a power law to introduce progressive wear in the bearing vibration signal.

fImpact = 3000; tImpact = 0:1/fs:5e-3-1/fs; wImpact = flattopwin(length(tImpact))'/10; xImpact = sin(2*pi*fImpact*tImpact).*wImpact; tx = 0:1/bpfo:t(end); tx = [tx; 1.3.^tx-2]; nWear = 49000; nSamples = 100000; yImpact = pulstran(t,tx',xImpact,fs)/5; yImpact = [zeros(1,nWear) yImpact(1,(nWear+1):nSamples)];

Generate the BPFO vibration signal by adding the impacts to the healthy signal. Plot the signal and select a 0.3-second interval starting at 5.0 seconds.

yBPFO = yImpact + yHealthy; xLimLeft = 5.0; xLimRight = 5.3; yMin = -0.6; yMax = 0.6; plot(t,yBPFO) hold on [limLeft,limRight] = meshgrid([xLimLeft xLimRight],[yMin yMax]); plot(limLeft,limRight,'--') hold off

Zoom in on the selected interval to visualize the effect of the impacts.

xlim([xLimLeft xLimRight])

Add white Gaussian noise to the signals. Specify a noise variance of $$1/15{0}^{2}$$.

rn = 150; yGood = yHealthy + randn(size(yHealthy))/rn; yBad = yBPFO + randn(size(yHealthy))/rn; plot(t,yGood,t,yBad) xlim([xLimLeft xLimRight]) legend('Healthy','Damaged')

Use `emd`

to perform an empirical mode decomposition of the healthy bearing signal. Compute the first five intrinsic mode functions (IMFs). Use the `'Display'`

name-value pair to show a table with the number of sifting iterations, the relative tolerance, and the sifting stop criterion for each IMF.

imfGood = emd(yGood,'MaxNumIMF',5,'Display',1);

Current IMF | #Sift Iter | Relative Tol | Stop Criterion Hit 1 | 3 | 0.017132 | SiftMaxRelativeTolerance 2 | 3 | 0.12694 | SiftMaxRelativeTolerance 3 | 6 | 0.14582 | SiftMaxRelativeTolerance 4 | 1 | 0.011082 | SiftMaxRelativeTolerance 5 | 2 | 0.03463 | SiftMaxRelativeTolerance Decomposition stopped because maximum number of intrinsic mode functions was extracted.

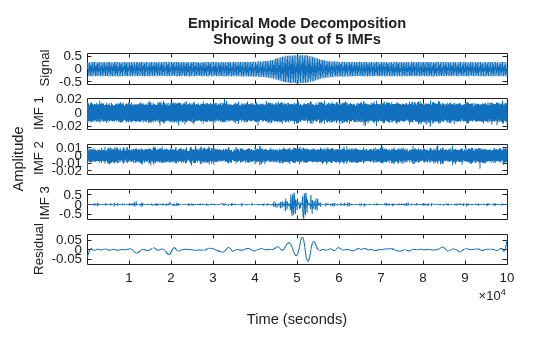

Use `emd`

without output arguments to visualize the first three modes and the residual.

`emd(yGood,'MaxNumIMF',5)`

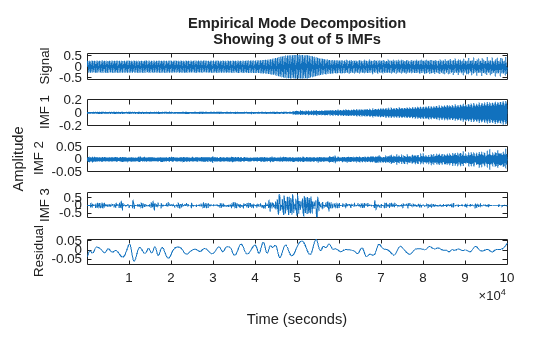

Compute and visualize the IMFs of the defective bearing signal. The first empirical mode reveals the high-frequency impacts. This high-frequency mode increases in energy as the wear progresses. The third mode shows the resonance in the vibration signal.

imfBad = emd(yBad,'MaxNumIMF',5,'Display',1);

Current IMF | #Sift Iter | Relative Tol | Stop Criterion Hit 1 | 2 | 0.041274 | SiftMaxRelativeTolerance 2 | 3 | 0.16695 | SiftMaxRelativeTolerance 3 | 3 | 0.18428 | SiftMaxRelativeTolerance 4 | 1 | 0.037177 | SiftMaxRelativeTolerance 5 | 2 | 0.095861 | SiftMaxRelativeTolerance Decomposition stopped because maximum number of intrinsic mode functions was extracted.

`emd(yBad,'MaxNumIMF',5)`

The next step in the analysis is to compute the Hilbert spectrum of the extracted IMFs. For more details, see the Compute Hilbert Spectrum of Vibration Signal example.

### Visualize Residual and Intrinsic Mode Functions of Signal

Load and visualize a nonstationary continuous signal composed of sinusoidal waves with a distinct change in frequency. The vibration of a jackhammer and the sound of fireworks are examples of nonstationary continuous signals. The signal is sampled at a rate `fs`

.

load('sinusoidalSignalExampleData.mat','X','fs') t = (0:length(X)-1)/fs; plot(t,X) xlabel('Time(s)')

The mixed signal contains sinusoidal waves with different amplitude and frequency values.

Perform empirical mode decomposition to plot the intrinsic mode functions and residual of the signal. Since the signal is not smooth, specify '`pchip`

' as the interpolation method.

emd(X,'Interpolation','pchip','Display',1)

Current IMF | #Sift Iter | Relative Tol | Stop Criterion Hit 1 | 2 | 0.026352 | SiftMaxRelativeTolerance 2 | 2 | 0.0039573 | SiftMaxRelativeTolerance 3 | 1 | 0.024838 | SiftMaxRelativeTolerance 4 | 2 | 0.05929 | SiftMaxRelativeTolerance 5 | 2 | 0.11317 | SiftMaxRelativeTolerance 6 | 2 | 0.12599 | SiftMaxRelativeTolerance 7 | 2 | 0.13802 | SiftMaxRelativeTolerance 8 | 3 | 0.15937 | SiftMaxRelativeTolerance 9 | 2 | 0.15923 | SiftMaxRelativeTolerance Decomposition stopped because the number of extrema in the residual signal is less than the 'MaxNumExtrema' value.

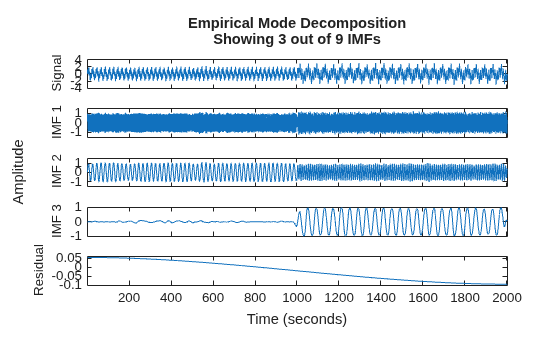

`emd`

generates an interactive plot with the original signal, the first 3 IMFs, and the residual. The table generated in the command window indicates the number of sift iterations, the relative tolerance, and the sift stop criterion for each generated IMF. You can hide the table by removing the `'Display'`

name-value pair or specifying it as `0`

.

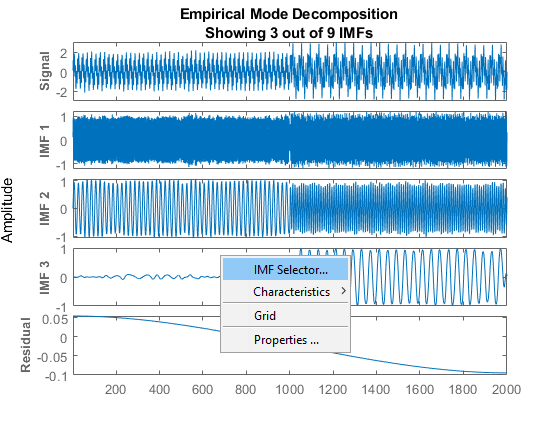

Right-click on the white space in the plot to open the** IMF selector** window. Use **IMF selector** to selectively view the generated IMFs, the original signal, and the residual.

Select the IMFs to be displayed from the list. Choose whether to display the original signal and residual on the plot.

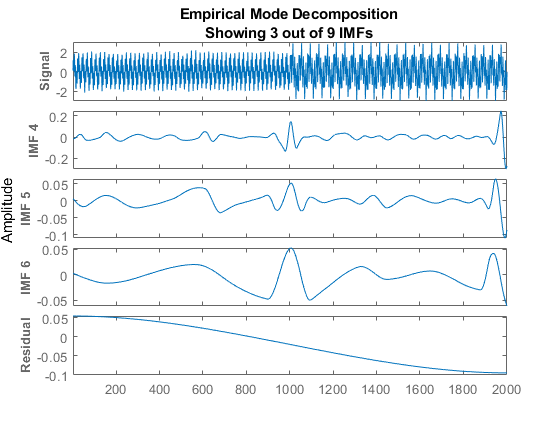

The selected IMFs are now displayed on the plot.

Use the plot to visualize individual components decomposed from the original signal along with the residual. Note that the residual is computed for the total number of IMFs, and does not change based on the IMFs selected in the **IMF selector** window.

## Input Arguments

`x`

— Time-domain signal

vector | timetable

Time-domain signal, specified as a real-valued vector, or a
single-variable timetable with a single column. If `x`

is
a timetable, `x`

must contain increasing, finite row
times.

### Name-Value Arguments

Specify optional pairs of arguments as
`Name1=Value1,...,NameN=ValueN`

, where `Name`

is
the argument name and `Value`

is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.

*
Before R2021a, use commas to separate each name and value, and enclose*
`Name`

*in quotes.*

**Example: **`'MaxNumIMF',5`

`SiftRelativeTolerance`

— Cauchy-type convergence criterion

`0.2`

(default) | positive scalar

Cauchy-type convergence criterion, specified as the comma-separated
pair consisting of `'SiftRelativeTolerance'`

and a
positive scalar. `SiftRelativeTolerance`

is one of the
sifting stop criteria, that is, sifting stops when the current relative
tolerance is less than `SiftRelativeTolerance`

. For
more information, see Sift Relative Tolerance.

`SiftMaxIterations`

— Maximum number of sifting iterations

`100`

(default) | positive scalar integer

Maximum number of sifting iterations, specified as the comma-separated
pair consisting of `'SiftMaxIterations'`

and a positive
scalar integer. `SiftMaxIterations`

is one of the
sifting stop criteria, that is, sifting stops when the current number of
iterations is larger than `SiftMaxIterations`

.

`SiftMaxIterations`

can be specified using only
positive whole numbers.

`MaxNumIMF`

— Maximum number of IMFs extracted

`10`

(default) | positive scalar integer

Maximum number of IMFs extracted, specified as the comma-separated
pair consisting of `'MaxNumIMF'`

and a positive scalar
integer. `MaxNumIMF`

is one of the decomposition stop
criteria, that is, decomposition stops when number of IMFs generated is
equal to `MaxNumIMF`

.

`MaxNumIMF`

can be specified using only positive
whole numbers.

`MaxNumExtrema`

— Maximum number of extrema in the residual signal

`1`

(default) | positive scalar integer

Maximum number of extrema in the residual signal, specified as the
comma-separated pair consisting of `'MaxNumExtrema'`

and a positive scalar integer. `MaxNumExtrema`

is one
of the decomposition stop criteria, that is, decomposition stops when
number of extrema is less than `MaxNumExtrema`

.

`MaxNumExtrema`

can be specified using only positive
whole numbers.

`MaxEnergyRatio`

— Signal to residual energy ratio

`20`

(default) | scalar

Signal to residual energy ratio, specified as the comma-separated pair
consisting of `'MaxEnergyRatio'`

and a scalar.
`MaxEnergyRatio`

is the ratio of the energy of the
signal at the beginning of sifting and the average envelope energy.
`MaxEnergyRatio`

is one of the decomposition stop
criteria, that is, decomposition stops when current energy ratio is
larger than `MaxEnergyRatio`

. For more information, see
Energy Ratio.

`Interpolation`

— Interpolation method for envelope construction

`'spline'`

(default) | `'pchip'`

Interpolation method for envelope construction, specified as the
comma-separated pair consisting of `'Interpolation'`

and either `'spline'`

or
`'pchip'`

.

Specify `Interpolation`

as:

`'spline'`

, if`x`

is a smooth signal`'pchip'`

, if`x`

is a nonsmooth signal

`'spline'`

interpolation method uses
cubic splines, while `'pchip'`

uses piecewise-cubic
Hermite interpolating polynomials.

`Display`

— Toggle information display in the command window

0 (default) | 1

Toggle information display in the command window, specified as the
comma-separated pair consisting of `'Display'`

and
either 0 or 1. The table generated in the command window indicates the
number of sift iterations, the relative tolerance, and the sift stop
criterion for each generated IMF. Specify `Display`

as
1 to show the table or 0 to hide the table.

## Output Arguments

`imf`

— Intrinsic mode function

matrix | timetable

Intrinsic mode function (IMF), returned as a matrix or timetable. Each IMF
is an amplitude and frequency modulated signal with positive and slowly
varying envelopes. To perform spectral analysis of a signal, you can apply
the Hilbert-Huang transform to its IMFs. See `hht`

and Intrinsic Mode Functions.

`imf`

is returned as:

A matrix whose each column is an

`imf`

, when`x`

is a vectorA timetable, when

`x`

is a single data column timetable

`residual`

— Residual of the signal

column vector | single data column timetable

Residual of the signal, returned as a column vector or a single data
column timetable. `residual`

represents the portion of the
original signal `x`

not decomposed by
`emd`

.

`residual`

is returned as:

A column vector, when

`x`

is a vector.A single data column timetable, when

`x`

is a single data column timetable.

`info`

— Additional information for diagnostics

structure

Additional information for diagnostics, returned as a structure with the following fields:

`NumIMF`

— Number of IMFs extracted`NumIMF`

is a vector from 1 to*N*, where*N*is the number of IMFs. If no IMFs are extracted,`NumIMF`

is empty.`NumExtrema`

— Number of extrema in each IMF`NumExtrema`

is a vector equal in length to the number of IMFs. The*k*th element of`NumExtrema`

is the number of extrema found in the*k*th IMF. If no IMFs are extracted,`NumExtrema`

is empty.`NumZerocrossing`

— Number of zero crossings in each IMFNumber of zero crossings in each IMF.

`NumZerocrossing`

is a vector equal in length to the number of IMFs. The*k*th element of`NumZerocrossing`

is the number of zero crossings in the*k*th IMF. If no IMFs are extracted,`NumZerocrossing`

is empty.`NumSifting`

— Number of sifting iterations used to extract each IMF`NumSifting`

is a vector equal in length to the number of IMFs. The*k*th element of`NumSifting`

is the number of sifting iterations used in the extraction of the*k*th IMF. If no IMFs are extracted,`NumSifting`

is empty.`MeanEnvelopeEnergy`

— Energy of the mean of the upper and lower envelopes obtained for each IMFIf

`UE`

is the upper envelope and`LE`

is the lower envelope,`MeanEnvelopeEnergy`

is`mean(((LE+UL)/2).^2)`

.`MeanEnvelopeEnergy`

is a vector equal in length to the number of IMFs. The*k*th element of`MeanEnvelopeEnergy`

is the mean envelope energy for the*k*th IMF. If no IMFs are extracted,`MeanEnvelopeEnergy`

is empty.`RelativeTolerance`

— Final relative tolerance of the residual for each IMFThe relative tolerance is defined as the ratio of the squared 2-norm of the difference between the residual from the previous sifting step and the residual from the current sifting step to the squared 2-norm of the residual from the

*i*th sifting step. The sifting process stops when`RelativeTolerance`

is less than`SiftRelativeTolerance`

. For additional information, see Sift Relative Tolerance.`RelativeTolerance`

is a vector equal in length to the number of IMFs. The*k*th element of`RelativeTolerance`

is the final relative tolerance obtained for the*k*th IMF. If no IMFs are extracted,`RelativeTolerance`

is empty.

## More About

### Empirical Mode Decomposition

The empirical mode decomposition (EMD) algorithm decomposes a
signal *x*(*t*) into intrinsic mode functions (IMFs) and a residual in an
iterative process. The core component of the algorithm involves
*sifting* a function *x*(*t*) to obtain a new function *Y*(*t*):

First find the local minima and maxima of

*x*(*t*).Then use the local extrema to construct lower and upper envelopes

*s*_{−}(*t*) and*s*_{+}(*t*), respectively, of*x*(*t*). Form the mean of the envelopes,*m*(*t*).Subtract the mean from

*x*(*t*) to obtain the residual:*Y*(*t*) =*x*(*t*) −*m*(*t*).

An overview of the decomposition is as follows:

To begin, let

*r*_{0}(*t*) =*x*(*t*), where*x*(*t*) is the initial signal, and let*i*= 0.Before sifting, check

*r*_{i}(*t*):Find the total number (TN) of local extrema of

*r*_{i}(*t*).Find the energy ratio (ER) of

*r*_{i}(*t*) (see Energy Ratio).

If (ER >

`MaxEnergyRatio`

) or (TN <`MaxNumExtrema`

) or (number of IMFs >`MaxNumIMF`

) then stop the decomposition.Let

*r*_{i,Prev}(*t*) =*r*_{i}(*t*).Sift

*r*_{i,Prev}(*t*) to obtain*r*_{i,Cur}(*t*).Check

*r*_{i,Cur}(*t*)Find the relative tolerance (RT) of

*r*_{i,Cur}(*t*) (see Sift Relative Tolerance).Get current sift iteration number (IN).

If (RT <

`SiftRelativeTolerance`

) or (IN >`SiftMaxIterations`

) then stop sifting. An IMF has been found: IMF_{i}(*t*) =*r*_{i,Cur}(*t*). Otherwise, let*r*_{i,Prev}(*t*) =*r*_{i,Cur}(*t*) and go to Step 5.Let

*r*_{i+1}(*t*) =*r*_{i}(*t*) −*r*_{i,Cur}(*t*).Let

*i*=*i*+ 1. Return to Step 2.

### Intrinsic Mode Functions

The EMD algorithm decomposes, via an iterative sifting process, a
signal *x*(*t*) into IMFs *imf _{i}*(

*t*) and a residual

*r*(

_{N}*t*):

$$X\left(t\right)={\displaystyle \sum _{i=1}^{N}{\text{IMF}}_{i}\left(t\right)+{r}_{N}\left(t\right)}$$

When first introduced by Huang et al. [1], an IMF was defined to be a function with two characteristics:

The number of local extrema — the total number of local minima and local maxima — and the number of zero crossings differ by at most one.

The mean value of the upper and lower envelopes constructed from the local extrema is zero.

However, as noted in [4], sifting until a strict IMF is obtained can result in IMFs that have no physical significance. Specifically, sifting until the number of zero crossings and local extrema differ by at most one can result in pure-tone like IMFs, in other words, functions very similar to what would be obtained by projection on the Fourier basis. This situation is precisely what EMD strives to avoid, preferring AM-FM modulated components for their physical significance.

Reference [4] proposes options to
obtain physically meaningful results. The `emd`

function relaxes
the original IMF definition by using Sift Relative Tolerance, a Cauchy-type stop
criterion. The `emd`

function iterates to extract natural AM-FM
modes. The IMFs generated may fail to satisfy the local extrema-zero crossings
criteria. See Zero Crossings and Extrema in Intrinsic Mode Function of Sinusoid.

### Sift Relative Tolerance

*Sift Relative Tolerance* is a Cauchy-type
stop criterion proposed in [4]. Sifting stops when
current relative tolerance is less than `SiftRelativeTolerance`

.
The current relative tolerance is defined as

$$\text{RelativeTolerance}\triangleq \frac{{\Vert {r}_{\text{prev}}\left(t\right)-{r}_{\text{cur}}\left(t\right)\Vert}_{2}^{2}}{{\Vert {r}_{\text{prev}}\left(t\right)\Vert}_{2}^{2}}.$$

Because the Cauchy criterion does not directly count the number
of zero crossings and local extrema, it is possible that the IMFs returned by the
decomposition do not satisfy the strict definition of an intrinsic mode function. In
those cases, you can try reducing the value of the
`SiftRelativeTolerance`

from its default value. See [4] for a detailed
discussion of stopping criteria. The reference also discusses the advantages and
disadvantages of insisting on strictly defined IMFs in empirical mode
decomposition.

### Energy Ratio

Energy ratio is the ratio of the energy of the signal at the
beginning of sifting and the average envelope energy [2]. Decomposition stops
when current energy ratio is larger than `MaxEnergyRatio`

. For
the *i*th IMF, the energy ratio is defined as

$$\text{EnergyRatio}\triangleq 10{\mathrm{log}}_{10}\left(\frac{{\Vert X\left(t\right)\Vert}_{2}}{{\Vert {r}_{i}\left(t\right)\Vert}_{2}}\right).$$

## References

[1] Huang, Norden E., Zheng Shen,
Steven R. Long, Manli C. Wu, Hsing H. Shih, Quanan Zheng, Nai-Chyuan Yen, Chi Chao Tung,
and Henry H. Liu. “The Empirical Mode Decomposition and the Hilbert Spectrum for
Nonlinear and Non-Stationary Time Series Analysis.” *Proceedings of the Royal
Society of London. Series A: Mathematical, Physical and Engineering
Sciences* 454, no. 1971 (March 8, 1998): 903–95.
https://doi.org/10.1098/rspa.1998.0193.

[2] Rato, R.T., M.D. Ortigueira,
and A.G. Batista. “On the HHT, Its Problems, and Some Solutions.” *Mechanical
Systems and Signal Processing* 22, no. 6 (August 2008): 1374–94.
https://doi.org/10.1016/j.ymssp.2007.11.028.

[3] Rilling, Gabriel, Patrick
Flandrin, and Paulo Gonçalves. "On Empirical Mode Decomposition and Its Algorithms."
*IEEE-EURASIP Workshop on Nonlinear Signal and Image
Processing* 2003. NSIP-03. Grado, Italy. 8–11.

[4] Wang, Gang, Xian-Yao Chen,
Fang-Li Qiao, Zhaohua Wu, and Norden E. Huang. “On Intrinsic Mode Function.”
*Advances in Adaptive Data Analysis* 02, no. 03 (July 2010):
277–93. https://doi.org/10.1142/S1793536910000549.

## Extended Capabilities

### C/C++ Code Generation

Generate C and C++ code using MATLAB® Coder™.

Usage notes and limitations:

Timetables are not supported for code generation.

If supplied, the interpolation method specified using the

`'Interpolation'`

name-value pair must be a compile-time constant.

## Version History

**Introduced in R2018a**

## Open Example

You have a modified version of this example. Do you want to open this example with your edits?

## MATLAB Command

You clicked a link that corresponds to this MATLAB command:

Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.

Select a Web Site

Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .

You can also select a web site from the following list:

## How to Get Best Site Performance

Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.

### Americas

- América Latina (Español)
- Canada (English)
- United States (English)

### Europe

- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)

- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
