Shift Arithmetic

Shift bits or binary point of signal

•

Libraries:
Simulink / Logic and Bit Operations
HDL Coder / Logic and Bit Operations

Description

The Shift Arithmetic block can shift the bits or the binary point of an input signal, or both.

For example, shifting the binary point on an input of data type sfix(8) by two places to the right and left gives these decimal values.

Shift Operation	Binary Value	Decimal Value
No shift (original number)	11001.011	–6.625
Binary point shift right by two places	1100101.1	–26.5
Binary point shift left by two places	110.01011	–1.65625

This block performs arithmetic bit shifts on signed numbers. Therefore, the block recycles the most significant bit for each bit shift. Shifting the bits on an input of data type sfix(8) by two places to the right and left gives these decimal values.

Shift Operation	Binary Value	Decimal Value
No shift (original number)	11001.011	–6.625
Bit shift right by two places	11110.010	–1.75
Bit shift left by two places	00101.100	5.5

Examples

Effect of Binary Point Shifts

This example shows the effect of binary point shifts.

model='ex_shift_arithmetic_block_binary_point_shifts';
open_system(model)

Behavior of Right Bit Shifts

This example shows a comparison of the behavior of right bit shifts using the dialog box versus the block input port.

model='ex_shift_arithmetic_block_right_bit_shifts';
open_system(model)

Ports

Input

u — Number to be operated on

scalar | vector | array

Number to be operated on, specified as a scalar, vector, or array.

Data Types: single | double | half | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | fixed point

s — Number of bits to shift

scalar

Number of bits to shift, specified as a scalar.

Data Types: single | double | half | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | fixed point

Output

Port_1 — Result of operation

scalar | vector | array

Result of operation, returned as a scalar, vector, or array.

Data Types: single | double | half | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | fixed point

Parameters

Bits to shift: Source — Source of bits to shift

Dialog (default) | Input port

Specify whether to enter the bits to shift on the dialog box or to inherit the values from an input port.

Tunable: No

Programmatic Use

Block Parameter: BitShiftNumberSource

Type: character vector, string

Values: 'Dialog' | 'Input port'

Default: 'Dialog'

Bits to shift: Direction — Direction in which to shift bits

Bidirectional (default) | Left | Right

Specify the direction in which to shift bits: left, right, or bidirectional.

Tunable: No

Programmatic Use

Block Parameter: BitShiftDirection

Type: character vector, string

Values: 'Left' | 'Right' | 'Bidirectional'

Default: 'Bidirectional'

Bits to shift: Number — Bits to shift

8 (default) | scalar | vector | array

Specify a scalar, vector, or array of bit shift values.

If the direction is...	Then...
Left or Right	Use positive integers to specify bit shifts.
Bidirectional	Use positive integers for right shifts and negative integers for left shifts.

Tunable: No

Dependencies

To enable this parameter, set Bits to shift: Source to Dialog.

Programmatic Use

Block Parameter: BitShiftNumber

Type: character vector, string

Values: scalar | vector | array

Default: '8'

Binary points to shift: Number — Number of places to shift binary point

0 (default) | scalar

Specify an integer number of places to shift the binary point of the input signal. A positive value indicates a right shift, while a negative value indicates a left shift.

Tunable: No

Programmatic Use

Block Parameter: BinPtShiftNumber

Type: character vector, string

Values: scalar

Default: '0'

Diagnostic for out of range shift value — Diagnostic action

None (default) | Warning | Error

Specify whether to produce a warning or error during simulation when the block contains an out-of-range shift value. Options include:

• None — The software takes no action.

• Warning — The software displays a warning and continues the simulation.

• Error — The software terminates the simulation and displays an error.

For more information, see Simulation and Accelerator Mode Results for Out-of-Range Bit Shift Values.

Programmatic Use

Block Parameter: DiagnosticForOORShift

Type: character vector, string

Values: 'None' | 'Warning' | 'Error'

Default: 'None'

Check for out-of-range 'Bits to shift' in generated code — Check for out-of-range bits to shift in generated code

off (default) | on

Select this check box to include conditional statements in the generated code that protect against out-of-range bit shift values. This check box is available when Bits to shift: Source is Input port.

For more information, see Code Generation for Out-of-Range Bit Shift Values.

Programmatic Use

Block Parameter: CheckOORBitShift

Type: character vector, string

Values: 'on' | 'off'

Default: 'off'

Block Characteristics

Data Types	double | fixed point | half | integer | single
Direct Feedthrough	yes
Multidimensional Signals	no
Variable-Size Signals	no
Zero-Crossing Detection	no

More About

Block Icon Variables

The Shift Arithmetic block icon shows the block behavior using these variables:

• Q — Stored integer value

• V — Real world value

• E — Exponent

• Qy — Stored integer value of output

• Qu — Stored integer value of input

• Vy — Value of output

• Vu — Value of input

• Ey — Exponent of output

• Eu — Exponent of input

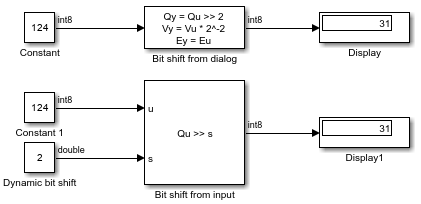

Block Output for Right Bit Shifts

The Behavior of Right Bit Shifts example compares the behavior of right bit shifts using the dialog box versus the block input port.

The key block parameter settings of the Constant blocks are:

Block	Parameter	Setting
Constant and Constant1	Constant value	124
	Output data type	int8
Dynamic bit shift	Constant value	2
	Output data type	Inherit: Inherit from 'Constant value'

The key block parameter settings of the Shift Arithmetic blocks are:

Block	Parameter	Setting
Bit shift from dialog	Bits to shift: Source	Dialog
	Bits to shift: Direction	Right
	Bits to shift: Number	2
Bit shift from input	Bits to shift: Source	Input port
	Bits to shift: Direction	Right

The top Shift Arithmetic block takes an input of 124, which corresponds to 01111100 in binary format. Shifting the number of bits two places to the right produces 00011111 in binary format. Therefore, the block outputs 31.

The bottom Shift Arithmetic block performs the same operation as the top block. However, the bottom block receives the bit shift value through an input port instead of the dialog box. By supplying this value as an input signal, you can change the number of bits to shift during simulation.

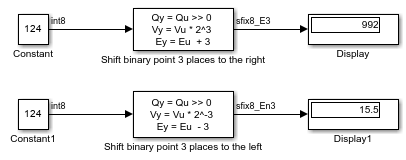

Block Output for Binary Point Shifts

The Effect of Binary Point Shifts example shows the effect of binary point shifts.

The key block parameter settings of the Constant blocks are:

Block	Parameter	Setting
Constant and Constant1	Constant value	124
	Output data type	int8

The key block parameter settings of the Shift Arithmetic blocks are:

Block	Parameter	Setting
Shift binary point 3 places to the right	Bits to shift: Source	Dialog
	Bits to shift: Direction	Bidirectional
	Bits to shift: Number	0
	Binary points to shift: Number	3
Shift binary point 3 places to the left	Bits to shift: Source	Dialog
	Bits to shift: Direction	Bidirectional
	Bits to shift: Number	0
	Binary points to shift: Number	– 3

The top Shift Arithmetic block takes an input of 124, which corresponds to 01111100 in binary format. Shifting the binary point three places to the right produces 01111100000 in binary format. Therefore, the top block outputs 995.

The bottom Shift Arithmetic block also takes an input of 124. Shifting the binary point three places to the left produces 01111.100 in binary format. Therefore, the bottom block outputs 15.5.

Algorithms

Out-of-Range Bit Shift

Suppose that WL is the input word length. The shaded regions in the following diagram show out-of-range bit shift values for left and right shifts.

Similarly, the shaded regions in the following diagram show out-of-range bit shift values for bidirectional shifts.

The diagnostic for out-of-range bit shifts responds as follows, depending on the mode of operation:

Mode	Diagnostic for out-of-range shift value
	None	Warning	Error
Simulation modes	Do not report any warning or error.	Report a warning but continue simulation.	Report an error and stop simulation.
Code generation	Has no effect.

Simulation and Accelerator Mode Results for Out-of-Range Bit Shift Values

Suppose that U is the input, WL is the input word length, and Y is the output. The output for an out-of-range bit shift value for left shifts is as follows:

Similarly, the output for an out-of-range bit shift value for right shifts is as follows:

For bidirectional shifts, the output for an out-of-range bit shift value is as follows:

Code Generation for Out-of-Range Bit Shift Values

For generated code, the method for handling out-of-range bit shifts depends on the setting of Check for out-of-range 'Bits to shift' in generated code.

Check Box Setting	Generated Code	Simulation Results Compared to Generated Code
Selected	Includes conditional statements to protect against out-of-range bit shift values.	Simulation and Accelerator mode results match those of code generation.
Cleared	Does not protect against out-of-range bit shift values.	For in-range values, simulation and Accelerator mode results match those of code generation. For out-of-range values, the code generation results are compiler specific.

For right shifts on signed negative inputs, most C compilers use an arithmetic shift instead of a logical shift. Generated code for the Shift Arithmetic block depends on this compiler behavior.

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

HDL Code Generation

Generate VHDL, Verilog and SystemVerilog code for FPGA and ASIC designs using HDL Coder™.

HDL Coder™ provides additional configuration options that affect HDL implementation and synthesized logic.

You can generate HDL code when Bits to shift: Source is Dialog or Input port.

HDL Architecture

The generated VHDL code uses the shift_right function and sll operator.

The generated Verilog code uses the >>> and <<< shift operators.

HDL Block Properties

ConstrainedOutputPipeline	Number of registers to place at the outputs by moving existing delays within your design. Distributed pipelining does not redistribute these registers. The default is 0. For more details, see ConstrainedOutputPipeline (HDL Coder).
InputPipeline	Number of input pipeline stages to insert in the generated code. Distributed pipelining and constrained output pipelining can move these registers. The default is 0. For more details, see InputPipeline (HDL Coder).
OutputPipeline	Number of output pipeline stages to insert in the generated code. Distributed pipelining and constrained output pipelining can move these registers. The default is 0. For more details, see OutputPipeline (HDL Coder).

Complex Data Support

This block supports code generation for complex signals.

Restrictions

When Bits to shift: Source is Input port, binary point shifting is not supported.

PLC Code Generation
Generate Structured Text code using Simulink® PLC Coder™.

Fixed-Point Conversion
Design and simulate fixed-point systems using Fixed-Point Designer™.

Version History

Introduced before R2006a
