Visualize and Assess Classifier Performance in Classification Learner

After training classifiers in the Classification Learner app, you can compare models based on accuracy values, visualize results by plotting class predictions, and check performance using the confusion matrix, ROC curve, and precision-recall curve.

  • If you use k-fold cross-validation, the app computes the accuracy values using the observations in the k validation folds, and reports the average cross-validation error. The app also makes predictions on the observations in the validation folds and computes the confusion matrix, ROC curve, and precision-recall curve based on these predictions.

    Note

    When you import data into the app, if you accept the defaults, the app automatically uses cross-validation. To learn more, see Choose Validation Scheme.

  • If you use holdout validation, the app computes the accuracy values using the observations in the validation fold, and makes predictions on the observations. The app also computes the confusion matrix, ROC curve, and precision-recall curve based on these predictions.

  • If you use resubstitution validation, the score is the resubstitution accuracy based on all the training data, and the predictions are resubstitution predictions.

Check Performance in the Models Pane

After training a model in Classification Learner, check the Models pane to see which model has the best overall accuracy in percent. The best Accuracy (Validation) score is highlighted in a box. This score is the validation accuracy. The validation accuracy score estimates a model's performance on new data compared to the training data. Use the score to help you choose the best model.

Models and their validation accuracy values displayed in the Models pane

  • For cross-validation, the score is the accuracy on all observations not set aside for testing, counting each observation when it was in a holdout (validation) fold.

  • For holdout validation, the score is the accuracy on the held-out observations.

  • For resubstitution validation, the score is the resubstitution accuracy against all the training data observations.

The best overall score might not be the best model for your goal. A model with a slightly lower overall accuracy might be the best classifier for your goal. For example, false positives in a particular class might be important to you. You might want to exclude some predictors where data collection is expensive or difficult.

To find out how the classifier performed in each class, examine the confusion matrix.

View Model Metrics in Summary Tab and Models Pane

You can view model metrics in the model Summary tab and the Models pane, and use the metrics to assess and compare models. Alternatively, you can use the compare results plot and the Results Table tab to compare models. For more information, see View Model Information and Results in Compare Results Plot Compare Model Information and Results in Table View.

The Training Results and Additional Training Results metrics are calculated on the validation set. The Test Results and Additional Test Results metrics, if displayed, are calculated on a test set. For more information, see Evaluate Test Set Model Performance.

Sample model Summary tab

Model Metrics

MetricDescriptionTip
AccuracyPercentage of observations that are correctly classifiedLook for larger accuracy values.
Total costTotal misclassification cost (see Misclassification Costs in Classification Learner App)Look for smaller total cost values. Make sure the accuracy value is still large.
Error ratePercentage of observations that are misclassified. The error rate is 1 minus the accuracy.Look for smaller error rate values.
Prediction speedEstimated prediction speed for new data, based on the prediction times for the validation data setsBackground processes inside and outside the app can affect this estimate, so train models under similar conditions for better comparisons.
Training timeTime spent training the modelBackground processes inside and outside the app can affect this estimate, so train models under similar conditions for better comparisons.
Model size (Compact)Size of the model if exported as a compact model (that is, without training data)Look for model size values that fit the memory requirements of target hardware applications.

The app provides three additional model metrics: precision, recall, and F1 score. The metrics are indicators of how frequently a model makes correct predictions (true positives and true negatives) and incorrect predictions (false positives and false negatives) for validation or test data with known classes. The metrics are available on a per-class basis, or averaged over all classes using one of these types of average: macro, micro, or weighted. For examples of plots that use these metrics, see Check ROC Curve and Check Precision-Recall Curve.

Additional Model Metrics

MetricDescriptionTip
PrecisionPositive predictive value, meaning the fraction of predicted true positive results among all predicted positive resultsLook for higher precision values. A larger number of false positive predictions lowers the precision of a model.
RecallTrue positive rate (sensitivity), meaning the fraction of predicted true positive results among all actual true positive resultsLook for higher recall values. A larger number of false negative predictions lowers the recall of a model.
F1 scoreHarmonic mean of precision and recallTo have a high F1 score, a model must have both high precision and high recall.

Types of Average

MetricDescriptionTip
Macro averageNonweighted average of the per-class metric valuesUse this statistic to evaluate how the model performs on average across all classes, regardless of the class frequency.
Micro averageAverage of the specific metric that is calculated using the combined predicted and actual values for all classesUse this statistic to evaluate all predictions equally, regardless of class.
Weighted averageAverage of the per-class metric values, weighted by the occurrence frequency of each classUse this statistic to evaluate model performance and take into account a large imbalance in class frequency.

You can sort models in the Models pane according to accuracy, total cost, error rate, macro average precision, macro average recall, or macro average F1 score. To select a metric for model sorting, use the Sort by list at the top of the Models pane. Not all metrics are available for sorting in the Models pane. You can sort models by other metrics in the Results Table (see Compare Model Information and Results in Table View).

You can also delete models listed in the Models pane. Select the model you want to delete and click the Delete selected model button in the upper right of the pane, or right-click the model and select Delete. You cannot delete the last remaining model in the Models pane.

Compare Model Information and Results in Table View

Rather than using the Summary tab or the Models pane to compare model metrics, you can use a table of results. On the Learn tab, in the Plots and Results section, click Results Table. In the Results Table tab, you can sort models by their training and test results, as well as by their options (such as model type, selected features, PCA, and so on). For example, to sort models by validation accuracy, click the sorting arrows in the Accuracy (Validation) column header. A down arrow indicates that models are sorted from highest accuracy to lowest accuracy.

To view more table column options, click the "Select columns to display" button at the top right of the table. In the Select Columns to Display dialog box, check the boxes for the columns you want to display in the results table. Newly selected columns are appended to the table on the right.

Select Columns to Display dialog box

Within the results table, you can manually drag table columns so that they appear in your preferred order.

You can mark some models as favorites by using the Favorite column. The app keeps the selection of favorite models consistent between the results table and the Models pane. Unlike other columns, the Favorite and Model Number columns cannot be removed from the table.

To remove a row from the table, right-click any entry within the row and click Hide row (or Hide selected row(s) if the row is highlighted). To remove consecutive rows, click any entry within the first row you want to remove, press Shift, and click any entry within the last row you want to remove. Then, right-click one of the highlighted entries and click Hide selected row(s). To restore all removed rows, right-click any entry in the table and click Show all rows. The restored rows are appended to the bottom of the table.

To export the information in the table, use one of the export buttons at the top right of the table. Choose between exporting the table to the workspace or to a file. The exported table includes only the displayed rows and columns.

View Model Information and Results in Compare Results Plot

You can view model information and results in a compare results plot. On the Learn or Test tab, in the Plots and Results section, click Compare Results. Alternatively, click the Plot Results button in the Results Table tab. The plot shows a bar chart of validation accuracy for the models, ordered from highest to lowest accuracy value. You can sort the models by other training and test results using the Sort by list under Sort Data. To group models of the same type, select Group by model type. To assign the same color to all model types, clear Color by model type.

Compare Results bar chart

Select model types to display using the check boxes under Select. Hide a displayed model by right-clicking a bar in the plot and selecting Hide Model.

You can also select and filter the displayed models by clicking the Filter button under Filter and Group. In the Filter and Select Models dialog box, click Select Metrics and select the metrics to display in the table of models at the top of the dialog box. Within the table, you can drag the table columns so that they appear in your preferred order. Click the sorting arrows in the table headers to sort the table. To filter models by metric value, first select a metric in the Filter by column. Then select a condition in the Filter Models table, enter a value in the Value field, and click Apply Filter(s). The app updates the selections in the table of models. You can specify additional conditions by clicking the Add Filter button. Click OK to display the updated plot.

Filter and Select Models dialog box

Select other metrics to plot in the X and Y lists under Plot Data. If you do not select Model Number for X or Y, the app displays a scatter plot.

Compare Results scatter plot

To export a compare results plot to a figure, see Export Plots in Classification Learner App.

To export the results table to the workspace, click Export Plot and select Export Plot Data. In the Export Result Metrics Plot Data dialog box, edit the name of the exported variable, if necessary, and click OK. The app creates a structure array that contains the results table.

Plot Classifier Results

Use a scatter plot to examine the classifier results. To view the scatter plot for a model, select the model in the Models pane. On the Learn tab, in the Plots and Results section, click the arrow to open the gallery, and then click Scatter in the Validation Results group. After you train a classifier, the scatter plot switches from displaying the data to showing model predictions. If you are using holdout or cross-validation, then these predictions are the predictions on the held-out (validation) observations. In other words, the software obtains each prediction by using a model that was trained without the corresponding observation.

To investigate your results, use the controls on the right. You can:

  • Choose whether to plot model predictions or the data alone.

  • Show or hide correct or incorrect results using the check boxes under Model predictions.

  • Choose features to plot using the X and Y lists under Predictors.

  • Visualize results by class by showing or hiding specific classes using the check boxes under Show.

  • Change the stacking order of the plotted classes by selecting a class under Classes and then clicking Move to Front.

  • Zoom in and out, or pan across the plot. To enable zooming or panning, place the mouse over the scatter plot and click the corresponding button on the toolbar that appears above the top right of the plot.

Scatter plot of the Fisher iris data. Correctly classified points are marked with an O. Incorrectly classified points are marked with an X.

See also Investigate Features in the Scatter Plot.

To export the scatter plots you create in the app to figures, see Export Plots in Classification Learner App.

Check Performance Per Class in the Confusion Matrix

Use the confusion matrix plot to understand how the currently selected classifier performed in each class. After you train a classification model, the app automatically opens the confusion matrix for that model. If you train an "All" model, the app opens the confusion matrix for the first model only. To view the confusion matrix for another model, select the model in the Models pane. On the Learn tab, in the Plots and Results section, click the arrow to open the gallery, and then click Confusion Matrix (Validation) in the Validation Results group. The confusion matrix helps you identify the areas where the classifier performed poorly.

When you open the plot, the rows show the true class, and the columns show the predicted class. If you are using holdout or cross-validation, then the confusion matrix is calculated using the predictions on the held-out (validation) observations. The diagonal cells show where the true class and predicted class match. If these diagonal cells are blue, the classifier has classified observations of this true class correctly.

The default view shows the number of observations in each cell.

To see how the classifier performed per class, under Plot, select the True Positive Rates (TPR), False Negative Rates (FNR) option. The TPR is the proportion of correctly classified observations per true class. The FNR is the proportion of incorrectly classified observations per true class. The plot shows summaries per true class in the last two columns on the right.

Tip

Look for areas where the classifier performed poorly by examining cells off the diagonal that display high percentages and are orange. The higher the percentage, the darker the hue of the cell color. In these orange cells, the true class and the predicted class do not match. The data points are misclassified.

Confusion matrix assessing a model that predicts the country of origin for cars in the carbig data set

In this example, which uses the carbig data set, the fifth row from the top shows all cars with the true class Japan. The columns show the predicted classes. Of the cars from Japan, 77.2% are correctly classified, so 77.2% is the true positive rate for correctly classified points in this class, shown in the blue cell in the TPR column.

The other cars in the Japan row are misclassified: 5.1% of the cars are incorrectly classified as from Germany, 5.1% are classified as from Sweden, and 12.7% are classified as from the USA. The false negative rate for incorrectly classified points in this class is 22.8%, shown in the orange cell in the FNR column.

If you want to see numbers of observations (cars, in this example) instead of percentages, under Plot, select Number of observations.

If false positives are important in your classification problem, plot results per predicted class (instead of true class) to investigate false discovery rates. To see results per predicted class, under Plot, select the Positive Predictive Values (PPV), False Discovery Rates (FDR) option. The PPV is the proportion of correctly classified observations per predicted class. The FDR is the proportion of incorrectly classified observations per predicted class. With this option selected, the confusion matrix now includes summary rows below the table. Positive predictive values are shown in blue for the correctly predicted points in each class, and false discovery rates are shown in orange for the incorrectly predicted points in each class.

If you decide there are too many misclassified points in the classes of interest, try changing classifier settings or feature selection to search for a better model.

To export the confusion matrix plots you create in the app to figures, see Export Plots in Classification Learner App.

To export the confusion matrix to the workspace, click Export Plot and select Export Plot Data. In the Export Confusion Matrix Plot Data dialog box, edit the name of the exported variable, if necessary, and click OK. The app creates a structure array that contains the confusion matrix and the class labels.

Check ROC Curve

View a receiver operating characteristic (ROC) curve after training a model. In the Plots and Results section, click the arrow to open the gallery, and then click ROC Curve (Validation) in the Validation Results group. The app creates a ROC curve by using the rocmetrics function.

ROC curve for a binary classification problem

The ROC curve shows the true positive rate (TPR) versus the false positive rate (FPR) for different thresholds of classification scores, computed by the currently selected classifier. The Model Operating Point shows the false positive rate and true positive rate corresponding to the threshold used by the classifier to classify an observation. For example, a false positive rate of 0.1 indicates that the classifier incorrectly assigns 10% of the negative class observations to the positive class. A true positive rate of 0.85 indicates that the classifier correctly assigns 85% of the positive class observations to the positive class.

The AUC (area under curve) value corresponds to the integral of a ROC curve (TPR values) with respect to FPR from FPR = 0 to FPR = 1. The AUC value is a measure of the overall quality of the classifier. The AUC values are in the range 0 to 1, and larger AUC values indicate better classifier performance. Compare classes and trained models to see if they perform differently in the ROC curve.

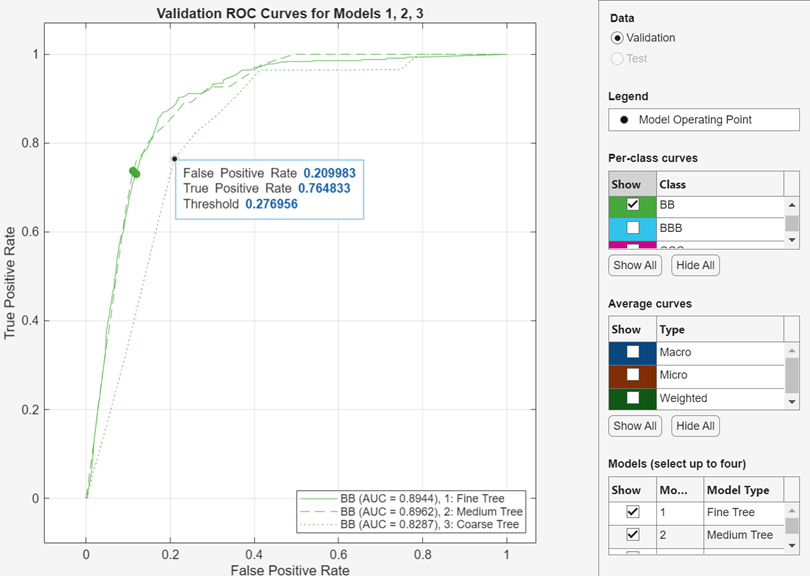

You can create a ROC curve for a specific class using the Show check boxes under Per-class curves. However, you do not need to examine ROC curves for both classes in a binary classification problem. The two ROC curves are symmetric, and the AUC values are identical. A TPR of one class is a true negative rate (TNR) of the other class, and TNR is 1 – FPR. Therefore, a plot of TPR versus FPR for one class is the same as a plot of 1 – FPR versus 1 – TPR for the other class.

For a multiclass classifier, the app formulates a set of one-versus-all binary classification problems to have one binary problem for each class, and finds a ROC curve for each class using the corresponding binary problem. Each binary problem assumes that one class is positive and the rest are negative. The model operating point on the plot shows the performance of the classifier for each class in its one-versus-all binary problem.

You can also plot average ROC curves using the Show check boxes under Average curves. For a description of the types of average, see View Model Metrics in Summary Tab and Models Pane.

ROC curves for a multiclass classification problem

For more information, see rocmetrics and ROC Curve and Performance Metrics.

To export the ROC curve plots you create in the app to figures, see Export Plots in Classification Learner App.

To export the ROC curve results to the workspace, click Export Plot and select Export Plot Data. In the Export ROC Curve Plot Data dialog box, edit the name of the exported variable, if necessary, and click OK. The app creates a structure array that contains the rocmetrics object.

Check Precision-Recall Curve

View a precision-recall curve after training a model. In the Plots and Results section, click the arrow to open the gallery, and then click Precision-Recall Curve (Validation) in the Validation Results group. The app creates a precision-recall curve by using the rocmetrics function.

Precision-recall curve for a binary classification problem

The precision-recall curve shows the positive predictive value (precision) versus the true positive rate (recall) for different thresholds of classification scores, computed by the currently selected classifier. The Model Operating Point shows the precision and true positive rate (TPR) corresponding to the threshold used by the classifier to classify an observation. For example, a precision of 0.85 indicates that 85% of observations assigned as positive are true positives. A true positive rate of 0.85 indicates that the classifier correctly assigns 85% of the positive class observations to the positive class.

The PR-AUC (area under curve) value is a measure of the overall quality of the classifier. The PR-AUC values are in the range 0 to 1, and higher PR-AUC values generally indicate both high precision and high recall (see auc). Compare classes and trained models to see if they perform differently in the precision-recall curve.

You can create a precision-recall curve for a specific class using the Show check boxes under Per-class curves. For a multiclass classifier, the app formulates a set of one-versus-all binary classification problems to have one binary problem for each class, and finds a precision-recall curve for each class using the corresponding binary problem. Each binary problem assumes that one class is positive and the rest are negative. The model operating point on the plot shows the performance of the classifier for each class in its one-versus-all binary problem.

You can also plot average precision-recall curves using the Show check boxes under Average curves. For a description of the types of average, see View Model Metrics in Summary Tab and Models Pane.

Precision-recall curves for a multiclass classification problem

To export a precision-recall curve plot to a figure, see Export Plots in Classification Learner App.

To export the precision-recall curve results to the workspace, click Export Plot and select Export Plot Data. In the Export Precision Recall Curve Plot Data dialog box, edit the name of the exported variable, if necessary, and click OK. The app creates a structure array that contains the rocmetrics object.

Compare Model Plots by Changing Layout

Visualize the results of models trained in Classification Learner by using the plot options in the Plots and Results section of the Learn tab. You can rearrange the layout of the plots to compare results across multiple models: use the options in the Layout button, drag plots, or select the options provided by the Document Actions button located to the right of the model plot tabs.

For example, after training two models in Classification Learner, display a plot for each model and change the plot layout to compare the plots by using one of these procedures:

  • In the Plots and Results section, click Layout and select Compare models.

  • Click the second model tab name, and then drag the second model tab to the right.

  • Click the Document Actions button located to the far right of the model plot tabs. Select the Tile All option and specify a 1-by-2 layout.

    Selections for a side-by-side model comparison using the Document Actions button

Note that you can click the Hide plot options button at the top right of the plots to make more room for the plots.

Evaluate Test Set Model Performance

After training a model in Classification Learner, you can evaluate the model performance on a test set in the app. This process allows you to check whether the validation accuracy provides a good estimate for the model performance on new data.

  1. Import a test data set into Classification Learner. Alternatively, reserve some data for testing when importing data into the app (see (Optional) Reserve Data for Testing).

    • If the test data set is in the MATLAB® workspace, then in the Data section on the Test tab, click Test Data and select From Workspace.

    • If the test data set is in a file, then in the Data section, click Test Data and select From File. Select a file type in the list, such as a spreadsheet, text file, or comma-separated values (.csv) file, or select All Files to browse for other file types such as .dat.

    In the Import Test Data dialog box, select the test data set from the Test Data Set Variable list. The test set must have the same variables as the predictors imported for training and validation. The unique values in the test response variable must be a subset of the classes in the full response variable.

  2. Compute the test set metrics.

    • To compute test metrics for a single model, select the trained model in the Models pane. On the Test tab, in the Test section, click Test Selected.

    • To compute test metrics for all trained models, click Test All in the Test section.

    The app computes the test set performance of each model trained on the full data set, including training and validation data (but excluding test data).

  3. Compare the validation accuracy with the test accuracy.

    In the model Summary tab, the app displays the validation metrics and test metrics in the Training Results section and Test Results section, respectively. You can check if the validation accuracy gives a good estimate for the test accuracy. To display additional metrics, click Additional Training Results and Additional Test Results.

    You can also visualize the test results using plots.

    • Display a confusion matrix. In the Plots and Results section on the Test tab, click Confusion Matrix (Test).

    • Display a ROC curve. In the Plots and Results section, click ROC Curve (Test).

    • Display a precision-recall curve. In the Plots and Results section, click Precision-Recall Curve (Test).

For an example, see Check Classifier Performance Using Test Set in Classification Learner App. For an example that uses test set metrics in a hyperparameter optimization workflow, see Train Classifier Using Hyperparameter Optimization in Classification Learner App.
