# mle

Maximum likelihood estimates

## Syntax

``phat = mle(data)``
``phat = mle(data,Name,Value)``
``````[phat,pci] = mle(___)``````

## Description

````phat = mle(data)` returns maximum likelihood estimates (MLEs) for the parameters of a normal distribution, using the sample data `data`.```

example

````phat = mle(data,Name,Value)` specifies options using one or more name-value arguments.For example, you can specify the distribution type by using one of these name-value arguments: `Distribution`, `pdf`, `logpdf`, or `nloglf`. To compute MLEs for a built-in distribution, specify the distribution type by using `Distribution`. For example, `'Distribution','Beta'` specifies to compute the MLEs for the beta distribution.To compute MLEs for a custom distribution, define the distribution by using `pdf`, `logpdf`, or `nloglf`, and specify the initial parameter values by using `Start`. ```

example

``````[phat,pci] = mle(___)``` also returns the confidence intervals for the parameters using any of the input argument combinations in the previous syntaxes.```

## Examples

collapse all

Find MLEs for a built-in distribution that you specify using the `Distribution` name-value argument.

`load carbig`

The variable `MPG` contains the miles per gallon for different models of cars.

Draw a histogram of the `MPG` data.

` histogram(MPG)`

The distribution is somewhat right skewed. A symmetric distribution, such as a normal distribution, might not be a good fit.

Estimate the parameters of the Burr Type XII distribution for the `MPG` data.

`phat = mle(MPG,'Distribution','burr')`
```phat = 1×3 34.6447 3.7898 3.5722 ```

The MLE for the scale parameter α is 34.6447. The estimates for the two shape parameters $c$ and $k$ of the Burr Type XII distribution are 3.7898 and 3.5722, respectively.

Generate 100 random observations from a binomial distribution with the number of trials $n$ = 20 and the probability of success $p$ = 0.75.

```rng('default') % For reproducibility data = binornd(20,0.75,100,1);```

Estimate the probability of success and 99% confidence limits using the simulated sample data. You must specify the number of trials (`NTrials`) for the binomial distribution.

```[phat,pci] = mle(data,'Distribution','binomial','NTrials',20, ... 'Alpha',.01)```
```phat = 0.7615 ```
```pci = 2×1 0.7361 0.7856 ```

The estimate of the probability of success is 0.7615, and the lower and upper limits of the 99% confidence interval are 0.7361 and 0.7856, respectively. This interval covers the true value used to simulate the data.

Generate sample data of size 1000 from a noncentral chi-square distribution with degrees of freedom 8 and noncentrality parameter 3.

```rng default % for reproducibility x = ncx2rnd(8,3,1000,1);```

Estimate the parameters of the noncentral chi-square distribution from the sample data. The `Distribution` name-value argument does not support the noncentral chi-square distribution. Therefore, you need to define a custom noncentral chi-square pdf using the `pdf` name-value argument and the `ncx2pdf` function. You must also specify the initial parameter values (`Start` name-value argument) for the custom distribution.

`[phat,pci] = mle(x,'pdf',@(x,v,d)ncx2pdf(x,v,d),'Start',[1,1])`
```phat = 1×2 8.1052 2.6693 ```
```pci = 2×2 7.1120 1.6025 9.0983 3.7362 ```

The estimate for the degrees of freedom is 8.1052 and the noncentrality parameter is 2.6693. The 95% confidence interval for the degrees of freedom is (7.1120,9.0983), and the interval for the noncentrality parameter is (1.6025,3.7362). The confidence intervals include the true parameter values of 8 and 3, respectively.

`load('readmissiontimes.mat');`

The data includes `ReadmissionTime`, which has readmission times for 100 patients. This data is simulated.

Define a custom log pdf for a Weibull distribution with the scale parameter `lambda` and the shape parameter `k`.

```custlogpdf = @(data,lambda,k) ... log(k) - k*log(lambda) + (k-1)*log(data) - (data/lambda).^k;```

Estimate the parameters of the custom distribution and specify its initial parameter values (`Start` name-value argument).

`phat = mle(ReadmissionTime,'logpdf',custlogpdf,'Start',[1,0.75])`
```phat = 1×2 7.5727 1.4540 ```

The scale and shape parameters of the custom distribution are 7.5727 and 1.4540, respectively.

`load('readmissiontimes.mat')`

The data includes `ReadmissionTime`, which has readmission times for 100 patients. This data is simulated.

Define a custom negative loglikelihood function for a Poisson distribution with the parameter `lambda`, where `1/lambda` is the mean of the distribution. You must define the function to accept a logical vector of censorship information and an integer vector of data frequencies, even if you do not use these values in the custom function.

```custnloglf = @(lambda,data,cens,freq) ... - length(data)*log(lambda) + sum(lambda*data,'omitnan');```

Estimate the parameter of the custom distribution and specify its initial parameter value (`Start` name-value argument).

`phat = mle(ReadmissionTime,'nloglf',custnloglf,'Start',0.05)`
```phat = 0.1462 ```

Generate sample data of size 1000 from a noncentral chi-square distribution with degrees of freedom 10 and noncentrality parameter 5.

```rng('default') % For reproducibility x = ncx2rnd(10,5,1000,1);```

Suppose the noncentrality parameter is fixed at the value 5. Estimate the degrees of freedom of the noncentral chi-square distribution from the sample data. To do this, define a custom noncentral chi-square pdf using the `pdf` name-value argument.

`[phat,pci] = mle(x,'pdf',@(x,v)ncx2pdf(x,v,5),'Start',1)`
```phat = 9.9307 ```
```pci = 2×1 9.5626 10.2989 ```

The estimate for the noncentrality parameter is 9.9307, and the lower and upper limits of the 95% confidence interval are 9.5626 and 10.2989. The confidence interval includes the true parameter value of 10.

Add a scale parameter to the chi-square distribution for adapting to the scale of data, and fit the distribution.

Generate sample data of size 1000 from a chi-square distribution with degrees of freedom 5, and scale the data by a factor of 100.

```rng default % For reproducibility x = 100*chi2rnd(5,1000,1);```

Estimate the degrees of freedom and the scaling factor. To do this, define a custom chi-square probability density function using the `pdf` name-value argument. The density function requires a $1/s$ factor for data scaled by $s$.

`[phat,pci] = mle(x,'pdf',@(x,v,s)chi2pdf(x/s,v)/s,'Start',[1,200])`
```phat = 1×2 5.1079 99.1681 ```
```pci = 2×2 4.6862 90.1215 5.5297 108.2146 ```

The estimate for the degrees of freedom is 5.1079 and the scale is 99.1681. The 95% confidence interval for the degrees of freedom is (4.6862,5.5279), and the interval for the scale parameter is (90.1215,108.2146). The confidence intervals include the true parameter values of 5 and 100, respectively.

`load('readmissiontimes.mat');`

The data includes `ReadmissionTime`, which has readmission times for 100 patients. The column vector `Censored` contains the censorship information for each patient, where 1 indicates a right-censored observation, and 0 indicates that the exact readmission time is observed. This data is simulated.

Define a custom probability density function (pdf) and a cumulative distribution function (cdf) for an exponential distribution with the parameter `lambda`, where `1/lambda` is the mean of the distribution. To fit the distribution to a censored data set, you must pass both the pdf and cdf to the `mle` function.

```custpdf = @(data,lambda) lambda*exp(-lambda*data); custcdf = @(data,lambda) 1-exp(-lambda*data);```

Estimate the parameter `lambda` of the custom distribution for the censored sample data. Specify the initial parameter value (`Start` name-value argument) for the custom distribution.

```phat = mle(ReadmissionTime,'pdf',custpdf,'cdf',custcdf, ... 'Start',0.05,'Censoring',Censored)```
```phat = 0.1096 ```

Generate double-censored survival data and find the MLEs for a built-in distribution of the data. Then, use the MLEs to create a probability distribution object.

Generate failure times from a Birnbaum-Saunders distribution.

```rng('default') % For reproducibility failuretime = random('BirnbaumSaunders',0.3,1,[100,1]);```

Assume that the study starts at time 0.1 and ends at time 0.9. The assumption implies that failure times less than 0.1 are left censored, and failure times greater than 0.9 are right censored.

Create a vector in which each element indicates the censorship status of the corresponding observation in `failuretime`. Use –1, 1, and 0 to indicate left-censored, right-censored, and fully observed observations, respectively.

```L = 0.1; U = 0.9; left_censored = (failuretime<L); right_censored = (failuretime>U); c = right_censored - left_censored;```

Find MLEs for the double-censored data. Specify the censorship information by using the `Censoring` name-value argument.

`phat = mle(failuretime,'Distribution','BirnbaumSaunders','Censoring',c)`
```phat = 1×2 0.2632 1.3040 ```

Create a probability distribution object with the MLEs by using the `makedist` function.

`pd = makedist('BirnbaumSaunders','beta',phat(1),'gamma',phat(2))`
```pd = BirnbaumSaundersDistribution Birnbaum-Saunders distribution beta = 0.263184 gamma = 1.304 ```

`pd` is a `BirnbaumSaundersDistribution` object. You can use the object functions of `pd` to evaluate the distribution and generate random numbers. Display the supported object functions.

`methods(pd)`
```Methods for class prob.BirnbaumSaundersDistribution: cdf iqr negloglik plot std gather mean paramci proflik truncate icdf median pdf random var ```

For example, compute the mean and the variance of the distribution by using the `mean` and `var` functions, respectively.

`mean(pd)`
```ans = 0.4869 ```
`var(pd)`
```ans = 0.3681 ```

Generate sample data that represents machine failure times following the Weibull distribution.

```rng('default') % For reproducibility failureTimes = wblrnd(5,2,[200,1]);```

Specify that observed failure times are values rounded to the nearest second.

`observed = round(failureTimes);`

`observed` is interval-censored data. An observation `t` in `observed` indicates that the event occurred after time `t–0.5` and before time `t+0.5`.

Create a two-column matrix that includes the censorship information.

`intervalTimes = [observed-0.5 observed+0.5];`

The failure time must be positive. Find values smaller than `eps`, and change them to `eps`.

`intervalTimes(intervalTimes < eps) = eps;`

Find the MLEs for the Weibull distribution parameters by using `intervalTimes`.

`params = mle(intervalTimes,'Distribution','Weibull')`
```params = 1×2 5.0067 2.0049 ```

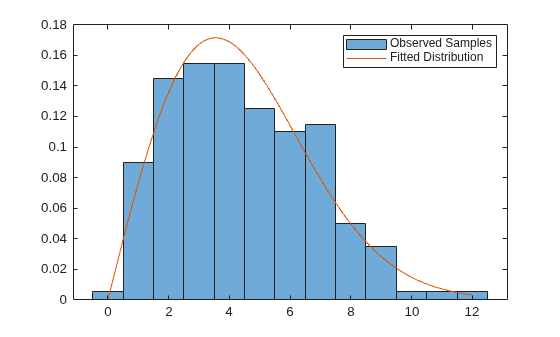

Plot the results.

```figure histogram(observed,'Normalization','pdf') hold on x = linspace(0,max(observed)); plot(x,wblpdf(x,params(1),params(2))) legend('Observed Samples','Fitted Distribution') hold off```

Generate samples from a distribution with finite support, and find the MLEs with customized options for the iterative estimation process.

For a distribution with a region that has zero probability density, `mle` might try some parameters that have zero density, causing the function to fail to find MLEs. To avoid this problem, you can turn off the option that checks for invalid function values and specify the parameter bounds when you call the `mle` function.

Generate sample data of size 1000 from a Weibull distribution with the scale parameter 1 and shape parameter 1. Shift the samples by adding 10.

```rng('default') % For reproducibility data = wblrnd(1,1,[1000,1]) + 10; histogram(data,'Normalization','pdf')```

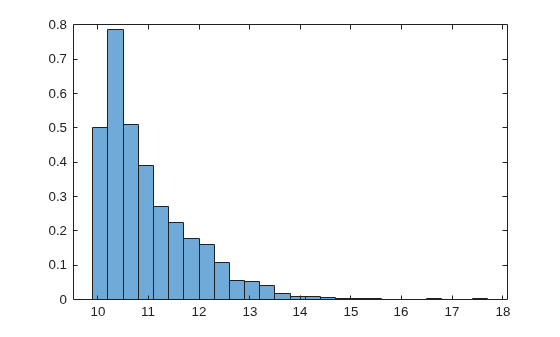

The histogram shows no samples smaller than 10, indicating that the distribution has zero probability in the region smaller than 10. This distribution is a three-parameter Weibull distribution, which includes a third parameter for location (see Three-Parameter Weibull Distribution).

Define a probability density function (pdf) for the three-parameter Weibull distribution.

`custompdf = @(x,a,b,c) wblpdf(x-c,a,b);`

Find the MLEs by using the `mle` function. Specify the `Options` name-value argument to turn off the option that checks for invalid function values. Also, specify the parameter bounds by using the `LowerBound` and `UpperBound` name-value arguments. The scale and shape parameters must be positive, and the location parameter must be smaller than the minimum of the sample data.

```params = mle(data,'pdf',custompdf,'Start',[5 5 5], ... 'Options',statset('FunValCheck','off'), ... 'LowerBound',[0 0 -Inf],'UpperBound',[Inf Inf min(data)])```
```params = 1×3 1.0258 1.0618 10.0004 ```

The `mle` function finds accurate estimates for the three parameters. For more details on specifying custom options for the iterative process, see the example Three-Parameter Weibull Distribution.

## Input Arguments

collapse all

Sample data and censorship information, specified as a vector of sample data or a two-column matrix of sample data and censorship information.

You can specify the censorship information for the sample data by using either the `data` argument or the `Censoring` name-value argument. `mle` ignores the `Censoring` argument value if `data` is a two-column matrix.

Specify `data` as a vector or a two-column matrix depending on the censorship types of the observations in `data`.

• Fully observed data — Specify `data` as a vector of sample data.

• Data that contains fully observed, left-censored, or right-censored observations — Specify `data` as a vector of sample data, and specify the `Censoring` name-value argument as a vector that contains the censorship information for each observation. The `Censoring` vector can contain 0, –1, and 1, which refer to fully observed, left-censored, and right-censored observations, respectively.

• Data that includes interval-censored observations — Specify `data` as a two-column matrix of sample data and censorship information. Each row of `data` specifies the range of possible survival or failure times for each observation, and can have one of these values:

• `[t,t]` — Fully observed at `t`

• `[–Inf,t]` — Left-censored at `t`

• `[t,Inf]` — Right-censored at `t`

• `[t1,t2]` — Interval-censored between `[t1,t2]`, where `t1` < `t2`

For the list of built-in distributions that support censored observations, see `Censoring`.

`mle` ignores `NaN` values in `data`. Additionally, any `NaN` values in the censoring vector (`Censoring`) or frequency vector (`Frequency`) cause `mle` to ignore the corresponding rows in `data`.

Data Types: `single` | `double`

### Name-Value Arguments

Specify optional pairs of arguments as `Name1=Value1,...,NameN=ValueN`, where `Name` is the argument name and `Value` is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose `Name` in quotes.

Example: `'Censoring',Cens,'Alpha',0.01,'Options',Opt` instructs `mle` to estimate the parameters for the distribution of censored data specified by the array `Cens`, compute the 99% confidence limits for the parameter estimates, and use the algorithm control parameters specified by the structure `Opt`.

Options to Specify Built-in Distribution

collapse all

Distribution type for which to estimate parameters, specified as one of the values in this table.

`Distribution` ValueDistribution TypeFirst ParameterSecond ParameterThird ParameterFourth Parameter
`'Bernoulli'`Bernoulli Distribution`p`: probability of success for each trialN/AN/AN/A
`'Beta'`Beta Distribution`a`: first shape parameter`b`: second shape parameterN/AN/A
`'Binomial'`Binomial Distribution`p`: probability of success for each trialN/AN/AN/A
`'BirnbaumSaunders'`Birnbaum-Saunders Distributionβ: scale parameterγ: shape parameterN/AN/A
`'Burr'`Burr Type XII Distributionα: scale parameter`c`: first shape parameter`k`: second shape parameterN/A
`'Discrete Uniform'` or `'unid'`Uniform Distribution (Discrete)`n`: maximum observable valueN/AN/AN/A
`'Exponential'`Exponential Distributionμ: meanN/AN/AN/A
`'Extreme Value'` or `'ev'`Extreme Value Distributionμ: location parameterσ: scale parameterN/AN/A
`'Gamma'`Gamma Distribution`a`: shape parameter`b`: scale parameterN/AN/A
`'Generalized Extreme Value'` or `'gev'`Generalized Extreme Value Distribution`k`: shape parameterσ: scale parameterμ: location parameterN/A
`'Generalized Pareto'` or `'gp'`Generalized Pareto Distribution`k`: tail index (shape) parameterσ: scale parameterN/AN/A
`'Geometric'`Geometric Distribution`p`: probability parameterN/AN/AN/A
`'Half Normal'` or `'hn'`Half-Normal Distributionσ: scale parameterN/AN/AN/A
`'InverseGaussian'`Inverse Gaussian Distributionμ: scale parameterλ: shape parameterN/AN/A
`'Logistic'`Logistic Distributionμ: mean σ: scale parameterN/AN/A
`'LogLogistic'`Loglogistic Distributionμ: mean of logarithmic valuesσ: scale parameter of logarithmic valuesN/AN/A
`'LogNormal'`Lognormal Distributionμ: mean of logarithmic valuesσ: standard deviation of logarithmic valuesN/AN/A
`'Nakagami'`Nakagami Distributionμ: shape parameterω: scale parameterN/AN/A
`'Negative Binomial'` or `'nbin'`Negative Binomial Distribution`r`: number of successes`p`: probability of success in a single trialN/AN/A
`'Normal'`Normal Distributionμ: mean σ: standard deviationN/AN/A
`'Poisson'`Poisson Distributionλ: meanN/AN/AN/A
`'Rayleigh'`Rayleigh Distribution`b`: scale parameterN/AN/AN/A
`'Rician'`Rician Distribution`s`: noncentrality parameterσ: scale parameterN/AN/A
`'Stable'`Stable Distributionα: first shape parameterβ: second shape parameterγ: scale parameterδ: location parameter
`'tLocationScale'`t Location-Scale Distributionμ: location parameterσ: scale parameterν: shape parameterN/A
`'Uniform'`Uniform Distribution (Continuous)`a`: lower endpoint (minimum)`b`: upper endpoint (maximum)N/AN/A
`'Weibull'` or `'wbl'`Weibull Distribution`a`: scale parameter`b`: shape parameterN/AN/A

`mle` does not estimate these distribution parameters:

• Number of trials for the binomial distribution. Specify the parameter by using the `NTrials` name-value argument.

• Location parameter of the half-normal distribution. Specify the parameter by using the `mu` name-value argument.

• Location parameter of the generalized Pareto distribution. Specify the parameter by using the `theta` name-value argument.

If the sample data is truncated or includes left-censored or interval-censored observations, you must specify the `Start` name-value argument for the Burr distribution and the stable distribution.

Example: `'Distribution','Rician'`

Number of trials for the corresponding element of `data` for the binomial distribution, specified as a scalar or a vector with the same number of rows as `data`.

This argument is required when `Distribution` is `'Binomial'` (binomial distribution).

Example: `'Ntrials',10`

Data Types: `single` | `double`

Location (threshold) parameter for the generalized Pareto distribution, specified as a scalar.

This argument is valid only when `Distribution` is `'Generalized Pareto'` (generalized Pareto distribution).

The default value is 0 when the sample data `data` includes only nonnegative values. You must specify `theta` if `data` includes negative values.

Example: `'theta',1`

Data Types: `single` | `double`

Location parameter for the half-normal distribution, specified as a scalar.

This argument is valid only when `Distribution` is ```'Half Normal'``` (half-normal distribution).

The default value is 0 when the sample data `data` includes only nonnegative values. You must specify `mu` if `data` includes negative values.

Example: `'mu',1`

Data Types: `single` | `double`

Options to Define Custom Distribution

collapse all

Custom probability distribution function (pdf), specified as a function handle or a cell array containing a function handle and additional arguments to the function.

The custom function accepts a vector containing sample data, one or more individual distribution parameters, and any additional arguments passed by a cell array as input parameters. The function returns a vector of probability density values.

Example: `'pdf',@newpdf`

Data Types: `function_handle` | `cell`

Custom cumulative distribution function (cdf), specified as a function handle or a cell array containing a function handle and additional arguments to the function.

The custom function accepts a vector containing sample data, one or more individual distribution parameters, and any additional arguments passed by a cell array as input parameters. The function returns a vector of cdf values.

To compute MLEs for censored or truncated observations, you must define both `cdf` and `pdf`. For fully observed and untruncated observations, `mle` does not use `cdf`. You can specify the censorship information by using either `data` or `Censoring` and specify the truncation bounds by using `TruncationBounds`.

Example: `'cdf',@newcdf`

Data Types: `function_handle` | `cell`

Custom log probability density function, specified as a function handle or a cell array containing a function handle and additional arguments to the function.

The custom function accepts a vector containing sample data, one or more individual distribution parameters, and any additional arguments passed by a cell array as input parameters. The function returns a vector of log probability values.

Example: `'logpdf',@customlogpdf`

Data Types: `function_handle` | `cell`

Custom log survival function, specified as a function handle or a cell array containing a function handle and additional arguments to the function.

The custom function accepts a vector containing sample data, one or more individual distribution parameters, and any additional arguments passed by a cell array as input parameters. The function returns a vector of log survival probability values.

To compute MLEs for censored or truncated observations, you must define both `logsf` and `logpdf`. For fully observed and untruncated observations, `mle` does not use `logsf`. You can specify the censorship information by using either `data` or `Censoring` and specify the truncation bounds by using `TruncationBounds`.

Example: `'logsf',@logsurvival`

Data Types: `function_handle` | `cell`

Custom negative loglikelihood function, specified as a function handle or a cell array containing a function handle and additional arguments to the function.

The custom function accepts the following input arguments, in the order listed in the table.

Input Argument of Custom FunctionDescription
`params`Vector of distribution parameter values. `mle` detects the number of parameters from the number of elements in `Start`.
`data`Sample data. The `data` value is a vector of sample data or a two-column matrix of sample data and censorship information.
`cens`Logical vector of censorship information. `nloglf` must accept `cens` even if you do not use the `Censoring` name-value argument. In this case, you can write `nloglf` to ignore `cens`.
`freq`Integer vector of data frequencies. `nloglf` must accept `freq` even if you do not use the `Frequency` name-value argument. In this case, you can write `nloglf` to ignore `freq`.
`trunc`Two-element numeric vector of truncation bounds. `nloglf` must accept `trunc` if you use the `TruncationBounds` name-value argument.

`nloglf` can optionally accept the additional arguments passed by a cell array as input parameters.

`nloglf` returns a scalar negative loglikelihood value and, optionally, a negative loglikelihood gradient vector (see the `GradObj` field in the `Options` name-value argument).

Example: `'nloglf',@negloglik`

Data Types: `function_handle` | `cell`

Other Options

collapse all

Indicator of censored data, specified as a vector consisting of 0, –1, and 1, which indicate fully observed, left-censored, and right-censored observations, respectively. Each element of the `Censoring` value indicates the censorship status of the corresponding observation in `data`. The `Censoring` value must have the same size as `data`. The default is a vector of 0s, indicating all observations are fully observed.

You cannot specify interval-censored observations using this argument. If the sample data includes interval-censored observations, specify `data` using a two-column matrix. `mle` ignores the `Censoring` value if `data` is a two-column matrix.

`mle` supports censoring for the following built-in distributions and a custom distribution.

`Distribution` ValueDistribution Type
`'BirnbaumSaunders'`

Birnbaum-Saunders

`'Burr'`

Burr Type XII

`'Exponential'`

Exponential

`'Extreme Value'` or `'ev'`

Extreme value

`'Gamma'`

Gamma

`'InverseGaussian'`

Inverse Gaussian

`'Logistic'`

Logistic

`'LogLogistic'`

Loglogistic

`'LogNormal'`

Lognormal

`'Nakagami'`

Nakagami

`'Normal'`

Normal

`'Rician'`

Rician

`'tLocationScale'`

t location-scale

`'Weibull'` or `'wbl'`

Weibull

For a custom distribution, you must define the distribution by using `pdf` and `cdf`, `logpdf` and `logsf`, or `nloglf`.

`mle` ignores any `NaN` values in the censoring vector. Additionally, any `NaN` values in `data` or the frequency vector (`Frequency`) cause `mle` to ignore the corresponding values in the censoring vector.

Example: `'Censoring',censored`, where `censored` is a vector that contains censorship information.

Data Types: `logical` | `single` | `double`

Truncation bounds, specified as a vector of two elements.

`mle` supports truncated observations for the following built-in distributions and a custom distribution.

`Distribution` ValueDistribution Type
`'Beta'`

Beta

`'BirnbaumSaunders'`

Birnbaum-Saunders

`'Burr'`

Burr

`'Exponential'`

Exponential

`'Extreme Value'` or `'ev'`

Extreme value

`'Gamma'`

Gamma

`'Generalized Extreme Value'` or `'gev'`

Generalized extreme value

`'Generalized Pareto'` or `'gp'`

Generalized Pareto

`'Half Normal'` or `'hn'`

Half-normal

`'InverseGaussian'`

Inverse Gaussian

`'Logistic'`

Logistic

`'LogLogistic'`

Loglogistic

`'LogNormal'`

Lognormal

`'Nakagami'`

Nakagami

`'Normal'`

Normal

`'Poisson'`

Poisson

`'Rayleigh'`

Rayleigh

`'Rician'`

Rician

`'Stable'`

Stable

`'tLocationScale'`

t location-scale

`'Weibull'` or `'wbl'`

Weibull

For a custom distribution, you must define the distribution by using `pdf` and `cdf`, `logpdf` and `logsf`, or `nloglf`.

Example: `'TruncationBounds',[0,10]`

Data Types: `single` | `double`

Frequency of observations, specified as a vector of nonnegative integer counts that has the same number of rows as `data`. The `j`th element of the `Frequency` value gives the number of times the `j`th row of `data` was observed. The default is a vector of 1s, indicating one observation per row of `data`.

`mle` ignores any `NaN` values in this frequency vector. Additionally, any `NaN` values in `data` or the censoring vector (`Censoring`) cause `mle` to ignore the corresponding values in the frequency vector.

Example: `'Frequency',freq`, where `freq` is a vector that contains the observation frequencies.

Data Types: `single` | `double`

Significance level for the confidence interval `pci` of parameter estimates, specified as a scalar in the range (0,1). The confidence level of `pci` is `100(1–Alpha)`%. The default is `0.05` for 95% confidence.

Example: `'Alpha',0.01` specifies the confidence level as 99%.

Data Types: `single` | `double`

Options for the iterative algorithm, specified as a structure returned by `statset`.

Use this argument to control details of the maximum likelihood optimization. This argument is valid in the following cases:

• The sample data is truncated.

• The sample data includes left-censored or interval-censored observations.

• You fit a custom distribution.

The `mle` function interprets the following `statset` options for optimization.

Field NameDescriptionDefault Value
`GradObj`

Flag indicating whether `fmincon` can expect the `nloglf` custom function to return the gradient vector of the negative loglikelihood as a second output, specified as `'on'` or `'off'`.

For an example of supplying a gradient to `fmincon`, see Avoid Numerical Issues When Fitting Custom Distributions.

`mle` ignores `GradObj` when using `fminsearch`. You can specify the optimization function by using the `OptimFun` name-value argument. The default optimization function is `fminsearch`.

`'off'`
`DerivStep`

Relative difference, specified as a vector of the same size as `Start` and used in finite difference derivative approximations when `mle` uses `fmincon` and `GradObj` is `'off'`.

`mle` ignores `DerivStep` when using `fminsearch`.

`eps^(1/3)`
`FunValCheck`

Flag indicating whether `mle` checks the values returned by the distribution functions for validity, specified as `'on'` or `'off'`.

A poor choice for the starting point can cause the distribution functions to return `NaN`s, infinite values, or out-of-range values if you define the function without suitable error checking.

`'on'`
`TolBnd`

Offset for lower and upper bounds when `mle` uses `fmincon`, specified as a positive scalar.

`mle` treats lower and upper bounds as strict inequalities, or open bounds. When using `fmincon`, `mle` approximates the bounds by including the offset specified by `TolBnd` for the lower and upper bounds.

`1e-6`
`TolFun`

Termination tolerance on the function value, specified as a positive scalar.

`1e-6`
`TolX`

Termination tolerance for the parameters, specified as a positive scalar.

`1e-6`
`MaxFunEvals`

Maximum number of function evaluations allowed, specified as a positive integer.

`400`
`MaxIter`

Maximum number of iterations allowed, specified as a positive integer.

`200`
`Display`

Level of display, specified as `'off'`, `'final'`, or `'iter'`.

• `'off'` — Display no information.

• `'final'` — Display the final information.

• `'iter'` — Display information at each iteration

`'off'`

For examples of the `Options` name-value argument, see Find MLEs for Distribution with Finite Support and Three-Parameter Weibull Distribution.

For more details, see the `options` input argument of `fminsearch` and `fmincon` (Optimization Toolbox).

Example: `'Options',statset('FunValCheck','off')`

Data Types: `struct`

Initial parameter values for the Burr distribution, stable distribution, and custom distributions, specified as a row vector. The length of the `Start` value must be the same as the number of parameters estimated by `mle`.

If the sample data is truncated or includes left-censored or interval-censored observations, the `Start` argument is required for the Burr and stable distributions. This argument is always required when you fit a custom distribution, that is, when you use the `pdf`, `logpdf`, or `nloglf` name-value argument. For other cases, `mle` can either find initial values or compute MLEs without initial values.

Example: `0.05`

Example: `[100,2]`

Data Types: `single` | `double`

Lower bounds for the distribution parameters, specified as a row vector of the same length as `Start`.

This argument is valid in the following cases:

• The sample data is truncated.

• The sample data includes left-censored or interval-censored observations.

• You fit a custom distribution.

Example: `'Lowerbound',0`

Data Types: `single` | `double`

Upper bounds for the distribution parameters, specified as a row vector of the same length as `Start`.

This argument is valid in the following cases:

• The sample data is truncated.

• The sample data includes left-censored or interval-censored observations.

• You fit a custom distribution.

Example: `'Upperbound',1`

Data Types: `single` | `double`

Optimization function used by `mle` to maximize the likelihood, specified as either `'fminsearch'` or `'fmincon'`. The `'fmincon'` option requires Optimization Toolbox™.

• The sample data is truncated.

• The sample data includes left-censored or interval-censored observations.

• You fit a custom distribution.

Example: `'Optimfun','fmincon'`

## Output Arguments

collapse all

Parameter estimates, returned as a row vector. For a description of parameter estimates for the built-in distributions, see `Distribution`.

Confidence intervals for parameter estimates, returned as a 2-by-k matrix, where k is the number of parameters estimated by `mle`. The first and second rows of the `pci` show the lower and upper confidence limits, respectively.

You can specify the significance level for the confidence interval by using the `Alpha` name-value argument.

collapse all

### Censorship Types

`mle` supports left-censored, right-censored, and interval-censored observations.

• Left-censored observation at time `t` — The event occurred before time `t`, and the exact event time is unknown.

• Right-censored observation at time `t` — The event occurred after time `t`, and the exact event time is unknown.

• Interval-censored observation within the interval `[t1,t2]` — The event occurred after time `t1` and before time `t2`, and the exact event time is unknown.

Double-censored data includes both left-censored and right-censored observations.

### Survival Function

The survival function is the probability of survival as a function of time. It is also called the survivor function.

The survival function gives the probability that the survival time of an individual exceeds a certain value. Because the cumulative distribution function F(t) is the probability that the survival time is less than or equal to a given point t in time, the survival function for a continuous distribution S(t) is the complement of the cumulative distribution function: S(t) = 1 – F(t).

## Tips

• When you supply custom distribution functions or use built-in distributions for left-censored, double-censored, interval-censored, or truncated observations, `mle` computes the parameter estimates using an iterative maximization algorithm. With some models and data, a poor choice for the starting point (`Start`) can cause `mle` to converge to a local optimum that is not the global maximizer, or to fail to converge entirely. Even in cases for which the loglikelihood is well behaved near the global maximum, the choice of starting point is often crucial to convergence of the algorithm. In particular, if the initial parameter values are far from the MLEs, underflow in the distribution functions can lead to infinite loglikelihoods.

## Algorithms

• The `mle` function finds MLEs by minimizing the negative loglikelihood function (that is, maximizing the loglikelihood function) or by using a closed-form solution, if available. The objective function is the negative logarithm value of the product of the sample data (X) probabilities, given the distribution parameters (θ):

The probability function P depends on the censorship information for each observation.

• Fully observed observation — P(x|θ) = f(x), where f is the probability density function (pdf) with the parameters θ.

• Left-censored observation — P(x|θ) = F(x), where F is the cumulative distribution function (cdf) with the parameters θ.

• Right-censored observation — P(x|θ) = 1 – F(x).

• Interval-censored observation between xL and xUP(x|θ) = F(xU) – F(xL).

For truncated data, `mle` scales the distribution functions so that all the probabilities lie in the truncation bounds [L,U].

• The `mle` function computes the confidence intervals `pci` using an exact method when it is available, and when the sample data is not truncated and does not include left-censored or interval-censored observations. Otherwise, the function uses the Wald method. An exact method is available for these distributions: binomial, discrete uniform, exponential, normal, lognormal, Poisson, Rayleigh, and continuous uniform.

## Version History

Introduced before R2006a
