COLORMAP and COLORBAR utilities (Jul 2014)

version (67 KB) by Carlos Adrian Vargas Aguilera
MATLAB color utilities including COLORMAP join and interpolation; freeze and fit COLORBAR, etc.


Updated 03 Jul 2014

View Version History

View License

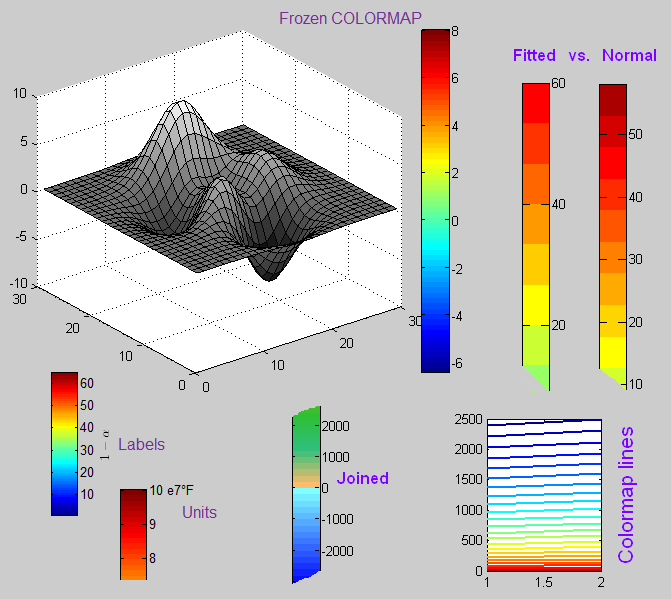

These are some utilities that improve the COLORMAP and COLORBAR functions. They are as follows, and each one includes help and examples:

COLORMAP utilites:
cmapping - Colormap linear mapping/interpolation.
cmfit - Sets the COLORMAP and CAXIS to specific color bands.
cmjoin - Joins colormaps at certain levels.
cmlines - Change the color of plotted lines using the colormap.

COLORBAR utilities:
cbfit - Changes COLORMAP and CAXIS to fit between colorbar's ticks.
cbfreeze - Freezes the colormap of a colorbar.
cbhandle - Gets the handle of current colorbar or its peer axes.
cblabel - Adds a label to the colorbar.
cbunits - Adds units (and ISU prefixes) to the colorbar ticklabels.
Following functions I submitted here previously were renamed to:
Enjoy it!
Bugs reports and suggestions will be very appreciated!

Cite As

Carlos Adrian Vargas Aguilera (2021). COLORMAP and COLORBAR utilities (Jul 2014) (, MATLAB Central File Exchange. Retrieved .
