invertedF

Create inverted-F antenna over rectangular ground plane

Description

The invertedF object is an inverted-F antenna mounted over a rectangular ground plane.

The width of the metal strip is related to the diameter of an equivalent cylinder by the equation

w=2d=4r

where:

  • d is the diameter of equivalent cylinder

  • r is the radius of equivalent cylinder

For a given cylinder radius, use the utility function cylinder2strip to calculate the equivalent width. The default inverted-F antenna is center-fed. The feed point coincides with the origin. The origin is located on the xy- plane.

Creation

Description

f = invertedF creates an inverted-F antenna mounted over a rectangular ground plane. By default, the dimensions are chosen for an operating frequency of 1.7 GHz.

example

f = invertedF(Name=Value) creates an inverted-F antenna, with additional Properties specified by one or more name-value arguments. Name is the property name and Value is the corresponding value. You can specify several name-value pair arguments in any order as Name1=Value1,..., NameN=ValueN. Properties that you do not specify retain their default values.

Properties

expand all

Vertical element height along z-axis, specified a scalar in meters.

Example: 3

Data Types: double

Strip width, specified as a scalar in meters. Strip width must be less than 'Height'/4 and greater than 'Height'/1001. [2]

Example: 0.05

Data Types: double

Stub length from feed to open end, specified as a scalar in meters.

Example: 0.05

Stub length from feed to shorting end, specified as a scalar in meters.

Example: 0.0050

Ground plane length along x-axis, specified as a scalar in meters.

Note

Infinite ground plane length is currently unsupported.

Example: 4

Data Types: double

Ground plane width along y-axis, specified as a scalar in meters.

Note

Infinite ground plane width is currently unsupported.

Example: 2.5

Data Types: double

Signed distance from center along length and width of ground plane, specified as a two-element vector.

Example: [2 1]

Data Types: double

Type of the metal used as a conductor, specified as a metal material object. You can choose any metal from the MetalCatalog or specify a metal of your choice. For more information, see metal. For more information on metal conductor meshing, see Meshing.

Example: metal("Copper")

Lumped elements added to the antenna feed, specified as a lumpedElement object.

Example: lumpedElement(Impedance=75)

Tilt angle of the antenna in degrees, specified as a scalar or vector. For more information, see Rotate Antennas and Arrays.

Example: 90

Example: Tilt=[90 90],TiltAxis=[0 1 0;0 1 1] tilts the antenna at 90 degrees about the two axes defined by the vectors.

Data Types: double

Tilt axis of the antenna, specified as one of these values:

  • Three-element vector of Cartesian coordinates in meters. In this case, each coordinate in the vector starts at the origin and lies along the specified points on the x-, y-, and z-axes.

  • Two points in space, specified as a 2-by-3 matrix corresponding to two three-element vectors of Cartesian coordinates. In this case, the antenna rotates around the line joining the two points.

  • "x", "y", or "z" to describe a rotation about the x-, y-, or z-axis, respectively.

For more information, see Rotate Antennas and Arrays.

Example: [0 1 0]

Example: [0 0 0;0 1 0]

Example: "Z"

Data Types: double | string

Object Functions

showDisplay antenna, array structures, shapes, or platform
infoDisplay information about antenna or array
axialRatioAxial ratio of antenna
beamwidthBeamwidth of antenna
chargeCharge distribution on antenna or array surface
currentCurrent distribution on antenna or array surface
designDesign prototype antenna or arrays for resonance around specified frequency or create AI-based antenna from antenna catalog objects
efficiencyRadiation efficiency of antenna
EHfieldsElectric and magnetic fields of antennas or embedded electric and magnetic fields of antenna element in arrays
impedanceInput impedance of antenna or scan impedance of array
meshMesh properties of metal, dielectric antenna, or array structure
meshconfigChange meshing mode of antenna, array, custom antenna, custom array, or custom geometry
optimizeOptimize antenna or array using SADEA optimizer
patternPlot radiation pattern and phase of antenna or array or embedded pattern of antenna element in array
patternAzimuthAzimuth plane radiation pattern of antenna or array
patternElevationElevation plane radiation pattern of antenna or array
rcsCalculate and plot radar cross section (RCS) of platform, antenna, or array
returnLossReturn loss of antenna or scan return loss of array
sparametersCalculate S-parameters for antennas and antenna arrays
vswrVoltage standing wave ratio (VSWR) of antenna or array element

Examples

collapse all

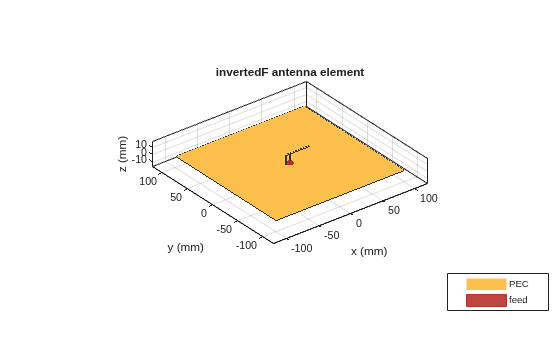

Create and view an inverted-F antenna with 14 mm height over a ground plane of dimensions 200 mm-by-200 mm.

f = invertedF(Height=14e-3, GroundPlaneLength=200e-3,...
                  GroundPlaneWidth=200e-3);
show(f)

Figure contains an axes object. The axes object with title invertedF antenna element, xlabel x (mm), ylabel y (mm) contains 7 objects of type patch, surface. These objects represent PEC, feed.

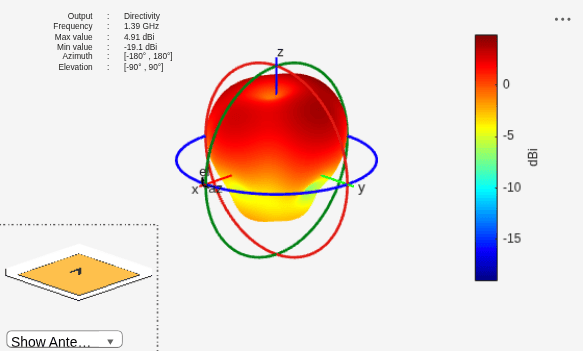

This example shows you how to plot the radiation pattern of an inverted-F antenna for a frequency of 1.3 GHz.

f = invertedF(Height=14e-3, GroundPlaneLength=200e-3,...
                  GroundPlaneWidth=200e-3);
pattern(f,1.39e9)

Figure contains an axes object and other objects of type uicontrol. The axes object contains 7 objects of type patch, surface.

References

[1] Balanis, C.A. Antenna Theory. Analysis and Design, 3rd Ed. New York: Wiley, 2005.

[2] Volakis, John. Antenna Engineering Handbook, 4th Ed. New York: Mcgraw-Hill, 2007.

Version History

Introduced in R2015a
