Create ROI Shapes

A region of interest (ROI) is a portion of an image that you want to annotate, filter or operate on in some way. You can create ROI objects that represent ROIs of various shapes, including circles, ellipses, polygons, lines, polylines, rectangles, and hand-drawn shapes. You can display ROI objects to annotate an image, or convert the ROI object to a binary mask and perform additional processing operations.

Polygon ROI that approximates the boundary of an object in an image.

Image Processing Toolbox™ provides two systems for creating, displaying, and interacting with ROI objects on images: viewer-based ROIs (since R2026a), which are designed for high-performance interaction with images and volumes displayed using imageshow and volshow, respectively, and axes-based ROIs, which integrate with MATLAB Graphics Objects and imshow displays. Both options allow you to draw shapes interactively, create masks, and programmatically query or modify shapes, but they differ in performance, some supported features, and intended use cases.

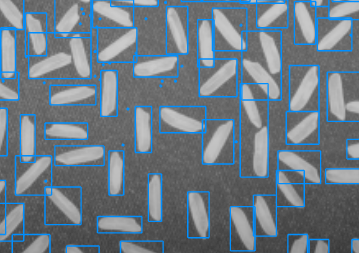

Viewer-based ROIs Axes-based ROIs

Viewer-based ROIs	Axes-based ROIs
Use viewer-based ROI objects when you need: The ability to add common shapes directly from the viewer toolbar without writing any code. Fast, smooth interactions with large images, blocked images, or 3-D scenes. Scalability when working with many annotations in a single viewer. Automatic measurement labels, such as the radius of a circle ROI, with the ability to customize units or text labels. Access to the angle ROI, which is not supported for axes-based ROIs.	Use axes-based ROI objects when you need: Maximum customization of ROI appearance, behavior, and callbacks. For example, you can customize the line width, marker size, or edge styles of an axes-based ROI object. Integration with existing axes-based apps or `imshow` displays. Access to the assisted freehand, crosshair, or cuboid ROIs, which are not supported for viewer-based annotations.

Use viewer-based ROI objects when you need:

The ability to add common shapes directly from the viewer toolbar without writing any code.
Fast, smooth interactions with large images, blocked images, or 3-D scenes.
Scalability when working with many annotations in a single viewer.
Automatic measurement labels, such as the radius of a circle ROI, with the ability to customize units or text labels.
Access to the angle ROI, which is not supported for axes-based ROIs.

Use axes-based ROI objects when you need:

Maximum customization of ROI appearance, behavior, and callbacks. For example, you can customize the line width, marker size, or edge styles of an axes-based ROI object.
Integration with existing axes-based apps or imshow displays.
Access to the assisted freehand, crosshair, or cuboid ROIs, which are not supported for viewer-based annotations.

Approaches to Create Viewer-Based ROIs

You can create viewer-based ROI objects using these approaches.

Interactively from the viewer toolbar. In a Viewer object toolbar, select the draw annotations icon , then select a shape to draw. Click and drag to draw the ROI. To export the ROI as an object, right-click the shape and select Export annotation to workspace.
Using the uidraw function, which enables you to interactively draw or programmatically specify an ROI in a single command. Use the uidraw function to create shapes that are not available in the viewer toolbar, or if you want to set the label or color before you draw the shape.
Programmatically using an object creation function, such as images.ui.graphics.roi.Circle. To display the ROI, add the object to the Annotations property of a Viewer object. Use this approach to more flexibly control the appearance and behavior of an ROI. For example, you can specify the face transparency or interactivity of ROIs within apps as you build them.

The table summarizes the options for creating each viewer-based ROI object.

Description	Viewer Toolbar Support	ROI Creation Convenience Function Syntax	Object Creation Function
Line ROI that consists of a single line segment	2-D and 3-D	`uidraw(viewer,"line")`	`images.ui.graphics.roi.Line`
Point ROI	2-D and 3-D	`uidraw(viewer,"point")`	`images.ui.graphics.roi.Point`
Rectangle ROI	2-D only	`uidraw(viewer,"rectangle")`	`images.ui.graphics.roi.Rectangle`
Circle ROI	2-D only	`uidraw(viewer,"circle")`	`images.ui.graphics.roi.Circle`
Polygon ROI that consists of a closed set of line segments	2-D only	`uidraw(viewer,"polygon")`	`images.ui.graphics.roi.Polygon`
Angle ROI	2-D only	`uidraw(viewer,"angle")`	`images.ui.graphics.roi.Angle`
Polyline ROI that consists of an open set of line segments	None	`uidraw(viewer,"polyline")`	`images.ui.graphics.roi.Polyline`
Freehand ROI that follows the path of the mouse	None	`uidraw(viewer,"freehand")`	`images.ui.graphics.roi.Freehand`
Ellipse ROI	None	`uidraw(viewer,"ellipse")`	`images.ui.graphics.roi.Ellipse`

Create Viewer-Based ROIs

Open Live Script

This example shows how to create viewer-based ROIs.

Create ROI from Viewer Toolbar

Read and display an image in a Viewer object.

Im = imageshow("pears.png");
viewer = Im.Parent;

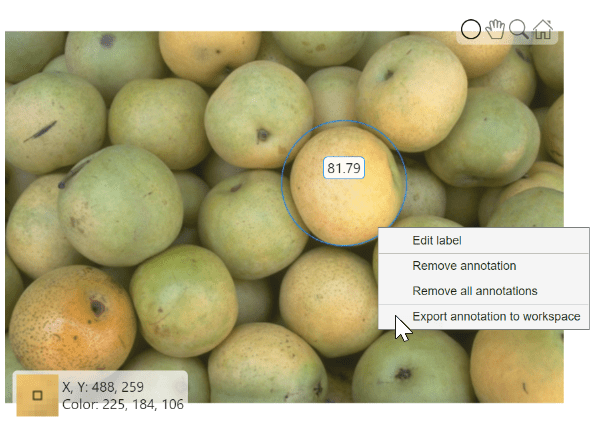

From the toolbar in the top-right corner of the viewer, select the draw annotations icon and then select the circle icon. Click and drag to draw the ROI. To export the ROI as an object, right-click the ROI and select Export annotation to workspace.

Pears image with a circle ROI around one object and the right-click context menu visible

Create ROI using uidraw

The uidraw function enables you to interactively draw or programmatically specify ROIs.

Display the image in a new viewer.

Im2 = imageshow("pears.png");
viewer2 = Im2.Parent;

Create a circle ROI by using the uidraw function, which enables an interactive drawing mode in the viewer. Click and drag in the viewer to draw the circle.

roi = uidraw(viewer2,"circle");

To create an ROI fully programmatically, specify the Position argument. For a circle, specify the position as a vector of the form [x y radius]. You can also customize the ROI color and label.

roi2 = uidraw(viewer2,"circle",Position=[450 204 70],Color="r",Label="Pear");

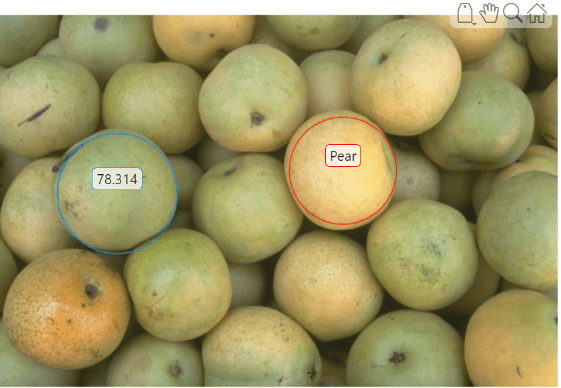

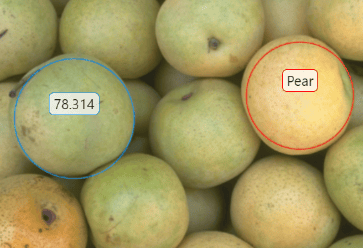

Pears image with a blue circle ROI with a numeric label around one pear, and a red circle ROI with the label "Pear" around another pear

Create ROI Using Object Creation Function

Object creation functions enable you to programmatically create ROIs with more customization options than the uidraw function.

Display the pears image in a new viewer.

Im3 = imageshow("pears.png");
viewer3 = Im3.Parent;

Create a circular ROI object. Use the Center and Radius properties to specify the position and size of the circle. To display the ROI, add it to the Annotations property of the Viewer object.

roi3 = images.ui.graphics.roi.Circle(Center=[445 204],Radius=75);
viewer3.Annotations = [viewer3.Annotations roi3];

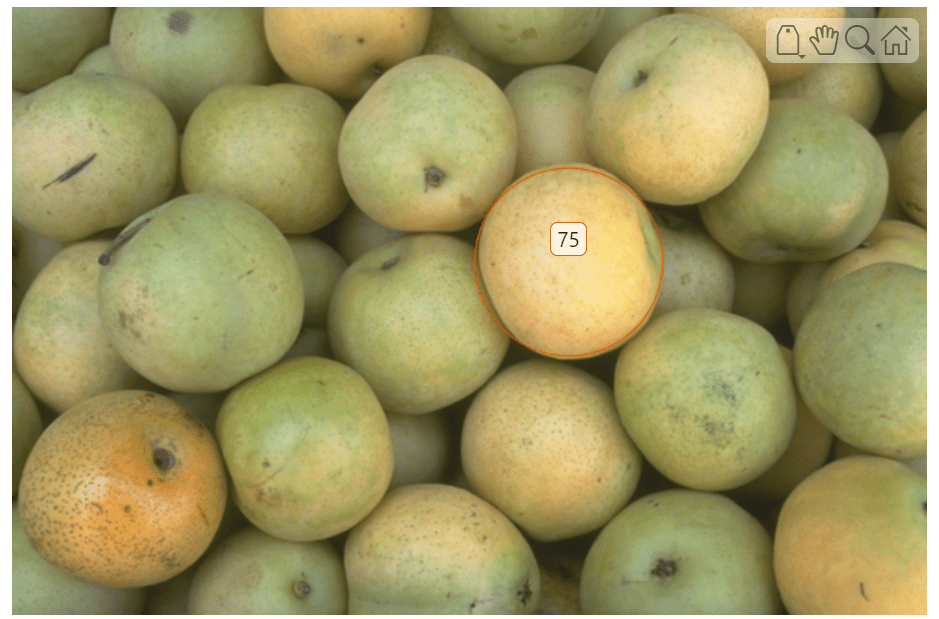

Pears image with one orange circle ROI with a numeric label around a pear

Approaches to Create Axes-Based ROIs

You can create axes-based ROIs using these approaches.

Using a creation convenience function such as drawcircle, which enables you to interactively draw or programmatically specify an ROI in a single command.
Using an object creation function such as images.roi.Circle. Use this approach when you want to specify the appearance and behavior of the ROI before you specify the shape and position of the ROI. After you create the ROI, use the draw function to interactively draw the ROI on an image. The draw function also enables you to redraw an existing ROI, preserving the appearance of the ROI.

The table shows the supported ROIs and their respective creation convenience functions.

Description	ROI Creation Convenience Function	Object Creation Function
AssistedFreehand ROI that snaps to edges of existing objects in the image	`drawassisted`	`images.roi.AssistedFreehand`
Circle ROI	`drawcircle`	`images.roi.Circle`
Crosshair ROI that consists of two perpendicular lines	`drawcrosshair`	`images.roi.Crosshair`
3-D Cuboid ROI	`drawcuboid`	`images.roi.Cuboid`
Ellipse ROI	`drawellipse`	`images.roi.Ellipse`
Freehand ROI that follows the path of the mouse	`drawfreehand`	`images.roi.Freehand`
Line ROI that consists of a single line segment	`drawline`	`images.roi.Line`
Point ROI	`drawpoint`	`images.roi.Point`
Polygon ROI that consists of a closed set of line segments	`drawpolygon`	`images.roi.Polygon`
Polyline ROI that consists of an open set of line segments	`drawpolyline`	`images.roi.Polyline`
Rectangle ROI	`drawrectangle`	`images.roi.Rectangle`

Create Axes-Based ROIs

Open Live Script

This example shows how to create axes-based ROIs.

Create ROI Using Convenience Function

Creation convenience functions enable you to create axes-based ROIs in a single command. You can use a creation function to interactively draw the ROI over an image, or use name-value arguments to define the ROI and skip drawing.

Read and display an image.

I = imread("pears.png");
imshow(I)

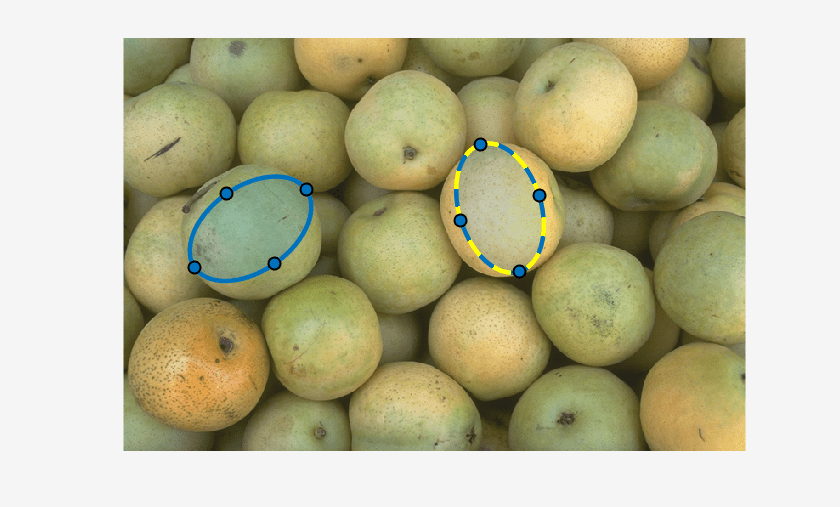

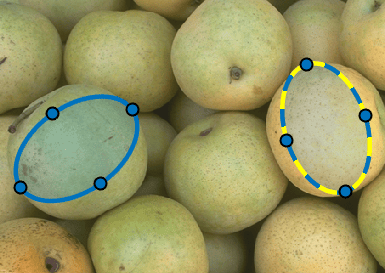

Create an Ellipse object by using the drawellipse function. Customize the appearance of the ROI by specifying the StripeColor name-value argument. The function enables an interactive drawing mode in the image display. Click and drag on the image to draw the ROI.

roi =drawellipse(StripeColor="y");

To create an ellipse fully programmatically, specify the size and position using name-value arguments. For an ellipse, specify the Center, the SemiAxes, and the RotationAngle values.

roi2 = drawellipse(Center=[150 225],SemiAxes=[80 50],RotationAngle=35);

Create ROI Using Object Creation Function

Object creation functions enable you to specify the appearance and behavior of the ROI before you draw it or specify its position programmatically.

Display the pears image in a new figure.

imshow(I);

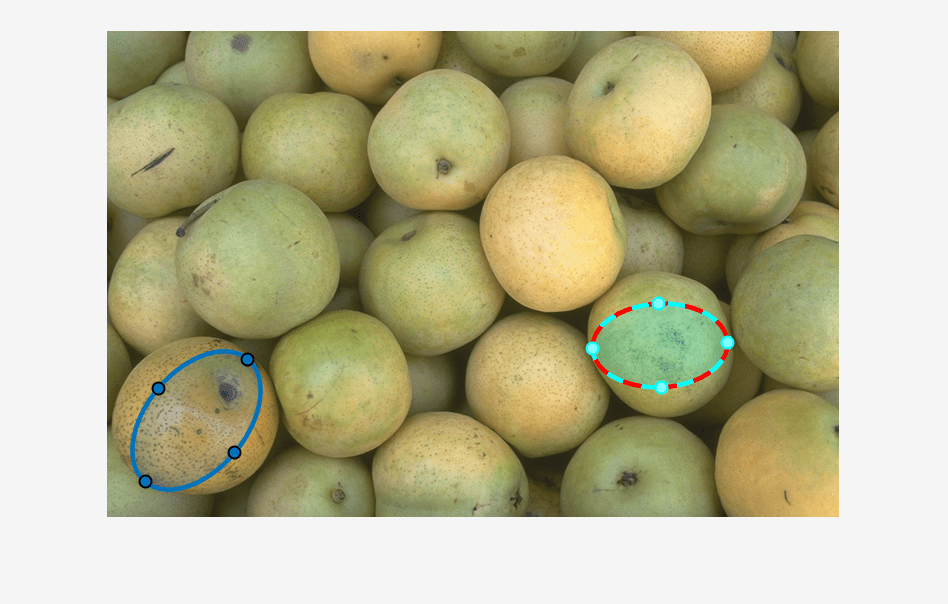

Create an Ellipse object, specifying its appearance but not its size or position.

roi3 = images.roi.Ellipse(Color="c",StripeColor="r");

To draw the ROI on the image, use the draw function. To draw the ROI, click on the image and then drag and release the pointer.

draw(roi3)

To create an ellipse fully programmatically, specify the size and position using name-value arguments. To display the object, you must specify the parent axes as an input argument. Otherwise, the function creates the object but does not display it.

roi4 = images.roi.Ellipse(gca,Center=[90 390],SemiAxes=[80 50],RotationAngle=50);

Using ROIs in Apps Created with App Designer

You can use both viewer-based and axes-based ROIs in apps created with App Designer. Viewer‑based ROIs provide smoother and more responsive interactions than axes‑based ROIs, especially when your app needs to support many ROIs in a single display.

Create Viewer-Based ROIs in Apps

To display viewer-based ROIs in an app, create them in a Viewer object whose parent is a container component in your app. For example, you can parent the viewer to a figure, panel, or grid layout. You specify the code to create the viewer and ROIs using callback functions.

For example, you can configure an app to display an image and add a circular ROI within a panel. First, in the Design View of App Designer, drag and drop a Panel component from the Component Library onto the canvas. Then, create a startupFcn callback by right-clicking the app node from the top of the Component Browser hierarchy and selecting Callbacks > Add StartupFcn callback. App Designer creates the function and places the cursor in the body of the function in Code View. Specify code to create a viewer, display the image, and create the ROI. You must specify the panel, app.Panel as the parent of the viewer, and the viewer as the parent of the image and the ROI.

function startupFcn(app)
    viewer = viewer2d(Parent=app.Panel);
    imageshow("pears.png",Parent=viewer);
    circleROI = uidraw(viewer,"circle")
end

Click Run to save and run the app. The app opens and displays the image. Click and drag to draw the circle ROI on the image.

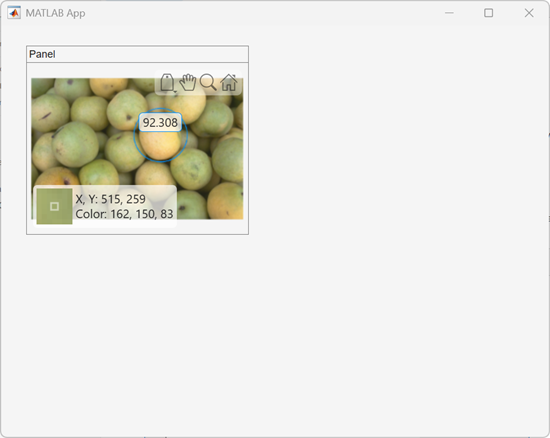

App Designer app window with a panel container in the top-left corner. The panel contains an image of pears with a circular ROI.

You can also create a viewer-based ROI by calling its object creation function, such as images.ui.graphics.roi.Circle. After you create an ROI, add it to the Annotations property of a Viewer object whose parent is a container component in your app.

Create Axes-Based ROIs in Apps

To add axes-based ROIs, parent the ROI object to a UI axes in your app. For example, in the Design View of App Designer, drag an Axes from the Component Library onto the canvas, then follow the steps above to add a startupFcn callback. Within the callback, specify code to display the image and create a circular ROI. You must specify the UI axes, app.UIAxes, as the parent of the image and the ROI.

function startupFcn(app)
    imshow("pears.png",Parent=app.UIAxes);
    c = drawcircle(app.UIAxes);
end

Click Run to save and run the app. The app opens and displays the image. Click and drag to draw the circle ROI on the image.

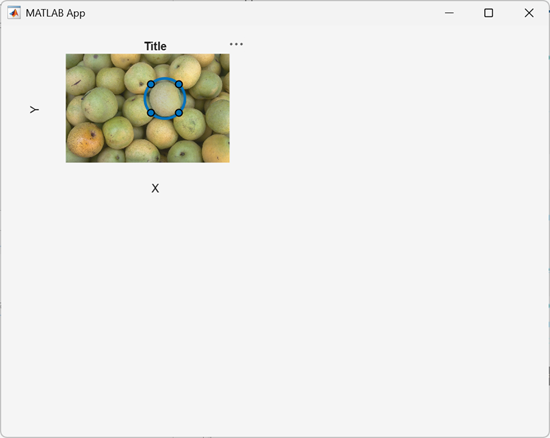

App Designer app window with a UIAxes in the top-left corner. The axes contains an image of pears and a circular ROI.

You can also create an ROI using its object creation function, such as images.roi.Circle. After you create the ROI, call the draw function to define the shape and position of the ROI and add it to a UI axes in your app.
