cellEdges
Find edges attached to specified cells
Description
Examples
Edges Attached to Specified Cells
Find edges attached to two middle cylinders in a geometry consisting of four stacked cylinders.
Create a geometry that consists of four stacked cylinders.
gm = multicylinder(5,[1 2 3 4],'ZOffset',[0 1 3 6])
gm = DiscreteGeometry with properties: NumCells: 4 NumFaces: 9 NumEdges: 5 NumVertices: 5 Vertices: [5x3 double]

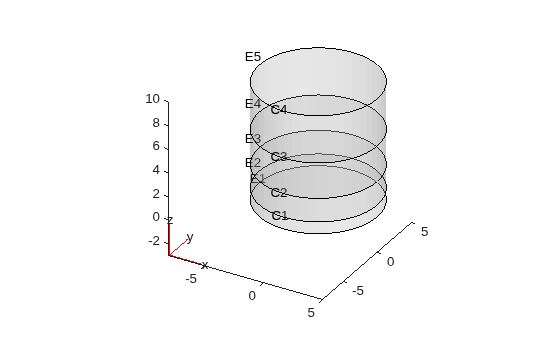

Plot the geometry with the cell and edge labels.
pdegplot(gm,'CellLabels','on','EdgeLabels','on','FaceAlpha',0.2)
Find edges attached to cells 2 and 3.
edgeIDs = cellEdges(gm,[2 3])
edgeIDs = 1×3
2 3 4
Cell Edges Attached to Internal and External Faces
Find edges attached to the outer cuboid in a geometry consisting of two nested cuboids.
Create a geometry that consists of two nested cuboids of the same height.
gm = multicuboid([2 5],[4 10],3)
gm = DiscreteGeometry with properties: NumCells: 2 NumFaces: 12 NumEdges: 24 NumVertices: 16 Vertices: [16x3 double]

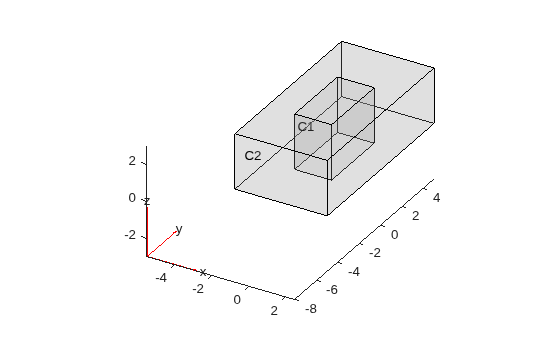

Plot the geometry with the cell labels.
pdegplot(gm,'CellLabels','on','FaceAlpha',0.2)
Find all edges attached to the outer cell. Show the first 10 edges.
edgeIDs = cellEdges(gm,2); edgeIDs(1:10)
ans = 1×10
1 2 3 4 5 6 7 8 9 10
From all edges attached to the outer cell, return the edges attached to only the internal faces. Internal faces are faces shared between multiple cells.
edgeIDs_int = cellEdges(gm,2,'internal')
edgeIDs_int = 1×4
9 10 11 12
From all edges attached to the outer cell, return the edges attached to the external faces. Show the first 10 edges.
edgeIDs_ext = cellEdges(gm,2,'external');
edgeIDs_ext(1:10)
ans = 1×10
1 2 3 4 5 6 7 8 13 14
Input Arguments
g
— 3-D geometry
DiscreteGeometry
object
3-D geometry, specified as a DiscreteGeometry
object.
RegionID
— Cell ID
positive number | vector of positive numbers
Cell ID, specified as a positive number or a vector of positive numbers. Each number represents a cell ID.
FilterType
— Type of edges to return
'all'
(default) | 'internal'
| 'external'
Type of edges to return, specified as 'internal'
,
'external'
, or 'all'
. Depending on this
argument, cellEdges
returns these types of faces:
'internal'
— Edges attached to only internal faces. Internal faces are faces shared between multiple cells.'external'
— Edges attached to only external faces. External faces are faces not shared between multiple cells.'all'
— All edges attached to the specified cells.
Output Arguments
EdgeID
— IDs of edges attached to specified cells
positive number | vector of positive numbers
IDs of edges attached to the specified cells, returned as a positive number or a vector of positive numbers.
Version History
