facesAttachedToEdges
Description
returns internal, external, or all faces attached to the edges with ID numbers listed in
FaceID
= facesAttachedToEdges(g
,RegionID
,FilterType
)RegionID
. This syntax is valid for 3-D geometries only.
Examples
Faces Attached to Specified Edges of 3-D Geometry
Find faces attached to particular edges of a block.
Create a block geometry.
gm = multicuboid(3,2,1)
gm = DiscreteGeometry with properties: NumCells: 1 NumFaces: 6 NumEdges: 12 NumVertices: 8 Vertices: [8x3 double]
Plot the geometry with the edge labels.
pdegplot(gm,"EdgeLabels","on","FaceAlpha",0.2)
Find faces attached to edges 1, 2, and 5.
faceIDs = facesAttachedToEdges(gm,[1 2 5])
faceIDs = 1×4
1 2 5 6

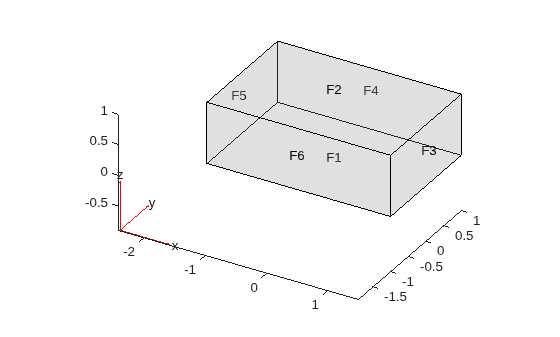

Plot the geometry with the face labels.
figure pdegplot(gm,"FaceLabels","on","FaceAlpha",0.2)
Faces Attached to Specified Edges of 2-D Geometry
Find faces attached to particular edges of the L-shaped membrane.
Create a model and include this geometry. The geometry of the L-shaped membrane is described in the file lshapeg
.
model = createpde(); gm = geometryFromEdges(model,@lshapeg)
gm = AnalyticGeometry with properties: NumCells: 0 NumFaces: 3 NumEdges: 10 NumVertices: 8 Vertices: [8x2 double]

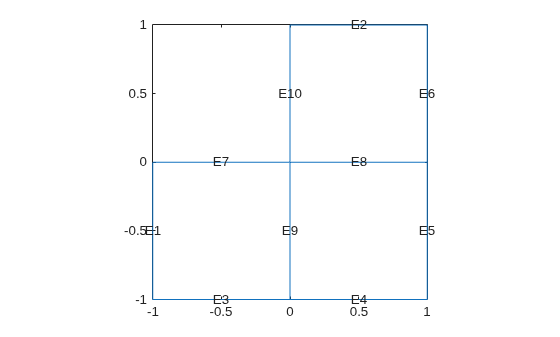

Plot the geometry with the edge labels.
pdegplot(gm,"EdgeLabels","on")
Find faces attached to edges 7 and 10.
faceIDs = facesAttachedToEdges(gm,[7 10])
faceIDs = 1×2
1 2

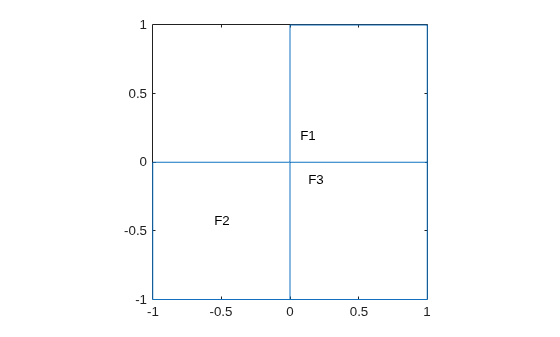

Plot the geometry with the face labels.
figure pdegplot(gm,"FaceLabels","on")
Internal and External Faces Attached to Specified Edges
Find internal and external faces attached to the edges of the inner cuboid in a geometry consisting of two nested cuboids.
Create a geometry that consists of two nested cuboids of the same height.
gm = multicuboid([2 5],[4 10],3)
gm = DiscreteGeometry with properties: NumCells: 2 NumFaces: 12 NumEdges: 24 NumVertices: 16 Vertices: [16x3 double]

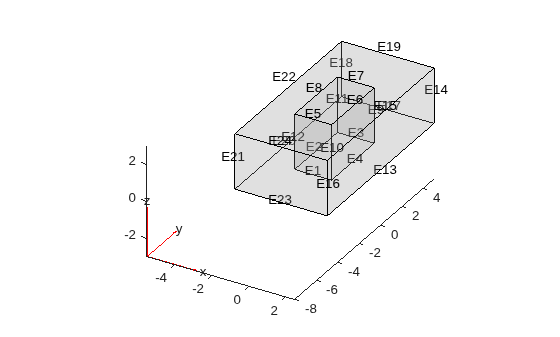

Plot the geometry with the edge labels.
pdegplot(gm,"EdgeLabels","on","FaceAlpha",0.2)
Find all faces attached to the top edges of the inner cuboid.
facesAttachedToEdges(gm,[5:8])
ans = 1×6
2 3 4 5 6 12
Find only the internal faces attached to the top edges of the inner cuboid. Internal faces are faces shared between multiple cells.
facesAttachedToEdges(gm,[5:8],"internal")
ans = 1×4
3 4 5 6
Find only the external faces attached to the top edges of the inner cuboid.
facesAttachedToEdges(gm,[5:8],"external")
ans = 1×2
2 12

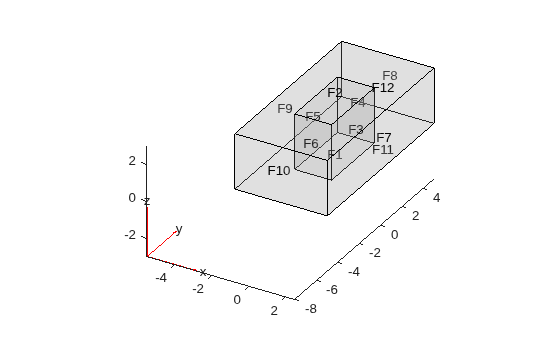

Plot the geometry with the face labels.
figure pdegplot(gm,"FaceLabels","on","FaceAlpha",0.2)
Input Arguments
g
— Geometry
fegeometry
object | DiscreteGeometry
object | AnalyticGeometry
object
Geometry, specified as an fegeometry
object, a DiscreteGeometry
object, or an AnalyticGeometry
object.
RegionID
— Edge ID
positive number | vector of positive numbers
Edge ID, specified as a positive number or a vector of positive numbers. Each number represents an edge ID.
FilterType
— Type of faces to return
"all"
(default) | "internal"
| "external"
Type of faces to return, specified as "internal"
,
"external"
, or "all"
. Depending on this
argument, facesAttachedToEdges
returns these types of faces for a 3-D
geometry:
"internal"
— Internal faces, that is, faces shared between multiple cells."external"
— External faces, that is, faces not shared between multiple cells."all"
— All faces attached to the specified cells.
Output Arguments
FaceID
— IDs of faces attached to specified edges
positive number | vector of positive numbers
IDs of faces attached to the specified edges, returned as a positive number or a vector of positive numbers.
Version History
Introduced in R2021aR2023a: Finite element model
facesAttachedToEdges
now accepts geometries specified by fegeometry
objects.
