Signal Editor
Create and edit input signals
Description

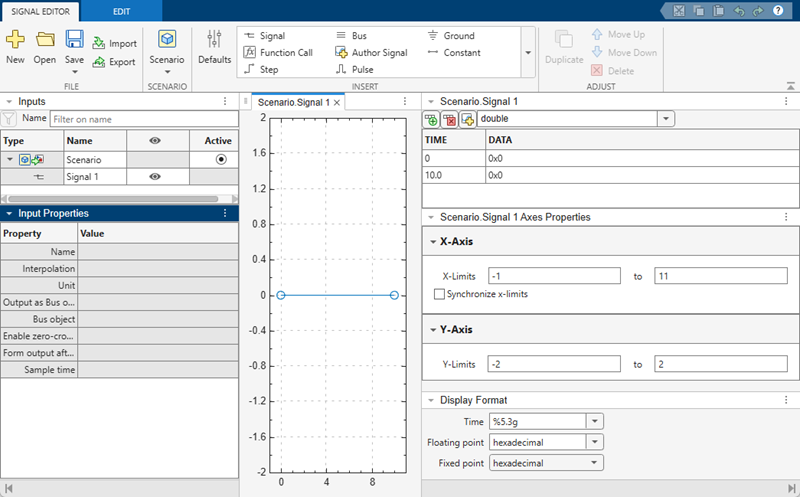

The Signal Editor tool lets you create and edit input signals that you can organize for multiple simulations.
More
Mouse, Keyboard, and Touchscreen Shortcuts
You can use these keyboard shortcuts to interact with the Signal Editor.
This table shows edit actions:
Action | Keyboard | Mouse | Multi-Touch |
---|---|---|---|
Insert point | Ctrl+P | Click | Tap |
Insert line | Ctrl+L | Click | Pan and pinch |
Draw | Ctrl+D | Click and draw | Pan |
Select a point | Ctrl+T | Click , then click and select point or area To select all areas, double-click | Pan and pinch To select all areas, double-tap |
Move a point | Ctrl+M | Click and drag | Tap and move |
Continuously delete points on a line | Click | ||
Fit to view if zoom action is selected | Three mouse clicks | Triple tap | |
Zoom out if zoom action is selected | Two mouse clicks | Double tap | |
Expand along the x-axis | Ctrl+mouse pan | Touch and drag along the x-axis in opposite directions | |
Expand along the y-axis | Shift+mouse pan | Touch and drag along the y-axis in opposite directions |
This table shows zoom actions:
Type of Zoom or Pan | Action |
---|---|
Zoom in along the T and Y axes. | Click |
Zoom in along the time axis. After selecting the icon, on the graph, drag the mouse to select an area to enlarge. | Click |
Zoom in along the data value axis. After selecting the icon, on the graph, drag the mouse to select an area to enlarge. | Click |
Zoom only in x while zooming in xy. | Zoom in xy while pressing Ctrl |
Zoom only in y while zooming in xy. | Zoom in xy while pressing Shift |
Zoom out from the graph. | Click |
Fit the plot to the graph. After selecting the icon, click the graph to enlarge the plot to fill the graph. | Click |
Pan the graph up, down, left, or right. Select the icon. On the graph, hold the left mouse button and move the mouse to the area of the graph that you want to view. | Click |
Snap to Grid for Alignment
You can use these alignment commands to snap to the plot grid for accuracy.
Alignment actions:
Action | Snap to Grid |
---|---|
Snap values to x grid lines for point and line insertion and movement and zooming. | Snap X to Grid |
Snap values to y grid lines for point and line insertion and movement and zooming. | Snap Y to Grid |
Snap values to x minor grid lines for point and line insertion and movement and zooming. | Snap X to Tick |
Snap values to y grid lines for point and line insertion and movement and zooming. | Snap Y to Tick |
Snap to incremental value in X grid. | Snap X to Increment |
Snap to incremental value in Y grid. | Snap Y to Increment |
Turn plot markers on and off. | Markers |
Open the Signal Editor
MATLAB® Command Window: Enter
signalEditor
.Root Inport Mapper: To create a MAT-file for your new signal data, select Signals > New MAT-File. To link in an existing signal data file from an existing scenario and edit the signals in that file, use the Signals > Edit MAT-File.
Signal Editor block: Click .
Simulink® Editor toolstrip:
In the Prepare section of the Simulation tab, click the expander.
Click Inputs & Parameter Tuning > Signal Editor.
Signals can be:
MATLAB
timeseries
objects.timeseries
objects cannot have emptyData
properties.timetable
objects.timetable
objects cannot represent multiple variables.Structure of MATLAB
timeseries
ortimetable
objects.Two-dimensional matrices.
Examples
Change Signal Names and Hierarchy Orders
In the Inputs pane, you can change signal names and hierarchy order, create duplicates of signals, and delete signals. The software ignores leading and trailing spaces in signal names.
To change a signal name, double-click the name and enter a new name.
To change the unit or interpolation of a signal, in the Inputs pane, select the signal you want to edit, then navigate to the Input Properties pane, and update the Unit or Interpolation value.
To change the order of a signal in the hierarchy, drag and release the signal. For example, you can drag and release signals into a bus.
Alternatively, in the Adjust section, use the Move Up and Move Down buttons.
To copy a signal and paste it under the original, right-click the signal and select Duplicate Signal.
Alternatively, in the Adjust section, use the Duplicate button. You can also adjust the default properties of the signal you duplicate. For more information, see Create Signals with the Same Properties.
To copy a signal and paste it elsewhere in hierarchy, select Copy and then Paste.
Create Signals with the Same Properties
To create signals of the same predefined type, in the Adjust section, use the Duplicate button. To change the predefined signal type, click the Defaults icon . The Properties for Insertion dialog box opens.
On the Signals tab:
Data type — From the list, select the signal data type.
Enumeration — When you select the
Enum
data type, this parameter displays. Enter the class name of your enumeration.If you define an enumeration class that contains the same integer value multiple times, the Signal Editor treats the first enumeration value as the canonical value and equates all subsequent instances of the same underlying integer to the enumerated name. In this example,
Red(118)
) is canonical, soPink
equalsRed
.classdef(Enumeration) hEnumColors_duplicateValues < Simulink.IntEnumType enumeration Red(118) Yellow(-14) Blue(90) Green(87) White(-14) Black(198) Brown(90) Pink(118) Purple(90) end methods (Static = true) function retVal = getDefaultValue() retVal = hEnumColors_duplicateValues.Blue; end end end
Interpolation — From the list,select
linear
orzero order hold
.Unit — Enter an appropriate unit expression. For a suggested list of unit expressions, see Allowed Units.
Dimensions — Enter the number of dimensions for the signal.
Signal type — From the list, select
real
orcomplex
.Variable type — From the list, select
Timeseries
(default),Timetable
,Logged timeseries
, orLogged timetable
.Logged
timeseries
and loggedtimetables
objects areSimulink.SimulationData.Signal
objects whoseValue
property is of data typetimeseries
ortimetable
.
On the Buses tab:
Bus object — From the list, select the bus object for which to define the dimensions. If you leave the Bus object parameter as the default
<object name>
, the Signal Editor adds empty buses.Dimensions — Enter the number of dimensions for the bus object.
On the Constant tab:
Value — Enter constant value to output.
Time — Enter sample time.
On the Step tab:
Initial value — Enter output value before step.
Final value — Enter output value after step.
Start time — Enter time when step starts.
Step time — Enter time increment when step occurs.
Step final time — Enter final step time.
On the Pulse tab:
Initial value — Enter initial default value of signal.
Value at trigger — Enter value of signal at pulse trigger.
Pulse duration — Enter length of time of pulse.
Step time — Enter time when step occurs.
Trigger time — Enter time when pulse trigger occurs.
Modify Multiple Scenarios or Signals Simultaneously
In the Inputs section, you can select multiple scenarios or signals simultaneously and perform actions on them.
Start Signal Editor.
In the toolstrip, add two scenarios. Click Scenario twice.
To the first Scenario
, add a basic signal and step. In
Insert, click Signal and
Step.
By default, basic signals are created with linear interpolation while step signals are created with zero-order hold (ZOH) interpolation.
Change the interpolation of both signals to linear. In the
Inputs pane, select both Signal
and
Step
. Observe that in the Input Properties
pane, the Interpolation field now shows <mixed
values>
.
In the Interpolation field, type linear
.
Individually select Signal
and Step
and observe
that they now both have linear interpolation.
Add the same signal types to both scenarios. In the Inputs
pane, select Scenario
and Scenario1
. Then in the
Insert pane, click Function Call.
Cut, Copy, or Paste Data Between Signal Editor and Excel Spreadsheets
Exchange rows and columns of data between Signal Editor and Excel® spreadsheets using cut, copy, and paste operations.
If you do not have an existing Excel spreadsheet, create an Excel spreadsheet and data.
Select and copy two adjacent items, such as A5
and
B5
.
In Signal Editor, create a signal and double-click the hide icon ().
In the Signal pane, select two adjacent cells.
Paste the contents from the spreadsheet to the Signal Editor data table.
Tip
You can cut, copy, and paste directly into a spreadsheet or Signal Editor data table. However, if you cut, copy, and paste to a selected target area, the selected target area must be the same size as the source area.
Create Signal Data Using Standard Waveforms
In the Signal Editor tab, create signal data from the standard waveform options.
Constant — Straight line waveform with a default value of 1.
Step — Step waveform with default initial value of
0
and final value of5
.Pulse — Pulse waveform with default initial value of
0
, pulse at trigger5
, and pulse duration of 1.
To change the data from these waveforms, you can manually modify them in the plot. If you want to create multiple waveform plots with the same set of initial data, you can change the default signal properties for the waveform.
Start Signal Editor.
In the toolstrip, click Scenario.
To add a pulse waveform to the scenario, select the scenario and from the Insert section, select Pulse.
In the signal hierarchy, double-click the hide icon ().
To change the default of the pulse waveform and its data, in the toolstrip, click Defaults ().
In the Properties for Insertion dialog box, on the Pulse tab, change the values as desired.
To add a second pulse waveform to the scenario, select the scenario, and from the Insert section, click Pulse.
Work with Data in Signals
You can add and delete data to the signals in a linked scenario. To create a model to work with, see Add Signals to Scenarios.
In the MATLAB Command Window, create data by entering this command:
ts = timeseries([0;20],[0;10]);
Add a scenario. Click Scenario.
In the Signal Editor, in the File section, click Import.
In the Import window, in the Select signals to import pane,
select the ts
signal and click OK.
Drag the ts
signal into the scenario.
In the Signal Editor, in the Inputs pane, double-click the hide
icon () for the signal ts
.
The focus moves to the Edit tab.
Add data to the signal ts
.
In the Scenario.ts pane, click the add row icon (), and add signals. To add a signal row between other signals, click the signal above, then click the add row icon.
When done, click anywhere in the pane to update the plot. To reorient the plot, click Fit to View.
Remove the time 20 line from the signal. Select 20
and click .
Alternatively, if you want to replace all the signal data for ts
with a signal defined with signal notations, click the replace button
and use the Author and Replace Signal Data dialog box
to define new data.
Move Signal Points in Signal Editor
You can move one signal point, two signal points, or an entire plot in Signal Editor. Create a plot to work with, for example, see Create Freehand Signal Data Using Mouse or Multi-Touch Gestures.
Click the Select button. This action persists until you select another action.
Click a point. The move icon appears on top of the point.
Drag the point to another area of the plot.
Tip
You cannot drag the point horizontally past adjacent points.
To move two contiguous signal points, click one point.
Click a point.
Click anywhere on the line between the two contiguous points.
Drag to the other point on the same line.
The move icon appears on top of the points.
Drag the points to another area of the plot.
Tip
You cannot drag the point horizontally past adjacent points.
To move an entire plot, select the entire plot. Alternatively, double-click anywhere on the plot.
The move icon appears on top of the plot.
Drag the plot to another area of the canvas.
Related Examples
Parameters
New
— Start new Signal Editor session
button
Open a new Signal Editor session.
Open
— Open MAT-file containing signals
button
Open MAT-file containing signals to be displayed and edited in Signal Editor.
Save
— Save signal data to MAT-file
button
Save the contents of Signal Editor. Clicking this button also makes the signal data visible to the Signal Editor block.
Import
— Import signals from registered file type
button
Import signals from registered file types that Signal Editor supports. For more information, see Import Custom File Type.
Export
— Save signals to registered file type
button
Save signals to registered file types that Signal Editor supports. For more information, see Export Signals to Custom Registered File Types.
Scenario
— Create scenario
button
Create scenario to contain signals.
Defaults
— Change predefine signal types and properties
button
Change the predefined signal type and properties by clicking .
Signal
— Insert basic signal
button
Insert basic signal by clicking . For more information, see Work with Basic Signal Data.
Function Call
— Insert function-call signal
button
Insert function-call signal by clicking .
If you need a function-call signal for a root inport with explicit periodic sample time, insert a ground signal instead. Simulink then executes the function-call automatically.
Constant
— Instant constant signal
button
Insert constant signal with value of 1 by clicking .
Bus
— Insert bus
button
Insert bus by clicking . To the bus you can add signals using any of the other signal insertions techniques.
Author Signal
— Author signal using MATLAB expressions or workspace variables
button
Author signal using MATLAB expressions or workspace variables by clicking . The dialog box displays:
Time — Enter the range of time for the data.
Data — Enter the MATLAB expression for the signal.
Data type — Select or enter the signal data type.
double
single
int8
uint8
int16
uin16
int32
uint32
boolean
fixdt(1,16)
fixdt(1,16,0)
fixdt(1,16,2^0,0)
string
Enum: <class name>
If you enter your time and data and then select a fixed-point data type, the Signal Editor displays a fixed-point proposed data type for your data.
To help you select a fixed-point data type, click the Show Histogram button (). Clicking this button displays a plot of the signal data using the selected fixed-point data type. The graph displays:
Column Information Values The negative, positive, and zero signal values. Potential Overflows Bins the signal values that may overflow. In-Range Bins the signal values that are within acceptable range. Potential Underflows Bins the signal values that may underflow. To see the difference that a data type may have on the histogram, select:
User Specified
Binary Scaling
Slope & Bias Scaling
For more information, see Histogram Plot of Signal (Fixed-Point Designer).
To apply the proposed fixed-point data type to your data, click the Use proposed data type button ().
For more information, see Create Signals with MATLAB Expressions and Variables.
Step
— Insert step waveform signal
button
Insert step waveform signal with an initial value of 0
and a
final value of 1
by clicking .
Ground
— Insert ground signal
button
Insert ground signal by clicking .
Pulse
— Insert pulse waveform signal
button
Insert pulse signal waveform signal with an initial value of 0
,
trigger value of 1
, and initial pulse duration of
1
by clicking .
Duplicate
— Copy signal
button
Copy signal and paste it under original signal.
Move Up
— Move signal up the signal hierarchy
button
Move signal up the signal hierarchy in a bus or scenario by clicking the signal and then clicking Move Up.
Move Down
— Move signal down the signal hierarchy
button
Move signal down the signal hierarchy in a bus or scenario by clicking the signal and then clicking Move Down.
Delete
— Delete signal
button
Delete signal by selecting one or more signals and clicking .
Programmatic Use
signalEditor
signalEditor
opens the Signal Editor from the MATLAB Command Window.
Tip
Load the model first with load
signalEditor(Model='modelName'
);
'modelName'
);signalEditor(Model=
opens the
Signal Editor for the model, 'modelName'
);'modelName'
. You can specify one model per
call to the signalEditor
function.
Note
Load the model before starting the Signal Editor for the model.
signalEditor(___,DataSource='dataSourceName'
);
'dataSourceName'
);signalEditor(___,DataSource=
opens the Signal Editor for the data source, 'dataSourceName'
);'dataSourceName'
. You can
specify one data set file per call to the signalEditor
function.
Note
You can start multiple sessions of Signal Editor for the same model. However, you can associate a data set file with only one Signal Editor at a time. A data set file cannot have multiple Signal Editor sessions associated with it.
signalEditor(___,InitialScenario='scenario_name'
);
'scenario_name'
);signalEditor(___,InitialScenario=
opens the Signal Editor with the signals from 'scenario_name'
);'scenario_name'
already
plotted.
Version History
Introduced in R2017bR2024b: Signal Editor tool updates
The Signal Editor tool has these updates:
Set up and preserve the display format for the scenario data table that contains the TIME and DATA columns using the Display Format parameter. The Signal Editor tool remembers up to five signal data settings. The Display Format parameter sets the display format for time and for floating-point and fixed-point data. For more information, see Change Signal Data Output Format Preferences.
To programmatically open the Signal Editor tool with the active scenario signals already plotted, use the new
signalEditor
functionInitialScenario
argument with an existing scenario.When you click Browse in the Export dialog box, the Save as type parameter now provides a list of supported file extensions to which to export the file.
When you start the Signal Editor interface separately from the block, you can now provide the model parameter to access variables from the MAT-file attached to the model. Prior to R2024b, you could provide the model parameter to access variables from only the model workspace or data dictionary.
R2024a: Signal Editor tool updates
The Signal Editor tool has these updates:
Move signals in Signal Editor — See Move Signal Points in Signal Editor.
Change x- and y-axes limits — See Change x- and y-axes Limits.
Synchronize signals by time — See Add and Edit Multidimensional Signals.
Signal and associated table data selection now linked — See Add and Edit Multidimensional Signals.
See Also
Blocks
Live Editor Tasks
MATLAB Command
You clicked a link that corresponds to this MATLAB command:
Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
- América Latina (Español)
- Canada (English)
- United States (English)
Europe
- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)
- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
