Powerpoint Generation MATLAB App Issues

20 views (last 30 days)
Ratanjot
Ratanjot on 13 Sep 2023
Answered: Kevin Holly on 18 Sep 2023

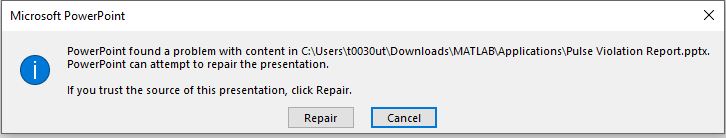

I have created a MATLAB Application with App Designer and it outputs the powerpoint correctly within App Designer but then once I had compiled it, created it as a MATLAB App that I can then install as an app in MATLAB and then run the app, the powerpoint won't be generated properly and it will cause an error. It saves the file where I want it to but the powerpoint will give an error when I try to open. You can see the error message in the image below. It tells me to repair and once I click on it, the powerpoint will be empty but it should have 7 slides full of information. I have tried the code with the 'makePPTCompilable()' and without it and it still doesn't work.
%/////////////////// PowerPoint //////////////
% Create a presentation
makePPTCompilable();
import mlreportgen.ppt.*
ppt = Presentation("Pulse Violation Report.pptx");
open(ppt);
Background = Picture('StellantisBackground.png');
Background.Width = '13.33in';
Background.Height = '7.51in';
Heading = Picture('StellantisHeading.png');
Heading1 = Picture('StellantisHeading.png');
Heading2 = Picture('StellantisHeading.png');
Heading3 = Picture('StellantisHeading.png');
Heading4 = Picture('StellantisHeading.png');
Heading5 = Picture('StellantisHeading.png');
Heading6 = Picture('StellantisHeading.png');
Heading7 = Picture('StellantisHeading.png');
Logo = Picture('StellantisLogo.png');
Logo1 = Picture('StellantisLogo.png');
Logo2 = Picture('StellantisLogo.png');
Logo3 = Picture('StellantisLogo.png');
Logo4 = Picture('StellantisLogo.png');
Logo5 = Picture('StellantisLogo.png');
Logo6 = Picture('StellantisLogo.png');
Logo7 = Picture('StellantisLogo.png');
% Add a slide to the presentation
slide = add(ppt,'Blank');
add(slide,Background);
titleTB = TextBox();
titleTB.X = '2.83in';
titleTB.Y = '2.85in';
titleTB.Height = '2.61in';
titleTB.Width = '10in';
titleTB.Style = {FontSize('60pt'),Bold(true),FontColor('white')};
add(titleTB, 'Pulse Violation Report');
add(slide,titleTB);
username = TextBox();
username.X = '0.3in';
username.Y = '0.3in';
username.Width = '4in';
username.FontColor = 'white';
name = app.NameEditField.Value;
add(username,name);
add(slide,username);
userTID = TextBox();
userTID.X = '0.3in';
userTID.Y = '0.6in';
userTID.Width = '4in';
userTID.FontColor = 'white';
TID = app.TIDEditField.Value;
add(userTID,TID);
add(slide,userTID);
userdate = TextBox();
userdate.X = '0.3in';
userdate.Y = '0.9in';
userdate.Width = '4in';
userdate.FontColor = 'white';
date = app.DateEditField.Value;
add(userdate,date);
add(slide,userdate);
Temp = TextBox();
Temp.X = '0in';
Temp.Y = '6.7in';
Temp.Height = '0.43in';
Temp.Width = '10in';
Temp.Style = {FontColor('white')};
temp = string(app.TemperatureEditField.Value);
temp_final = append("Temperature:",' ',temp);
add(Temp,temp_final);
add(slide,Temp);
subtitleTB = TextBox();
subtitleTB.X = '0in';
subtitleTB.Y = '7.07in';
subtitleTB.Height = '0.43in';
subtitleTB.Width = '10in';
subtitleTB.Style = {FontColor('white')};
add(subtitleTB, value);
add(slide,subtitleTB);
slide7 = add(ppt,'Title and Content');
Heading7.X = '0.3in';
Heading7.Y = '0.19in';
Heading7.Height = '0.47in';
Heading7.Width = '10.82in';
Logo7.X = '11.27in';
Logo7.Y = '0.09in';
Logo7.Height = '0.69in';
Logo7.Width = '1.95in';
add(slide7, Heading7);
add(slide7, Logo7);
Information = Paragraph("All violations are displayed in this PowerPoint" + newline + "Each slide of this report contains all of the violation information for a specific type of pulse" + newline + "Pulse_Num refers to the pulse cluster it occurs in, and corresponds to an SOC level" + newline + "For example, if the Pulse_num is 1, that means it is the first pulse of its type to occur, and occurs at the same SOC level as all other pulses with Pulse_Num of 1" + newline + "Non-consecutive power violations which do not exceed the 20% limit are not included, as they do not count as real violations");
Information.FontSize = '20';
replace(slide7, "Content",Information);
replace(slide7, "Title",'Preliminary Information');
%Adding Table in PP
slide1=add(ppt,'Title and Table');
contents=find(ppt,'Table');
replace(slide1,'Title','Instant Discharge Pulse Overview');
table1=Table(TwoSecPulseSummaryTable);
table1.Style = {FontSize('10pt'),Bold(true),FontColor('Black')};
table1.StyleName = 'Medium Style 2 - Accent 1';
replace(contents,table1);
Heading1.X = '0.3in';
Heading1.Y = '0.19in';
Heading1.Height = '0.47in';
Heading1.Width = '10.82in';
Logo1.X = '11.27in';
Logo1.Y = '0.09in';
Logo1.Height = '0.69in';
Logo1.Width = '1.95in';
add(slide1, Heading1);
add(slide1, Logo1);
slide2=add(ppt,'Title and Table');
contents2=find(ppt,'Table');
replace(slide2,'Title','Short Discharge Pulse Overview');
table2=Table(TenSecPulseSummaryTable);
table2.Style = {FontSize('10pt'),Bold(true),FontColor('Black')};
table2.StyleName = 'Medium Style 2 - Accent 1';
replace(slide2,'Table',table2);
Heading2.X = '0.3in';
Heading2.Y = '0.19in';
Heading2.Height = '0.47in';
Heading2.Width = '10.82in';
Logo2.X = '11.27in';
Logo2.Y = '0.09in';
Logo2.Height = '0.69in';
Logo2.Width = '1.95in';
add(slide2, Heading2);
add(slide2, Logo2);
slide3=add(ppt,'Title and Table');
contents3=find(ppt,'Table');
replace(slide3,'Title','Long Discharge Pulse Overview');
table3=Table(ThirtySecPulseSummaryTable);
table3.Style = {FontSize('10pt'),Bold(true),FontColor('Black')};
table3.StyleName = 'Medium Style 2 - Accent 1';
replace(slide3,'Table',table3);
Heading3.X = '0.3in';
Heading3.Y = '0.19in';
Heading3.Height = '0.47in';
Heading3.Width = '10.82in';
Logo3.X = '11.27in';
Logo3.Y = '0.09in';
Logo3.Height = '0.69in';
Logo3.Width = '1.95in';
add(slide3, Heading3);
add(slide3, Logo3);
slide4=add(ppt,'Title and Table');
contents4=find(ppt,'Table');
replace(slide4,'Title','Instant Charge Pulse Overview');
table4=Table(CHGTwoSecPulseSummaryTable);
table4.Style = {FontSize('10pt'),Bold(true),FontColor('Black')};
table4.StyleName = 'Medium Style 2 - Accent 1';
replace(slide4,'Table',table4);
Heading4.X = '0.3in';
Heading4.Y = '0.19in';
Heading4.Height = '0.47in';
Heading4.Width = '10.82in';
Logo4.X = '11.27in';
Logo4.Y = '0.09in';
Logo4.Height = '0.69in';
Logo4.Width = '1.95in';
add(slide4, Heading4);
add(slide4, Logo4);
slide5=add(ppt,'Title and Table');
contents5=find(ppt,'Table');
replace(slide5,'Title','Short Charge Pulse Overview');
table5=Table(CHGTenSecPulseSummaryTable);
table5.Style = {FontSize('10pt'),Bold(true),FontColor('Black')};
table5.StyleName = 'Medium Style 2 - Accent 1';
replace(slide5,'Table',table5);
Heading5.X = '0.3in';
Heading5.Y = '0.19in';
Heading5.Height = '0.47in';
Heading5.Width = '10.82in';
Logo5.X = '11.27in';
Logo5.Y = '0.09in';
Logo5.Height = '0.69in';
Logo5.Width = '1.95in';
add(slide5, Heading5);
add(slide5, Logo5);
slide6=add(ppt,'Title and Table');
contents6=find(ppt,'Table');
replace(slide6,'Title','Long Charge Pulse Overview');
table6=Table(CHGThirtySecPulseSummaryTable);
table6.Style = {FontSize('10pt'),Bold(true),FontColor('Black')};
table6.StyleName = 'Medium Style 2 - Accent 1';
replace(slide6,'Table',table6);
Heading6.X = '0.3in';
Heading6.Y = '0.19in';
Heading6.Height = '0.47in';
Heading6.Width = '10.82in';
Logo6.X = '11.27in';
Logo6.Y = '0.09in';
Logo6.Height = '0.69in';
Logo6.Width = '1.95in';
add(slide6, Heading6);
add(slide6, Logo6);
%Plotting the Power Summary Plot
%figure(1)
f_1 = figure('Visible','Off');
plot(app.time, app.PP,'b')%Pack Power
grid on
xticks([0 10000 20000 30000 40000 50000 60000 70000 80000 90000 100000 110000 120000 130000 140000 150000])
xticklabels({'x = 0','10000','20000','30000','40000','50000','60000','70000','80000','90000','100000','110000','120000','130000','140000','150000'})
xlabel('Time (s)')
ylabel('Power (kW)')
title('Pack Power Charge -Neg- and Discharge -Pos-');
legend('Pack Power')
legend('boxoff');
legend('Location','southoutside');
%Adding the generated plot to the slide; in this case, slide 7, though
%actually slide 8 in the real PowerPoint due to not counting the title
%slide
img1 = 'plot1.png';
saveas(f_1,img1);
% Close the presentation
close(ppt);
% View the presentation
%rptview(ppt);

Answers (1)

Kevin Holly
Kevin Holly on 18 Sep 2023
Ratanjot,
Try writing the full path to your image files and see if that resolves the issue.
I am assuming you are receiving this error when creating your PowerPoint:
Caught "std::exception" Exception message is:
createInputStream failed: No such file or directory

Products


Release

R2019a
