Can Matlab be used for making Engineering Drawings?
8 views (last 30 days)
Show older comments

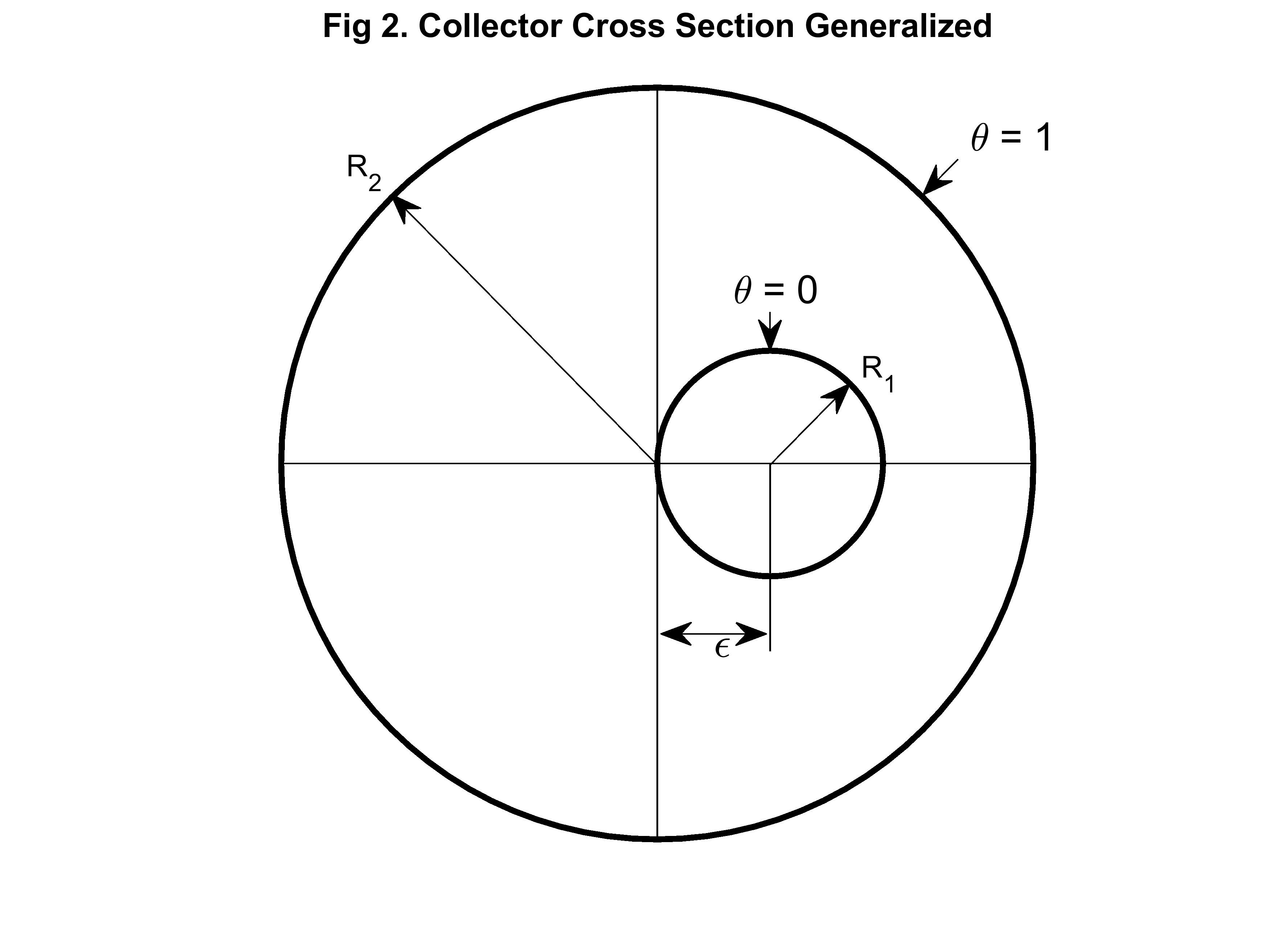

Especially arrows (with their heads touching two parallel ines that are vertical both to the arrow and the object whose dimensions are being indicated; the dimension shown in the blank space in the middle of the arrow)? See attached drawing made by other means (from a Drexel University course document).![Engg_Drawing.jpg](https://www.mathworks.com/matlabcentral/answers/uploaded_files/198011/Engg_Drawing.jpeg)
![Engg_Drawing.jpg](https://www.mathworks.com/matlabcentral/answers/uploaded_files/198011/Engg_Drawing.jpeg)
0 Comments
Accepted Answer
Walter Roberson
on 2 Dec 2018
annotation('arrow') and annotation('text') can be used .
However these use figure coordinates rather than data coordinates which makes them aa nuisance to place properly.
text() can be used to place text in data coordinates .
There are multiple File Exchange contributions for creating arrows including one that creates annotation() arrows given data coordinates and moves them as needed when the axis changes.
2 Comments
John D'Errico
on 2 Dec 2018
You make an interesting point. I'd wonder however, if TMW might be prepared to invest sufficient resources in a product that would face heavy competition. I'd see competition from many sources there: AutoCad, SketchUp, Reddit, Photoshop Sketch, Illustrator Draw, Sketchbook, Sketchpad, etc. I'm sure I missed a few. And with all the cheap or even free apps out there, would they want to enter that market segment?
More Answers (1)
