Simscape Multibody Model from MATLAB Code
Version 1.4.0.2 (3.48 KB) by
Steve Miller
MATLAB code to build a Simscape Multibody model of a single link and a multi-link pendulum

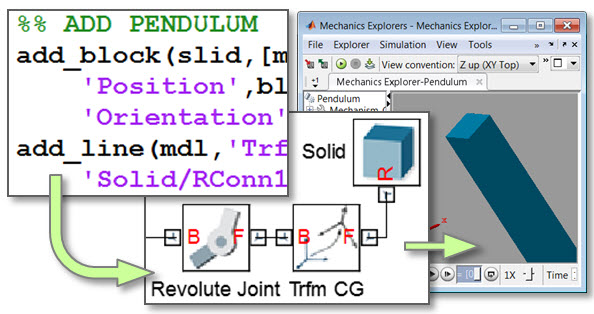

This file contains MATLAB code to build a Simscape Multibody model of a single link and a multi-link pendulum. MATLAB commands such as add_block, add_line, and set_param are used to add, connect blocks and set block parameter values. This technique can be used for creating models from blocks in Simscape libraries or Simscape add-on products.
For an overview of building models with MATLAB code, refer the following blog post:
To see an overview of multibody modeling in Simscape Multibody, watch this video (1.5 min): http://www.mathworks.com/videos/simmechanics-introduction-69809.html
To find other Simscape examples, search for posts with the keyword "physical modeling"
To learn more about MathWorks Simscape Products, go to:
Cite As
Steve Miller (2025). Simscape Multibody Model from MATLAB Code (https://www.mathworks.com/matlabcentral/fileexchange/45410-simscape-multibody-model-from-matlab-code), MATLAB Central File Exchange. Retrieved .
MATLAB Release Compatibility
Created with
R2016a
Compatible with any release
Platform Compatibility
Windows macOS LinuxCategories
Find more on Assembly in Help Center and MATLAB Answers
Tags
Community Treasure Hunt
Find the treasures in MATLAB Central and discover how the community can help you!
Start Hunting!Discover Live Editor
Create scripts with code, output, and formatted text in a single executable document.
Version | Published | Release Notes | |
---|---|---|---|
1.4.0.2 | Updated to accommodate changes to Simscape Multibody block libraries in R2019b. Code will still work in all releases R2016a and higher. |
||
1.4.0.1 | Updated license |
||
1.4.0.0 | Updated for R2016a |
||
1.3.0.0 | Image seemed to be missing... have uploaded the image file... |
||
1.2.0.0 | Copyright line on the top |
