Create Gregorian antenna
gregorian object creates a horn conical fed Gregorian
antenna. A Gregorian antenna is a parabolic antenna. In this antenna, the feed antenna
is mounted at or behind the surface of the main parabolic reflector and aimed at the
subreflector. This antenna is used in radio telescopes and communication satellites. For
more information see, Architecture of Gregorian Antenna.
creates a horn
conical fed Gregorian antenna with a default operating frequency of 18.48
GHz. This antenna gives maximum gain when operated at 18.3 GHz.
ant = gregorian
properties using one or more name-value pairs. For example,
ant = gregorian(Name,Value)
gregorian('FocalLength',[0.4 0.22]) creates a Gregorian
antenna with the main reflector of focal length 0.4 m and the subreflector
of focal length 0.22 m.
Exciter— Antenna or array type used as exciter
hornConical(default) | antenna object |
Antenna type used as exciter, specified as an antenna or an array object.
ant.Exciter = dipole
Radius— Radius of main and subreflector
[0.3175 0.0330](default) | two-element vector
Radius of the main and subreflector, specified as a two-element vector with each element unit in meters. The first element specifies the radius of the main reflector, and the second element specifies the radius of the subreflector.
ant.Radius = [0.4 0.2]
FocalLength— Focal length of main and subreflector
[0.2536 0.1416](default) | two-element vector
Focal length of the main and subreflector, specified as a two-element vector with each element unit in meters. The first element specifies the focal length of the main reflector, and the second element specifies the focal length of the subreflector.
ant.FocalLength = [0.35 0.2]
Load— Lumped elements
lumpedElement] (default) | lumped element object
Lumped elements added to the antenna feed, specified as a lumped element
object. You can add a load anywhere on the surface of the antenna. By
default, the load is at the feed. For more information, see
lumpedelement is the object for the load created
Tilt— Tilt angle of antenna
0(default) | scalar | vector
Tilt angle of the antenna, specified as a scalar or vector with each element unit in degrees. For more information, see Rotate Antennas and Arrays.
ant.Tilt = 90
'TiltAxis',[0 1 0;0 1 1]
tilts the antenna at 90 degrees about the two axes defined by the
wireStack antenna object
only accepts the dot method to change its properties.
TiltAxis— Tilt axis of antenna
[1 0 0](default) | three-element vector of Cartesian coordinates | two three-element vectors of Cartesian coordinates |
Tilt axis of the antenna, specified as:
Three-element vector of Cartesian coordinates in meters. In this case, each coordinate in the vector starts at the origin and lies along the specified points on the X-, Y-, and Z-axes.
Two points in space, each specified as three-element vectors of Cartesian coordinates. In this case, the antenna rotates around the line joining the two points in space.
A string input describing simple rotations around one of the principal axes, 'X', 'Y', or 'Z'.
For more information, see Rotate Antennas and Arrays.
'TiltAxis',[0 1 0]
'TiltAxis',[0 0 0;0 1 0]
ant.TiltAxis = 'Z'
wireStack antenna object only accepts the dot method to change its
SolverType— Solver for antenna analysis
Solver for antenna analysis, specified as the comma-separated pair consisting of
'PO' (Physical Optics) or
'MoM' (Method of
'FMM' (Fast Multipole Method).
|Display antenna or array structure; display shape as filled patch|
|Access FMM solver for electromagnetic analysis|
|Axial ratio of antenna|
|Beamwidth of antenna|
|Charge distribution on metal or dielectric antenna or array surface|
|Current distribution on metal or dielectric antenna or array surface|
|Design prototype antenna or arrays for resonance around specified frequency|
|Electric and magnetic fields of antennas; Embedded electric and magnetic fields of antenna element in arrays|
|Input impedance of antenna; scan impedance of array|
|Mesh properties of metal or dielectric antenna or array structure|
|Change mesh mode of antenna structure|
|Optimize antenna or array using SADEA optimizer|
|Radiation pattern and phase of antenna or array; Embedded pattern of antenna element in array|
|Azimuth pattern of antenna or array|
|Elevation pattern of antenna or array|
|Calculate and plot radar cross section (RCS) of platform, antenna, or array|
|Return loss of antenna; scan return loss of array|
|Calculate S-parameter for antenna and antenna array objects|
|Voltage standing wave ratio of antenna|

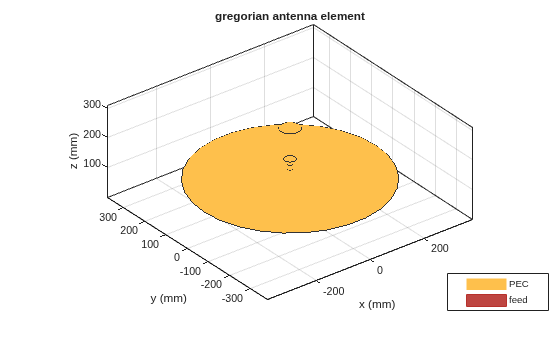

Create and view a default Gregorian antenna.
ant = gregorian
ant = gregorian with properties: Exciter: [1×1 hornConical] Radius: [0.3175 0.0330] FocalLength: [0.2536 0.1416] Tilt: 0 TiltAxis: [1 0 0] Load: [1×1 lumpedElement]

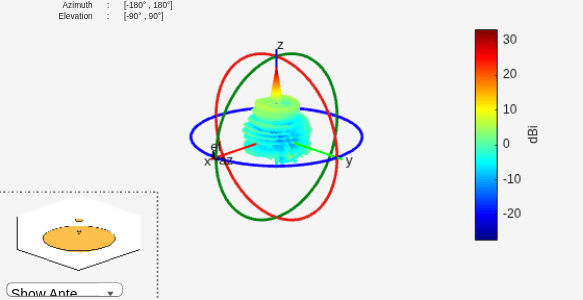

Plot the radiation pattern of the antenna at 18.48 GHz.
Create an array of vee dipole antennas.
e = dipoleVee('ArmLength',[0.03 0.03],'Width',0.01); arr = rectangularArray('Element',e,'RowSpacing',0.05,'ColumnSpacing',0.05);
Create a Gregorian antenna with rectangular array as exciter
ant = gregorian('Exciter',arr); show(ant)
A typical parabolic antenna consists of a parabolic reflector with a small feed antenna at its focus. Parabolic reflectors used in dish antennas have a large curvature and short focal length and the focal point is located near the mouth of the dish, to reduce the length of the supports required to hold the feed structure. In more complex designs, such as the cassegrain antenna, a sub reflector is used to direct the energy into the parabolic reflector from a feed antenna located away from the primary focal point. Such type of antennas can be used in satellite communications and Astronomy and other emerging modes of communications
Gregorian antenna consists of three structures:
Primary parabolic reflector
Hyperbolic convex subreflector
Focus of the main reflector and the near focus of the subreflector in the region between the two dishes. Gregorian antenna forms a shorter focal length for the main dish.
