bistaticReceiver
Description
bistaticReceiver
creates a bistatic receiver object. Bistatic radar
systems have separate transmitter and receiver elements that are not co-located. To create a
bistatic radar that supports synchronous, asynchronous, and multiple transmitter and receiver
pairs, use bistaticTransmitter
in conjunction with
bistaticReceiver
.
Receive signals from the bistatic receiver by calling the receive
object
function. Optionally collect and coherently combine signals using the collect
object
function prior to calling receive
. The nextTime
object
function returns the start time of the next receive window.
For a typical bistatic workflow, construct the bistatic transmitter using
bistaticTransmitter
and construct the bistatic receiver using
bistaticReceiver
. Then, transmit the waveform by calling
transmit
on the bistatic transmitter. Finally, call receive
on the
bistatic receiver to receive the propagated signal returned by transmit
.
For a more advanced workflow that supports multiple transmitters and parallelization, call
collect
on the
bistatic receiver to coherently combine the transmitted signal returned by
transmit
prior to calling receive
. See Transmit, Collect, and Receive Timing Visualization for more information on
simulation timing and using information provided by nextTime
.
Creation
Description
creates a bistatic
receiver object with default values, RX
= bistaticReceiverRX
, that is used to receive
signals transmitted by bistaticTransmitter
. Call
receive
on RX
to generate samples from
transmitted signals collected by the receive antenna and propagated through the
receiver.
creates a bistatic receiver object, RX
= bistaticReceiver(PropertyName=Value
)RX
, with each specified
PropertyName
set to the corresponding Value
.
You can specify additional pairs of arguments in any order as
PropertyName1=Value1
,...,PropertyNameN=ValueN
.
Properties
Radar receiver, specified as a phased.Receiver
System object™. The default receiver is a phased.Receiver
system object
with default values.
Radar receive antenna, specified as a phased.Collector
System object. The default radiator is a phased.Collector
system object
with default values. The Polarization
property of the
phased.Collector
must be set to "None"
.
Polarization
properties "Dual"
and
"Combined"
are not supported.
Receive window duration, specified as a positive scalar in units of seconds. The
receive window duration is the length of the receive window. A new receive window starts
after the WindowDuration
elapses.
WindowDuration
times SampleRate
must be
equal to an integer. After the property validation process, a warning will be given and
the WindowDuration
will be adjusted to the closest number that
satisfies this conditions, if necessary. The default value is 0.0001 seconds.
Data Types: double
Receive window idle time, specified as a nonnegative scalar in units of seconds. The
receive window idle time can be used to simulate times when the receiver is not active.
If continuous receive is desired, set WindowIdleTime
to 0. The
WindowIdleTime
times SampleRate
must be
equal to an integer. After the property validation process, a warning will be given and
the WindowIdleTime
will be adjusted to the closest number that
satisfies this conditions, if necessary. The default value is 0 seconds.
Data Types: double
Source of the maximum collect buffer duration, specified as
"Auto"
or "Property"
. When
MaxCollectDurationSource
is set to "Auto"
, the
collect buffer automatically grows to accommodate additional transmissions. When the
value is set to "Property"
, the collect buffer has a fixed duration
specified by the MaxCollectDuration
property. Transmissions that
are collected with delays that exceed the buffer duration are discarded. The default
value is "Auto"
.
Data Types: string
| char
Maximum duration of the collect buffer, specified as a non-negative scalar in units
of seconds. The collect buffer duration determines the maximum duration beyond the end
of the receive window that can be collected for the next receive window. Longer collect
durations can prevent reflections with long propagation delays from being dropped
between receive windows. The MaxCollectDuration
times the
SampleRate
must be equal to an integer. After the property
validation process, a warning will be given and the
MaxCollectDuration
will be adjusted to the closest number that
satisfies this conditions, if necessary. The default value is 1 second.
Dependencies
To enable this property, set the MaxCollectDurationSource
property to "Property"
.
Data Types: double
Sample rate, specified as a positive scalar in units of hertz.
SampleRate
relates to the WindowDuration
,
WindowIdleTime
, and MaxCollectDuration
property. The default value is 1e6 (1 MHz).
Data Types: double
Initial receive time of the start of the first receive window, specified as a non-negative scalar in units of seconds. The default value is 0 seconds.
Data Types: double
This property is read-only.
SimulationTime
indicates the current simulation time of the
bistatic radar receiver, specified in units of seconds.
Data Types: double
Object Functions
Examples
This example shows how to create a bistatic scenario with two bistatic transmitters. The receiver is located between the transmitters and there is a target with a custom radar cross section. Transmit and collect pulses for four receive windows and plot the results.
Configure the bistatic transmitters. Use a pulse repetition frequencey of 1000 Hz.
prf = 1e3; wav = phased.LinearFMWaveform(PRF=prf,PulseWidth=0.2/prf); ant = phased.SincAntennaElement(Beamwidth=10); tx1 = bistaticTransmitter(Waveform=wav, ... Transmitter=phased.Transmitter(Gain=40), ... TransmitAntenna=phased.Radiator(Sensor=ant)); tx2 = clone(tx1); prf = 2e3; tx2.Waveform = phased.RectangularWaveform( ... PRF=prf,PulseWidth=0.2/prf); tx2.Transmitter.PeakPower = 2e3;
Configure the bistatic receiver.
rx = bistaticReceiver( ... ReceiveAntenna=phased.Collector(Sensor=ant), ... WindowDuration=0.0025); freq = tx1.TransmitAntenna.OperatingFrequency;
Create bistatic transmitter platforms spaced 10 km apart. Put the receiver platform between the two transmitters. For this example, create the platforms in radarScenario.
Define the platforms using platform.
scene = radarScenario(UpdateRate=prf); tx1Plat = platform(scene,Position=[-5e3 0 0], ... Orientation=rotz(85).'); tx2Plat = platform(scene,Position=[5e3 0 0], ... Orientation=rotz(95).'); rxPlat = platform(scene,Position=[0 0 0], ... Orientation=rotz(90).');
Place a stationary target platform down range and assign the target a radar cross section.
rcsSig = rcsSignature(Pattern=20);
tgtPlat = platform(scene,Position=[0 50e3 0], ...
Signatures=rcsSig);

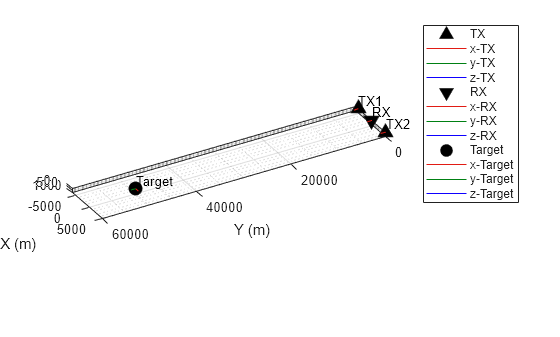

Show platform locations and orientations.
tp = theaterPlot(Parent=axes(figure)); txPltr = orientationPlotter(tp,Marker="^", ... DisplayName="TX",LocalAxesLength=1e3); rxPltr = orientationPlotter(tp,Marker="v", ... DisplayName="RX",LocalAxesLength=1e3); tgtPltr = orientationPlotter(tp,Marker="o", ... DisplayName="Target",LocalAxesLength=1e3); poses = platformPoses(scene); plotOrientation(txPltr,[poses(1:2).Orientation], ... reshape([poses(1:2).Position],3,[]).',["TX1" "TX2"]); plotOrientation(rxPltr,poses(3).Orientation,poses(3).Position,"RX"); plotOrientation(tgtPltr,poses(4).Orientation,poses(4).Position,"Target");
Transmit and collect pulses for four receive windows. First, update platform positions by calling advance
on the scene. Then set up the for loop to iterate over the receive windows. Next, get platform positions using platformPoses.
Get the propogation paths for both transmitters using bistaticFeeSpacePath
. Then, transmit the signal and collect pulses. Finally, receive the transmissions and plot the received signals.
tl = tiledlayout(figure,2,1); hAxes = [nexttile(tl) nexttile(tl)]; hold(hAxes,"on"); tx = {tx1 tx2}; advance(scene); for iRxWin = 0:4 [propSigs,propInfo] = collect(rx,scene.SimulationTime); t = min([nextTime(tx{1}) nextTime(tx{2})]); tEnd = nextTime(rx); while t <= tEnd % Get platform positions poses = platformPoses(scene); % Include target RCS signature on the pose tgtPose = poses(4); tgtPose.Signatures = {rcsSig}; for iTx = 1:2 % Calculate propogation paths proppaths = bistaticFreeSpacePath(freq, ... poses(iTx),poses(3),tgtPose); % Transmit [txSig,txInfo] = transmit(tx{iTx},proppaths,scene.SimulationTime); % Plot transmitted signal txTimes = (0:(size(txSig,1) - 1))*1/txInfo.SampleRate ... + txInfo.StartTime; plot(hAxes(1),txTimes*1e3,mag2db(max(abs(txSig),[],2)),SeriesIndex=iTx); % Collect transmitted pulses collectSigs = collect(rx,txSig,txInfo,proppaths); % Accumulate collected transmissions sz = max([size(propSigs);size(collectSigs)],[],1); propSigs = paddata(propSigs,sz) + paddata(collectSigs,sz); end t = min([nextTime(tx{1}) nextTime(tx{2})]); advance(scene); end % Receive collected transmissions [iq,rxInfo] = receive(rx,propSigs,propInfo); % Plot received transmissions rxTimes = (0:(size(iq,1) - 1))*1/rxInfo.SampleRate ... + rxInfo.StartTime; plot(hAxes(2),rxTimes*1e3,mag2db(abs(iq))); end
Label plots.
grid(hAxes,"on") title(hAxes(1),"Transmitter Signals") title(hAxes(2),"Receiver Signals") xlabel(hAxes,"Time (milliseconds)") ylabel(hAxes,"Power (dB)") ylim(hAxes(1),[0 80]); ylim(hAxes(2),[-130 -75]) xlim(hAxes(1),xlim(hAxes(2)))
This example shows how to create a simple bistatic scenario with a moving target. Transmit and collect pulses until the completion of 1 receive window and plot the results.
Configure the bistatic transmitter and receiver. Use a pulse repetition frequency of 1000 Hz.
prf = 1e3; wav = phased.LinearFMWaveform(PRF=prf,PulseWidth=1e-5); ant = phased.SincAntennaElement(Beamwidth=10); tx = bistaticTransmitter(Waveform=wav, ... Transmitter=phased.Transmitter(Gain=20), ... TransmitAntenna=phased.Radiator(Sensor=ant)); rx = bistaticReceiver( ... ReceiveAntenna=phased.Collector(Sensor=ant), ... WindowDuration=0.005); freq = tx.TransmitAntenna.OperatingFrequency;
Create bistatic transmitter and bistatic receiver platforms spaced 10 km apart and add a target platform. Use radarScenario
to crreate the platforms for this example. Define the transmitter platform, receiver platform, and target platform using platform
and give the target a trajectory.
scene = radarScenario(UpdateRate=prf); platform(scene,Position=[-5e3 0 0], ... Orientation=rotz(45).'); platform(scene,Position=[5e3 0 0], ... Orientation=rotz(135).'); traj = kinematicTrajectory( ... Position=8e3*[cosd(60) sind(60) 0],Velocity=[0 150 0]); tgtPlat= platform(scene,Trajectory=traj);
Create an empty plot.
hFig = figure; hAxes = axes(hFig);
Transmit and collect pulses for one receive window. First, update platform positions by calling advance
on the scene and then get the platform positions using platformPoses
. Next, get the propagation paths using bistaticFeeSpacePath
. Then, transmit the signal and receive pulses. Finally, plot the received signals.
t = nextTime(tx); tEnd = nextTime(rx); while t < tEnd advance(scene); % Get platform positions poses = platformPoses(scene); % Calculate paths proppaths = bistaticFreeSpacePath(freq, ... poses(1),poses(2),poses(3)); % Transmit [txSig,txInfo] = transmit(tx,proppaths,t); % Receive pulses [iq,rxInfo] = receive(rx,txSig,txInfo,proppaths); t = nextTime(tx); % Plot received signals rxTimes = (0:(size(iq,1) - 1))*1/rxInfo.SampleRate ... + rxInfo.StartTime; plot(hAxes,rxTimes,mag2db(abs(sum(iq,2)))) hold(hAxes,'on') end
Label the plot.
grid(hAxes,'on') xlabel(hAxes,'Time (sec)') ylabel(hAxes,'Power (dB)') axis(hAxes,'tight')
More About
The current simulation time, the start of the leading edge of the next transmission time
(returned by nextTime
), and the start time of the next receive window
(returned by nextTime
) are important parameters in a bistatic
simulation. In order to visualize how these simulation times relate to the transmitter pulse
repetition interval (PRI), propagation delay, and receive window, consider a bistatic
simulation in which there are two transmitters positioned along the base vertices of an
isosceles triangle with the receiver positioned at the apex of the triangle. This symmetric
geometry results in the same propagation delay for both transmitters.
For this simulation, the two transmitters have different PRIs and slightly different
transmission start times. The first transmitter, TX1, has a PRI of
PRI1. The second transmitter, TX2, has a PRI of
PRI2. The signals from both transmitters will be collected over a
duration of two PRI1 intervals. That is, the receive window for the
receiver, RX, spans two PRI1 interval lengths. The
figure below shows the current simulation time and the next transmission time returned by
nextTime
for each of five simulation steps that ends with the first
receive window.
Simulation Step 1 — The signal transmitted from the antenna elements of TX1 is propagated to the receiver antenna elements and collected after the propagation delay.
The current simulation time is the start of the transmit time for TX1.
TX2 will transmit in step 2 - Next TX2 Time is shown for reference.
TX1 will transmit again in step 3 - Next TX1 Time is shown for reference.
The returned collected signal is shifted forward in time by the propagation delay between the transmitter and the receiver.
Simulation Step 2 — The signal transmitted from the antenna elements of TX2 is propagated to the receiver antenna elements and collected after the propagation delay.
The current simulation time is the start of the transmit time for TX2, which corresponds to Next TX2 Time shown in the previous step.
TX1 will transmit in step 3 - Next TX1 Time is shown for reference.
TX2 will transmit again in step 4 - Next TX2 Time is shown for reference.
The returned collected signal is shifted forward in time by the propagation delay between the transmitter and the receiver. Signals that overlap in time are coherently combined at the receiver.
Simulation Step 3 — The next signal transmitted from the antenna elements of TX1 is propagated to the receiver antenna elements and collected after the propagation delay.
The current simulation time is the start of the transmit time for TX1, which corresponds to Next TX1 Time shown in the previous step.
TX2 will transmit in step 4 - Next TX2 Time is shown for reference.
TX1 will transmit again in step 5 - Next TX1 Time is shown for reference.
The returned collected signal is shifted forward in time by the propagation delay between the transmitter and the receiver. Signals that overlap in time are coherently combined at the receiver.
Simulation Step 4 — The next signal transmitted from the antenna elements of TX2 is propagated to the receiver antenna elements and collected after the propagation delay.
The current simulation time is the start of the transmit time for TX2, which corresponds to Next TX2 Time shown in the previous step.
TX1 will transmit in step 5 - Next TX1 Time is shown for reference.
TX2 will transmit again in step 6 (not shown) - Next TX2 Time is shown for reference.
The returned collected signal is shifted forward in time by the propagation delay between the transmitter and the receiver. Signals that overlap in time are coherently combined at the receiver.
The start of the first receive window, Next RX Time, is shown for reference.
Simulation Step 5 — All signals previously collected from TX1 and TX2 are received. The next signal transmitted from the antenna elements of TX1 is propagated to the receiver antenna elements and collected after the propagation delay.
The current simulation time is the start of the transmit time for TX1, which corresponds to Next TX1 Time shown in the previous step. The receive window also starts at the current simulation time, which corresponds to Next RX Time shown in the previous step.
TX2 will transmit in step 6 (not shown) - Next TX2 Time is shown for reference.
TX1 will transmit again in step 7 (not shown) - Next TX1 Time is shown for reference.
The returned collected signal is shifted forward in time by the propagation delay between the transmitter and the receiver. Signals that overlap in time are coherently combined at the receiver.
The receive window extends back in time for the length of the receive window to receive the previously collected transmitted signals. The next receive window will start after two PRI1 intervals (not shown).
Version History
Introduced in R2025a
