dipole

Create regular or AI-based strip dipole antenna

Description

The dipole object is a strip dipole antenna on the yz-plane.

The width of the dipole is related to the diameter of an equivalent cylindrical dipole by the equation

w=2d=4r

where:

  • d is the diameter of equivalent cylindrical dipole.

  • r is the radius of equivalent cylindrical dipole.

For a given cylinder radius, use the cylinder2strip utility function to calculate the equivalent width. The default strip dipole is center-fed. The feed point coincides with the origin. The origin is located on the yz-plane.

You can perform full-wave EM solver based analysis on the regular dipole antenna or you can create a dipole type AIAntenna and explore the design space to tune the antenna for your application using AI-based analysis.

dipole antenna

Creation

Description

d = dipole creates a half-wavelength strip dipole antenna on the yz-plane.

example

d = dipole(Name=Value) creates a dipole antenna, with additional Properties specified by one or more name-value arguments. Name is the property name and Value is the corresponding value. You can specify several name-value pair arguments in any order as Name1=Value1, ..., NameN=ValueN. Properties that you do not specify retain their default values.

  • You can also create a dipole antenna resonating at a desired frequency using the design function.

  • You can also create a dipole antenna from a microstrip patch type AIAntenna object using the exportAntenna function.

  • A dipole type AIAntenna has some common tunable properties with a regular dipole antenna for AI-based analysis. Other properties of the regular dipole antenna are retained as read-only in its AIAntenna equivalent. To find the upper and lower bounds of the tunable properties, use tunableRanges function.

Properties

expand all

Dipole length, specified as a scalar in meters. The default length of 2 m is chosen for an operating frequency of 75 MHz. This property is tunable for dipole type AIAntenna object created using the design function.

Example: 3

Data Types: double

Dipole width, specified as a scalar in meters. Dipole width must be less than Length/5 and greater than Length/1001. [2]

This property is tunable for dipole type AIAntenna object created using the design function.

Example: 0.05

Data Types: double

Signed distance from center of dipole, specified as a scalar in meters. The feed location is on yz-plane.

Example: 3

Data Types: double

Type of the metal used as a conductor, specified as a metal material object. You can choose any metal from the MetalCatalog or specify a metal of your choice. For more information, see metal. For more information on metal conductor meshing, see Meshing.

Example: metal("Copper")

Lumped elements added to the antenna feed, specified as a lumpedElement object. You can add a load anywhere on the surface of the antenna. By default, the load is at the feed. For more information, see lumpedElement.

Example: lumpedElement(Impedance=75)

Tilt angle of the antenna in degrees, specified as a scalar or vector. For more information, see Rotate Antennas and Arrays.

Example: 90

Example: Tilt=[90 90],TiltAxis=[0 1 0;0 1 1] tilts the antenna at 90 degrees about the two axes defined by the vectors.

Data Types: double

Tilt axis of the antenna, specified as one of these values:

  • Three-element vector of Cartesian coordinates in meters. In this case, each coordinate in the vector starts at the origin and lies along the specified points on the x-, y-, and z-axes.

  • Two points in space, specified as a 2-by-3 matrix corresponding to two three-element vectors of Cartesian coordinates. In this case, the antenna rotates around the line joining the two points.

  • "x", "y", or "z" to describe a rotation about the x-, y-, or z-axis, respectively.

For more information, see Rotate Antennas and Arrays.

Example: [0 1 0]

Example: [0 0 0;0 1 0]

Example: "Z"

Data Types: double | string

Object Functions

axialRatioAxial ratio of antenna
beamwidthBeamwidth of antenna
chargeCharge distribution on antenna or array surface
currentCurrent distribution on antenna or array surface
designDesign prototype antenna or arrays for resonance around specified frequency or create AI-based antenna from antenna catalog objects
efficiencyRadiation efficiency of antenna
EHfieldsElectric and magnetic fields of antennas or embedded electric and magnetic fields of antenna element in arrays
impedanceInput impedance of antenna or scan impedance of array
infoDisplay information about antenna or array
meshMesh properties of metal, dielectric antenna, or array structure
meshconfigChange meshing mode of antenna, array, custom antenna, custom array, or custom geometry
optimizeOptimize antenna or array using SADEA optimizer
patternPlot radiation pattern and phase of antenna or array or embedded pattern of antenna element in array
patternAzimuthAzimuth plane radiation pattern of antenna or array
patternElevationElevation plane radiation pattern of antenna or array
rcsCalculate and plot radar cross section (RCS) of platform, antenna, or array
returnLossReturn loss of antenna or scan return loss of array
showDisplay antenna, array structures, shapes, or platform
sparametersCalculate S-parameters for antennas and antenna arrays
vswrVoltage standing wave ratio (VSWR) of antenna or array element

Examples

collapse all

Create and view a dipole with 2 m length and 0.5 m width.

d = dipole(Width=0.05)
d =
  dipole with properties:

        Length: 2
         Width: 0.0500
    FeedOffset: 0
     Conductor: [1x1 metal]
          Tilt: 0
      TiltAxis: [1 0 0]
          Load: [1x1 lumpedElement]

show(d)

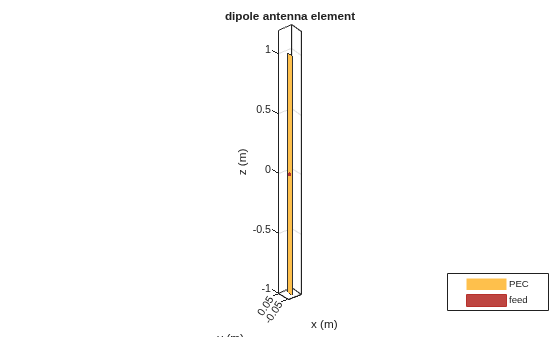

Figure contains an axes object. The axes object with title dipole antenna element, xlabel x (m), ylabel y (m) contains 3 objects of type patch, surface. These objects represent PEC, feed.

Calculate the impedance of a dipole over a frequency range of 50 MHz - 100 MHz.

d = dipole(Width=0.05);
impedance(d,linspace(50e6,100e6,51))

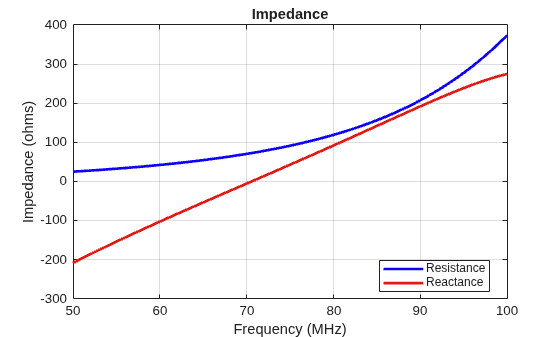

Figure contains an axes object. The axes object with title Impedance, xlabel Frequency (MHz), ylabel Impedance (ohms) contains 2 objects of type line. These objects represent Resistance, Reactance.

Design a dipole antenna backed by a dielectric substrate and an infinite reflector.

Create a dipole antenna of length, 0.15 m, and width, 0.015 m.

d = dipole(Length=0.15,Width=0.015,Tilt=90,TiltAxis=[0 1 0]);

Create a reflector using the dipole antenna as an exciter and the dielectric, teflon as the substrate.

t = dielectric("Teflon")
t =
  dielectric with properties:

           Name: 'Teflon'
       EpsilonR: 2.1000
    LossTangent: 2.0000e-04
      Thickness: 0.0060

For more materials see catalog

rf = reflector(Exciter=d,Spacing=7.5e-3,Substrate=t);

Set the groundplane length of the reflector to inf. View the structure.

rf.GroundPlaneLength = inf;
show(rf)

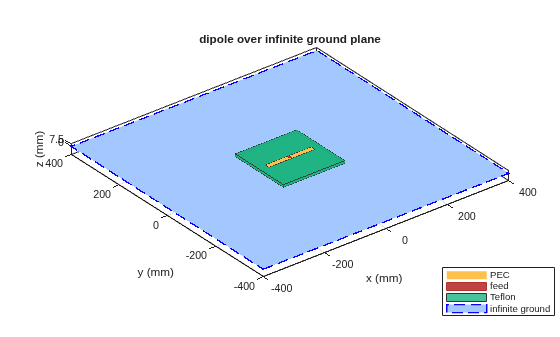

Figure contains an axes object. The axes object with title dipole over infinite ground plane, xlabel x (mm), ylabel y (mm) contains 5 objects of type patch, surface. These objects represent PEC, feed, Teflon, infinite ground.

Calculate the radiation pattern of the antenna at 70 MHz.

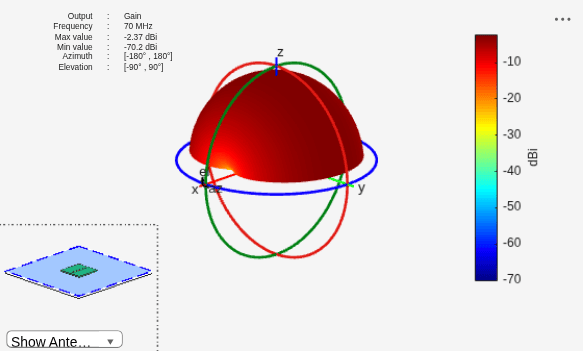

pattern(rf,70e6)

Figure contains an axes object and other objects of type uicontrol. The axes object contains 5 objects of type patch, surface. These objects represent Teflon, infinite ground.

This example shows how to create an AI model based dipole antenna at 75 MHz and calculate its resonant frequency.

dAI = design(dipole,75e6,ForAI=true)
dAI =
  AIAntenna with properties:

   Antenna Info
               AntennaType: 'dipole'
    InitialDesignFrequency: 75000000

   Tunable Parameters
                    Length: 1.8787
                     Width: 0.0400

Use 'showReadOnlyProperties(dAI)' to show read-only properties

Vary its length and width and calculate its resonant frequency.

dAI.Length = 1.86;
dAI.Width = 0.045;
resonantFrequency(dAI)
ans = 7.5191e+07

Convert the AIAntenna to a regular dipole antenna.

d = exportAntenna(dAI)
d =
  dipole with properties:

        Length: 1.8600
         Width: 0.0450
    FeedOffset: 0
     Conductor: [1x1 metal]
          Tilt: 0
      TiltAxis: [1 0 0]
          Load: [1x1 lumpedElement]

References

[1] Balanis, Constantine A. Antenna Theory: Analysis and Design. Fourth edition. Hoboken, New Jersey: Wiley, 2016.

[2] Volakis, John. Antenna Engineering Handbook, 4th Ed. New York: Mcgraw-Hill, 2007.
