fractalSnowflake

Create fractal Koch snowflake antenna

Since R2020a

Description

The fractalSnowflake object creates a Koch snowflake fractal antenna. These fractal antennas are used in mobile phone, Wi-Fi®, and radar applications.

A fractal antenna uses a fractal, a self-similar design that is repeated in different dimensions so as to maximize effective the length or increase the perimeter of the material that transmits or receives electromagnetic radiation. This makes the fractal antennas compact and therefore suitable for use in small and complex circuits. Fractal antennas also have higher input impedance or resistance due to their length or increased perimeter.

All fractal antennas are printed structures that are etched on a dielectric substrate.

Creation

Description

example

ant = fractalSnowflake creates a Koch’s snowflake fractal antenna. The default fractal is centered at the origin, and the number of iterations is set to 2. The length of the fractal is for an operating frequency of 4.15 GHz.

example

ant = fractalSnowflake(Name,Value) sets properties using one or more name-value pairs. For example, ant = fractalSnowflake('Numiterations',4) creates a Koch's snowflake with four iterations.

Properties

expand all

Number of iterations performed on the fractal antenna, specified as a scalar integer.

Example: 'NumIterations',4

Example: ant.NumIterations = 4

Data Types: double

Length of the side of the equilateral triangle in fractal snowflake, specified as a positive scalar integer in meters.

Example: 'Length',0.5000

Example: ant.Length = 0.5000

Data Types: double

Height of the fractal from the ground plane along z-axis, specified as a positive scalar integer in meters.

Example: 'Height',0.0050

Example: ant.Height = 0.0050

Data Types: double

Type of dielectric material used as a substrate, specified as an dielectric object. For more information, see dielectric. For more information on dielectric substrate meshing, see Meshing.

Example: d = dielectric('FR4'); ant = fractalSnowflake('Substrate',d)

Example: ant= fractalSnowflake('Substrate',dielectric('Name','RO4003C','EpsilonR',3.38,'LossTangent',0.0027,'Thickness',0.508e-3))

Data Types: string | char

Length of the ground plane, specified as a positive scalar integer in meters.

Example: 'GroundPlaneLength',0.0550

Example: ant.GroundPlaneLength = 0.0550

Data Types: double

Width of the ground plane, specified as a positive scalar integer in meters.

Example: 'GroundPlaneWidth',0.0550

Example: ant.GroundPlaneWidth = 0.0550

Data Types: double

Signed distance of fractal snowflake center from origin, specified as a two-element real-valued vector with each element unit in meters. The distance is measured along the length and width of the ground plane.

Example: 'FractalCenterOffset',[0 0.080]

Example: ant.FractalCenterOffset = [0 0.080]

Data Types: double

Signed distance of the feed from the origin, specified as a two-element real-valued vector with each element unit in meters.

Example: 'FeedOffset',[0 0.080]

Example: ant.FeedOffset = [0 0.080]

Data Types: double

Diameter of the feed, measured in meters.

Example: 'FeedDiameter',0.001

Type of the metal used as a conductor, specified as a metal material object. You can choose any metal from the MetalCatalog or specify a metal of your choice. For more information, see metal. For more information on metal conductor meshing, see Meshing.

Example: m = metal('Copper'); 'Conductor',m

Example: m = metal('Copper'); ant.Conductor = m

Tilt angle of the antenna in degrees, specified as a scalar or vector. For more information, see Rotate Antennas and Arrays.

Example: 90

Example: Tilt=[90 90],TiltAxis=[0 1 0;0 1 1] tilts the antenna at 90 degrees about the two axes defined by the vectors.

Data Types: double

Tilt axis of the antenna, specified as one of these values:

  • Three-element vector of Cartesian coordinates in meters. In this case, each coordinate in the vector starts at the origin and lies along the specified points on the x-, y-, and z-axes.

  • Two points in space, specified as a 2-by-3 matrix corresponding to two three-element vectors of Cartesian coordinates. In this case, the antenna rotates around the line joining the two points.

  • "x", "y", or "z" to describe a rotation about the x-, y-, or z-axis, respectively.

For more information, see Rotate Antennas and Arrays.

Example: [0 1 0]

Example: [0 0 0;0 1 0]

Example: "Z"

Data Types: double | string

Lumped elements added to the antenna feed, specified as a lumpedelement object. You can add a load anywhere on the surface of the antenna. By default, the load is at the feed. lumpedelement is the object for the load created using lumpedElement. For more information, see lumpedElement.

Example: 'Load',lumpedelement.

Example: ant.Load = lumpedElement('Impedance',75,'Frequency',2.9e6,'location',[20e-3 1e-3 1.5e-3])

Object Functions

showDisplay antenna, array structures, shapes, or platform
impedanceInput impedance of antenna or scan impedance of array
sparametersCalculate S-parameters for antennas and antenna arrays
rcsCalculate and plot radar cross section (RCS) of platform, antenna, or array
returnLossReturn loss of antenna or scan return loss of array
vswrVoltage standing wave ratio (VSWR) of antenna or array element
optimizeOptimize antenna or array using SADEA optimizer
patternPlot radiation pattern and phase of antenna or array or embedded pattern of antenna element in array
patternAzimuthAzimuth plane radiation pattern of antenna or array
patternElevationElevation plane radiation pattern of antenna or array
axialRatioAxial ratio of antenna
beamwidthBeamwidth of antenna
currentCurrent distribution on antenna or array surface
chargeCharge distribution on antenna or array surface
efficiencyRadiation efficiency of antenna
EHfieldsElectric and magnetic fields of antennas or embedded electric and magnetic fields of antenna element in arrays
meshMesh properties of metal, dielectric antenna, or array structure
designDesign prototype antenna or arrays for resonance around specified frequency or create AI-based antenna from antenna catalog objects

Examples

collapse all

Create and View fractal Koch snowflake antenna object with default properties.

ant = fractalSnowflake
ant =
  fractalSnowflake with properties:

                 Length: 0.0900
          NumIterations: 2
                 Height: 0.0015
              Substrate: [1x1 dielectric]
      GroundPlaneLength: 0.1000
       GroundPlaneWidth: 0.1100
    FractalCenterOffset: [0 0]
             FeedOffset: [0 0]
           FeedDiameter: 0.0020
              Conductor: [1x1 metal]
                   Tilt: 0
               TiltAxis: [1 0 0]
                   Load: [1x1 lumpedElement]

show(ant)

Figure contains an axes object. The axes object with title fractalSnowflake antenna element, xlabel x (mm), ylabel y (mm) contains 5 objects of type patch, surface. These objects represent PEC, feed.

Create and view fractal Koch snowflake on a substrate with a dielectric constant of 4 and thickness of 1.5e-3.

 ant = fractalSnowflake('Substrate', dielectric('EpsilonR',4,...
          'Thickness',1.5e-3));
    show(ant);

Figure contains an axes object. The axes object with title fractalSnowflake antenna element, xlabel x (mm), ylabel y (mm) contains 6 objects of type patch, surface. These objects represent PEC, feed, Air.

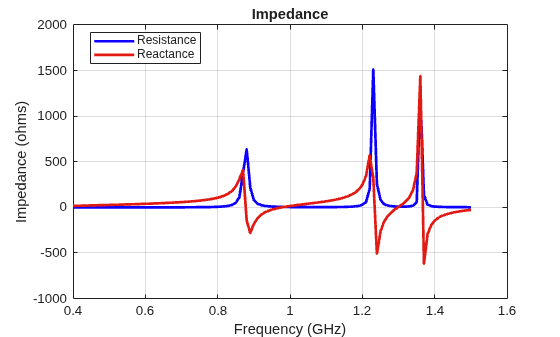

Create a fractal Koch snowflake antenna and plot its impedance over a frequency range of 400-1500 MHz.

ant = fractalSnowflake('Length',180e-3,'GroundPlaneLength',280e-3,...
          'GroundPlaneWidth',240e-3,'Height',5e-3,'FeedOffset',...
          [75e-3,-45e-3]);
figure
impedance(ant,(400:10:1500)*1e6)

Figure contains an axes object. The axes object with title Impedance, xlabel Frequency (GHz), ylabel Impedance (ohms) contains 2 objects of type line. These objects represent Resistance, Reactance.

Version History

Introduced in R2020a
