cloverleaf

Create three-petal cloverleaf antenna

Description

Use the cloverleaf object to create a three-petal cloverleaf antenna. The default cloverleaf has 3 petals and operates at around 5.8 GHz. It has a wideband circular polarization and an omnidirectional antenna.

Creation

Description

example

cl = cloverleaf creates a three-petal cloverleaf antenna.

cl = cloverleaf(Name,Value) sets properties using one or more name-value pairs. For example, cl = cloverleaf('NumPetals',4) creates a five-petal cloverleaf antenna. Enclose each property name in quotes.

Properties

expand all

Number of petals, specified as a scalar.

Example: 'NumPetals',4

Example: cl.NumPetals = 4

Data Types: double

Total length of leaf, specified as a scalar in meters.

Example: 'PetalLength',0.0025

Example: cl.PetalLength = 0.0025

Data Types: double

Leaf strip width, specified as a scalar in meters.

Example: 'PetalWidth',0.001

Example: cl.PetalWidth = 0.001

Data Types: double

Leaf flare angle, specified as a scalar in degrees.

Example: 'FlareAngle',100

Example: cl.FlareAngle = 100

Data Types: double

Type of the metal used as a conductor, specified as a metal material object. You can choose any metal from the MetalCatalog or specify a metal of your choice. For more information, see metal. For more information on metal conductor meshing, see Meshing.

Example: m = metal('Copper'); 'Conductor',m

Example: m = metal('Copper'); ant.Conductor = m

Lumped elements added to the antenna feed, specified as a lumped element object. You can add a load anywhere on the surface of the antenna. By default, it is at the origin. For more information, see lumpedElement.

Example: 'Load',lumpedelement. lumpedelement is the object for the load created using lumpedElement.

Example: cl.Load = lumpedElement('Impedance',75)

Data Types: double

Tilt angle of the antenna in degrees, specified as a scalar or vector. For more information, see Rotate Antennas and Arrays.

Example: 90

Example: Tilt=[90 90],TiltAxis=[0 1 0;0 1 1] tilts the antenna at 90 degrees about the two axes defined by the vectors.

Data Types: double

Tilt axis of the antenna, specified as one of these values:

  • Three-element vector of Cartesian coordinates in meters. In this case, each coordinate in the vector starts at the origin and lies along the specified points on the x-, y-, and z-axes.

  • Two points in space, specified as a 2-by-3 matrix corresponding to two three-element vectors of Cartesian coordinates. In this case, the antenna rotates around the line joining the two points.

  • "x", "y", or "z" to describe a rotation about the x-, y-, or z-axis, respectively.

For more information, see Rotate Antennas and Arrays.

Example: [0 1 0]

Example: [0 0 0;0 1 0]

Example: "Z"

Data Types: double | string

Object Functions

showDisplay antenna, array structures, shapes, or platform
infoDisplay information about antenna or array
axialRatioAxial ratio of antenna
beamwidthBeamwidth of antenna
chargeCharge distribution on antenna or array surface
currentCurrent distribution on antenna or array surface
designDesign prototype antenna or arrays for resonance around specified frequency or create AI-based antenna from antenna catalog objects
efficiencyRadiation efficiency of antenna
EHfieldsElectric and magnetic fields of antennas or embedded electric and magnetic fields of antenna element in arrays
impedanceInput impedance of antenna or scan impedance of array
meshMesh properties of metal, dielectric antenna, or array structure
meshconfigChange meshing mode of antenna, array, custom antenna, custom array, or custom geometry
optimizeOptimize antenna or array using SADEA optimizer
patternPlot radiation pattern and phase of antenna or array or embedded pattern of antenna element in array
patternAzimuthAzimuth plane radiation pattern of antenna or array
patternElevationElevation plane radiation pattern of antenna or array
rcsCalculate and plot radar cross section (RCS) of platform, antenna, or array
returnLossReturn loss of antenna or scan return loss of array
sparametersCalculate S-parameters for antennas and antenna arrays
vswrVoltage standing wave ratio (VSWR) of antenna or array element

Examples

collapse all

Create and view a default cloverleaf antenna.

cl = cloverleaf
cl =
  cloverleaf with properties:

      NumPetals: 3
    PetalLength: 0.0515
     PetalWidth: 8.0000e-04
     FlareAngle: 105
      Conductor: [1x1 metal]
           Tilt: 0
       TiltAxis: [1 0 0]
           Load: [1x1 lumpedElement]

show(cl)

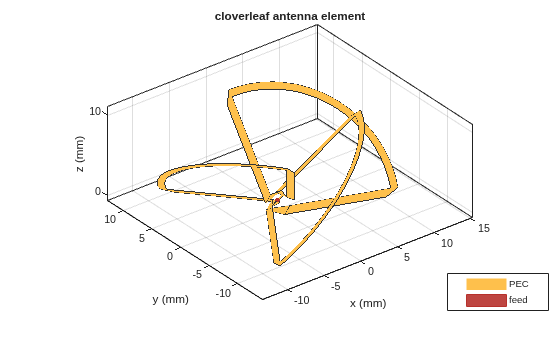

Figure contains an axes object. The axes object with title cloverleaf antenna element, xlabel x (mm), ylabel y (mm) contains 10 objects of type patch, surface. These objects represent PEC, feed.

Create a cloverleaf antenna.

cl = cloverleaf;
show(cl);

Figure contains an axes object. The axes object with title cloverleaf antenna element, xlabel x (mm), ylabel y (mm) contains 10 objects of type patch, surface. These objects represent PEC, feed.

Plot the axial ratio of the antenna from 5 GHz to 6 GHz.

freq = linspace(5e9,6e9,101);
axialRatio(cl,freq,0,0);

Figure contains an axes object. The axes object with title Axial ratio, xlabel Frequency (GHz), ylabel Axial ratio (dB) contains an object of type line.

The axial ratio plot shows that the antenna supports circular polarization over the entire frequency range.

Version History

Introduced in R2017b
