lpda
Create printed log-periodic dipole array antenna
Description

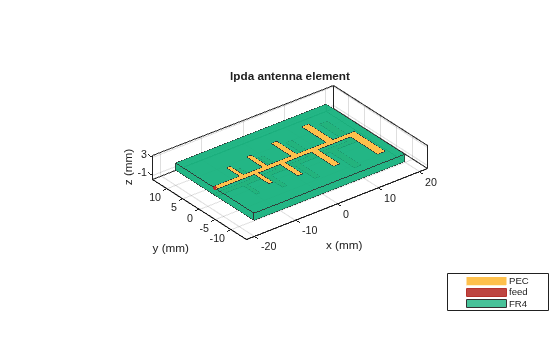

Use the lpda
object to create a printed log-periodic dipole
array antenna. The default antenna is centered at the origin and uses an FR4 substrate.
This antenna is widely used in communication and radar due to advantages such as
wideband, high gain, and high directivity.
Creation
Description
lpdipole = lpda
creates a printed log-periodic dipole
array antenna using default property values.
lpdipole = lpda(Name,Value)
sets properties using one
or more name-value pairs. For example, lpdipole =
lpda('BoardLength',0.2)
creates a printed log-periodic dipole
array with a board length of 0.2 m.
Note
Properties which are not specified retain their default values.
Properties
Object Functions
show | Display antenna, array structures, shapes, or platform |
axialRatio | Axial ratio of antenna |
beamwidth | Beamwidth of antenna |
charge | Charge distribution on antenna or array surface |
current | Current distribution on antenna or array surface |
efficiency | Radiation efficiency of antenna |
EHfields | Electric and magnetic fields of antennas or embedded electric and magnetic fields of antenna element in arrays |

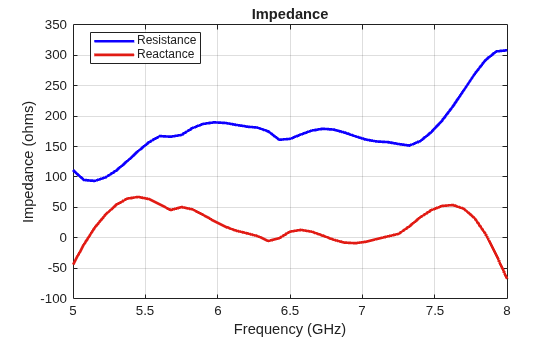

impedance | Input impedance of antenna or scan impedance of array |
mesh | Mesh properties of metal, dielectric antenna, or array structure |
meshconfig | Change meshing mode of antenna, array, custom antenna, custom array, or custom geometry |
optimize | Optimize antenna or array using SADEA optimizer |

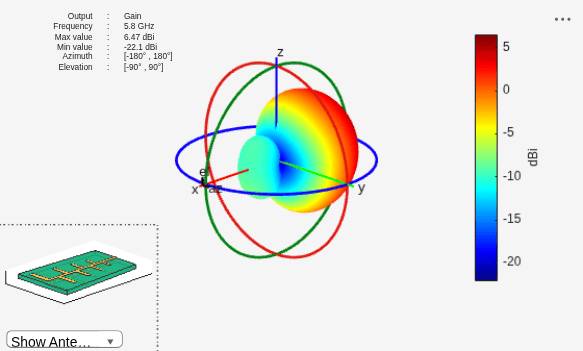

pattern | Plot radiation pattern and phase of antenna or array or embedded pattern of antenna element in array |
patternAzimuth | Azimuth plane radiation pattern of antenna or array |
patternElevation | Elevation plane radiation pattern of antenna or array |
rcs | Calculate and plot radar cross section (RCS) of platform, antenna, or array |
returnLoss | Return loss of antenna or scan return loss of array |
sparameters | Calculate S-parameters for antennas and antenna arrays |
vswr | Voltage standing wave ratio (VSWR) of antenna or array element |
Examples
Version History
Introduced in R2018a
