bicone
Description
The bicone
object creates a bicone antenna. A bicone

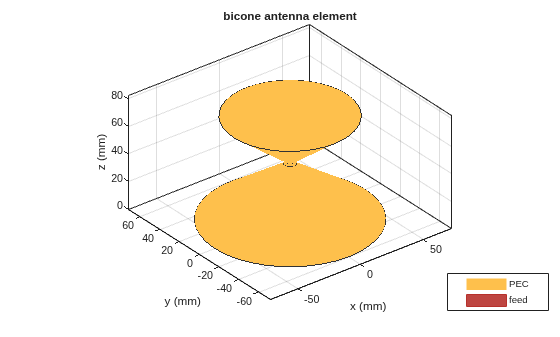

antenna consists of two symmetrical or asymmetrical cones separated by a small gap. The
feed spans the gap and connects both the cones.
Bicone antennas are broadband omnidirectional antennas used for electronic support measure (ESM) applications. Bicone antennas are often used in electromagnetic interference (EMI) testing for immunity testing or emissions testing.
Creation
Description

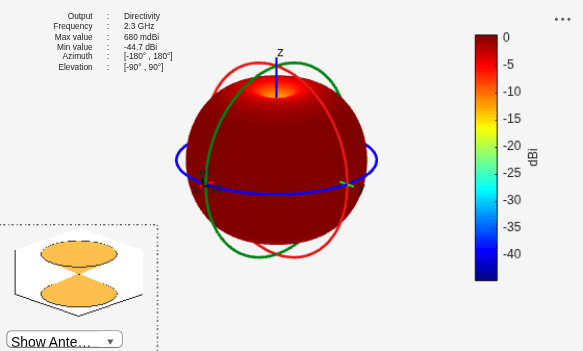

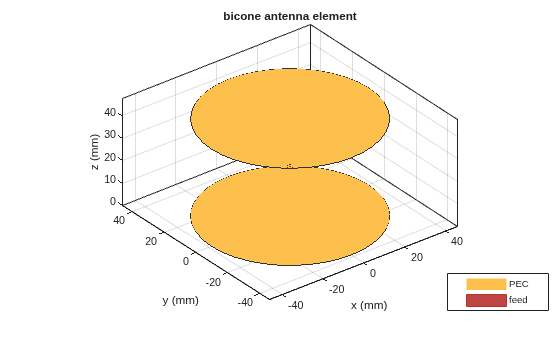

creates a bicone
antenna with dimensions for a resonant frequency of 2.3 GHz. The default
bicone has a feedpoint at the apex of the top cone.ant
= bicone
sets
properties using one or more name-value pairs. For example, ant
= bicone(Name,Value)ant =
bicone('Height',1)
creates a bicone antenna with a cone of
height 1 meter.
Properties
Object Functions
coneangle2size | Calculates equivalent cone height, broad radius, and narrow radius |
show | Display antenna, array structures, shapes, or platform |
axialRatio | Axial ratio of antenna |
beamwidth | Beamwidth of antenna |
charge | Charge distribution on antenna or array surface |
current | Current distribution on antenna or array surface |
design | Design prototype antenna or arrays for resonance around specified frequency or create AI-based antenna from antenna catalog objects |
efficiency | Radiation efficiency of antenna |
EHfields | Electric and magnetic fields of antennas or embedded electric and magnetic fields of antenna element in arrays |

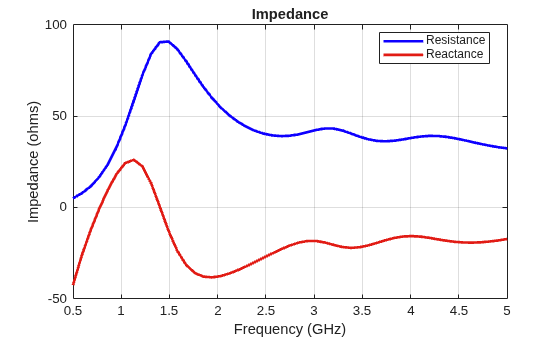

impedance | Input impedance of antenna or scan impedance of array |
mesh | Mesh properties of metal, dielectric antenna, or array structure |
meshconfig | Change meshing mode of antenna, array, custom antenna, custom array, or custom geometry |
optimize | Optimize antenna or array using SADEA optimizer |
pattern | Plot radiation pattern and phase of antenna or array or embedded pattern of antenna element in array |
patternAzimuth | Azimuth plane radiation pattern of antenna or array |
patternElevation | Elevation plane radiation pattern of antenna or array |
rcs | Calculate and plot radar cross section (RCS) of platform, antenna, or array |
returnLoss | Return loss of antenna or scan return loss of array |
sparameters | Calculate S-parameters for antennas and antenna arrays |
vswr | Voltage standing wave ratio (VSWR) of antenna or array element |
Examples
References
[1] Kudpik, Rapin & Komask Meksamoot, Nipapon Siripon, and Sompol Kosulvit. "Design of a Compact Biconical Antenna for UWB Applications." 10.1109/ISPACS.2011.6146212.
Version History
Introduced in R2019b
