bowtieTriangular
Create planar bowtie dipole antenna
Description
The bowtieTriangular
object is a planar bowtie antenna on
the yz-plane. The default planar bowtie dipole is center-fed. The
feed point coincides with the origin. The origin is located on the
yz-plane.
Creation
Description
creates a
half-wavelength planar bowtie antenna.bt
= bowtieTriangular
creates a planar bowtie antenna with additional Properties specified by one or more name-value
arguments. bt
= bowtieTriangular(Name=Value)Name
is the property name and
Value
is the corresponding value. You can specify
several name-value pair arguments in any order as
Name1=Value1
, ...
,
NameN=ValueN
. Properties that you do not specify
retain their default values.
Properties
Object Functions
axialRatio | Axial ratio of antenna |
beamwidth | Beamwidth of antenna |
charge | Charge distribution on antenna or array surface |
current | Current distribution on antenna or array surface |
design | Design prototype antenna or arrays for resonance around specified frequency or create AI-based antenna from antenna catalog objects |
efficiency | Radiation efficiency of antenna |
EHfields | Electric and magnetic fields of antennas or embedded electric and magnetic fields of antenna element in arrays |

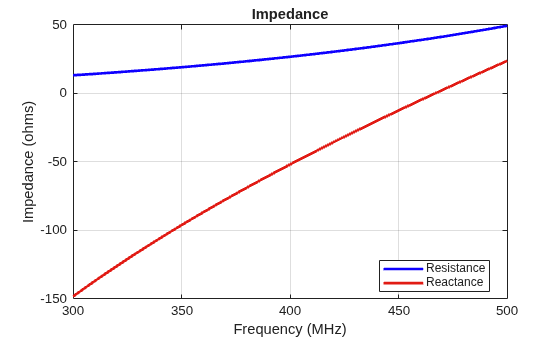

impedance | Input impedance of antenna or scan impedance of array |
info | Display information about antenna or array |
mesh | Mesh properties of metal, dielectric antenna, or array structure |
meshconfig | Change meshing mode of antenna, array, custom antenna, custom array, or custom geometry |
optimize | Optimize antenna or array using SADEA optimizer |
pattern | Plot radiation pattern and phase of antenna or array or embedded pattern of antenna element in array |
patternAzimuth | Azimuth plane radiation pattern of antenna or array |
patternElevation | Elevation plane radiation pattern of antenna or array |
rcs | Calculate and plot radar cross section (RCS) of platform, antenna, or array |
returnLoss | Return loss of antenna or scan return loss of array |

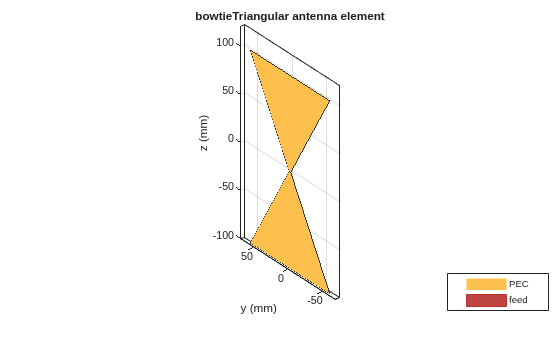

show | Display antenna, array structures, shapes, or platform |
sparameters | Calculate S-parameters for antennas and antenna arrays |
vswr | Voltage standing wave ratio (VSWR) of antenna or array element |
Examples
References
[1] Balanis, C.A.Antenna Theory: Analysis and Design.3rd Ed. New York: Wiley, 2005.
[2] Brown, G.H., and O.M. Woodward Jr. “Experimentally Determined Radiation Characteristics of Conical and Triangular Antennas”. RCA Review. Vol.13, No.4, Dec.1952, pp. 425–452
Version History
Introduced in R2015a
